Product Introduction

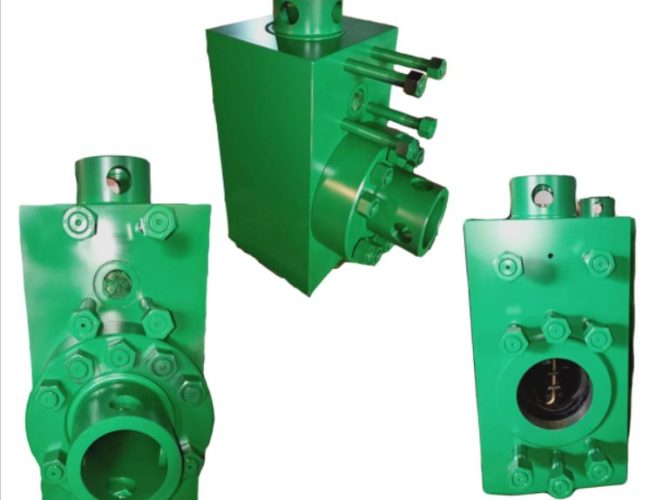

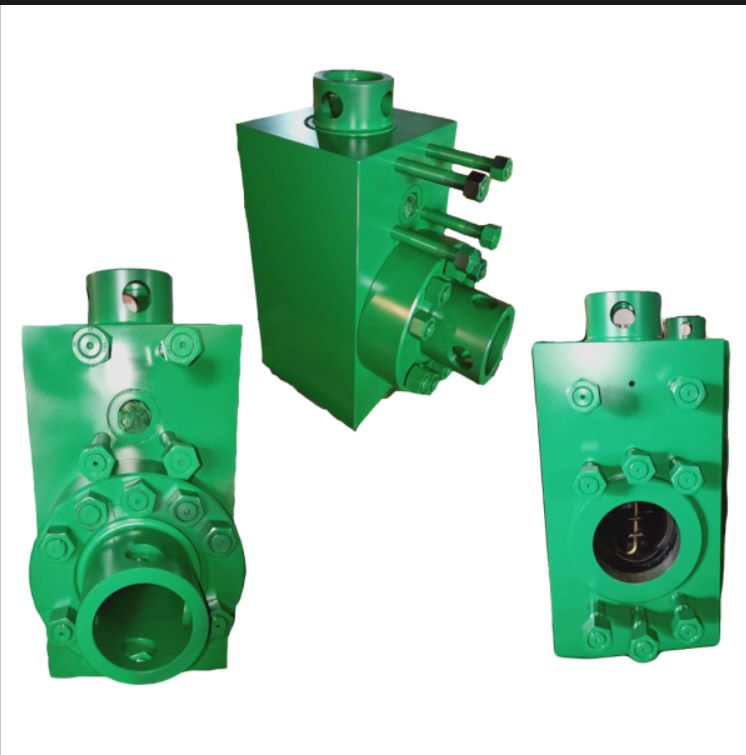

We supply a complete range of high-grade, OEM-compatible fluid end replacement parts for the National 10-P-130 triplex mud pump, covering all listed part numbers for full operational coverage. The product line includes fully assembled modules (with or without studs), complete stud and nut sets, individual wear components, sealing gaskets and specialized hardware, available as individual components, modular assemblies or full overhaul kits. Each part undergoes strict dimensional verification, non-destructive strength testing and material certification to ensure consistent performance under extreme drilling conditions, with no on-site modification, grinding or secondary machining required for installation. These parts are designed to support daily routine maintenance, scheduled preventive overhauls, emergency field repairs and full fluid end replacement projects.
Core Functional Specifications
Every premium National 10-P-130 fluid end component delivers field-proven, reliable performance under harsh operating conditions, with verified authoritative engineering metrics:
- Extreme High-Pressure Resistance: Built to withstand sustained operating pressures up to 7,500 PSI, effectively handling pressure spikes and hydraulic shock common in medium to deep well drilling operations.
- Superior Wear & Fatigue Resistance: Forged high-strength alloy construction resists cracking, abrasion and metal fatigue from prolonged high-cycle reciprocating operation.
- Precision Sealing Performance: Custom-molded, high-density gaskets and precision-machined mating surfaces create zero-leakage seals, eliminating mud leakage and pressure loss.
- Perfect OEM Fitment: Exact OEM dimensional tolerances ensure direct drop-in installation, perfect component alignment and consistent assembly compatibility.
- Long-Service Durability: Premium materials and precision manufacturing extend service intervals and reduce frequent, costly replacement needs.
Structural Characteristics
Our National 10-P-130 fluid end parts feature a heavy-duty, field-optimized structural design built for reliability and simplified maintenance:
- Forged Alloy Construction: All load-bearing components use high-strength forged alloy steel, eliminating porosity and weak points found in lower-quality cast parts.
- Reinforced Stress Points: Critical hydraulic load areas are reinforced to resist cracking and deformation under extreme pressure and continuous vibration.
- Standardized OEM Interface: Uniform mounting patterns, thread specifications and mating surfaces match original factory designs for seamless, error-free assembly.
Applicable Operating Conditions
These premium National 10-P-130 fluid end parts are engineered to perform reliably in the harshest oilfield drilling and well service environments:
- Heavy-Duty Drilling Operations: Onshore medium to deep well drilling, conventional drilling, well workover and well cementing operations, supporting 24/7 uninterrupted heavy-load operation.
- High-Abrasion Fluid Environments: Fully compatible with sand-heavy, high-solid-content and mildly corrosive drilling mud formulations.
- Extreme High-Pressure Systems: Rated for sustained 7,500 PSI operating pressure, handling frequent pressure spikes and hydraulic shock events.
- Harsh Outdoor Environments: Performs reliably in desert, mountain, cold-climate and high-temperature rig sites, with an operating temperature range of -40°F to 85°F.
Maintenance & Care Recommendations
Follow these field-proven maintenance protocols to maximize fluid end lifespan and pump operational stability:
- Daily Inspection: Check all mating surfaces for external mud leakage, inspect mounting studs for tension loss, and monitor for abnormal vibration or knocking noise.
- Weekly Maintenance: Clean all gasket sealing surfaces, inspect liner bushings for wear, and check wedge assembly and valve guide holder alignment.
- Monthly Wear Assessment: Inspect wear plates for thickness loss, check threaded components for damage, and re-torque all mounting studs to OEM specifications.
- Scheduled Overhaul: Replace all gaskets, worn liner bushings and damaged hardware every 6-8 months under heavy continuous use; conduct a full fluid end structural inspection annually.
We supply the following spare parts:
| Item | Part Number | Description |
| 1 | 1290335-P | Discharge Module with Studs |
| 1290336-P | Discharge Module – No Studs | |
| 2 | 1290338-P | Suction Module with Studs |
| 1290339-P | Suction Module – No Studs | |
| 3 | 2408020-P | Stud with Nut – Frame |
| 4 | 2408018-P | Stud with Nut – Liner Bushing |
| 5 | 2408034-P | Stud with Nut – Suction to Discharge Module |
| 6 | 2408019-P | Stud with Nut – Threaded Ring |
| 7 | 2402560-P | Stud with Nut – Discharge Spacer |
| STUDSET-10P130-P | Stud Set with Nuts (Complete) | |
| 8 | 1290348-P | Discharge Spacer |
| 9 | 1290165-P | Liner Bushing |
| 10 | 1290174-P | Retainer |
| 11 | 1290307-P | Valve Cover |
| 12 | 1290178-P | Screw – Wedge Adjusting |
| 13 | 1290308-P | Threaded Ring |
| 14 | 1290376-P | Wedge Assembly with Spring |
| 15 | 0893-P | Gasket – Valve Cover |
| 16 | 1292140-P | Holder with Bushing- Valve Guide |
| 17 | 6511416-P | Pin – Suction to Discharge |
| 18 | 1290357-P | Wear Plate |
| 19 | 1290342-P | Discharge Gonn^ctor |
| 20 | 1290343-P | Adapter – Discharg© Gonnector |
| 21 | 0892-P | Gasket – Discharge Connector |
| 22 | 0891-P | Gasket – Adapter and Discharge Connector |
| 23 | 1290166-P | Clamp – Liner |
| 24 | 0890-P | Gasket – Wear plate/Suction Module to Discharge Module |
| 25 | 0889-P | Gasket – Suction Manifold |
Field Fault Repair Cases
Case 1: High-Pressure Leakage from Worn Valve Cover Gasket
A National 10-P-130 mud pump developed severe high-pressure mud leakage at the valve cover joint during well drilling operations, causing consistent pressure loss and reduced pumping efficiency. Field inspection revealed a hardened, degraded 0893-P valve cover gasket that failed to maintain a tight seal under high pressure. Maintenance crews replaced the gasket with a premium OEM-matched 0893-P unit, re-torqued all valve cover fasteners to specification, and fully resolved the leakage issue, restoring full pump pressure.
Case 2: Liner Bushing Wear Causing Operational Instability
A National 10-P-130 pump showed unstable mud flow, abnormal equipment vibration and minor internal fluid leakage, directly impacting drilling progress. Inspection showed excessive wear on the 1290165-P liner bushing surfaces, leading to poor component alignment and reduced sealing performance. Replacing the worn liner bushing and re-aligning the fluid end assembly eliminated instability and restored smooth, consistent pump operation.
Case 3: Fatigued Mounting Stud Causing Module Misalignment
A suction module on a National 10-P-130 pump shifted during operation, causing uneven sealing and persistent minor mud leakage. The issue stemmed from stretched, fatigued 2408034-P suction-to-discharge mounting studs that lost clamping force. Replacing the damaged studs and nuts, then torquing all hardware to OEM-recommended specifications, fixed the misalignment and sealed the joint completely.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts fully interchangeable with original National 10-P-130 fluid end components? | Yes, all premium fluid end parts are machined to exact OEM dimensional, material and performance standards, offering 100% direct drop-in replacement for original factory components. |
| Can I purchase individual parts or only full fluid end overhaul kits? | We offer full purchasing flexibility: individual components, complete modular assemblies, custom hardware stud sets, gasket kits and full fluid end overhaul kits to match your exact repair needs. |
| What torque specifications should be used for mounting studs? | All mounting studs must be torqued to OEM-recommended values to ensure proper sealing and prevent fatigue failure; detailed torque specs are provided with every parts order. |
Procurement Guidance
This premium National 10-P-130 mud pump fluid end parts guide serves as a reliable, dual-purpose resource for structured spare parts procurement and on-site technical troubleshooting. Every part we supply undergoes strict material certification, dimensional verification and multi-stage quality testing, fully complying with API 7K industry standards and OEM quality benchmarks. Using these precision-matched, high-strength replacement parts eliminates common fluid end failures caused by substandard, ill-fitting components—including high-pressure leakage, module cracking, stud fatigue and premature wear—directly reducing rig downtime, long-term maintenance costs and unplanned operational disruptions.
