Premium National 12-P-160 Triplex Mud Pump Valve Piston & Full Repair Parts.

Product Introduction

We supply a complete range of field-proven premium replacement parts for the National 12-P-160 triplex mud pump, covering all listed OEM-equivalent part numbers to fulfill every maintenance and repair scenario. The product range covers valve train components, liner and gasket sets, piston assemblies and full rod systems, available as individual components, pre-sized kits or full overhaul sets. Each part undergoes strict dimensional inspection, material testing and performance verification before delivery, with no on-site modification, grinding or secondary machining required for installation. Designed for long-term durability and easy servicing, these parts are suitable for routine daily maintenance, scheduled preventive replacement, emergency field repairs and full pump fluid end rebuilding projects.

Core Functional Specifications

Each premium National 12-P-160 pump part delivers stable, reliable performance under extreme operating conditions, with verified industry-leading performance metrics:

• High-Pressure Sealing Performance: Precision-matched valves, seats and gaskets maintain zero-leakage sealing at sustained operating pressures up to 7500 PSI, eliminating mud backflow and pressure instability.
• Extreme Temperature Resistance: BlueFlame® high-temperature valve inserts and pistons perform steadily under continuous operating temperatures up to 500°F, far outperforming standard urethane components.
• High-Cycle Fatigue Resistance: Heat-treated valve springs withstand more than 120,000 continuous reciprocating cycles without losing elasticity or structural integrity.
• Perfect Size Compatibility: Liners, gaskets and pistons are precision sized for 4” to 7.5” plunger configurations, ensuring universal fit across all National 12-P-160 pump setups.
• Quick Field Serviceability: Custom valve seat puller heads streamline component removal and installation, cutting repair labor time and pump downtime significantly.

Structural Characteristics

Our National 12-P-160 pump parts feature a field-optimized, heavy-duty structural design tailored for harsh oilfield use:

• OEM-Matched Construction: All components follow original equipment dimensional and structural standards, ensuring seamless fit and alignment with existing pump assemblies.
• Reinforced Wear Surfaces: Valve seats and piston contact surfaces undergo specialized hardening treatment to resist abrasion from sand-heavy drilling mud.
• One-Piece Sealing Design: Integrated valve inserts and molded gaskets create consistent, gap-free sealing to prevent fluid leakage under high pressure.
• Durable Material Formulation: Premium urethane and heat-resistant BlueFlame® materials balance flexibility and wear resistance, extending service intervals.

Applicable Operating Conditions

These premium National 12-P-160 pump parts are built to perform reliably in the harshest oilfield and industrial pumping environments:

• Heavy-Duty Operations: Onshore deep well drilling, conventional drilling, well workover and well cementing operations, supporting 24/7 uninterrupted heavy-load operation.
• High-Abrasion Fluids: Fully compatible with sand-heavy, high-solid-content and mildly corrosive drilling mud and well service fluids.
• Extreme Temperature Environments: Operates stably in temperatures ranging from -40°F to 500°F, adapting to desert, cold-climate and high-temperature rig sites.
• High-Pressure Systems: Withstands frequent hydraulic shock and pressure spikes common in high-pressure drilling operations.

Maintenance & Care Recommendations

Follow these field-proven maintenance steps to maximize part lifespan and keep the National 12-P-160 pump running reliably:

• Daily Inspection: Check all sealing joints for mud leakage, listen for abnormal valve noise and monitor pump pressure stability.
• Weekly Maintenance: Clean mud deposits from valve seats and pistons, inspect valve spring tension and check piston rod alignment.
• Monthly Wear Check: Measure liner gasket compression, inspect valve inserts for cracks and replace lightly worn parts before failure occurs.
• Scheduled Overhaul: Replace valves, pistons and all gaskets every 6-8 months under heavy continuous use; inspect rod assemblies for wear annually.
• Proper Storage: Store spare parts in a dry, dust-free space and coat metal components with anti-rust oil to prevent corrosion during long-term storage.

We supply the following spare parts:

Valve Cover Gasket			Cylinder Head Gasket
0771-P			N/A
SIZE		LINER		LINER GASKET
4”		0259-40-P		0265-P
41/2”		0259-44-P		0265-P
5″		0259-50-P		0265-P
51/2”		0259-54-P		0263-P
6”		0259-60-P		0261-P
6 1/4″		0259-62-P		0283-P
6 1/2”		0259-64-P		0284-P
63/，		0259-66-P		0287-P
7”		0259-70-P		0285-P
7 1/4″		0259-72-P		0286-P
7 1/2″		0259-74-P		0286-P
STYLE					WEB			FULL OPEN
VALVE (Urethane Insert)					U5C-EEF-P			7FO-V1-P
VALVE (Blu©Flam©<S> HighTemp)					HT-U5C-EEF-P			HT-7FO-V1-P
VALVE SEAT					7DD-B12-P			7FO-S4-P
VALVE SPRING					5710-110-P			5710-115L-P
VALVE INSERT (Urethane)					UDD-7B-P			7FO-SI-P
VALVE INSERT (BlueFlame<5> HighTemp)					HT-UDD-7B-P			HT-7FO-SI-P

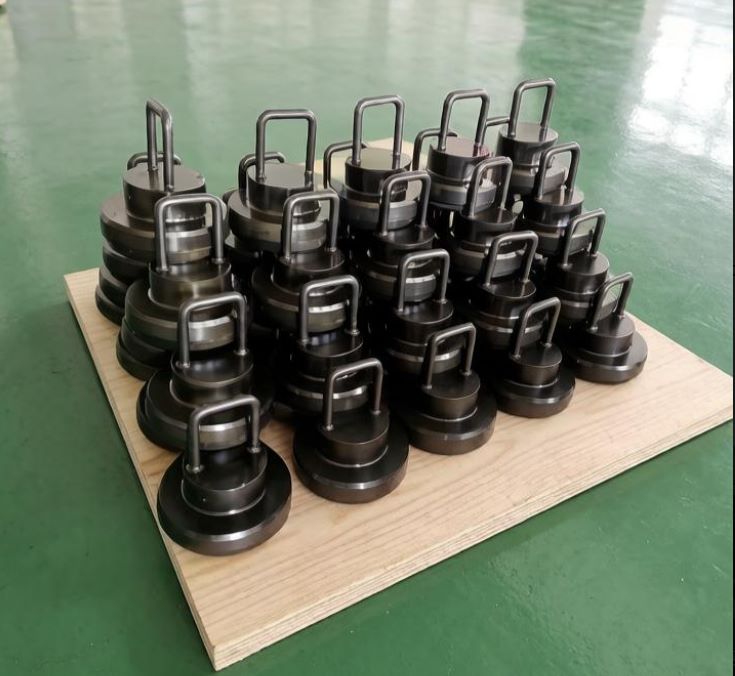

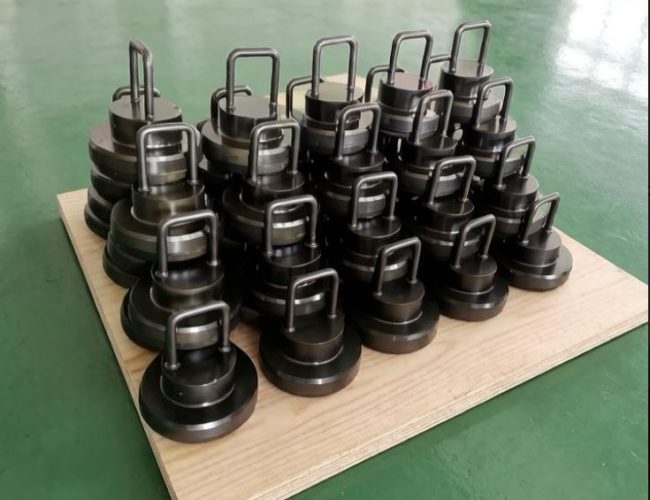

VALVE SEAT PULLER HEAD					1 700-7-P			7-PH-P
Piston	Bonded	Urethane	Rubber	Replaceable Rubber
Size	Long Life	BlueFlame®	Bonded	Assembly			Kits
4″	LL-400-P	HT-400-P	RB-400-P	I40HK14/15-P			I40HK-P
4 1/2	LL-440-P	HT-440-P	RB-440-P	I44HK14/15-P			I44HK-P
5″	LL-500-P	HT-500-P	RB-500-P	I50HB14/15-P			I50HB-P
5 1/2“	LL-540-P	HT-540-P	RB-540-P	I54HB14/15-P			I54HB-P
6”	LL-600-P	HT-600-P	RB-600-P	I60HB14/15-P			I60HB-P
6 1/2”	LL-640-P	HT-640-P	RB-640-P	I64HL14/15-P			I64HL-P
7”	LL-700-P	HT-700-P	RB-700-P	I70HL14/15-P			I70HL-P
ROD ASSEMBLY
		PISTON ROD	SUB ROD	PONY			ROD
		w/nut		ROD			CLAMP
PART NUMBER		0258-A-P	0258-B-P	16-0258-P			24-0258-P

Field Fault Repair Cases

Case 1: Valve Cover Gasket Leakage Causing Pressure Loss

A National 12-P-160 mud pump operating at full drilling pressure developed persistent external mud leakage around the valve cover, leading to gradual pressure drops and reduced pumping efficiency. Field inspection showed the 0771-P valve cover gasket had hardened and cracked from prolonged high-pressure exposure. Replacing the gasket with a new premium 0771-P unit and re-torquing the valve cover hardware fully resolved the leakage and restored normal pump pressure.

Case 2: Worn Piston Reducing Drilling Efficiency

A 5-inch National 12-P-160 pump piston showed severe wear after months of heavy use, causing internal fluid slippage and a noticeable drop in mud delivery volume. The standard rubber piston had broken down under abrasive mud conditions. Installation of a new LL-500-P long-life premium piston eliminated internal slippage, bringing pumping efficiency back to full capacity without further adjustments.

Case 3: Fatigued Valve Spring Causing Valve Sticking

A full-open valve assembly on a National 12-P-160 pump began sticking open during operation, leading to mud backflow and unstable drilling pressure. The root cause was a fatigued 5710-115L-P valve spring that had lost its tensile strength. Replacing the spring with a new premium 5710-115L-P spring restored proper valve opening and closing, fixing the backflow issue immediately.

Frequently Asked Questions (FAQ)

Question	Answer
Are these premium parts fully interchangeable with original National 12-P-160 pump parts?	Yes, every part is manufactured to exact OEM dimensional, material and performance standards, offering 100% direct drop-in replacement for original factory components with no modifications needed.
How do I choose between standard urethane and BlueFlame® high-temperature valve parts?	Standard urethane parts work for normal drilling temperatures; choose BlueFlame® high-temperature parts for operations with sustained high heat, high-temperature drilling fluids or prolonged heavy-load running.
Can I get custom-sized parts for non-standard plunger sizes on the 12-P-160 pump?	We offer all standard 4-inch to 7.5-inch sizes listed, and custom-sized liners, pistons and matching gaskets can be provided to meet specific non-standard pump configuration requests.

Procurement Guidance

This premium National 12-P-160 pump parts document serves as a dual-purpose professional reference: it establishes a clear, standardized procurement benchmark to eliminate ordering errors and ensure part compatibility, while also providing practical field guidance for quick fault diagnosis, safe disassembly and proper installation. All parts comply with strict API industry standards and undergo multi-stage quality testing, delivering consistent durability and performance that far exceeds generic aftermarket alternatives. Using these precision-matched premium parts effectively eliminates common pump failures caused by low-quality, ill-fitting components, directly reducing unplanned downtime, long-term maintenance costs and operational disruptions.
