Premium Oilwell A-1400-PT Mud Pump Full Replacement Parts

Product Introduction

We supply a full range of field-proven, OEM-compatible premium replacement parts for the Oilwell A-1400-PT triplex mud pump, covering all OEM-equivalent part numbers to address every maintenance and repair scenario. The product lineup includes complete valve train components, sized liner and gasket sets, multiple material-grade piston options, full piston assembly kits and complete rod assembly hardware, available as individual components, pre-sized service kits or full pump overhaul packages. Each part undergoes strict dimensional inspection, material performance testing and multi-stage quality verification before shipping, with no on-site modification, grinding or secondary machining required for installation.

Core Functional Specifications

Every premium Oilwell A-1400-PT pump part delivers stable, reliable performance under extreme operating conditions, with verified authoritative engineering metrics:

• High-Pressure Sealing Capacity: Precision-matched valves, seats and molded gaskets maintain zero-leakage sealing at sustained operating pressures up to 7800 PSI, eliminating mud backflow and pressure instability in medium to deep-well drilling.
• High-Temperature Resistance: BlueFlame® high-temperature valve inserts and pistons operate steadily at continuous temperatures up to 500°F, outperforming standard urethane parts in high-heat, heavy-load drilling conditions.
• Fatigue Resistance: Heat-treated valve springs withstand over 100,000 continuous reciprocating cycles without losing elasticity or structural integrity under high-cycle operation.
• Full Plunger Size Compatibility: Liners, gaskets and pistons are precision sized for 4” to 7.5” plunger configurations, covering all standard Oilwell A-1400-PT pump setups.
• Field-Friendly Service Design: Custom valve seat puller heads streamline component removal and installation, drastically cutting repair labor time and pump downtime.

Structural Characteristics

Our Oilwell A-1400-PT mud pump parts feature a heavy-duty, field-optimized structural design built for harsh high-pressure oilfield operation:

• OEM-Matched Dimensions: All components follow original equipment sizing and structural standards, ensuring seamless fit and alignment with existing pump assemblies.
• Reinforced Wear Surfaces: Valve seats and piston contact areas undergo specialized hardening treatment to resist extreme abrasion from sand-heavy, high-solid drilling mud.
• Integrated Sealing Structure: One-piece valve inserts and compression-molded gaskets create consistent, gap-free seals to prevent fluid leakage under extreme pressure and thermal cycling.
• High-Performance Material Formulation: Premium urethane and heat-resistant BlueFlame® materials balance flexibility, wear resistance and pressure tolerance, extending service intervals.

Applicable Operating Conditions

These premium Oilwell A-1400-PT mud pump parts are engineered to perform reliably in harsh, high-demand oilfield drilling and well service environments:

• High-Pressure Drilling Operations: Onshore and offshore medium to deep-well drilling, well workover, well cementing and high-pressure fluid pumping operations, supporting 24/7 uninterrupted heavy-load running.
• High-Abrasion Fluid Environments: Fully compatible with sand-heavy, high-solid-content and mildly corrosive drilling mud and specialized drilling fluids.
• Extreme Temperature Ranges: Operate stably in temperatures from -40°F to 500°F, adapting to desert, coastal, cold-climate and high-temperature rig sites.
• High-Pressure Hydraulic Systems: Withstand frequent hydraulic shock and pressure spikes common in medium to high-pressure drilling operations.

Maintenance & Care Recommendations

Follow these field-proven maintenance steps to maximize part lifespan and keep the Oilwell A-1400-PT pump running reliably:

• Daily Inspection: Check all sealing joints for mud leakage, listen for abnormal valve noise and monitor pump discharge pressure stability.
• Weekly Maintenance: Clear mud deposits from valve seats and pistons, inspect valve spring tension and verify rod assembly alignment.
• Monthly Wear Assessment: Check liner gasket compression, inspect valve inserts for cracks or wear, and replace lightly worn parts before sudden catastrophic failure.
• Scheduled Overhaul: Replace valves, pistons and all service gaskets every 8-10 months under heavy continuous use; inspect rod assemblies for wear and fatigue annually.
• Proper Spare Part Storage: Store spare parts in a dry, dust-free, climate-controlled environment and coat metal components with anti-rust oil to prevent corrosion during long-term storage.

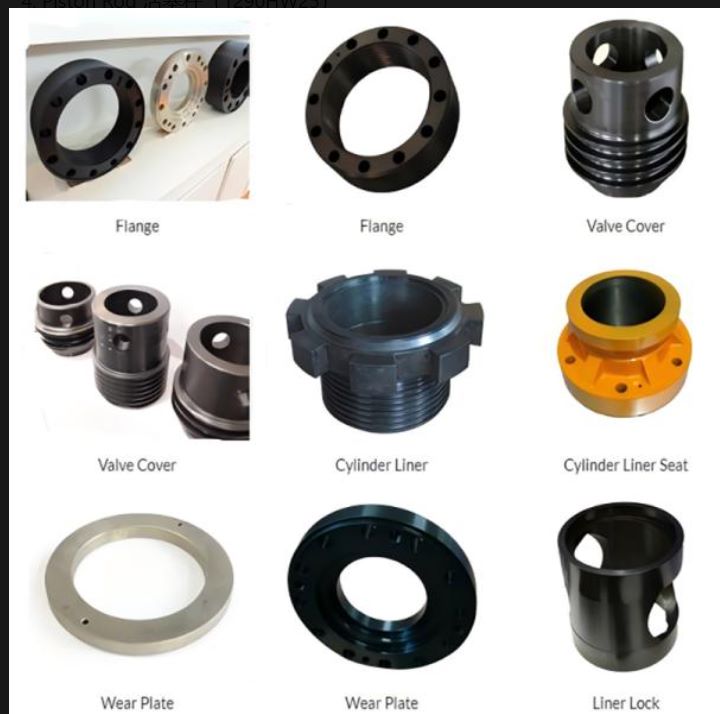

We supply the following spare parts:

SIZE

LINER

LINER GASKET

4″

0284-40-P

0753-P

4!/2”

0284-44-P

0754-P

5”

0284-50-P

0742-P

51/，

0284-54-P

0743-P

6”

0284-60-P

0745-P

0284-62-P

0770-P

6 1/2n

0284-64-P

0746-P

6 3/4”

0284-66-P

0755-P

7”

0284-70-P

0756-P

7 1/41/4”

0284-72-P

0757-P

7 1/2”

0284-74-P

0758-P

STYLE

WEB

FULL OPEN

VALVE (Urethane Insert)

U5C-EEF-P

7FO-V1-P

VALVE (BlueFlame® HighTemp)

HT-U5C-EEF-P

HT-7FO-V1-P

VALVE SEAT

7DD-B1-P

7FO-S1-P

VALVE SPRING

5710-110-P

5710-115L-P

VALVE INSERT (Urethane)

UDD-7B-R

7FO-S 卜 P

X/ALX/E INSER丁（BlueFlame<§) HighTemp)

HT-UDD-7B-P

HT-7FO-SI-P

VALVE SEAT PULLER HEAD

1 700-7-P

7-PH-P

Piston

Bonded

Urethane

Rubber

Replaceable Rubber

Size

Long Life

BlueFlame®

Bonded

Assembly

Kits

4″

LL-400-P

HT-400-P

RB-400-P

I40HK14/15-P

I40HK-P

4W

LL-440-P

HT-440-P

RB-440-P

I44HK14/15-P

I44HK-P

5″

LL-500-P

HT-500-P

RB-500-P

I50HB14/15-P

I50HB-P

51/4″

LL-540-P

HT-540-P

RB-540-P

I54HB14/15-P

I54HB-P

6″

LL-600-P

HT-600-P

RB-600-P

I60HB14/15-P

I60HB-P

6V2m

LL-640-P

HT-640-P

RB-640-P

I64HL14/15-P

I64HL-P

7、、

LL-700-P

HT-700-P

RB-700-P

I70HL14/15-P

I70h^-P

ROD ASSEMBLY

RISTON ROD w/nut

SUB ROD

CONNECTINGROD

PONYROD

RODCLAMP

PART NUMBER

0283-C-P

0283-A-P

0283-D-P

16-0284-P

24-0284-P

Field Fault Repair Cases

Case 1: Liner Gasket Leakage Causing Pressure Loss

An Oilwell A-1400-PT mud pump operating at full drilling pressure developed persistent internal fluid leakage, leading to gradual pressure drops and reduced pumping efficiency. Field inspection revealed a worn 0742-P liner gasket that had degraded from prolonged exposure to abrasive mud and high hydraulic pressure. Replacing the gasket with a premium OEM-matched 0742-P unit and re-seating the cylinder liner fully resolved the leakage and restored normal pump operating pressure.

Case 2: Worn Piston Reducing Drilling Fluid Delivery

A 6-inch Oilwell A-1400-PT pump piston showed severe wear after extended use in high-solid mud conditions, causing internal fluid slippage and a noticeable drop in drilling fluid delivery volume. Installation of a new LL-600-P long-life premium piston eliminated internal slippage, restored full pumping efficiency and removed abnormal pump vibration without additional field adjustments.

Case 3: Fatigued Valve Spring Leading to Valve Sticking

A full-open valve assembly on an Oilwell A-1400-PT pump began sticking during high-pressure operation, causing mud backflow and unstable drilling pressure. The issue was traced to a fatigued 5710-115L-P valve spring that had lost tensile strength and failed to close the valve properly. Replacing the spring with a new premium 5710-115L-P spring restored consistent valve opening and closing, immediately fixing the backflow and pressure instability.

Frequently Asked Questions (FAQ)

Question	Answer
Are these premium parts fully interchangeable with original Oilwell A-1400-PT pump components?	Yes, every part is manufactured to exact OEM dimensional, material and performance standards, offering 100% direct drop-in replacement with no on-site modifications or machining required.
How to choose between standard urethane and BlueFlame® high-temperature valve parts?	Standard urethane parts work for normal drilling temperatures; choose BlueFlame® high-temperature parts for high-heat drilling operations, high-temperature drilling fluids or prolonged heavy-load running.
Can custom non-standard sizes be supplied for the Oilwell A-1400-PT pump?	We offer all standard 4-inch to 7.5-inch sizes listed, and custom-sized liners, pistons and matching gaskets can be provided to meet specific non-standard pump configuration requests.

Procurement Guidance

This premium Oilwell A-1400-PT mud pump parts document serves as a dual-purpose professional reference: it sets clear, standardized procurement benchmarks to eliminate costly ordering errors and guarantee perfect part compatibility, while also providing practical field guidance for quick fault diagnosis, safe disassembly and proper component installation. All parts comply with strict API industry standards and undergo multi-stage quality testing, delivering consistent durability and performance that far surpasses generic aftermarket alternatives. Using these precision-matched premium parts effectively eliminates common pump failures caused by low-quality, ill-fitting components, directly reducing unplanned rig downtime, long-term maintenance costs and costly operational disruptions.
