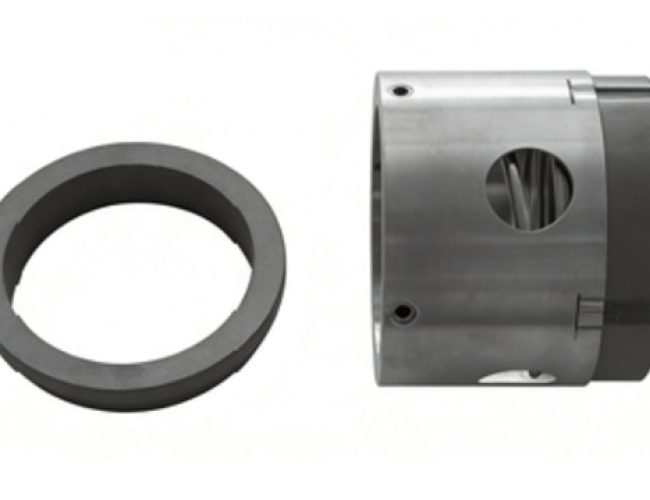

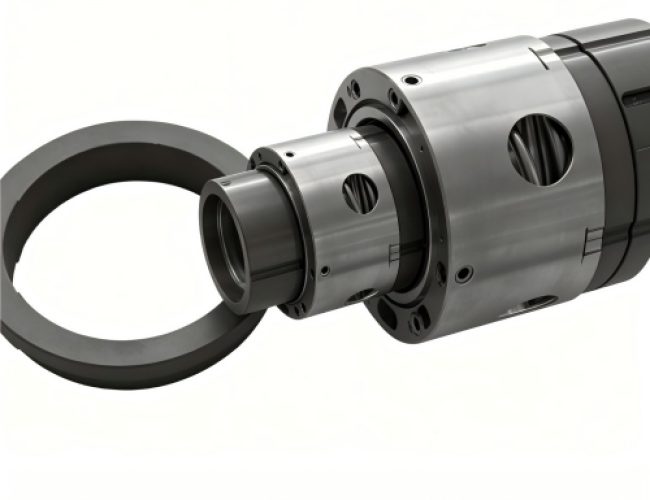

The C45B (V) type mechanical seal is a versatile single-end mechanical sealing solution designed for medium-duty industrial applications. It features a balanced structure with modular design and interchangeable sealing components, providing reliable performance in corrosive and particle-containing media. The optimized sealing face and compact structure ensure stable operation, long service life, and easy maintenance.
Performance Parameters
- Pressure range: 0 – 2.5 MPa
- Temperature range: -30°C to 220°C
- Linear speed: up to 25 m/s
- Shaft diameter range: 14 – 100 mm
Design Features
- Internal installation with internal circulation flow design
- Single-spring structure for stable sealing force and simplified construction
- Non-balanced design for cost-effective and reliable operation
- Modular structure for easy installation, maintenance, and component replacement
- Universal O-ring configuration with interchangeable V-ring sealing options
- Recommended hard face material combination for enhanced wear resistance
- Suitable for low to medium viscosity fluids containing small particles
- Excellent corrosion resistance for aggressive chemical environments
Type Description
- C45 series: single-end face, balanced O-ring structure design
- (V) type: V-shaped PTFE (Polytetrafluoroethylene) sealing element
- Flexible configuration to meet different application requirements
Applicable Media
- Wastewater
- Alkali solutions
- Chemical raw materials
- Other corrosive or particle-containing fluids
This seal is engineered to provide stable and reliable performance in complex working conditions, combining strong corrosion resistance with flexible structural adaptability, making it suitable for a wide range of industrial fluid handling applications.
