1. Core Overview & Targeted Application Statement

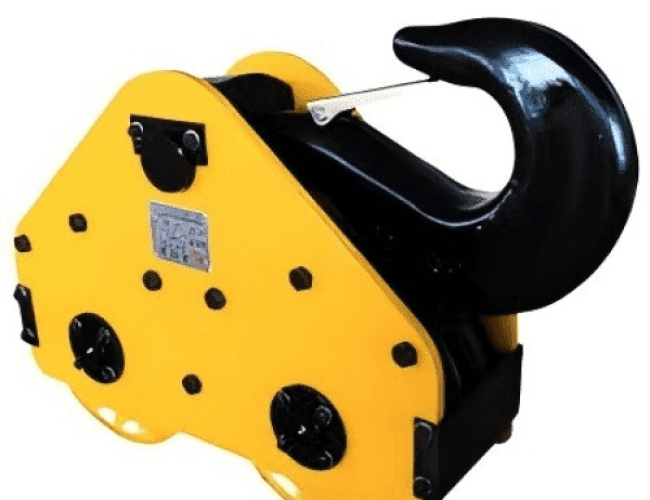

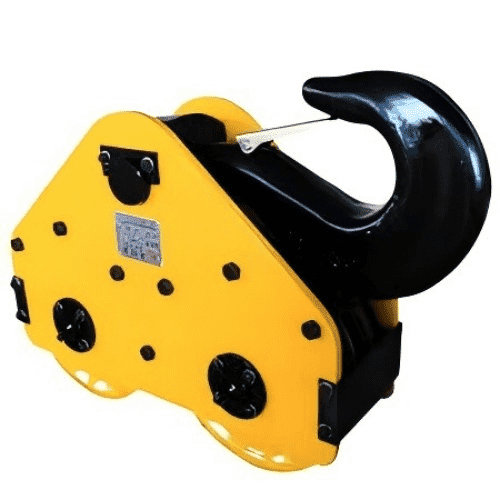

This dedicated spare parts catalog is precision engineered exclusively for the RG YG225-00 Traveling Hook Block, a critical heavy-duty lifting assembly used in oil and gas drilling, well workover, and tubular handling operations. Designed to cater to the specialized needs of drilling contractors, field maintenance teams, oilfield service providers, and equipment rental enterprises, these replacement parts target the most prevalent operational pain points: premature bearing failure, pulley wear, seal leakage, spring fatigue, and locking mechanism malfunction that cause unplanned rig downtime, safety hazards, and increased maintenance costs.
2. Comprehensive Product & Component Details
The RG YG225-00 traveling hook block spare parts line consists of high-strength, wear-resistant components built to withstand extreme mechanical stress, heavy cyclic loads, and harsh oilfield environmental conditions. Each part is crafted from premium materials—including heat-treated alloy steel for shafts and pins, industrial-grade rolling bearings for pulleys, nitrile rubber seals for leak protection, and high-tensile springs for locking mechanisms—with precision machining tolerances of ±0.001 inches for critical mating surfaces. This parts list covers all core subsystems of the RG YG225-00: pulley assembly, shafting components, bearing sets, sealing systems, spring locking mechanisms, and fastening hardware, ensuring full coverage for routine maintenance and emergency repairs.
Key Functional Specifications
- Load Rating Compliance: All load-bearing components (pulley shafts, hook pins, collars) are rated for the RG YG225-00’s maximum working load, complying with API 8C specifications for traveling blocks and hooks to ensure lifting safety.
- Bearing Performance: Premium 2097938E spherical roller bearings feature a 50,000+ hour service life under continuous cyclic loading, reducing friction and minimizing pulley rotation resistance.
- Seal Durability: Dust-proof oil seals and O-rings offer 2,500+ operating hours of leak protection, blocking drilling mud, dust, and debris from penetrating bearing and shaft assemblies.
- Spring Fatigue Resistance: Internal and external hook canister springs maintain 95% of their tensile strength after 10,000+ load cycles, preventing locking mechanism failure.
Structural Design Features
- OEM Direct Fitment: All RG YG225-series and standardized part numbers match original equipment dimensions, enabling tool-less replacement and eliminating fitment errors in field conditions.
- Modular Assembly Design: Pre-matched pulley shafts, bearing space rings, and collars streamline assembly, cutting repair and installation time by up to 45% compared to generic aftermarket parts.
- Reinforced Load Components: Heat-treated shaft and pin components feature a surface hardness of 58-62 HRC, resisting bending, wear, and deformation under heavy lifting loads.
- Multi-Stage Sealing System: Dual dust-proof oil seals and O-rings create a layered barrier against contamination, extending the service life of internal bearings and shafts.
Applicable Operating Conditions
These RG YG225-00 traveling hook block parts are optimized for a wide range of oilfield lifting scenarios, including:
- Onshore land drilling rigs (conventional, directional, and horizontal drilling operations)
- Offshore platform, jack-up rig, and semi-submersible rig lifting operations
- Well workover, completion, and drill string tripping activities
- Heavy tubular and casing lifting and handling tasks
- Operating temperature range: -22°F to 158°F (-30°C to 70°C)
- Suitable for dry onshore sites, offshore saltwater environments, and dusty drilling locations
We supply the following spare parts:
| Spare parts for RG YG225-00 Traveling Hook Block | |||
| 1 | YG225-00 traveling block pulley | H915-03 | EA |
| 2 | Pulley shaft | YG225-03 | EA |
| 3 | Bearing 2097938E | 610122-00-0320 | EA |
| 4 | Bearing 2097938E | 610130-00-1200 | EA |
| 5 | Bearing space ring | YG225-05 | EA |
| 6 | Collar | YG225-02 | EA |
| 7 | Shaft and lokating key | YG225-04 | EA |
| 8 | Screw | 600310-08-2910 | EA |
| 9 | Dust proof oil seal | YG225-06-00 | EA |
| 10 | Slip | YG160-30 | EA |
| 11 | Upper spring seat | YG225-07 | EA |
| 12 | Bolt | 600102-04-2720 | EA |
| 13 | Spring gasket | 600702-00-0060 | EA |
| 14 | Spring gasket | 600702-00-0055 | EA |
| 15 | Guide key | YG225-23 | EA |
| 16 | Hook canister rest pin | YG225-24 | EA |
| 17 | Locating screw | YG225-25 | EA |
| 18 | Internal spring | YG225-29 | EA |
| 19 | External spring | YG225-28 | EA |
| 20 | Lower spring seat | YG225-11 | EA |
| 21 | Hook canister upper cover | YG225-09-00 | EA |
| 22 | Hook body rest pin | YG225-17 | EA |
| 23 | Pin shaft | YG225-27 | EA |
| 24 | Loking arm pin | YG225-20 | EA |
| 25 | Pin shaft (I) | YG225-13 | EA |
| 26 | Pin shaft (III) | YG160-23 | EA |
| 27 | Locating sleeve | YG225-12 | EA |
| 28 | Guide sleeve | YG225-14 | EA |
| 29 | Seal gland | YG225-15 | EA |
| 30 | Collar | TG225-16 | EA |
| 31 | Spring | YG160-21 | EA |
| 32 | Oil cup | 862502-00-0120 | EA |
| 33 | Plug screw | YG160-16 | EA |
| 34 | Locking arm | YG225-21C | EA |
| 35 | Bolt | 600133-08-2350 | EA |
| 36 | Nut | 600516-00-0030 | EA |
| 37 | Cotter pin | 600902-00-0210 | EA |
| 38 | Bolt | 600135-08-0200 | EA |
| 39 | Zincing wire 2 | 861702-00-0140 | EA |
| 40 | Brake | YG135B-12A-00 | EA |
| 41 | O-ring | 620308-00-1300 | EA |
| 42 | O-ring | 620308-00-4100 | EA |
| 43 | O-ring | 620308-00-4600 | EA |
3. Field Fault Repair Cases (Real-World Scenarios)
3.1 Case 1: Pulley Bearing Seizure (Onshore Drilling Rig)
Issue: RG YG225-00 traveling block pulley failed to rotate smoothly, causing uneven wire rope wear and lifting instability. Root cause: Contaminated 2097938E bearing (610122-00-0320) and damaged dust-proof oil seal (YG225-06-00). Repair: Replaced faulty bearings and oil seals, flushed the pulley shaft assembly, and applied fresh lubricant. Outcome: Restored smooth pulley rotation, eliminated wire rope wear, and resumed safe lifting operations.
3.2 Case 2: Hook Canister Spring Fatigue (Offshore Platform)
Issue: Hook locking mechanism failed to engage securely, creating a load drop hazard during tripping operations. Root cause: Fatigued internal (YG225-29) and external (YG225-28) springs, plus worn lower spring seat (YG225-11). Repair: Replaced all springs and spring seats, adjusted locking arm alignment, and tested load retention. Outcome: Restored positive locking functionality, met API safety standards, and eliminated slip risks.
3.3 Case 3: Oil Seal Leakage (Well Workover Site)
Issue: Hydraulic oil leakage from the shaft assembly, leading to bearing lubrication loss and premature wear. Root cause: Degraded dust-proof oil seal (YG225-06-00) and faulty O-ring (620308-00-1300). Repair: Replaced damaged seals, re-lubricated the shaft assembly, and pressure-tested the sealing system. Outcome: Stopped oil leakage, preserved bearing lubrication, and extended component service life.
4. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with the RG YG225-00 traveling hook block? | Yes, all parts in this catalog are custom-designed for the RG YG225-00 model, with exact OEM fitment; select small components may cross-comply with YG160 series hooks, as noted in part descriptions. |
| What materials are used for high-load components like shafts and bearings? | Shafts and pins use heat-treated alloy steel for high tensile strength; bearings are premium spherical roller bearings; seals are oil-resistant nitrile rubber; springs are high-tensile spring steel. |
| How do I source the correct replacement part for my RG YG225-00 repair? | Match the unique part number from this list to the faulty component, verify the item description and quantity, and cross-reference OEM part codes to ensure perfect fitment for your repair. |
5. Procurement Guidance & Call to Action
This RG YG225-00 traveling hook block spare parts list serves as a dual-purpose resource: a formal procurement standard to ensure quality and compliance, and a technical reference to resolve field failures quickly. By choosing these precision-engineered, API-compliant components, you minimize unplanned rig downtime, reduce long-term maintenance costs, and uphold the highest safety standards for drilling lifting operations.
For all RG YG225-00 spare part inquiries, order placement, and technical specification support, submit your detailed requirements using the listed part numbers and item descriptions. Our team provides specialized technical assistance to confirm part fitment, material grades, and application suitability, ensuring you receive the exact components needed to keep your traveling hook block operating at peak performance. Build your critical spare parts inventory today to mitigate lifting system delays and maintain uninterrupted drilling and well servicing workflows.
