1. Core Overview & Target Application Brief
This specialized cable and service loop component catalog is precision engineered exclusively for TESCO TDS series top drive drilling systems, the industry-leading automated top drive units deployed across offshore drilling rigs, land drilling platforms, and hazardous oilfield environments. Tailored to the specialized needs of rig electricians, top drive maintenance technicians, drilling operations supervisors, oilfield service contractors, and safety compliance managers, this parts suite directly addresses the most costly and disruptive field pain points: cable insulation breakdown, EMI signal interference, hydraulic hose leaks, quick connect coupling failure, and unplanned top drive shutdowns in ATEX Zone 1 explosive gas atmospheres.
2. Detailed Product & Component Specifications
2.1 Product Introduction

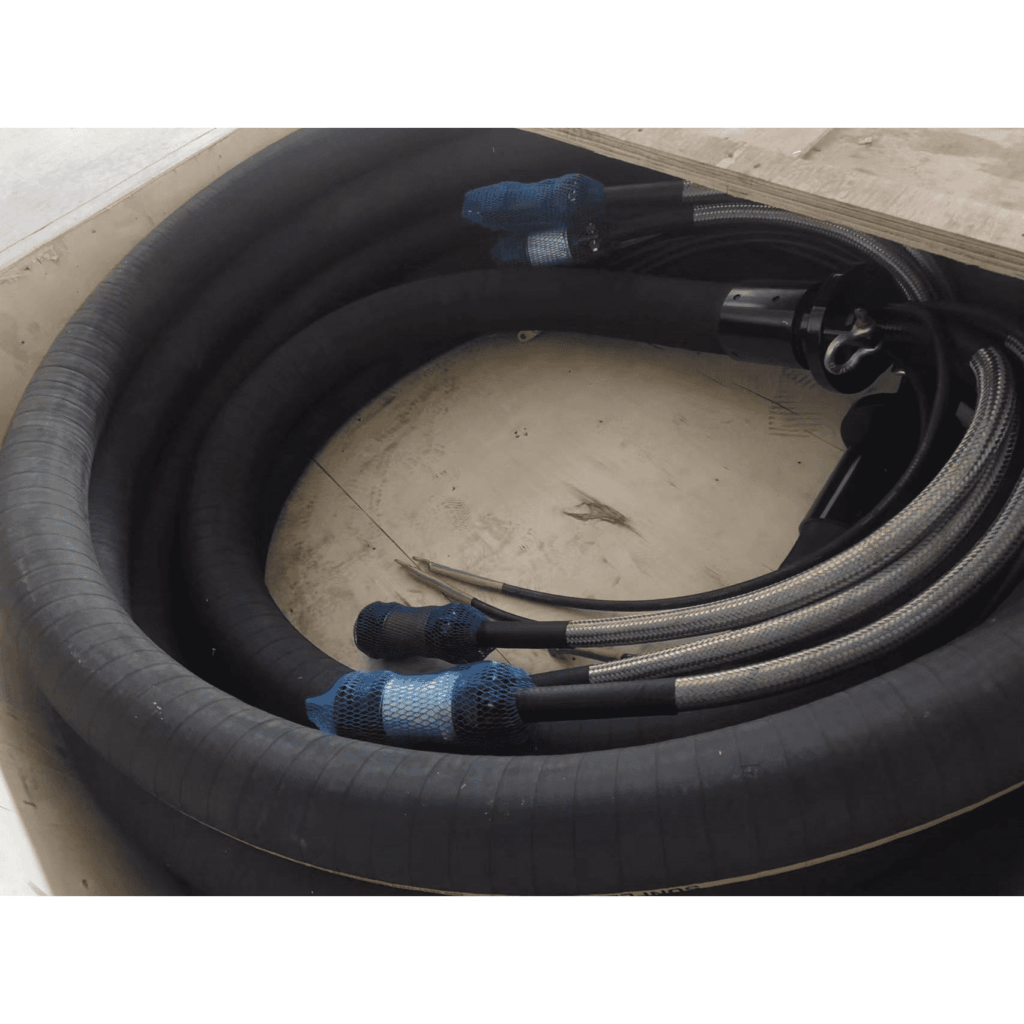

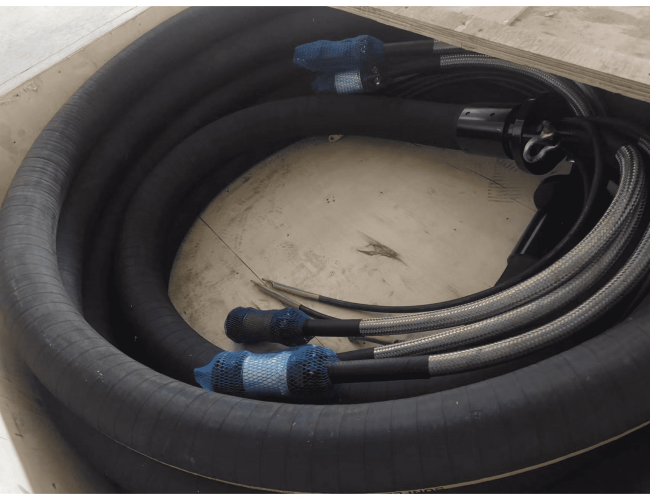

The TESCO TDS cable loop and service loop line features heavy-duty, explosion-proof components built to withstand extreme rig vibration, abrasion, oil exposure, and the harsh environmental conditions of drilling operations. Each part—spanning ATEX Zone 1 rated extension cables, 225-foot hydraulic service loops, EMI-shielded cords, precision hydraulic fittings, 78-series quick disconnect couplings, and heavy-duty cable grips—is crafted from premium materials: oil-resistant neoprene/PUR cable jacketing, braided EMI shielding, high-tensile steel hydraulic hoses, corrosion-resistant brass fittings, and load-rated steel cable grips. All electrical components carry full CE/ATEX Zone 1 certification, with cables designed to block longitudinal gas migration and prevent spark ignition in explosive atmospheres; hydraulic components are pressure-rated to 3000 PSI for reliable top drive operation.
2.2 Key Functional Specifications
- ATEX & EMI Compliance: All electrical cables and cords meet ATEX Zone 1 (EX/EMI) standards and EMI-400 shielding, eliminating electromagnetic interference and preventing ignition in explosive gas environments.
- Performance Metrics: 69-meter long extension cables support 535KCM high-current motor power transmission; hydraulic service loops handle continuous 3000 PSI operating pressure with a 4:1 safety factor; cable grips support 1610LB working load for secure cable management.
- Durability Data: Cable jacketing resists oil, drilling mud, and UV degradation for 12,000+ operating hours; hydraulic hoses withstand 10,000+ flex cycles without cracking; quick disconnect couplings provide leak-free connections for 8,000+ connection cycles.
- Signal Integrity: Shielded sensor and robotics cables maintain 100% signal accuracy, eliminating data loss and false top drive fault codes in high-interference rig environments.
2.3 Structural Design Features
- OEM Direct Interchangeability: Every cable, hose, and fitting matches TESCO TDS top drive mounting and connection specifications, cutting repair and installation time by up to 50% in remote rig locations.
- Modular Service Loop Design: Pre-assembled cable and hydraulic service kits streamline full loop replacements, reducing downtime during scheduled maintenance.
- Strain Relief Construction: Heavy-duty cable grips and lace-style closures prevent cable pull-out and conductor fatigue from top drive movement and rig vibration.
- Leak-Proof Hydraulic Connections: Precision-machined 78-series quick disconnects and threaded fittings eliminate hydraulic fluid leaks, a top failure mode for top drive service loops.
2.4 Applicable Operating Conditions
These TESCO TDS cable loop components are optimized for reliable performance across core drilling scenarios, including:
- TESCO TDS series top drive drilling systems (onshore and offshore rigs)
- ATEX Zone 1 hazardous explosive gas atmospheres (oil and gas drilling environments)
- Top drive motor power transmission, robotics control, and sensor signal wiring
- Hydraulic service loop and blower motor power supply applications
- High-vibration, mud-exposed, and oil-contaminated rig floor conditions
- Continuous top drive operation and cyclic flexing of service loops
We supply the following spare parts:
| 1 | CABLE, EXT, EX, Blower Motor, EXI/EMI #14, 7C, 69M, CE/ATEX, ZONE1 | 1240048 | 1 | EA |
| 2 | KIT,HOSES,HYD,SERVICE LOOP,225-FT LG,EMI 400 | 730817 | 1 | EA |
| 3 | FIYYING,HYD,STR#12MJIC#16MNPT | 293 | 4 | EA |
| 4 | FIYYING,HYD,STR#12MJIC#12MJIC | 335 | 4 | EA |
| 5 | PLUG,QUICK,DISCONNECT,COUPLER,78-SER,1″ | 387 | 2 | EA |
| 6 | CAP,QUICK DISCONNECT,NIPPLE,78-SER,1″ | 389 | 2 | EA |
| 7 | GRIP,CABLE,1610LB,(1.25″-1.49″),1 EYE,LACE CLOSING | 909 | 2 | EA |
| 8 | DISCONNECT,QUICK,NIPPLE,78SERIES,1″X1″FNPT | 2 | EA | |
| 9 | DISCONNECT,QUICK,COUPLER,78SERIES,1″X1″FNPT | 2895 | 2 | EA |
| 10 | KIT,CABLE SET,SERVICE LOOP, EMI-400,CE/ATEX,ZONE 1 | 5045794 | 1 | EA |
| 11 | CORD,EXT,GROUND CABLE,4/0,1C,69M,CE/ATEX,ZONE 1 | 1240047 | 1 | EA |
| 12 | CORD,EXT,EX,BLOWER MOTOR,EX1/EM1,#14,37C,69M,CE/ATEX,ZONE 1 | 1240048 | 1 | EA |
| 13 | CORD,EXT,EX,ROBOTICS”A”,EXI/EMI,#14,37C,69M,CE/ATEX,ZONE 1 | 1240051 | 1 | EA |
| 14 | CORD,EXT,SENSOR”T”#16,12TP(IS,OS),69M,,CE/ATEX,ZONE 1 | 5045800 | 1 | EA |
| 15 | CORD,EXT,MOTOR,PWR,Ph”A”,EX1600,535KCM,1C,69M,CE/ATEX,ZONE 1 | 1240057-1 | 1 | EA |
| 16 | CORD,EXT,MOTOR,PWR,Ph”B”,EX1600,535KCM,1C,69M,CE/ATEX,ZONE 1 | 1240059-1 | 1 | EA |
| 17 | CORD,EXT,MOTOR,PWR,Ph”C”,EX1600,535KCM,1C,69M,CE/ATEX,ZONE 1 | 1240060-1 | 1 | EA |
3. Field Fault Repair Cases (Real-World Scenarios)
3.1 Case 1: ATEX Cable Insulation Breakdown (Offshore Rig)
Issue: TESCO TDS top drive blower motor lost power, triggering a shutdown in ATEX Zone 1. Root cause: Abraded cable jacketing on 1240048 extension cable, creating a safety hazard. Repair: Replaced the damaged ATEX/EMI cable, secured with a new cable grip, and tested insulation integrity. Outcome: Restored power, maintained ATEX compliance, and resumed top drive operation.
3.2 Case 2: Hydraulic Service Loop Leak (Land Drilling Site)
Issue: Hydraulic fluid leak from TESCO TDS service loop fitting, causing reduced top drive hydraulic pressure. Root cause: Wrecked 335 hydraulic fitting and degraded quick disconnect seal. Repair: Replaced the faulty fitting and quick disconnect coupling, pressure-tested the hydraulic loop. Outcome: Eliminated leaks, restored hydraulic pressure, and prevented unplanned downtime.
3.3 Case 3: EMI Signal Interference (Top Drive Sensor)
Issue: TESCO TDS sensor “T” transmitted erratic signals, leading to false fault alarms. Root cause: Unshielded cable degradation and EMI interference. Repair: Installed new 5045800 shielded sensor cable, secured with strain relief, and verified signal accuracy. Outcome: Eliminated signal drift, cleared fault codes, and restored reliable sensor operation.
4. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these cables compatible with all TESCO TDS top drive models? | Yes, these ATEX Zone 1 and EMI-400 rated cables/loops are designed exclusively for TESCO TDS series top drives, matching OEM length, connector, and performance specs. |
| Do these parts meet ATEX Zone 1 hazardous area requirements? | Absolutely, all electrical components carry full CE/ATEX Zone 1 certification, with gas-tight construction and spark prevention for explosive drilling environments. |
| How do I match the correct quick disconnect for my TDS service loop? | Use 78-series 1″ couplings (part 2895) and nipples (part 387/389) for standard TESCO TDS hydraulic service loops, cross-referencing part numbers for exact fit. |
5. Procurement Guidance & Call to Action
This TESCO TDS cable loop and service loop parts list serves as a dual-purpose industry resource: a strict procurement standard to guarantee part quality, ATEX/EMI compliance, and OEM compatibility, and a practical technical reference to resolve top drive electrical and hydraulic failures quickly and safely. Choosing these certified replacement components minimizes unplanned rig downtime, reduces long-term maintenance expenses, and preserves the reliable, safe operation of your TESCO TDS top drive system in hazardous drilling environments.
