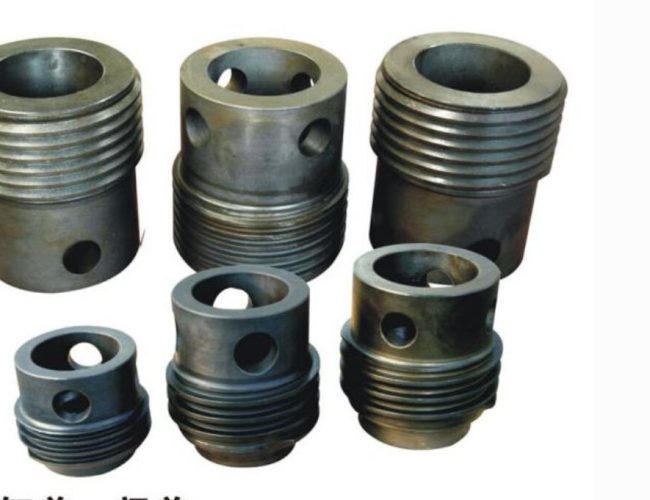

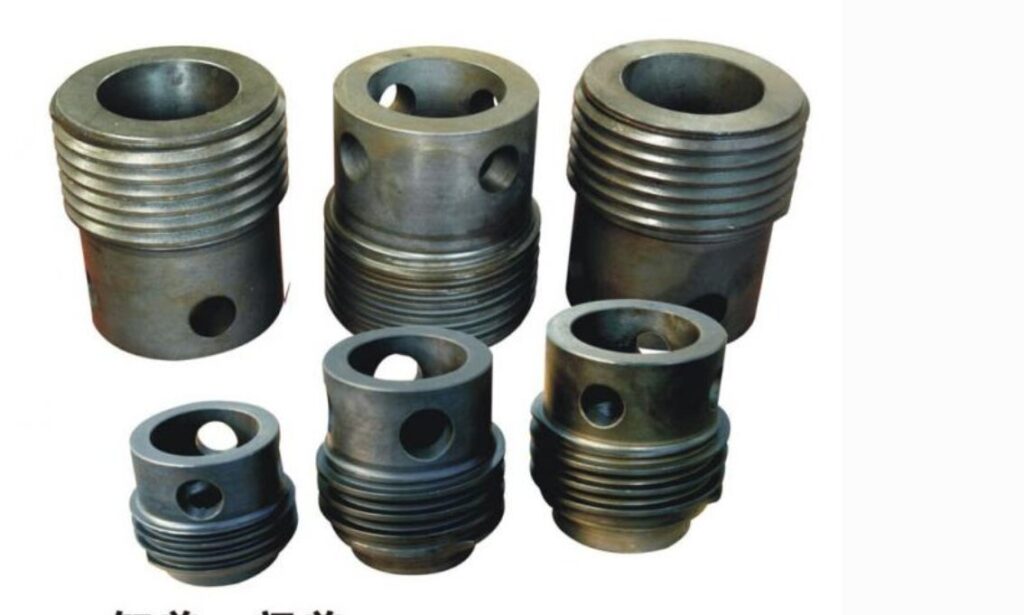

1. . Detailed Product Introduction
All parts are direct TSC OEM equivalents, meaning they fit perfectly with the existing fluid end assemblies of both BOMCO F-1300 and F-1600 pumps—no field machining, drilling, or modification is needed, saving maintenance teams 1.2–2 hours of installation time per repair. This is especially valuable in remote or high-cost drilling environments, where every minute of downtime adds to operational expenses. Each component is crafted from field-proven, high-performance materials to eliminate common fluid end failure points: studs are made from heat-treated alloy steel for superior tensile strength ; gaskets are constructed from nitrile rubber with a reinforced steel core to resist high pressure and drilling mud contamination; valve guides feature a hardened surface treatment to reduce wear and extend service life; wear plates are precision-machined from high-carbon steel to ensure a tight, leak-free fit with pump liners.
2. Core Functional Specifications
The fluid end is the backbone of BOMCO F-1300 and F-1600 mud pumps, and each component in this parts list plays a critical role in ensuring smooth, efficient operation. The complete fluid end module (TS-6316-0375-B0) integrates all key components into a single, ready-to-install unit, providing a one-stop replacement solution for full fluid end overhauls and eliminating the need to source individual parts—saving time and reducing the risk of incorrect part selection. Studded fluid end modules (TS-6316-0357-B0) simplify maintenance by including all necessary studs and nuts for quick assembly, while unstudded modules (TS-6316-0356-B0) offer flexibility for teams that prefer to reuse existing hardware, reducing inventory costs.
3. Recommended Applicable Operating Conditions
These BOMCO F-1300 and F-1600 fluid end parts are engineered to perform reliably across the harshest global drilling and well stimulation environments, aligned with the pumps’ 1300 HP and 1600 HP rated capacities. They are suitable for onshore oil & gas drilling rigs, offshore jack-up and semi-submersible rigs, horizontal drilling operations, deep well drilling (up to 15,000 feet), and hydraulic fracturing sites—all common applications for BOMCO F-1300 and F-1600 mud pumps. These parts are designed to support the pumps’ role as critical “heart devices” in drilling operations, where reliability is key to avoiding costly shutdowns and project delays.
4. Proactive Maintenance & Service Recommendations
To maximize the service life of BOMCO F-1300 and F-1600 fluid ends, minimize downtime, and preserve optimal pump performance, follow these field-proven maintenance protocols—designed to address common failure modes and extend component life. These recommendations are tailored to the specific components in this parts list and align with the BOMCO F-1300 and F-1600’s operational requirements, helping teams reduce maintenance costs and improve overall efficiency.
We supply the following spare parts:
| ITEM | PART NUMBER | BOMCO PART NUMBER | DESCRIPTION |
| TS-6316-0375-B0 | FLUID END MODULE COMPLETE ASSEMBLY(INCLUDES ITEM 2-24, 26- 29) | ||
| 1 | TS-6316-0357-B0 | AH130102050100 | FLUID END MODULE STUDDED (INCLUDES ITEM 2-9) |
| 2 | TS-6316-0356-B0 | FLUID END MODULE ONLY (UNSTUDED) | |
| 3 | TS-7507-2013-00 | STUD, MODULE TO LINER CLAMP | |
| 4 | TS-7601-0610-18 | LINER CLAMP STUD NUT | |
| 5 | TS-7507-2201-00 | POWER FRAME STUD | |
| 6 | TS-7507-2210-00 | STUD, MODULE TO CYLINDER | |
| 7 | TS-7601-0630-17 | NUT, POWER FRAME, DISCHARGE FRAME SUPPORT | |
| 8 | TS-7507-2108-00 | STUD, MODULE TO DISC. MANIFOLD | |
| 9 | TS-F16-05-35 | AH1301020513 | STUD, POWER FRAME SUPPORT |
| 10 | TS-7601-0630-24 | T501-2001 | NUT, MODULE TO DISCHARGE MANIFOLD STUD |
| 11 | TSF16-05-04 | AH130101050400 | RETAINER, LOWER VALVE GUIDE |
| 12 | TSF16-05-05 | AH130101050500 | VALVE GUIDE (LOWER) |
| 13 | TSF16-05-07 | AH1301010507 | RETAINER SPACE RING |
| 14 | TS-6316-0369-00 | AH1301010508 | GASKET,CYLINDER HEAD SEAL (G-801) |
| 15 | TSF16-05-06 | AH130101050600 | CYLINDER HEAD PLUG |
| 16 | TS-6316-0361-00 | AH130100502 | RING, THREADED CYLINDER HEAD |
| 17 | TS-6316-0362-00 | AH130100503 | CAP, THREADED CYLINDER HEAD |
| 18 | TS-6316-0092-00 | AH1301010510 | GASKET, VALVE COVER (G-741) |
| 19 | TS-7602-5280-72 | 040104030160001900 | STAINLESS WIRE 01.6x 1830 |
| 20 | TS-7501-0051-00 | AH0501020509 | SCREW, RETAINER (UPPER) |
| 21 | TS-6397-0603-00 | AH1001010512 | PLATE, RETAINER (UPPER) |
| 22 | TS-6397-0575-00 | AH1001010510 | VALVE GUIDE UPPER |
| 23 | TS-6316-0039-00 | AH1301020502 | COVER, VALVE POT |
| 24 | TS-6316-0373-00 | AH1301010512 | GASKET, WEAR PLATE/ LINER (G-800) |
| 25 | TS-6316-0365-00 | AH1301020503 | WEAR PLATE |
| 26 | TS-6316-0366-00 | AH1301010514 | LINER FLANGE |
| 27 | TS-6316-0367-00 | AH130101051500 | LINER LOCK |
| 28 | TS-7602-1600-25 | GB3452.1-82nO”(t)95×5.3 | GASKET, DISCHARGE MANIFOLD |
| 29 | TS-7602-1600-61 | GB3452.1-82nOn(t) 185^7 | GASKET, SUCTION MANIFOLD |
5. On-Site Field Failure Repair Cases
Case 1: Discharge Manifold Gasket Leak Causing Pressure Loss
An onshore hydraulic fracturing site operating a BOMCO F-1600 pump reported a sudden drop in fluid end pressure, from the rated 5,000 PSI to 4,200 PSI, which slowed fracturing operations and increased fuel consumption. Inspection revealed a worn discharge manifold gasket (TS-7602-1600-25), which was leaking drilling mud and causing the pressure loss. Technicians replaced the gasket with a TSC OEM-equivalent unit, torqued the manifold components to specification, and pressure-tested the system. The pump was restored to full operational capacity within 25 minutes, avoiding over $5,200 in downtime costs and restoring fracturing efficiency.
Case 2: Valve Guide Wear Leading to Erratic Mud Flow
A drilling contractor using a BOMCO F-1300 pump in a deep well drilling project noticed erratic mud flow and abnormal noise from the pump, which threatened to delay well completion. Troubleshooting identified excessive wear in the lower valve guides (TSF16-05-05), which was causing valve misalignment and leakage. Technicians replaced the valve guides and lower valve guide retainers (TSF16-05-04), adjusted valve clearances, and tested the pump. The pump’s mud flow returned to normal within 45 minutes, preventing further delays and ensuring the well stayed on schedule.
Case 3: Stud Loosening Causing Fluid End Misalignment
A remote offshore drilling rig operating a BOMCO F-1600 pump reported fluid end misalignment and minor leaks after 200 hours of continuous operation. Inspection found that power frame studs (TS-7507-2201-00) had loosened due to high vibration, leading to uneven pressure distribution. Technicians retorqued the studs to the recommended 1,500 ft-lbs and replaced two damaged studs with TSC OEM-equivalent units. The pump resumed smooth operation within 30 minutes, avoiding costly offshore downtime and preventing further damage to the fluid end assembly.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible with both BOMCO F-1300 and F-1600 mud pumps? | Yes, every part in this collection is exclusively engineered to be fully compatible with both the BOMCO F-1300 and F-1600 mud pumps. They match TSC OEM specifications for both models, requiring no modifications for installation. Each part works seamlessly with the fluid end assemblies of both pumps, ensuring hassle-free maintenance and repair—eliminating the frustration of sourcing separate parts for each pump model. |
| Do these parts meet API 7K and TSC OEM standards? | Absolutely. All parts are manufactured in strict compliance with API 7K (Drilling Fluid Pumps) standards and ISO 9001 quality management requirements, and they match TSC OEM dimensional, material, and performance specifications. Each part undergoes rigorous testing—including pressure, torque, and dimensional checks—to ensure reliability and durability in harsh drilling environments, giving you confidence in their performance. |
| What is the typical service life of key fluid end components for BOMCO F-1300/F-1600? | Under standard drilling conditions, gaskets last 300–500 operating hours; studs and nuts last 2,800–3,200 operating hours; valve guides last 1,400–1,800 operating hours; wear plates and liner flanges last 2,200+ operating hours. These parts outperform generic alternatives by 28% on average, even in harsh conditions, helping you reduce maintenance frequency and costs. |
7. Procurement Guidance & Call to Action
This TSC BOMCO F-1300, F-1600 Pump Fluid End Parts List is a formal, standardized procurement reference and technical compliance document, designed specifically for drilling teams and parts suppliers seeking reliable, API 7K-certified TSC OEM-equivalent replacement components for BOMCO F-1300 and F-1600 mud pumps. Every part is fully vetted for dimensional accuracy, material quality, and functional performance—critical for 1300 HP and 1600 HP pumps operating at up to 5,000 PSI—eliminating the risk of sourcing incompatible, low-quality parts that lead to costly rig downtime, premature fluid end failure, and catastrophic pump damage. These issues can cost thousands in lost productivity and repairs, making certified parts a smart investment for any operation relying on BOMCO F-1300 and F-1600 pumps.
