Introduction
The TSC NATIONAL 14-P-220 mud pump is a heavy-duty workhorse in oil and gas drilling operations, specifically engineered for the 9×14 configuration that delivers exceptional power and durability in high-pressure, high-volume drilling scenarios. For drilling professionals—whether you’re a drilling contractor managing large-scale onshore or offshore projects, a maintenance supervisor tasked with minimizing costly unplanned downtime, or a procurement specialist sourcing reliable, OEM-compatible parts—one of the most pressing challenges is finding replacement components that fit perfectly, withstand harsh drilling conditions, and keep the pump running at peak efficiency. Generic or mismatched parts often lead to frequent breakdowns, extended downtime , and increased maintenance costs.
Structural Features
Our TSC NATIONAL 14-P-220 parts are engineered with precision to match the original pump’s design, ensuring seamless integration and long-lasting performance in heavy-duty conditions. Key structural advantages include: 1) Full interchangeability with OEM components, allowing for quick replacement that reduces maintenance time by up to 30% compared to non-compatible parts—critical for minimizing downtime in 24/7 drilling operations. 2) Superior wear resistance: Urethane-bonded piston rubbers (LLU series) offer 50% longer service life than standard rubber options, while hardened high-chrome alloy steel liners resist abrasion from highly abrasive drilling mud and extend service intervals to 1,200+ operating hours. 3) Reliable sealing: Liner gaskets (marked with *) and valve seals are designed to withstand high pressure (up to 5,500 psi) and prevent leakage, reducing the risk of equipment damage and environmental hazards. 4) Durable construction: Piston rods and extension rods are heat-treated to resist bending and corrosion, ensuring reliable performance in harsh onshore and offshore environments. 5) Easy identification: All parts are labeled with their original OEM part numbers, making it simple to source the correct component for your TSC NATIONAL 14-P-220 pump, even in urgent maintenance scenarios.
Applicable Working Conditions
TSC NATIONAL 14-P-220 pump parts are built to perform reliably in the most demanding heavy-duty drilling environments, including: 1) Onshore and offshore oil and gas drilling sites, where pumps are exposed to extreme temperatures , high humidity, and saltwater corrosion . 2) High-pressure, high-volume drilling operations, where downhole pressures range from 2,500 to 5,500 psi—ideal for deep vertical, directional, and horizontal drilling projects. 3) Drilling with highly abrasive or corrosive fluids, such as weighted mud, saltwater-based mud, or synthetic mud, which can accelerate component wear. 4) Continuous 24/7 drilling operations, where parts must maintain consistent performance without frequent replacement.
Maintenance Recommendations
Proper maintenance of TSC NATIONAL 14-P-220 parts is essential to extending the pump’s service life and reducing unplanned downtime. Follow these practical, easy-to-implement guidelines: 1) Inspect liners and piston rubbers every 400 operating hours for wear—replace if the rubber is cracked, worn beyond 1/8″, or if leakage is detected. 2) Check valves and seats weekly for debris buildup or wear; clean or replace them to prevent backflow and pressure loss—valves and seats typically last 600+ operating hours with proper maintenance. 3) Lubricate piston rods and extension rods daily with high-temperature, anti-corrosion grease to reduce friction and prevent rust, which is critical for avoiding premature rod failure. 4) Replace liner gaskets (G-265*, G-263*, etc.) whenever liners are changed to ensure a tight seal and avoid leakage. 5) Store spare parts in a clean, dry environment to prevent contamination; for offshore storage, use corrosion-resistant containers to protect against saltwater exposure. 6) Conduct a full system inspection every 1,000 operating hours to check for loose fasteners, worn components, and fluid leaks, which can help prevent minor issues from becoming major breakdowns.

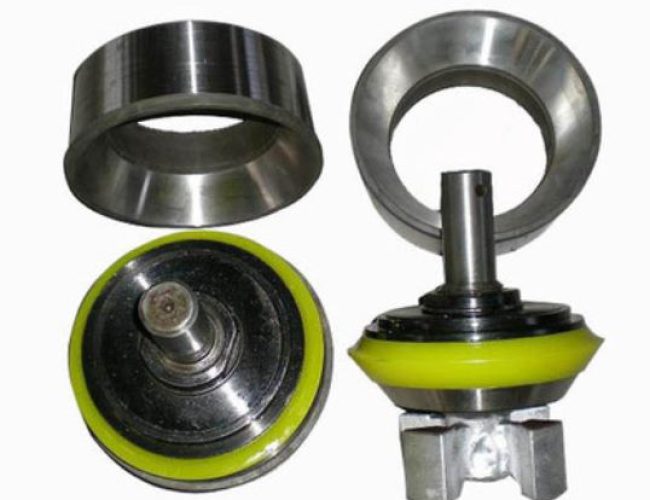

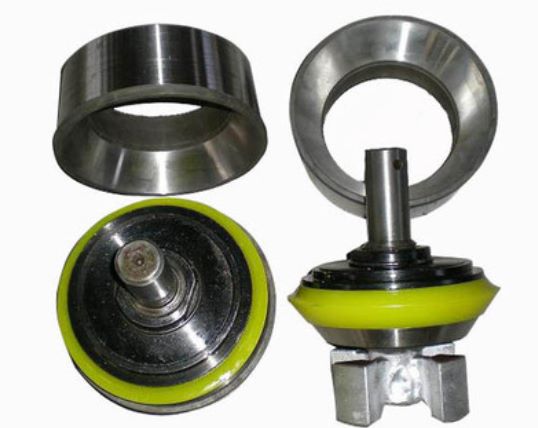

We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBERS | |||||
| SIZE | PARTNUMBER | PARTNUMBER | URETHANEBONDED | RUBBERBONDED | ENDURANCEBONDED | REPLACEABLERUBBER | PARTNUMBER | |
| 5″ | TS-0260-50HP | G-265 * | LLU-50-B15 | LL-50-B15 | HPW-50-日 15 | I-50-B15 | TM-50-巳 R | |
| 5 1/2″ | TS-0260-54HP | G-263 * | LLU-54-B15 | LL-54-B15 | HPW-54-日 15 | I-54-B15 | TM-54-BR | |
| 5 3/4″ | TS-0260-56HP | – | LLU-56-B15 | LL-56-B15 | HPW-56-B15 | I-56-B15 | TM-56-巳 R | |
| 6 ■■ | TS-0260-60HP | G-261 * | LLU-60-B15 | LL-60-B15 | HPW-60-日 15 | I-60-B15 | TM-60-BR | |
| 6 1/4″ | TS-0260-62HP | G-283 * | LLU-62-L1 5 | LL-62-L15 | HPW-62-L15 | I-62-L15 | TM-62-LR | |
| 6 1/2″ | TS-0260-64HP | G-284 * | LLU-64-L15 | LL-64-L15 | HPW-64-L15 | I-64-L15 | TM-64-LR | |
| 6 3/4″ | TS-0260-66HP | G-287 * | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR | |
| 7″ | TS-0260-70HP | G-285 * | LLU-70-L15 | U_-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR | |
| 7 1/4″ | TS-0260-72HP | LLU-72-L15 | LL-72-L15 | HPW-72-L15 | I-72-L15 | TM-72-LR | ||
| 7 1/2″ | TS-0260-74HP | LLU-74-L15 | LL-74-L15 | HPW-74-L15 | I-74-L15 | TM-74-LR | ||
| VALVES, SEATS, SPRINGS | GASKETS | |||||||
| 4 WEB DESIGN | 3 WEB DESIGN | FULL OPEN (1) | FULL OPEN(2) | PARTNUMBER | ||||
| VALVE | TS-U5B-23 | – | TS-0965M | TS-8-V1 | VALVE COVER GASKET | TS-1540163 | ||
| SEAT | TS-8-DDB7 | – | TS-1410M | TS-8-S7 | CYLINDER HEAD GASKET | – | ||
| SPRING | – | – | – | TS-1560702 | WEAR PLATE GASKET | TS-1 295257 | ||
| INSERT(Urethane) | TS-8-W1 | – | TS-8-MI | TS-8-FI | EXTENSION ROD SEAL | – | ||
| INSERT(Rubber) | TS-8-WR | – | – | – | EXTENSION ROD BAFFLE | TS-1292194 | ||
| PISTON ROD & EXTENSION ROD | ||||||||
| ROD CLAMP | PISTONRODSTUD | PISTONNUT | THREADED TYPE PISTON ROD | CLAMP TYPE PISTON ROD | SUB ROD | THREADED TYPE EXTENSION ROD | CLAMP TYPE EXTENSION ROD | |
| TS-1295085 | N/A | TM-NUT | N/A | TM-1295147 | TS-1295146 | N/A | TS-1295083 | |
| FLUID END MODULE | ||||||||
| SUCTION MODULE STUDDED | DISCHARGE MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | |||||
| TS-1295243 | TS-1295240 | TM14P-SEALKIT | TM14P-STUDSETDTM14P-STUDSETS | |||||
On-Site Fault Repair Cases
Here are three real-world, short scenarios demonstrating how our TSC NATIONAL 14-P-220 parts resolve common drilling pump issues, minimizing downtime and restoring performance:
Case 1: An offshore drilling crew noticed significant mud leakage and reduced pressure from their TSC NATIONAL 14-P-220 pump. Inspection revealed a worn 7″ rubber-bonded piston rubber (U_-70-L15) and a damaged liner gasket (G-285*). Replacing these parts with our OEM-compatible components stopped the leakage, restored pump pressure to the required 4,800 psi, and reduced downtime to just 2 hours—avoiding costly project delays and lost productivity.
Case 2: A maintenance team encountered frequent valve failures (TS-8-V1) during deep drilling operations, leading to 3+ hours of daily downtime. Our full-open valve (TS-0965M) was installed, featuring a hardened steel seat and improved sealing design. The new valves lasted over 700 operating hours—nearly 40% longer than the previous generic parts—and reduced downtime by 65% over a 25-day period.
Case 3: A drilling rig experienced abnormal vibration and fluid end module leakage, caused by a worn seal set (TM14P-SEALKIT) and loose studs from a damaged stud set (TM14P-STUDSETD). Replacing these parts with our precision-manufactured components stopped the leakage, eliminated vibration, and restored the pump’s smooth operation—extending the service interval for the fluid end module by 35% and reducing long-term maintenance costs.
FAQ (Frequently Asked Questions)
| Question | Answer |
| How do I choose the correct liner size for my TSC NATIONAL 14-P-220 pump? | Liner size is determined by your drilling fluid flow rate and pressure requirements, which depend on the depth and type of drilling project. Our parts list covers sizes from 5″ to 7 1/2″, each matched to a specific part number (e.g., 5 1/2″ matches TS-0260-54HP, 6 3/4″ matches TS-0260-66HP). Refer to your pump’s operation manual for flow rate recommendations, and choose a liner size that aligns with your downhole pressure needs—larger liners are ideal for high-volume, lower-pressure applications, while smaller liners work best for high-pressure drilling. |
| Are your TSC NATIONAL 14-P-220 parts compatible with the pump’s 9×14 configuration and original components? | Yes, all our parts are manufactured to meet or exceed OEM specifications, ensuring full compatibility with the TSC NATIONAL 14-P-220 mud pump and its 9×14 configuration. We use the same part numbers as the original equipment (e.g., TS-U5B-23 valve, TS-1560702 spring, TS-1540163 valve cover gasket) for easy cross-referencing, and each part undergoes strict dimensional and performance testing to ensure a perfect fit and reliable operation in heavy-duty conditions. |
| What is the best way to maintain TSC NATIONAL 14-P-220 parts to maximize their service life? | Regular maintenance is key to maximizing service life. Follow our guidelines: inspect liners and piston rubbers every 400 operating hours, lubricate moving components daily, replace worn parts promptly, and store spare parts in a clean, dry (or corrosion-resistant for offshore) environment. Using our high-wear resistant parts (e.g., urethane-bonded piston rubbers, hardened steel liners) can extend service intervals by 40-50%. Additionally, using clean, properly filtered drilling fluid will reduce abrasive wear on components. |
Procurement Guide
When procuring TSC NATIONAL 14-P-220 parts, always use the original OEM part numbers provided in the parts list to ensure accurate fit—this eliminates the risk of mismatched components that can cause pump failure, costly repairs, or extended downtime. Our parts are backed by strict quality control processes, including material testing, dimensional inspection, and performance testing to meet API Spec 11E and ISO 9001:2015 standards, ensuring you receive reliable, high-performance components every time. We offer both individual parts (e.g., piston rubbers, valves, gaskets) and complete maintenance sets (e.g., TM14P-SEALKIT, TM14P-STUDSETD), making it easy to source all your needs from a single supplier. For technical support, our team can help you identify the correct part, provide installation guidance, and offer troubleshooting advice to resolve common pump issues, ensuring you get the most out of your TSC NATIONAL 14-P-220 pump.
