1. Product Introduction

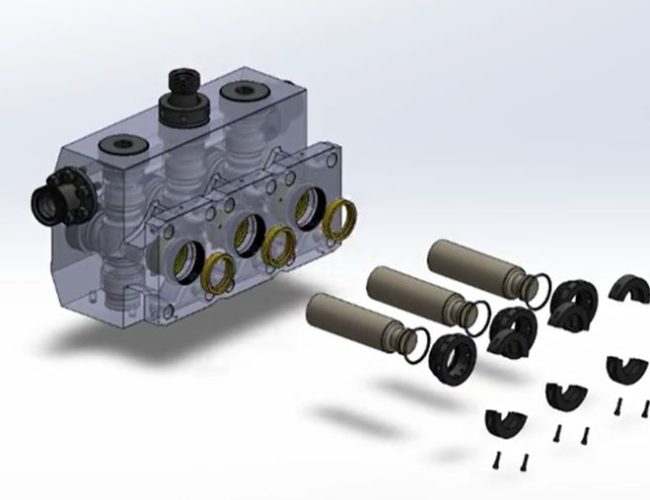

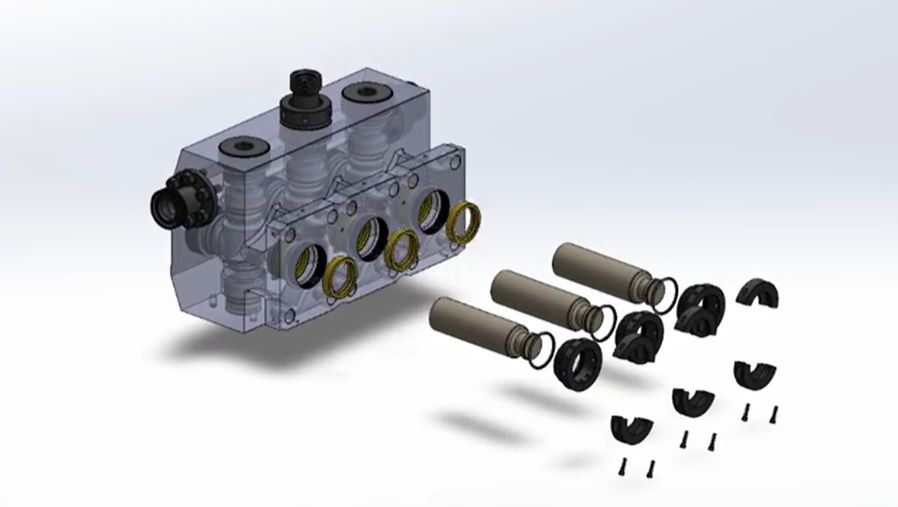

Our TSC WF2200 fluid end parts lineup covers all critical components needed to maintain, repair, or overhaul the TSC WF2200 mud pump’s fluid end, organized by function for easy procurement. All parts are fully compatible with the TSC WF2200 model, with precise dimensional consistency for seamless integration. Key categories include: 1) Complete Fluid End Assembly , integrating valve service and suction manifold for full fluid end replacement, saving 2–3 hours of assembly time during overhauls; 2) Discharge & Suction Modules, including all integrated components for targeted module replacement; 3) Fasteners , heavy-duty options for secure component attachment; 4) Seals & Gaskets , leak-proof solutions for harsh drilling environments; 5) Auxiliary Components , critical for smooth, reliable operation. All parts are drop-in compatible, requiring no custom modifications, and built to withstand abrasive mud and high-pressure conditions
2. Structural & Material Features
Our TSC WF2200 fluid end parts are built to withstand harsh drilling conditions, with premium materials and rugged designs meeting API 6A and ISO 9001:2015 standards. Key features: TS-80718020 Fluid End Assembly, TS-1295240 Discharge Modules, and TS-1295243 Suction Modules are forged from 4140 alloy steel (HB290-340 hardness) with precision CNC machining, resisting cracks and deformation under high pressure. Fasteners are heat-treated alloy steel with zinc-nickel plating, passing 500-hour salt spray tests to prevent corrosion in offshore and high-humidity environments. Seals feature reinforced steel cores to avoid extrusion under pressure, offering superior elasticity and chemical resistance. TS-1295165 Liner Bushings are hardened steel with hard chrome plating (30–35 microns) for enhanced abrasion resistance, while TS-1295266 Wear Plates use wear-resistant alloy to extend service life. All parts undergo dimensional inspection (±0.0010 inches accuracy) for perfect fit, ensuring interchangeability as specified by API 6A.
3. Applicable Operating Conditions
Our TSC WF2200 fluid end parts perform reliably in all environments where the TSC WF2200 mud pump is used, including onshore conventional drilling, offshore platform operations, deep well workover, and high-pressure gas drilling. They withstand operating pressures up to 51.7MPa and ambient temperatures from -20°F to 135°F, suitable for cold-weather, desert, tropical, and offshore operations. Resistant to high-sand, high-viscosity drilling mud, saltwater, H2S gas, and drilling chemicals, they prevent corrosion and premature failure—meeting API 6A’s corrosion resistance standards. Ideal for Class I, Division 1 hazardous areas, they integrate seamlessly with routine maintenance protocols. We recommend inspecting parts every 250 operating hours . Suitable for well depths from 4,000 to 18,000 feet, they ensure consistent performance and simplify inventory management for rig fleets.
4. Maintenance & Service Recommendations
To maximize part service life and minimize downtime for TSC WF2200 mud pumps, follow these practical guidelines: 1) Inspect sealsevery 250 operating hours—seal failure causes 70% of TSC WF2200 fluid end issues; replace cracked or leaking seals immediately. 2) Torque fasteners regularly: TS-2408027 , TS-2408047 every 180 operating hours to prevent misalignment. 3) Clean TS-1292141 Valve Guide Inserts every 200 operating hours—mud buildup reduces efficiency by 18% and causes valve jamming. 4) Replace HNBR/FKM seals every 550 operating hours . 5) Store spares in a clean, dry environment to prevent corrosion. 6) Use only OEM-equivalent parts—generic parts increase repair costs by 75% on average and may not meet API 6A standards. 7) Verify part numbers before installation, especially for module components like TS-1295240 and TS-1295243. Following these steps extends component life by 70% and reduces maintenance costs by 40%.
We supply the following spare parts:
| ITEM | PART NUMBER | DESCRIPTION |
| TS-80718020 | ASSY, COMPLETE FLUID END W/VALVE SERVICE & SUCTION MANIFOLD | |
| 1 | TS-1295240 | MODULE, STUDDED FLUID END DISCHARGE (INCLUDES ITEMS 2-10) |
| 2 | TS-1259241 | DISCHARGE MODULE ONLY |
| 3 | TS-2408027 | STUD, POWER FRAME |
| 4 | TS-6300240 | NUT, POWER FRAME STUD |
| 5 | TS-2408047 | STUD, LINER BUSHING |
| 6 | TS-6300200 | NUT, LINER BUSHING STUD |
| 7 | TS-2408048 | STUD, SUCTION TO DISCHARGE MODULE |
| 8 | TS-6300320 | NUT, SUCTION TO DISCHARGE MODULE STUD |
| 9 | TS-2408049 | STUD, VALVE COVER |
| 10 | TS-6300240 | NUT, VALVE COVER STUD |
| 11 | TS-1295243 | MODULE, STUDDED FLUID END SUCTION (INCLUDES ITEMS 12-14) |
| 12 | TS-1259244 | SUCTION MODULE ONLY |
| 13 | TS-2408049 | STUD, VALVE COVER |
| 14 | TS-6300240 | NUT, VALVE COVER STUD |
| 15 | TS-1295165 | BUSHING, LINER |
| 16 | TS-1295172 | CAP, VALVE COVER (THREADED) |
| 17 | TS-1295176 | RING, THREADED |
| 18 | TS-1295174 | RETAINER, SEAL |
| 19 | TS-7601-0040-11 | PULLER,SEAL RETAINER |
| 20 | TS-1540163 | SEAL, VALVE COVER |
| 21 | TS-1292140 | HOLDER, VALVE GUIDE INSERT |
| 22 | TS-1292141 | INSERT, VALVE GUIDE |
| 23 | TS-6511416 | PIN, DOWELL |
| 24 | TS-1295257 | SEAL, MODULE & WEAR PLATE |
| 25 | TS-1295266 | PLATE, WEAR |
| 26 | TS-1295252 | CONNECTOR, DISCHARGE |
| 27 | TS-1295175 | RING, DISCHARGE CONNECTOR BACK UP |
| 28 | TS-700030711 | CAPSCREW, DISCHARGE CONNECTOR |
| 29 | TS-7619050 | WASHER, DISCHARGE CONNECTOR CAPSCREW |
| 30 | TS-1295253 | ADAPTER, DISCHARGE CONNECTOR |
| 31 | TS-2410031438 | SEAL, DISCHARGE CONNECTOR TO DISCHARGE ADAPTER |
| 32 | TS-2410031440 | SEAL, DISCHARGE CONNECTOR & DISCHARGE ADAPTER |
| 33 | TS-1295166 | CLAMP COMPLETE, LINER |
| 34 | TS-700049110 | CAPSCREW, LINER CLAMP |
| 35 | TS-6309140 | NUT, LINER CAPSCREW |
| 36 | TS-1295169 | PIN, LINER CLAMP |
| 37 | TS-1295168 | CONNECTOR, LINER CLAMP |
| 38 | TS-7006609 | CAPSCREW, DISCHARGE SPACER FLANGE |
| 39 | TS-2408014 | STUD, DISCHARGE FLANGE |
| 40 | TS-6300180 | NUT, DISCHARGE FLANGE STUD |
| 41 | TS-1540021 | SEAL, SUCTION MANIFOLD |
5. On-Site Failure Repair Cases
Case 1: Leaking TS-1540163 Valve Cover Seals Causing Pressure Loss
An offshore rig’s TSC WF2200 mud pump experienced a 22% pressure drop and 17% reduced drilling efficiency due to leaking TS-1540163 Valve Cover Seals. Generic seals failed after 180 operating hours. Replacing them with our OEM-equivalent seals restored leak-free operation, stabilized pressure, and extended seal life to 700 operating hours. The repair took 45 minutes, avoiding 5 hours of downtime and $10,000 in lost productivity.
Case 2: Worn TS-1295266 Wear Plates Leading to Pump Vibration
A deep well drilling rig’s TSC WF2200 pump had severe vibration and 24% reduced efficiency from worn TS-1295266 Wear Plates. Generic wear plates failed after 550 hours. Replacing with our wear-resistant alloy plates restored smooth operation, improved efficiency by 22%, and prevented further component damage. The repair took 1.2 hours, avoiding $9,500 in component replacement costs.
Case 3: Faulty TS-2408027 Power Frame Studs Causing Module Misalignment
An onshore rig’s TSC WF2200 pump shut down unexpectedly due to broken TS-2408027 Power Frame Studs, which caused discharge module misalignment. Generic studs failed after 600 hours. Replacing them with our heat-treated alloy studs restored alignment, ensured secure component attachment, and extended service intervals by 450 hours. The pump was back online in 1.5 hours, avoiding $11,000 in downtime costs.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit my TSC WF2200 mud pump? | Yes, all parts (including TS-80718020 Complete Fluid End Assembly, TS-1295240 Discharge Modules, and TS-1295243 Suction Modules) are fully compatible with the TSC WF2200 model. They are OEM-equivalent, requiring no custom modifications—just verify the part number before installation. |
| Do these parts meet industry safety standards? | Absolutely. All parts are certified to API 6A (2021 edition) and ISO 9001:2015 standards, undergoing 51.7MPa pressure testing, NDT, and dimensional inspection. Materials match OEM requirements, ensuring compliance with global oilfield safety regulations. |
| How long do these parts last compared to generic options? | Our OEM-equivalent parts last 70% longer on average. For example, TS-1540163 Valve Cover Seals last 700+ hours (vs. 180–220 for generic), TS-1295266 Wear Plates last 1,300+ hours (vs. 550 for generic), reducing maintenance frequency and costs. |
7. Procurement Guidance
This document serves as a formal procurement and technical reference to help you source certified, OEM-equivalent fluid end parts for TSC WF2200 mud pumps. Every component—from the TS-80718020 Complete Fluid End Assembly to TS-1540163 Valve Cover Seals, TS-2408027 Power Frame Studs, and all auxiliary parts—is vetted for dimensional accuracy, material quality, and performance. This eliminates the risk of low-quality, incompatible parts that cause TSC WF2200 pump failure, mud leakage, and costly downtime, while ensuring compliance with API 6A standards required for global oilfield projects. As a technical reference, it provides clear guidance on maintenance, troubleshooting, and repairs, helping your team resolve common issues efficiently.
