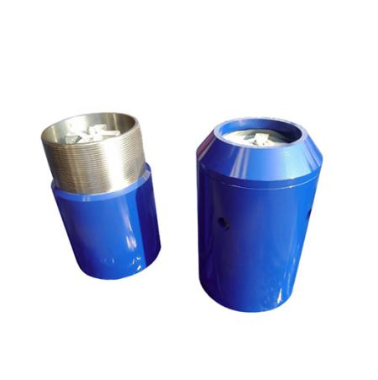

Float shoes, though seemingly insignificant, are crucial tools in cementing operations. They are typically installed at the bottom of the casing, forming the “bottom circulation system” along with the float collar. Throughout the cementing process, float shoes perform multiple tasks, including guiding, protecting, isolating, and assisting circulation. Their role directly affects whether cement slurry can be pumped into place smoothly, whether a reliable seal can be formed on the wellbore, and whether subsequent wellbore operations can be carried out safely. To understand the importance of float shoes, it’s essential to understand how cementing is performed. After the casing is run into the wellbore, cement slurry is injected into the annulus to form a long-term, stable seal, preventing oil, gas, and water flow and ensuring long-term wellbore stability. However, improving cement slurry replacement efficiency and ensuring the slurry solidifies at the intended location is not easy. Downhole challenges include well deviation, complex formations, drilling fluid residue, and wellbore pressure variations. The function of float shoes is precisely to address these situations.
The core function of a float shoe is to provide a smooth channel for cement slurry to enter the annulus and to act as a one-way valve. Its internal structure typically includes guide holes and a check valve, allowing cement slurry to enter the annulus from the inside while preventing backflow of cement slurry or downhole fluids into the casing. This one-way flow not only maintains stable fluid pressure but also effectively prevents cementing failure caused by backflow or cement backflow. In high-pressure wells, high-temperature wells, and complex well conditions, the check valve ensures a tight seal under pressure loading, a key guarantee for successful cementing.
Besides serving as a fluid inlet channel, another crucial function of the float shoe is to facilitate the smooth running of the casing into the wellbore. Downhole formations may contain steps, caves, collapses, or other irregular shapes. The float shoe is typically designed with a streamlined, inclined surface or a guide angle, which helps the casing automatically navigate through obstacle areas during running, reducing the risk of jamming. This guiding function of the float shoe is particularly important in deep wells, horizontal wells, or environments with significant well inclination, as it effectively reduces friction and improves the success rate of casing running.
Float shoes also play a crucial role in improving mud replacement efficiency. During drilling, a large amount of drilling fluid remains in the wellbore. If this fluid is not effectively replaced, the cement slurry will not adhere adequately to the wellbore, leading to a decline in cementing quality. The internal channels designed in float shoes concentrate the fluid, creating a more stable flow pattern, accelerating the replacement of drilling fluid, and improving cement slurry replacement efficiency. Some high-performance float shoes also incorporate swirling structures, causing the cement slurry to form a spiral flow upon entering the annulus, further enhancing the cleaning effect and providing a cleaner wellbore environment for cementing operations.
Float shoes play a vital role in emergency situations. If the casing encounters an insurmountable area during lowering, the float shoe can withstand some pressure and act as an impact buffer, reducing the risk of casing deformation or damage. In the later stages of cementing, if well control or testing is required, the check valve structure of the float shoe can provide a seal again, preventing downhole fluid from flowing back up. For deep wells, high-sulfur wells, or wells with special operating conditions, the material and corrosion resistance of the float shoe are key to ensuring long-term reliability.
Float shoes in cementing are not merely “small parts installed at the bottom,” but rather crucial cementing tools integrating multiple functions such as guidance, sealing, check valves, protection, and circulation assistance. They allow cement slurry to reach the bottom of the well smoothly and remain stably, improving cementing quality; they help the casing run smoothly, increasing operational efficiency; and their one-way valve structure maintains pressure system stability, making the operation safer and more reliable. Because of these functions, float shoes are indispensable in cementing operations and are one of the key guarantees for the success or failure of cementing in every well.
