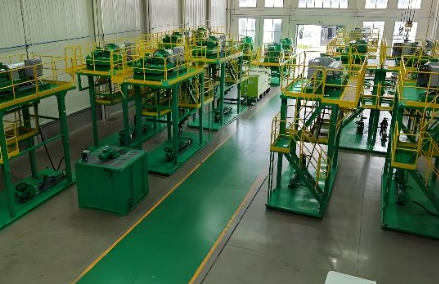

In oil and gas drilling, geological exploration, and trenchless engineering, solids control equipment is the core equipment for maintaining drilling fluid performance and ensuring operational continuity. It separates harmful solid particles (such as rock cuttings and sand) from the drilling fluid, enabling its recycling, reducing material costs, and minimizing environmental pollution. However, the requirements for solids control equipment vary significantly across different engineering scenarios. Inappropriate selection can lead to low equipment efficiency, soaring maintenance costs, and even operational interruptions. Therefore, the selection of solids control equipment requires comprehensive consideration of multiple factors, including technical parameters, environmental adaptability, and economic efficiency.
Processing Capacity
Processing capacity refers to the volume of drilling fluid processed by the solids control equipment per unit time, usually measured in liters per second (L/s) or cubic meters per hour (m³/h). This parameter must be strictly matched to the displacement requirements of the drilling operation. Insufficient capacity will lead to poor drilling fluid circulation, causing downhole pressure fluctuations or even stuck pipe accidents; excessive capacity will result in wasted equipment energy and increased costs.
Displacement matching principle: Select equipment capacity based on the drilling rig model and well depth. For example, small land drilling rigs (drilling depth <3000 meters) typically have a displacement of 50-100 L/s and require a solids control system with a capacity of 80-120 L/s; while deep-sea drilling vessels (drilling depth >6000 meters) can have a displacement of 300-500 L/s, requiring a multi-stage series solids control system, with each unit needing a capacity of at least 200 L/s.
Peak handling requirements: Considering instantaneous displacement fluctuations during drilling (such as a surge in drilling fluid return during tripping in and out of the well), the equipment needs to have a 20%-30% redundancy capacity. For example, a certain ultra-deep well drilling rig is designed with a displacement of 400 L/s, but a solids control system with a processing capacity of 500 L/s is actually selected to cope with sudden operating conditions.
Multi-stage equipment coordination: Large solids control systems typically consist of four stages of equipment: a vibrating screen, a desander, a desilter, and a centrifuge. The processing capacity of each stage needs to increase progressively. For example, the vibrating screen has a processing capacity of 100 L/s, the desander needs to reach 150 L/s, the desilter 200 L/s, and the centrifuge 250 L/s, forming a gradient purification process of ‘coarse screening → fine filtration’.
Separation Accuracy
Separation accuracy refers to the minimum particle size of solid phase particles separated from the drilling fluid by the solids control equipment, usually measured in micrometers (μm). Insufficient separation accuracy will lead to fine particle residue, causing an increase in drilling fluid viscosity and filtration loss, which in turn affects wellbore stability and drill bit life; while excessively pursuing high-precision separation may over-remove beneficial solid phases (such as bentonite particles), leading to a surge in drilling fluid costs.
Particle Size Distribution Analysis: The target separation accuracy is determined by laboratory testing of the particle size distribution (e.g., D50, D90 values) of solid particles in the drilling fluid. For example, in a shale gas well, if 60% of the drilling fluid has a particle size >74μm and 10% has a particle size <20μm (bentonite particles), then a solids control equipment combination with a separation accuracy of 20-74μm is required.
Equipment Separation Capacity Matching: Vibrating screens are suitable for separating coarse particles >74μm; desanders (separation accuracy 40-74μm) and desilters (separation accuracy 15-40μm) are used for separating medium and fine particles; and centrifuges (separation accuracy 2-15μm) are used for separating ultrafine particles. For example, a deep-sea drilling platform uses a three-stage purification process of ‘vibrating screen + desander + centrifuge,’ achieving effective separation of over 95% of solid particles.
Dynamic Adjustment Function: Some high-end equipment supports online adjustment of separation accuracy. For example, a certain intelligent centrifuge can dynamically optimize the separation accuracy within the range of 2-20μm by adjusting the drum speed through frequency conversion control, adapting to the drilling fluid purification needs under different formation conditions.
Equipment Materials
Solids control equipment is in long-term contact with corrosive chemicals (such as chlorides and sulfides) and high-hardness rock cuttings in drilling fluids. The corrosion resistance and wear resistance of the equipment materials directly affect service life and maintenance costs. Inappropriate material selection may lead to perforation, leakage, or wear of critical components in a short period, causing unplanned downtime.
Corrosion-resistant material selection: Offshore drilling platforms require the use of highly corrosion-resistant alloys (such as duplex stainless steel and super austenitic stainless steel) or composite materials (such as fiberglass tanks with stainless steel linings). For example, the solids control system tank of a certain deep-water drilling vessel in the South China Sea uses 2205 duplex stainless steel, which has a service life more than three times longer than that of ordinary carbon steel in salt spray environments.
Wear-resistant structural design: Components in direct contact with drilling fluid (such as vibrating screens and centrifuge drums) require high-hardness materials (such as ceramic coatings and hard alloys) or surface strengthening treatments (such as shot peening and laser cladding). For example, the centrifuge drum of a certain ultra-deep well drilling rig is coated with tungsten carbide, improving its wear resistance by 5 times compared to ordinary steel drums.
Sealing and protection design: Equipment connection points require corrosion-resistant seals (such as fluororubber O-rings) and protective covers to prevent rock cuttings impact. For example, the vibrating screen of the solids control system at a desert drilling site uses a fully enclosed design, effectively reducing the corrosion of motors and bearings by sand and dust.
Automation Level
Automation level refers to the ability of solids control equipment to achieve real-time monitoring and automatic adjustment of operating parameters through sensors, PLC control systems, and remote monitoring technology. Highly automated equipment reduces human intervention, lowers operational risks, and improves purification efficiency; while low-automation equipment relies on the experience of on-site personnel, which can easily lead to equipment failure or substandard purification results due to operational errors.
Real-time parameter monitoring: Drilling fluid performance parameters (such as solids content, viscosity, and density) and equipment operating status (such as vibrating screen frequency and centrifuge speed) are monitored in real time using devices such as pressure sensors, flow meters, and particle size analyzers. For example, a certain intelligent solids control system can update data every 5 seconds and generate trend curves for analysis.
Automatic adjustment function: Equipment operating parameters are automatically adjusted based on monitoring data. For example, when drilling fluid viscosity increases, the system automatically increases centrifuge speed to enhance separation; when solids content exceeds the standard, a backup vibrating screen is automatically activated to increase processing capacity.
Remote diagnostics and maintenance: Equipment data is transmitted to a cloud control center via IoT technology, enabling remote fault diagnosis and software upgrades. For example, a multinational drilling company’s solids control system supports global remote monitoring; an expert team can respond to equipment anomaly alarms within 2 hours and guide on-site personnel to troubleshoot.
Operation and Maintenance Costs
Operation and maintenance costs include equipment purchase costs, energy consumption costs, maintenance costs, and spare parts replacement costs, requiring a comprehensive assessment of the total cost of ownership (TCO) over the equipment’s entire lifecycle. Focusing solely on initial purchase costs while neglecting operational costs can lead to total expenditures far exceeding expectations over the long term.
Energy-optimized design: Choosing high-efficiency motors and variable frequency drive technology reduces equipment energy consumption. For example, a new type of centrifuge uses a permanent magnet synchronous motor, saving over 30% more energy than traditional asynchronous motors, resulting in annual electricity savings exceeding 100,000 yuan (based on 20 hours of operation per day).
Modular design and ease of maintenance: Modular design allows for quick replacement of key components (such as screens and drums), reducing downtime. For example, the screen replacement time for a vibrating screen has been reduced from 2 hours to 20 minutes, lowering annual maintenance costs by 40%.
Spare parts versatility and supply: Choosing equipment brands with strong spare parts versatility and well-established supplier networks reduces spare parts procurement costs and waiting times. For example, a certain international brand of solids control equipment has spare parts inventory covering 80% of drilling platforms globally, with emergency spare parts supply cycles shortened to within 24 hours.
When selecting solids control equipment, the core principle should be ‘matching technical parameters with engineering requirements,’ comprehensively considering five major parameters: processing capacity, separation accuracy, equipment materials, level of automation, and operation and maintenance costs. For example, deep-sea drilling platforms should prioritize equipment combinations with high processing capacity, high corrosion resistance, and high automation, while small land-based drilling rigs can focus on cost optimization and ease of maintenance.
