ADES 802 Main Engine MTU 2000 Parts

1. Core Product Overview & Value Proposition

This dedicated parts catalog is exclusively engineered for the MTU 2000 Series Main Engine powering the ADES 802 drilling rig, a high-performance diesel powerplant built to deliver reliable torque and continuous operation for heavy-duty drilling applications. Target users include drilling rig maintenance crews, field service technicians, engine repair facilities, drilling contractors, and fleet asset managers who rely on uninterrupted engine performance to avoid costly rig downtime. The core purpose of this parts list is to supply precision-engineered, OEM-matching replacement components that restore full functionality to the MTU 2000 engine, extend service intervals, maintain rated power output (up to 1,500 hp), and uphold strict emissions and mechanical compliance standards for offshore and onshore drilling operations.

2. Detailed Product & Technical Specifications

2.1 Product Introduction

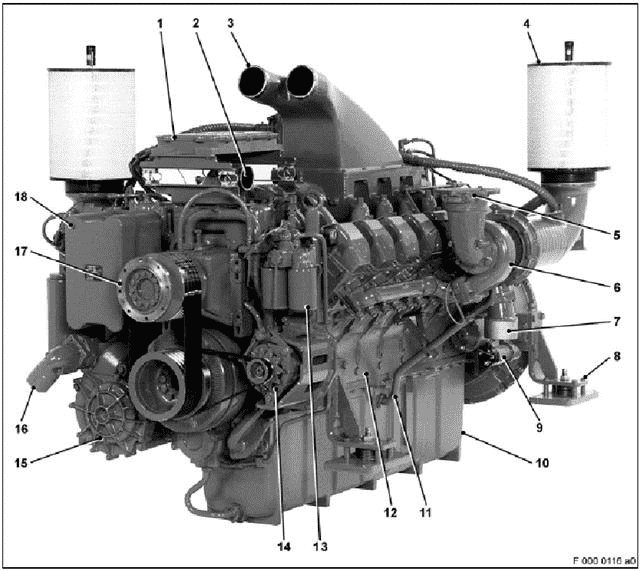

The MTU 2000 Series is a V-type diesel engine specifically configured for the ADES 802 drilling rig, featuring high-pressure fuel injection, turbocharged aspiration, and a robust internal structure for continuous heavy-duty operation. All replacement parts listed are manufactured from high-grade alloy steel, heat-treated for wear resistance, and machined to OEM specifications to match the MTU 2000’s precision engineering. Each component undergoes non-destructive testing (NDT) and pressure testing to meet ISO 9001 quality standards and drilling industry durability requirements.

2.2 Functional Description

These parts support the critical mechanical and fluid systems of the ADES 802 MTU 2000 main engine, with key operational roles including:

• Powering combustion and power transfer via precision pistons, connecting rods, bearings, and ring sets to maintain consistent compression ratios
• Regulating air intake and exhaust via valves, valve springs, turbocharger assemblies, and exhaust components for optimal engine breathing
• Managing fuel delivery through injectors, fuel pumps, high-pressure tubes, and filters to ensure efficient combustion and power output
• Sealing critical systems with gaskets, O-rings, and sealing rings to prevent oil, fuel, and coolant leaks under high operating pressures (up to 220 bar)
• Supporting lubrication and cooling via oil pumps, filters, water pumps, and heat exchangers to maintain stable operating temperatures
• Monitoring engine performance with sensors (pressure, temperature, speed) and drive components (belts, pulleys, tensioners) for reliable operation

2.3 Structural Characteristics

MTU 2000 engine components for the ADES 802 are engineered for heavy-duty, continuous use with these robust structural features:

• Piston & Bearing Assemblies: Forged alloy pistons and tri-metal connecting rod bearings with high load capacity, supporting 1,500 hp continuous power output and 2,000+ hour service intervals
• Valvetrain Components: Hardened steel inlet/exhaust valves and precision rocker arms with minimal friction, reducing wear and ensuring consistent valve timing
• Sealing Components: High-temperature fluorocarbon gaskets and O-rings resistant to diesel fuel, synthetic oil, and extreme heat (up to 300°C)
• Turbocharger & Air System: OEM-matching GTA5523 turbo assemblies with balanced rotors for optimal air intake and improved fuel efficiency
• Sensor & Control Parts: Calibrated pressure, temperature, and speed sensors with factory-set accuracy, ensuring real-time engine monitoring and performance regulation

2.4 Applicable Operating Conditions

These ADES 802 MTU 2000 replacement parts perform reliably in extreme drilling environments:

• Offshore drilling platforms and jack-up rigs (saltwater corrosion resistance)
• Remote onshore drilling sites (desert, arctic, and temperate climates)
• Continuous heavy-load operation for ADES 802 rig drilling and workover tasks
• Operating temperature range: -15°F (-26°C) to 220°F (104°C)
• Engine operating pressure: Up to 220 bar fuel pressure, 8.5 bar oil pressure
• Compliant with MTU original equipment standards and drilling industry emissions requirements

2.5 Maintenance & Service Recommendations

Follow these industry-leading protocols to maximize MTU 2000 engine component life and prevent unexpected failures on the ADES 802 rig:

1. Preventive Inspection Schedule: Conduct full engine inspections every 250 operating hours; check for leaks, wear on pistons/bearings, valve clearance, and sensor functionality
2. Fluid System Maintenance: Replace oil, fuel, and air filters every 500 hours; use only MTU-recommended synthetic lubricants and coolants to protect seals and bearings
3. Scheduled Component Replacement: Replace gaskets, O-rings, and sealing rings every 1,000 hours; swap pistons, bearings, and valvetrain parts every 2,000 hours to prevent catastrophic failure
4. Turbocharger Care: Inspect turbo hoses and clamps every 300 hours; clean air intake systems to prevent debris damage to turbo blades
5. Storage Guidelines: Store spare parts in a climate-controlled, dust-free environment; coat metal components with anti-corrosion lubricant for long-term storage

We supply the following spare parts:

Item	Unit	Part no	Description
			Main Engine MTU 2000
1	EA	5221800022	O/RTN line
2	EA	3550330130	bearing outboard support
3	EA	X00005363	oil separator
4	EA	5310180110	Element breather
5	EA	5310160021	Seal covercylinderhead DIE cast AL
6	EA	x00033267	Hose 25 mm DIA*810mmADEC
7	EA	x00033266	Hose 25 mm DIA*1340 mmADEC
8	EA	x00033265	Hose 25 mm DIA*780mmADEC
9	EA	x00033171	Hose 25 mm DIA*410mmADEC
10	EA	5410100163	Insert oil separator
11	EA	5410180233	Diaphragm
12	EA	180680	Gasket
13	EA	5352020013	Idler gear
14	EA	5360520050	Bushing Idler gear
15	EA	5220300805	HUB
16	EA	0249975047	Seal lip shaft radial  G
17	EA	5360520648	Wheel metering
18	EA	5360520505	Gear flywhl ring 432.2+/0.05
19	EA	5369970147	sealing Ring
20	EA	5220302217	Piston
21	EA	5419940037	Ring piston pin snap
22	EA	0120373519	Ring oil control
23	EA	0090373519	Ring piston second compression
24	EA	0090373419	Ring piston first compression
25	EA	5420382211	Bearing connecting  rod lower
26	EA	5420300520	Connecting rod
27	EA	5360382410	Bearing connecting  rod upper
28	EA	5410160920	Gasket cylinder head
29	EA	5410550806	Bridg valve floating
30	EA	5410530225	Retainer valve spring
31	EA	5410501236	Rocker shaft support W/Rocker arm
32	EA	5320530020	Spring valve
33	EA	5410500226	Valve inlet
34	EA	5410500227	Valve
35	EA	5410500834	Rocker arm exhaust
36	EA	5410500933	Rocker arm inlet
37	EA	5410540505	Rod push rocker arm 369 mm
38	EA	5310160605	Cover cylinder head dia cast AL
39	EA	5310160021	Seal cover cylinder head DIE cast AL
40	EA	5220705732	Tube fuel high pressure external g
41	EA	0000170824	Tube ASM fuel injector G
42	EA	5410170171	Retainer nut
43	EA	5419970645	Seal ring
44	EA	0010100851	Nozzle ASM SCCC
45	EA	5419970445	Sealing Ring
46	EA	735080018201	Valve non return RHDK 18-L 0.5
47	EA	5362004523	Fuel pump primer
48	EA	700223013000	Bolt banjo A 15
49	EA	700335013000	Union banjo 15
50	EA	5360780480	Gasket for fuel
51	EA	X52208600014	Pressure relief valve
52	EA	X53608200005	Fuel pump low pressure
53	EA	5360780153	Pipe plug in
54	EA	700429013001	O-ring
55	EA	5220700277	Pipework fuel manifold
56	EA	0020922801	Fuel filter
57	EA	X000040776	Turbo ASM GTA5523 1.12A/R ADEC
58	EA	X00026934	tube charge air ADEC
59	EA	700429095002	O-ring
60	EA	700429095001	O-ring
61	EA	X00020822	Hose 160 DIA* 325 adec
62	EA	X00005505	Indicator contiminationADEC
63	EA	000000000681	Clamp
64	EA	700429530000	O-ring
65	EA	4571410080	Gasket
66	EA	70336150007	Sleeve rubber
67	EA	23522929	Clamp
68	EA	23520341	sealing Ring
69	EA	0001423657	Ring sealing
70	EA	5411420180	Gasket
71	EA	X00038373	Elbow exhaustADEC
72	EA	5261400341	Clamp V-band turbo
73	EA	X00007196	Motor starter 24 v cw insu rollclu 50mt
74	EA	5362004523	Engine oil pump
75	EA	5361800515	Valve ASM oil press relief 8.5 bar
76	EA	5221870080	Gasket
77	EA	4240100072	OIL dip – stick
78	EA	0031845301	Filter oil element S4000
79	EA	700429042002	O-ring
80	EA	40033	Sealant pipe thread loctite 586
81	EA	0009973675	Adapter oil filternipple S2000+S4000
82	EA	007603038101	Washer  A cop S 2000/4000
83	EA	700429050003	O-ring
84	EA	0001805065	Exchanger oil heat G
85	EA	5501871280	Gasket
86	EA	5221801922	Line oil return
87	EA	271511030000	Gasket
88	EA	5501871280	Gasket
89	EA	5222003401	Water pump coolant TB ADEC
90	EA	700429090000	O-ring
91	EA	5611871680	Gasket
92	EA	700368050013	Rubber sleeve
93	EA	700489050001	Gasket
94	EA	000000000672	Clamp
95	EA	0052031775	Thermal actuator
96	EA	700429075001	O-ring
97	EA	05132155	Sealing ring
98	EA	0002034480	Ring sealing
99	EA	8692030147	Gasket
100	EA	0139973692	Belt poly-V
101	EA	5221550215	Pulley belt
102	EA	529970292	Belt set 5V 1800LD M =S G
103	EA	5222061010	Pulley crank fan drive
104	EA	5222061510	Pulley fan drive
105	EA	5222000070	Roller tensioning
106	EA	X00008514	Pulley crank alternator gen set
107	EA	200625906235	Grooved ball braring
108	EA	X00026775	Level monitor sensor
109	EA	0035352731	Pressure sensor
110	EA	0035352531	Pressure sensor
111	EA	0005357433	Speed sensor
112	EA	0005356430	Tempreture sensor

3. Field Failure Repair Cases (ADES 802 MTU 2000 Engine)

Case 1: Oil Leak From Failed Cylinder Head Gasket

An onshore ADES 802 rig experienced persistent oil leaks around the cylinder head, causing low oil pressure and engine shutdown risk. Inspection revealed a degraded 5410160920 cylinder head gasket damaged by high heat. Replacing the gasket sealed the system, restored proper oil pressure, and resumed drilling operations within 2 hours.

Case 2: Power Loss From Worn Piston Rings

During offshore drilling, the MTU 2000 engine lost 20% power output and increased fuel consumption. Technicians identified worn 0090373419 first compression piston rings causing reduced compression. Replacing all piston ring sets restored full engine power and normal fuel efficiency immediately.

Case 3: Overheating From Faulty Water Pump

The ADES 802 rig’s MTU 2000 engine overheated repeatedly during continuous operation, triggering safety shutdowns. The issue was a failed 5222003401 water pump with a damaged impeller. Installing a new coolant water pump resolved overheating and stabilized engine operating temperatures.

4. Frequently Asked Questions (FAQ)

Question	Answer
Are these parts fully compatible with the ADES 802 MTU 2000 main engine?	Yes, every part is machined to MTU OEM specifications for direct drop-in fitment on the MTU 2000 Series engine used exclusively in the ADES 802 drilling rig, with no modifications required.
What is the typical service life of key MTU 2000 wear parts?	With proper maintenance, pistons, bearings, and valvetrain components last 2,000+ operating hours; gaskets, seals, and filters have a service life of 500–1,000 hours in heavy drilling conditions.
Can these parts be used for emergency field repairs on the ADES 802 rig?	Absolutely, these components are designed for quick field installation by certified engine technicians, making them ideal for emergency breakdowns to minimize costly rig downtime.

5. Procurement Guidance & Call to Action

This ADES 802 Main Engine MTU 2000 parts list serves as a definitive reference for both planned preventive maintenance stocking and urgent field repairs. All components are manufactured to meet strict MTU OEM standards and drilling industry quality benchmarks, ensuring reliable performance, reduced long-term maintenance costs, and uncompromised reliability for your drilling rig power system. Whether you’re restocking critical spare parts, addressing a sudden engine failure, or completing a full engine overhaul, these OEM-equivalent components deliver consistent fit and performance to keep your ADES 802 rig operating at peak efficiency.

Secure your supply of ADES 802 MTU 2000 replacement parts today to maintain operational readiness, avoid costly downtime, and protect your drilling rig investment. Reference the listed part numbers for accurate ordering, and use the technical details provided to streamline repair planning and inventory management for your rig’s main engine system.
