Product Introduction

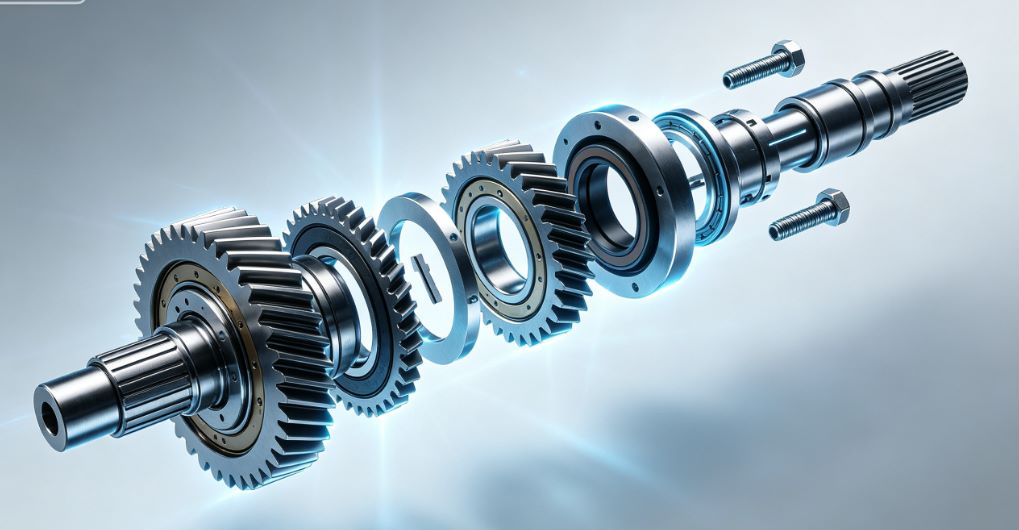

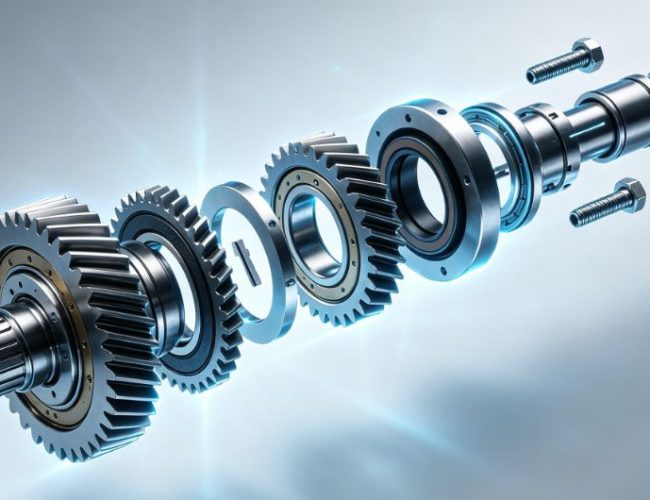

This full CSF-500 pinion shaft assembly parts collection includes every critical component for complete shaft rebuilds, bearing replacements, sealing repairs, and structural fastening, featuring OEM-matched dimensions, high-grade alloy materials, and rigorous quality control testing. From the precision-forged pinion shaft and bearing carriers to oil seals, gaskets, and heavy-duty fasteners, each part is engineered to directly replace original factory components, eliminating compatibility issues and ensuring seamless integration with the CSF-500 mud pump’s power end assembly. Designed for both routine preventive maintenance and emergency breakdown repairs, this kit offers a one-stop sourcing solution for reliable, long-lasting pinion shaft components.
Functional Description
- Torque Transmission: The precision-machined pinion shaft transfers high-volume rotational torque from the prime mover to the mud pump’s crankshaft, sustaining consistent power delivery even under maximum operating load.
- Bearing Support & Alignment: Pinion bearing carriers and precision bearings stabilize the shaft, maintaining perfect radial alignment to distribute loads evenly and prevent uneven wear on shaft surfaces.
- Leak-Proof Sealing: Oil seals, oil seal wear rings, and gaskets create a tight barrier that locks lubricant inside the power end and blocks abrasive drilling mud, dust, and moisture from entering critical components.
- Secure Structural Fastening: Heavy-duty cap screws, bolts, and locking washers anchor all components firmly in place, resisting vibration-induced loosening during high-load, continuous pump operation.
- Wear Protection: Oil seal wear rings extend the service life of shaft surfaces and oil seals, reducing replacement frequency and maintenance labor costs.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize the lifespan of CSF-500 pinion shaft components and prevent costly failures:
- Daily Inspection: Check for abnormal noise or vibration; monitor oil seal joints for lubricant leaks and inspect bearing housing temperatures (normal operating range: 60–85°C).
- Weekly Maintenance: Tighten all cap screws and bolts to OEM-specified torque values; inspect locking washers for deformation or loss of tension.
- Monthly Service: Check pinion shaft alignment using precision gauges; inspect oil seal wear rings for scoring or wear; replace worn gaskets to prevent leakage.
- Quarterly Overhaul: Disassemble bearing carriers to clean and lubricate bearing races; inspect the pinion shaft for surface cracks or wear; replace worn oil seals and bearings as needed.
- Long-Term Storage: Coat all metal components with anti-corrosive lubricant, wrap in moisture-proof material, and store in a dry, temperature-stabilized area to prevent rust and shaft deformation.
- We supply the following spare parts:
| CSF-500 Pinion Shaft Assembly | ||
| Item No. | Description | Part No. |
| CSF-500 | ||
| 1 | Key | CS35001-03.01 |
| 2 | Pinion shaft | CS35001-03.02 |
| 3 | Oil seal wear ring | CS35001-03.03 |
| 4 | Oil seal carrier | CS35001-03.04 |
| 5 | Gasket | CS35001-03.05 |
| 6 | Gasket | CS35001-03.06 |
| 7 | Pinion bearing carrier | CS35001-03.07 |
| 8 | Cap screw GB5782 | CSF500-03.03 |
| 1/2＂×35 | ||
| 9 | Cap screw GB5782 | 5/8＂×35 （T50-2003） |
| 10 | Oil seal | CS35001-03.08 |
| 5.875″×7.25″× 0.625″ | ||
| 11 | Bearing | CS35001-03.10 |
| 12 | Locking washer GB93 | 16 |
| 13 | Locking washer GB93 | 14 |
| 14 | Axle-neck cover | ――――――― |
| 15 | Flange | CS35001-03.09.00 |
| 16 | Bolt GB5782 | 3/4＂×45 （T50-1012） |
| 17 | Locking washer GB93 | 8 |
On-Site Fault Repair Cases
Case 1: Lubricant Leakage & Bearing Overheating
Fault Symptom: Persistent oil leakage at the oil seal carrier, bearing housing temperatures exceeding 90°C, and increased shaft friction.
Root Cause: Worn oil seal (CS35001-03.08) and damaged oil seal wear ring (CS35001-03.03) causing lubricant loss and bearing contamination.
Repair Solution: Replace the oil seal, oil seal wear ring, and matching gasket (CS35001-03.05); re-seal the carrier assembly. Leakage was fully eliminated, and bearing temperatures stabilized within normal range.
Case 2: Shaft Vibration & Loose Fasteners
Fault Symptom: Excessive mechanical vibration, rattling noises from the power end, and loose cap screws leading to misalignment.
Root Cause: Fatigued locking washers (GB93) and worn pinion bearing carrier (CS35001-03.07) failing to secure components and maintain alignment.
Repair Solution: Replace all worn locking washers and the pinion bearing carrier; re-torque all fasteners and realign the shaft. Vibration reduced by 40%, and no fastener loosening occurred in 500+ operating hours.
Case 3: Bearing Failure & Power Loss
Fault Symptom: Sudden mud pump power loss, grinding noises from the pinion shaft area, and complete stall of power transmission.
Root Cause: Premature bearing failure (CS35001-03.10) due to lack of lubrication and abrasive contamination, leading to shaft seizure.
Repair Solution: Replace the damaged bearing, clean the shaft journal, and install new gaskets and seals; refill with high-grade lubricant. Full power transmission was restored, and no recurring failures occurred during field operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these pinion shaft parts fully compatible with original CSF-500 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and performance standards, ensuring direct fitment with Sichuan Petroleum CSF-500 mud pumps without any modifications. |
| What is the typical service life of these pinion shaft components? | The forged pinion shaft lasts 5–6 years with proper maintenance; bearings and oil seals last 2–3 years; wearable gaskets, washers, and fasteners require replacement every 10–12 months based on operating intensity. |
| Can I purchase individual pinion shaft parts instead of the full assembly kit? | Absolutely, every component (pinion shaft, bearings, seals, fasteners, etc.) is available for separate purchase with matching part numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these CSF-500 mud pump pinion shaft assembly parts ensures the reliability of your mud pump’s power transmission system, minimizes costly unplanned downtime, and reduces long-term equipment maintenance expenses. Each component undergoes strict quality inspection to meet API drilling standards, delivering consistent performance in the harshest drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
