Product Introduction

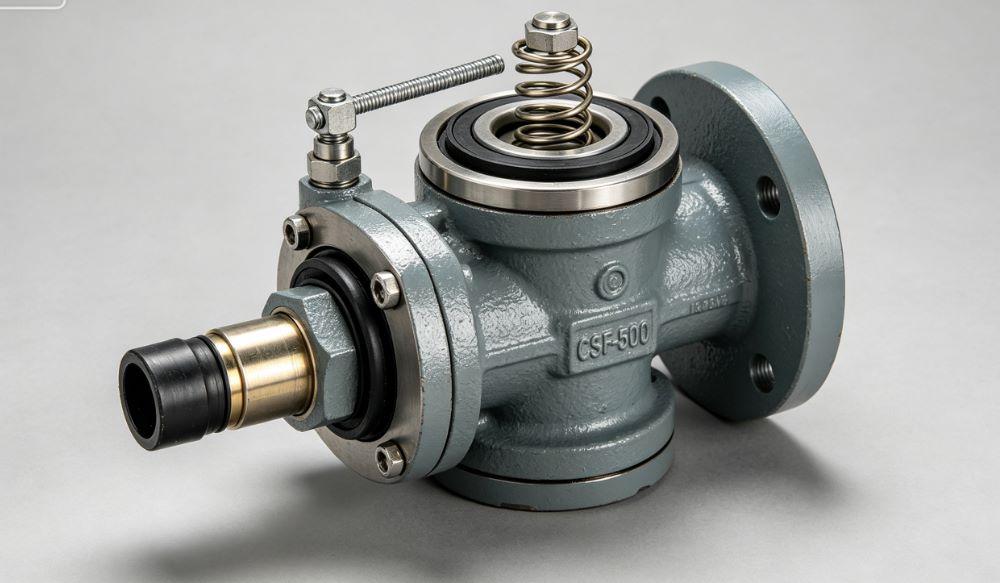

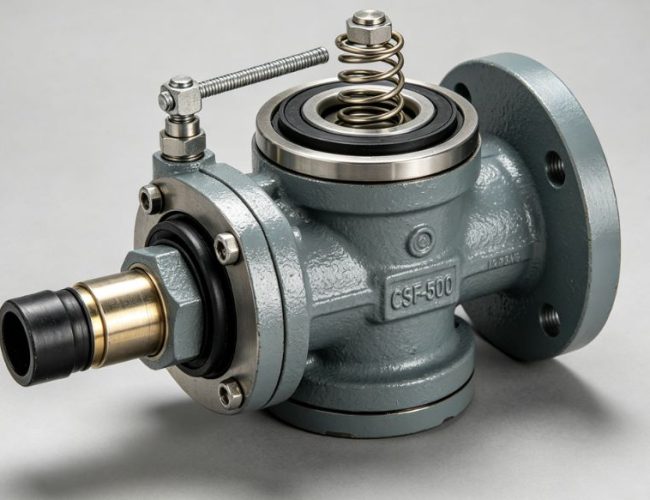

This full CSF-500 piston & liner wash parts kit includes every critical component for a complete system overhaul or targeted repairs, featuring OEM-matched dimensions, durable industrial-grade materials, and strict dimensional tolerances (±0.02mm) for perfect fitment. All parts are manufactured to replicate original equipment performance, eliminating compatibility issues and ensuring seamless integration with CSF-500 mud pump assemblies. Designed for both routine preventive maintenance and emergency breakdown repairs, this kit serves as a one-stop procurement solution for oilfield, water well, and directional drilling operations.
Functional Specifications
- Cooling & Flushing: Delivers continuous clean fluid to the piston-liner mating surface, dissipating frictional heat (max operating temperature reduction: 85°F/29°C) and flushing away silt, sand, and drilling debris to prevent abrasive wear.
- Seal Integrity Maintenance: Preserves consistent compression and sealing performance of piston rubber components, preventing fluid bypass and maintaining rated pump pressure (up to 5000 PSI, matching CSF-500 pump specifications).
- System Connectivity: Provides leak-proof, precision-fit connections for hoses, elbows, and piping, ensuring unobstructed fluid flow with zero pressure loss in the wash circuit.
- Structural Support: Securely mounts the spray pump, tank, and piping assemblies to the mud pump frame, resisting vibration and shock during high-load drilling operations.
Maintenance & Service Recommendations
To maximize component lifespan and maintain peak wash system performance, follow these field-proven maintenance protocols:
- Daily Inspection: Check hoses, connectors, and valves for leaks, cracks, or blockages; clear debris from spray pump intake screens to preserve fluid flow.
- Weekly Maintenance: Tighten all capscrews and fasteners to recommended torque specs; inspect belt tension and adjust as needed to prevent sheave slippage.
- Monthly Service: Drain and flush the wash tank to remove sediment buildup; replace worn washers, O-rings, and sealing components to prevent air ingestion.
- Quarterly Overhaul: Inspect spray pump performance, check for impeller wear, and replace any components with visible scoring or abrasion; lubricate moving parts per industrial lubrication standards.
- Storage Protocol: For idle rigs, drain all fluid from the wash system, coat metal components with anti-corrosive lubricant, and seal openings to prevent dust contamination.
- We supply the following spare parts:
Field-Proven Fault Repair Cases
Case 1: Insufficient Piston Cooling & Premature Liner Wear
Fault Symptom: Piston rubber melts rapidly, liner surfaces show deep scoring, and pump pressure drops within 100 operating hours.
Root Cause: Clogged spray pump and cracked Ø22xØ37 hose restricting wash fluid flow to the piston-liner interface.
Repair Solution: Replace CS33001-088.11.00 spraying pump and L=1500 Ø22xØ37 hose; flush the entire wash circuit and clean tank sediment. Post-repair, piston/liner lifespan increased to 350+ hours, restoring full pump pressure.
Case 2: Fluid Leakage at Connector Joints
Fault Symptom: Persistent fluid leakage at NPT1 and ZG2-1/2 connector joints, causing low wash system pressure and uneven cooling.
Root Cause: Worn connector threads and damaged sealing washers failing to maintain pressure tightness.
Repair Solution: Replace faulty connector assemblies (CS33001-088.02, CS33001-08A.07) and CS33001-088.09 washers; re-torque fasteners to GB standard specs. Leakage was fully resolved, and system pressure stabilized at 120 PSI.
Case 3: Belt Slippage & Spray Pump Failure
Fault Symptom: Sheave and belt assembly slips during operation, spray pump stalls, and wash fluid circulation stops completely.
Root Cause: Worn V-belt (A3708) and misaligned support assembly causing uneven power transmission.
Repair Solution: Replace GB1171-74 V-belt and CS33001-088.03.00 support assy; realign sheave and belt guard for perfect centering. Normal circulation resumed, and no further slippage occurred during 600+ hours of operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts 100% compatible with original CSF-500 mud pump assemblies? | Yes, all parts are manufactured to OEM dimensional specs and material standards, ensuring direct fitment with Sichuan Petroleum CSF-500 mud pumps without modification. |
| What is the typical service life of these wash parts in heavy-duty drilling? | Under normal operating conditions, structural components (supports, tanks) last 2-3 years; wearable parts (hoses, belts, washers) last 8-12 months, depending on drilling fluid abrasiveness and maintenance frequency. |
| Can I purchase individual components instead of the full kit? | Absolutely, each part (belt guard, sheave, connectors, etc.) is available for separate procurement with matching part numbers, allowing targeted replacement of damaged components. |
Procurement Guidance
Investing in these CSF-500 mud pump piston & liner wash parts ensures your drilling rig maintains optimal performance, minimizes costly downtime, and reduces long-term maintenance expenses. Backed by strict quality control and industry-standard compliance, these components deliver reliable performance in the harshest drilling environments, serving as a trusted replacement for OEM parts at a competitive cost point.
