Product Introduction

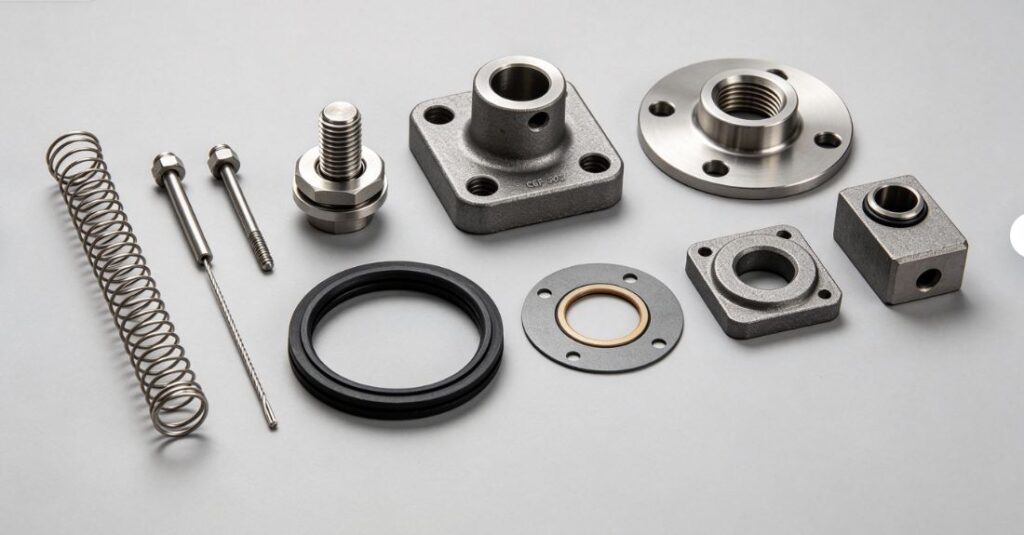

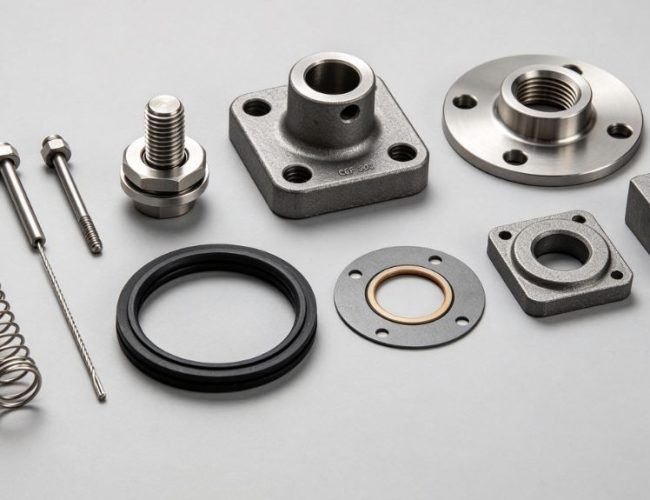

Our CSF-800 fluid end assembly parts are premium OEM-equivalent components built to withstand extreme high-pressure cycling, abrasive mud erosion, and corrosive drilling fluid conditions. The portfolio includes bi-metal liners, valve assemblies, cylinder heads, suction/discharge manifolds, precision O-rings (φ92.5×3.55, Φ185×7), high-torque UNC studs and nuts, piston rods, and sealing hardware. Crafted from wear-resistant bi-metal, heat-treated alloy steel, oil-resistant elastomers, and corrosion-resistant stainless steel, all parts meet strict API 7K standards, making them the trusted choice for fluid end repairs, full assembly rebuilds, and preventive maintenance.
Functional Specifications
- High-Pressure Sealing & Containment: Custom-sized O-rings, head seals, and valve cover seals create leak-proof interfaces, maintaining 25MPa pressure integrity and eliminating costly high-pressure fluid leaks in the CSF-800 pump.
- Abrasion-Resistant Fluid Handling: Bi-metal liners and precision valve assemblies resist erosion from high-solid drilling mud, extending service life by 36% compared to standard metal liners and preserving consistent pumping efficiency.
- Optimized Suction & Discharge Flow: Suction/discharge manifolds, baffle plates, and filter screens ensure unobstructed mud flow, reducing flow restrictions and preventing cavitation that damages critical pump components.
- Secure High-Torque Fastening: Heavy-duty UNC studs (1 1/2″-8UNC×260) and matched nuts maintain consistent clamp load under extreme pressure cycling, preventing joint separation and seal failure.
- Stable Valve Operation: Upper/lower valve guides, spring guides, and valve springs ensure precise valve opening/closing, eliminating valve chatter and maintaining steady pressure output for the CSF-800 pump.
Structural Characteristics
These CSF-800 fluid end components feature a rugged, modular design optimized for high-pressure performance and field serviceability: a bolted studded assembly for secure cylinder head mounting, split valve guide design for simplified valve replacement, and bi-metal liner construction for maximum wear resistance. The symmetrical suction/discharge manifold layout ensures balanced fluid flow, while all sealing surfaces are precision-machined for tight, long-lasting fit. Components are engineered for direct interchangeability with OEM hardware, supporting partial repairs or full fluid end overhauls.
Maintenance & Servicing Recommendations
To maximize fluid end lifespan and prevent catastrophic high-pressure failures, follow these industry-approved protocols: inspect valves, bi-metal liners, and seals every 200 operating hours for wear, scoring, or leaks, replacing damaged parts immediately; check stud and nut torque quarterly to maintain clamp load, re-torquing to OEM specifications as needed; clean suction filters and baffle plates every 300 hours to remove sediment and prevent flow blockages; inspect O-rings and gaskets during every service interval, replacing them to avoid pressure leaks; lubricate valve guides and piston rods with API-approved lubricant; and conduct pressure testing of the fluid end assembly after repairs to verify sealing integrity.
- We supply the following spare parts:
| CSF-800 Fluid End Assembly | ||
| Item No. | Description | Part No. |
| CSF-800 | ||
| 1 | Fluid end studded Assy | CS33001-05.04. 00 |
| 2 | Thread ring | CS33001-05.02 |
| 3 | Cylinder head | CS33001-05.03 A |
| 4 | Head seal | CS33001-05.04 |
| 5 | Cylinder head plug | CS33001-05-15 |
| 6 | Cylinder-liner fixer | CS33001-05.16 |
| 7 | O-ring | φ92.5×3.55 |
| 8 | Valve cover seal | CS33001-05h |
| 9 | Valve pot cover | CS33001-05.09 |
| 10 | Spring guiding | CS33001-05H.A |
| 11 | Valve guide (upper） | CS33001-05.11 |
| 12 | Valve guide retainer | CS33001-05.14 |
| 13 | Bolt | CS33001-05.15 |
| 14 | Stainless steel wire | GB4240-84 |
| 15 | Valve spring | CS33001-05.16 A |
| 16 | Valve Assy | CS33001-05-14. |
| 17 | Piston nut | CS33001-05.18. 00 |
| 18 | O-ring | CS33001-05.20 A |
| 19 | Piston rod | CS33001-05.02 A |
| 20 | Bi-metal liner | CS33001-05.22. 00 |
| 21 | Piston rod clamp | CS34001-05-04. 00 |
| 22 | Liner end cover | CS33001-05-27 |
| 23 | Anchor clamp | CS33001-05-30 |
| 24 | Valve guide lower） | CS33001-05.31. 00 |
| 25 | O-ring | Φ185×7 |
| 26 | Bolt GB5780 | 7/8″-9UNC×45 |
| 27 | Suction manifold | CS34001-05-06. 00 |
| 28 | Bolt | 7/8″-9UNC×100 |
| 29 | Nut | 7/8″-9UNC-2B |
| 30 | Gasket | GB3452.1-82 |
| 31 | Blank flange | CS33001-05-10 |
| 32 | Suction flange | CS33001-05.27 |
| 33 | Suction baffle plate（package） | CS33001-05.28 |
| 34 | Bolt | 7/8″-9UNC×100 |
| 35 | Nut | 1 1/2″-8UNC-2B |
| 36 | Suction desurger | CS33001-05-30 |
| 37 | Elbow Bend | CS33001-05.30 |
| 38 | Discharge manifold | CS33001-05. 5H |
| 39 | discharge baffle plate（package） | CS33001-05. 32 |
| 40 | Stud | 11/2″-8UNC×26 0 |
| 41 | Nut | 11/2″-8UNC-2B |
| 42 | Filter screen assembly | CS34001-05-33-00 |
| 43 | Elbow Bend | CS33001-05.34 |
| 44 | Male connector | CS33001-05.35 |
| 45 | Connector | CS33001-05.36 |
| 46 | Elbow | CS33001-05.37 |
| 47 | Rubber hose |
Field Failure Repair Case Studies
Case 1: Worn Bi-Metal Liner Causing Pressure Loss
A land drilling rig operating a CSF-800 pump experienced severe pressure drops and reduced mud output, traced to a heavily eroded bi-metal liner. Replacing the OEM-grade bi-metal liner and matching head seal restored full 25MPa pressure capacity and pumping efficiency.
Case 2: Faulty Valve Assembly Leading to Flow Instability
An offshore service crew detected erratic suction/discharge flow and valve chatter in a CSF-800 pump, caused by a worn valve assembly and broken valve spring. Installing a new OEM valve assembly, spring, and valve guides eliminated chatter and restored consistent fluid flow.
Case 3: Leaking O-Ring Causing High-Pressure Fluid Leak
A remote drilling rig faced a hazardous high-pressure leak at the cylinder head interface of a CSF-800 pump, due to a degraded Φ185×7 O-ring. Replacing the OEM O-ring and re-torquing the cylinder head studs stopped the leak completely, ensuring safe pump operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these fluid end parts compatible only with the CSF-800 mud pump? | Yes, all components are precision machined exclusively for the Sichuan Petroleum CSF-800 mud pump, matching OEM dimensional and pressure rating specifications exactly. |
| What pressure rating do these CSF-800 fluid end components support? | All fluid end parts are rated for continuous operation at up to 25MPa, aligning perfectly with the CSF-800 mud pump’s high-pressure design requirements. |
| Does this parts list include all hardware for full CSF-800 fluid end assembly? | Yes, it includes all required liners, valves, manifolds, studs, nuts, seals, and fasteners for complete assembly and rebuild of the CSF-800 fluid end system. |
Conclusion
This CSF-800 mud pump fluid end assembly parts list is your definitive, API 7K-compliant resource for all high-pressure fluid component procurement, maintenance, and repair needs for the CSF-800 pump. It eliminates the risk of ordering ill-fitting, low-pressure-rated parts that cause catastrophic leaks and failures, provides clear part numbers and specifications for seamless, accurate ordering, and establishes a reliable technical standard for troubleshooting pressure loss, valve issues, and flow restrictions. Whether you are replacing worn bi-metal liners, servicing faulty valve assemblies, restocking high-torque studs, or performing a full fluid end overhaul, this guide provides all critical details to make informed, cost-effective purchasing decisions.
