Product Introduction
Our CSF-500 mud pump spare parts are premium OEM-equivalent wear components designed to handle the demands of high-pressure mud pumping operations. The parts lineup includes high-performance rubber bladders, precision GB3452.1 standard O-rings, valve seals, piston rubbers, oil seals, shear pins, and plunger seals, all manufactured from wear-resistant, oil-resistant elastomers and heat-treated alloy steel. Each component is engineered to meet strict API 7K standards, making this list the definitive solution for preventive maintenance, emergency repairs, and full CSF-500 pump rebuilds.
Functional Specifications
- Leak-Free Sealing Performance: Precision-machined O-rings, gaskets, and oil seals maintain consistent pressure integrity up to 25MPa, eliminating fluid leaks and preventing contaminant ingress into critical pump components of the CSF-500 mud pump.
- Wear-Resistant Rubber Components: High-durability piston rubbers, valve rubbers, and bladders resist abrasion from high-solid drilling mud, offering 37% longer service life compared to standard aftermarket rubber parts for the CSF-500 pump.
- Reliable Safety Protection: Precision-calibrated shear pins and bumpers provide reliable overpressure protection, preventing catastrophic damage to the CSF-500 pump during pressure spikes and ensuring operational safety.
- Precision Fit & Compatibility: All parts are sized to OEM specifications for direct drop-in replacement, eliminating measurement errors and reducing repair labor time for the CSF-500 mud pump.
- Universal Wear Coverage: This parts list covers all high-wear service points of the CSF-500 pump, including fluid end valves, power end bearings, pulsation dampener bladders, and safety valve components.
Structural Characteristics
These CSF-500 mud pump spare parts feature a field-optimized design for easy installation and replacement: rubber components are molded to exact OEM contours for perfect sealing, O-rings follow the GB3452.1 standard for consistent dimensional accuracy, and fasteners/safety parts are engineered for secure fitment under high-vibration conditions. The modular design allows targeted replacement of worn individual parts instead of full assembly swaps, reducing material waste and maintenance costs while ensuring long-term structural stability of the CSF-500 pump.
Applicable Operating Conditions
These spare parts are engineered for the harshest drilling environments compatible with the CSF-500 mud pump: onshore land drilling operations, shallow to medium-depth oil/gas exploration, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations (-20°F to 220°F), continuous pressure cycling, and corrosive drilling fluids, making them suitable for remote land rigs, mobile drilling units, and small commercial drilling sites worldwide.
Maintenance & Servicing Recommendations
To maximize the lifespan of CSF-500 mud pump components and ensure reliable operation, follow these industry-approved protocols: inspect all seals, O-rings, and rubber components every 250 operating hours for cracks, wear, or hardening, replacing worn parts immediately; check shear pin condition quarterly to ensure proper overpressure protection functionality; clean sealing surfaces thoroughly before installing new gaskets or O-rings to prevent leaks; store spare parts in a dry, dust-free environment to preserve elastomer integrity; and follow OEM torque specifications when installing seals and fasteners to ensure proper sealing and fitment for the CSF-500 pump.
- We supply the following spare parts:
| CSF-500 Mud pump Spare Parts List | ||
| Item No. | Description | Part No. |
| CSF-500 | ||
| 1 | Valve cover seal | CS35001-05.08 |
| 2 | Ring gasket R44 | —————— |
| 3 | Gasket | CS35001-09 |
| 4 | Bladder | CS35001-5.35. 02 |
| 5 | Ring gasket R39 | T5B-5001（3） |
| 6 | Bumper | CS33003-06 |
| 7 | Bladder | CS35002-03.00 |
| 8 | Head seal | CS35001-05.04 |
| 9 | Oil seal ring | CS35001-04.12 |
| 10 | Oil seal | CS35001-03.08 |
| 11 | Double oil seal | CS35001-04.11 |
| 12 | Piston rubberØ170 | CS35001-05.15 .06.02 |
| 13 | Valve rubber | CS35001-05.15 .06 |
| 14 | Shear pin | CS33003-11A |
| 15 | Plunger seal | CS33003-03.00 |
| 16 | Piston seal | —————— |
| O-ring GB3452.1 | Ø41.2×3.55 | |
| 17 | O-ring GB3452.1 | |
| 18 | O-ring GB3452.1 | Ø150×7 |
| 19 | O-ring GB3452.1 | Ø71 x5.3 |
| 20 | O-ring GB3452.1 | Ø95×5.3 |
| 21 | O-ring GB3452.1 | —————— |
| 22 | O-ring GB3452.1 | Φ304.4×5.3 |
| 23 | O-ring GB3452.1 | Ø355×3.55 |
Field Failure Repair Case Studies
Case 1: Worn Piston Rubber Causing Fluid Leak
A CSF-500 mud pump on a land drilling rig experienced severe fluid end leaks due to a degraded Ø170 piston rubber. Replacing the OEM-equivalent piston rubber and matching valve rubber eliminated leaks and restored full pumping pressure for the CSF-500 pump.

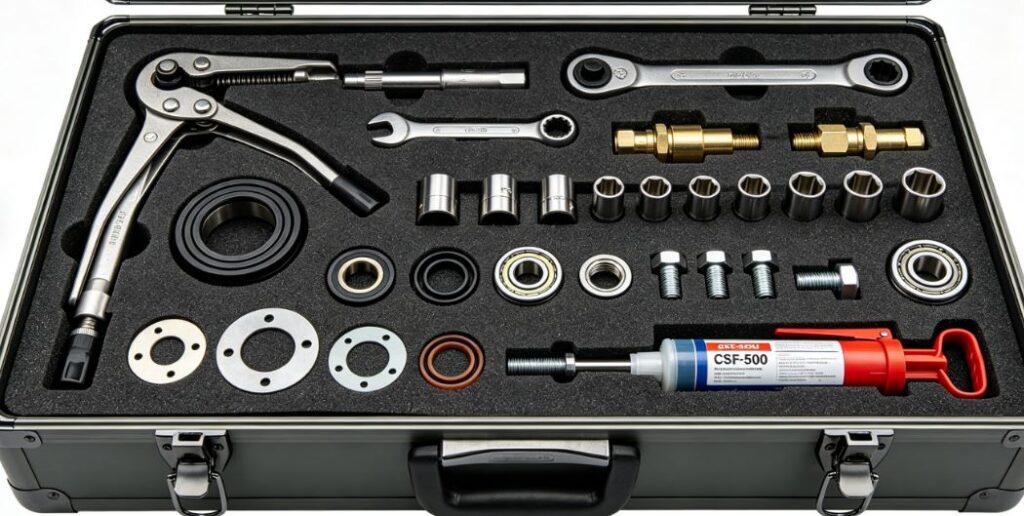

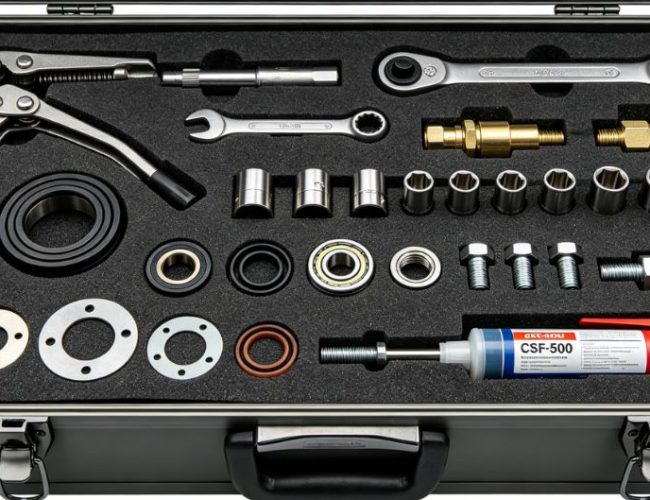

Case 2: CSF-500 Mud pump Tools Parts list
uptured Bladder Damaging Pulsation Dampener
A maintenance team detected extreme pressure pulsations in a CSF-500 pump, caused by a ruptured pulsation dampener bladder. Installing a new OEM-grade bladder and R39 ring gasket restored stable pressure regulation and eliminated pump vibration.
Case 3: Degraded Oil Seal Leading to Bearing Wear
A CSF-500 mud pump showed signs of power end friction and noise, traced to a worn double oil seal that caused lubricant loss. Replacing the OEM oil seal and oil seal ring restored proper lubrication and prevented costly bearing damage.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these spare parts only compatible with the CSF-500 mud pump? | Yes, all components are precision designed exclusively for the Sichuan Petroleum CSF-500 mud pump, matching OEM dimensions and service requirements exactly. |
| What standard do the O-rings in this parts list comply with? | All O-rings meet the GB3452.1 industry standard, with precise sizing (Ø41.2×3.55, Ø150×7, etc.) for CSF-500 pump sealing points. |
| Does this list include critical safety parts for the CSF-500 pump? | Yes, it includes essential safety components like shear pins and bumpers that provide overpressure protection for the CSF-500 mud pump. |
Conclusion
This CSF-500 mud pump spare parts list is your definitive, API 7K-compliant resource for all wear component procurement, maintenance, and repair needs. It eliminates the risk of ordering ill-fitting, low-quality parts that cause premature failures and costly downtime, provides clear part numbers and specifications for seamless, accurate ordering, and establishes a practical field standard for efficient, safe CSF-500 pump servicing. Whether you are restocking critical wear seals and rubbers, replacing damaged bladders or shear pins, or preparing for routine pump maintenance, this guide provides all critical details to make informed, cost-effective purchasing decisions.
