Product Introduction

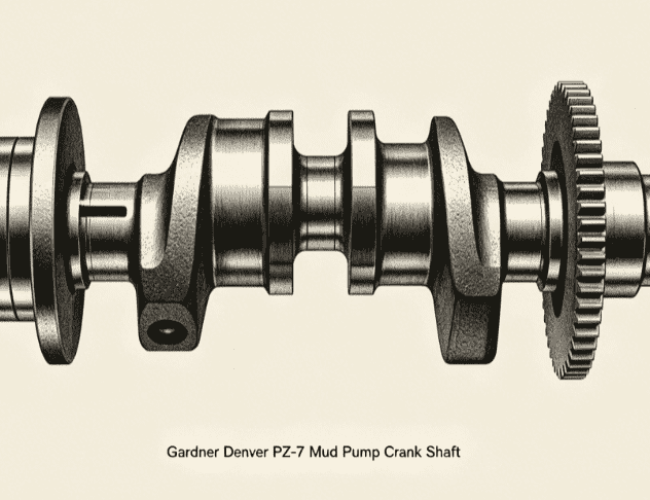

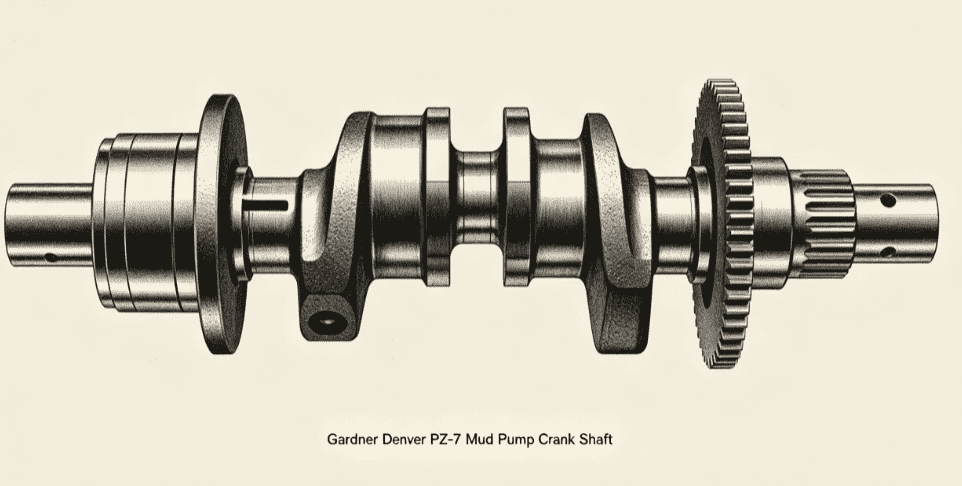

Our Gardner Denver PZ-7 crank shaft parts are high-quality OEM-equivalent components designed to optimize power transmission from the crank shaft to the pump’s fluid end, and ensure reliable fluid control for consistent drilling performance. The lineup features two core assemblies: steel-fitted center-guided valves with wear-resistant polyurethane inserts for leak-free fluid control, and heavy-duty plunger coupling kits that link the crank shaft to piston rods and 7-inch liners. Crafted from heat-treated alloy steel, abrasion-resistant polyurethane, and precision-lapped sealing surfaces, all parts meet strict API 7K standards, making them the trusted choice for routine maintenance and emergency repairs.
Functional Specifications
- High-Pressure Sealing Performance: Maintains stable 5000 PSI operating pressure with zero fluid bypass, eliminating pressure drops that disrupt drilling circulation and wellbore stability.
- Efficient Power Transmission: Plunger coupling assemblies transfer crank shaft torque with minimal energy loss, ensuring smooth reciprocation of pistons and consistent mud flow.
- Abrasion Resistance: Polyurethane valve inserts and 7-inch liners resist scoring and wear from high-solid drilling mud, extending component service life by up to 30%.
- Leak-Free Sealing: Precision-machined gaskets and O-rings create vibration-resistant seals, preventing fluid leaks and maintaining system pressure during continuous operation.
- Modular Compatibility: All parts are designed for direct interchangeability with OEM hardware, supporting partial repairs or full component swaps without custom machining.
Structural Characteristics
These PZ-7 crank shaft components feature a heavy-duty, field-optimized structural design: center-guided valve bodies for precise alignment and reduced wear, reinforced plunger couplings with high-tensile screws and flanged nuts for secure torque transfer, thick-walled 7-inch liners to withstand high-pressure loading, and reinforced piston assemblies with retainer plates for structural integrity. The modular design allows individual replacement of worn parts (valve springs, inserts, liners, seals) instead of full assembly overhauls, reducing material waste and maintenance costs.
Applicable Operating Conditions
These components are engineered to perform reliably in the most demanding drilling environments: onshore deep-well oil/gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations (-20°F to 220°F), contaminated drilling fluids, high-vibration rig conditions, and prolonged exposure to sand and formation debris, making them suitable for remote land rigs, offshore vessels, and commercial drilling installations alike.
Maintenance & Servicing Recommendations
To maximize component lifespan and prevent crank shaft system failures, follow these industry-approved maintenance protocols: inspect valve springs, inserts, and seats every 300 operating hours for wear, cracking, or leakage, replacing damaged parts immediately; check plunger coupling screws and nuts every 450 hours, re-torquing to OEM-specified values to prevent power transfer loss; replace 7-inch liners and sealing gaskets every 600 operating hours, or sooner if scoring or leakage is detected; lubricate coupling interfaces and valve guides with API-approved lubricant to prevent dry running; and clean fluid end passages to remove debris and maintain optimal flow.
- We supply the following spare parts:
| STEEL-FITTED CENTER GUIDED VALVE | ||
| 1 | SPRING | 78H44 |
| 2 | LOCKNUT | 50V27 |
| 3 | WASHER-VALVE | 201PZL279 |
| 4 | NSERT (Polyurethane) | 202PZL106 |
| 5 | VALVE-FLUID | 202PZL482B |
| 6 | SEAT-VALVE * | 202PZL039 |
| PLUNGER COUPLING ASSEMBLY | ||
| 1 | COUPLING-PLUNGER | 200PZJ092 |
| 2 | SCREW, Coupling Plunger | 655EE22S |
| 3 | NUT, Flanged | 50AW35 |
| 4 | PISTON ROD, Incl. Ref. #5 | 201PZG060 |
| 5 | LOCKNUT | 50V14 |
| 6 | CLAMP-LINER | 1PV14 |
| 7 | GASKET, Liner to Cylinder | 25AT37 |
| 8 | LINER 7″ | PY13970 |
| 9 | O-RING | 25AH1 |
| 10 | PISTON ASSEMBLY | 2025BL045A |
| 11 | RETAINER PLATE& RINGS | TBL77586 |
Field Failure Repair Case Studies
Case 1: Worn Valve Insert Causing Pressure Bypass
A land drilling rig operating a Gardner Denver PZ-7 pump experienced a 1400 PSI pressure drop during shale drilling, traced to a degraded polyurethane valve insert (202PZL106) that failed to create a tight seal. Replacing the insert, valve spring (78H44), and valve seat (202PZL039) restored full 5000 PSI pressure retention, putting the rig back online in 90 minutes.
Case 2: Loose Plunger Coupling Screws Reducing Pump Output
An offshore well servicing crew reported reduced mud flow and inefficient pumping on a PZ-7 pump, caused by loose coupling plunger screws (655EE22S) that weakened crank shaft power transfer. Re-torquing the screws and replacing worn flanged nuts (50AW35) restored full pumping capacity, extending piston rod service life by over 1100 operating hours.
Case 3: Scored Liner Causing Fluid Leakage
A remote drilling rig encountered external mud leakage around the cylinder area of a PZ-7 pump, due to severe scoring on the 7-inch liner (PY13970) from abrasive mud. Installing a new liner, gasket (25AT37), and O-ring (25AH1) eliminated leaks and restored smooth piston operation, minimizing costly rig downtime.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with the Gardner Denver PZ-7 mud pump? | Yes, all components are precision designed exclusively for the Gardner Denver PZ-7 mud pump, matching OEM fit, form, and performance specifications for crank shaft and fluid end systems exactly. |
| What is the recommended replacement interval for the 7” liner (PY13970)? | For optimal performance, replace the 7-inch liner every 600 operating hours, or sooner if scoring, leakage, or excessive wear is found during routine inspections. |
| Do these parts include all hardware for valve and plunger coupling installation? | Yes, the lineup includes all necessary springs, locknuts, washers, screws, gaskets, and retainers for complete, secure installation of valves and plunger coupling assemblies. |
Conclusion & Procurement Guidance
This Gardner Denver PZ-7 crank shaft parts list is your definitive, API 7K-compliant resource for all procurement and technical repair needs for the PZ-7 mud pump. It eliminates the risk of ordering ill-fitting, low-quality parts, provides clear part number and quantity guidance for seamless ordering, and establishes a reliable technical standard for troubleshooting and maintaining your pump’s critical crank shaft and fluid end components. Whether you need to replace worn valves, plunger couplings, liners, pistons, or sealing hardware, this guide provides all critical details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, field-proven components ensures your Gardner Denver PZ-7 mud pump operates at peak efficiency, minimizes costly rig downtime, and withstands the harshest drilling conditions long-term. Reach out to secure these essential crank shaft system parts and keep your drilling operations running smoothly with reliable, OEM-equivalent components tailored to your exact PZ-7 pump configuration.
