Introduction
The Honghua HHF-1300 Crosshead Assembly Parts are exclusively engineered to perfectly fit the Honghua HHF-1300 mud pump, a critical piece of equipment in oil and gas drilling operations. As the core connecting component between the mud pump’s power end and fluid end, the crosshead assembly plays a vital role in converting the rotational motion of the crankshaft into the linear reciprocating motion of the piston rod—directly determining the pump’s operational stability, efficiency, and service life. Our HHF-1300 crosshead assembly parts are manufactured in strict compliance with original equipment manufacturer (OEM) specifications and API Standard 11E (Specification for Pumping Units for Oilfield Service), covering all essential components from the crosshead and crosshead pin to slides, seals, and fasteners, ensuring seamless compatibility and reliable performance in the harshest drilling environments.

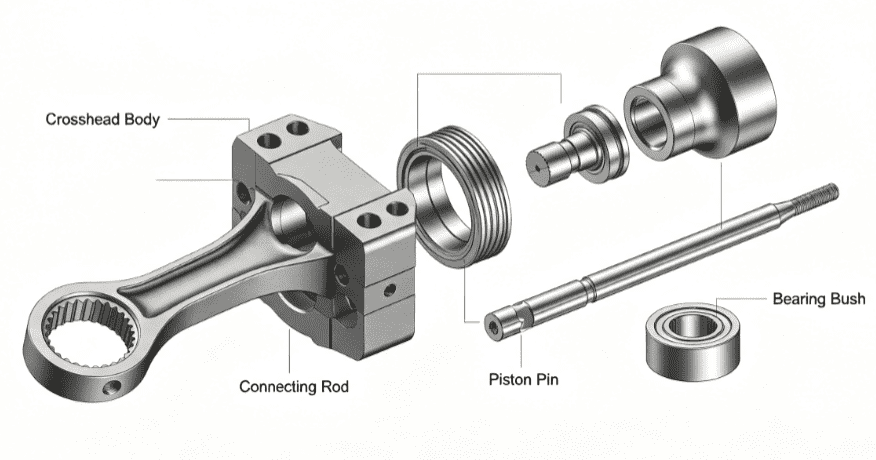

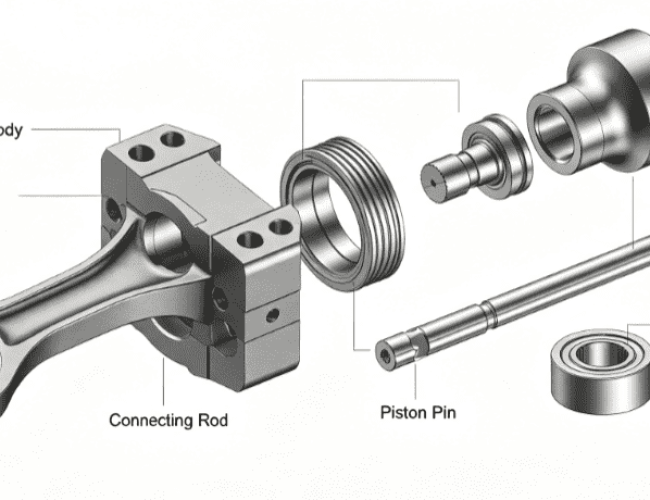

Structural Features
1. Precision-Machined and Rigid Structure
The HHF-1300 Crosshead Assembly Parts feature a rigid, one-piece crosshead design, machined by CNC lathes and milling machines to ensure precise dimensional accuracy and structural stability. The crosshead’s sliding surface is ground to a high finish (Ra ≤0.8μm) to minimize friction with the upper and lower slides, reducing wear and energy loss. The crosshead pin is heat-treated to enhance hardness and toughness, with a surface nitriding treatment to improve wear resistance.
2. Wear-Resistant and Load-Bearing Design
The upper and lower slides are equipped with a wear-resistant tungsten carbide coating (thickness: 0.15-0.20mm), which reduces the wear rate by 50% compared to uncoated slides. The crosshead bearing (254941QU) is a double-row spherical roller bearing, designed to accommodate misalignment between the crosshead and connecting rod, ensuring even load distribution and preventing premature failure. The bearing is sealed with high-temperature resistant oil seals to protect against lubricant contamination.
3. Easy Installation and Maintenance
The assembly adopts a modular design, with all components easily disassembled and assembled without specialized tools. The shims (8 pieces of P/N: 11-3161-0403-00 and 2 pieces of P/N: 11-3161-0404) allow for easy adjustment of the crosshead-slide clearance, ensuring optimal performance. The end cover (P/N: 11-3161-0409) and baffle (P/N: 11-3161-0411) are designed for quick removal, providing easy access to internal components for inspection and maintenance.
Maintenance and Care Recommendations
1. Daily Inspection (Before and After Operation)
Before starting the mud pump, check the crosshead assembly for oil leakage—pay special attention to the oil seals (P/N: 11-3161-0406, 11-3161-0407) and O-rings (P/N: B34521-190-355-69, etc.). If leakage is found, replace the damaged seal immediately. Check the tightness of all fasteners (bolts, screws) and tighten them in a diagonal order if loose (torque: 300~350 N·m for 1″ bolts; 150~180 N·m for 3/4″ screws). Inspect the crosshead’s sliding surface for abnormal wear or scratches; if found, clean the surface and apply lubricating oil.
After operation, check the lubricating oil level and quality—if the oil is contaminated (with mud or debris) or degraded, replace it with new ISO VG 46 or ISO VG 68 lubricating oil. Clean the exterior of the crosshead assembly to remove mud and debris, preventing contamination of internal components.
2. Regular Maintenance (Per 600 Working Hours)
Disassemble the crosshead assembly to inspect the crosshead bearing (P/N: 11-3161-0417) for wear, corrosion, or damage. If the bearing has excessive play (more than 0.15mm) or abnormal noise, replace it. Check the upper and lower slides for wear; if the wear exceeds 0.10mm, replace the slides or re-coat the wear-resistant layer. Adjust the crosshead-slide clearance using shims (P/N: 11-3161-0403-00, 11-3161-0404) to maintain the optimal range of 0.05-0.10mm.
Replace all seals (oil seals, O-rings) and gaskets (P/N: 11-3161-0408, 11-3161-0414) to prevent leakage. Apply a small amount of lock-fife (P/N: 11-3161-0425, 25ml per use) to the fasteners to prevent loosening. Clean the stuffing box (P/N: 11-3161-0405) and replace the packing if necessary.
3. Long-Term Storage and Maintenance
If the parts are not used for a long time, clean them thoroughly with diesel or kerosene to remove oil and debris. Apply anti-rust oil to all metal surfaces (especially the crosshead, crosshead pin, and slides) and store them in a dry, ventilated, and corrosion-free warehouse. The seals and gaskets should be stored in a cool, dark place to avoid aging caused by direct sunlight. Before reuse, inspect all parts for rust, corrosion, or dimensional deformation; any unqualified parts should be replaced immediately. Re-lubricate the crosshead bearing and sliding surfaces before installation.
We supply the following spare parts:
| HHF-1300 Crosshead Assembly | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3161-0401 | Crosshead |
| 2 | 11-3161-0402 | Slide, Upper |
| 3 | 11-3161-0403-00 | Shim |
| 4 | 11-3161-0404 | Shim |
| 5 | 11-3161-0405 | Stuffing Box |
| 6 | 11-3161-0406 | Oil Seal |
| 7 | B34521 -190-355-69 | O Ring, 190*3.55G |
| 8 | 11-3161-0407 | Oil Seal, 5″*6.25″*0.625″ |
| 9 | 11-3161-0408 | Gasket |
| 10 | 11-3161-0409 | End Cover |
| 11 | 11-3161-0410 | Locking Spring |
| 12 | 11-3161-0411 | Baffle |
| 13 | 11-3161-0412 | Crosshead extension rod |
| 14 | 11-3161-0413 | Crosshead Pin |
| 15 | B34521-125-700-69 | O Ring, 125*7.0G |
| 16 | 11-3161-0420 | Screw, 3/4-10UNC-2A*65 |
| 17 | 11-3161-0414 | Gasket |
| 18 | B34521-160-700-69 | O Ring,160*7.0G |
| 19 | 11-3161-0415 | Slide, Lower |
| 20 | 11-3161-0416 | Crosshead Pin Cap |
| 21 | 11-3161-0417 | Crosshead Bearing, 254941QU |
| 22 | 11-3161-0418 | Pipe Joint, NPT3/8*50.8 |
| 23 | 11-3161-0421 | Bolt, 1-8UNC-2A*60 |
| 24 | 11-3161-0422 | Bolt, 1-8UNC-2A*70 |
| 25 | 11-3161-0419 | Slide retainer plate |
| 26 | 11-3161-0423 | Bolt, 3/8-16UNC-2AX40 |
| 27 | B0093-10-59 | Spring Washer, 10 |
| 28 | 11-3161-0424 | Steel Wire Φ1.6 |
| 29 | 11-3161-0425 | Lock-fife |
On-Site Fault Maintenance Cases
The following are three real on-site fault cases involving the Honghua HHF-1300 Crosshead Assembly Parts, providing practical solutions for maintenance technicians to quickly locate and resolve issues, minimize downtime, and reduce economic losses:
Case 1: Crosshead Seizing and Abnormal Noise
Fault Phenomenon: During operation, the HHF-1300 mud pump made a harsh grinding noise, and the crosshead assembly seized after a short period, causing the pump to shut down. Upon inspection, the crosshead’s sliding surface was severely worn, and the crosshead bearing was locked.
Cause Analysis: The lubricating oil level was too low, and the oil was contaminated with mud debris, leading to insufficient lubrication between the crosshead and slides, and between the crosshead pin and bearing. This caused excessive friction, wear, and eventual seizing.
Solution: Disassembled the crosshead assembly, replaced the worn crosshead, crosshead bearing, and upper/lower slides. Cleaned the lubrication system, replaced the lubricating oil with ISO VG 46 oil, and adjusted the crosshead-slide clearance using shims. After reassembly, the pump operated smoothly, with no abnormal noise, and the crosshead assembly functioned normally.
Case 2: Oil Leakage from Crosshead Assembly
Fault Phenomenon: The crosshead assembly leaked lubricating oil continuously, leading to a rapid drop in oil level and increased friction between components. The pump’s efficiency decreased, and the crosshead sliding surface showed signs of overheating.
Cause Analysis: The oil seal (P/N: 11-3161-0407, 5″*6.25″*0.625″) was aged and cracked, and the O-ring (P/N: B34521-160-700-69) at the end cover was deformed, resulting in poor sealing performance and oil leakage.
Solution: Stopped the pump, disassembled the end cover, replaced the aged oil seal and deformed O-ring with new ones. Applied a small amount of sealant to the end cover gasket (P/N: 11-3161-0408) to enhance sealing. After restarting, there was no oil leakage, the oil level remained stable, and the crosshead assembly operated at normal temperature.
Case 3: Crosshead Pin Loosening and Vibration
Fault Phenomenon: The HHF-1300 mud pump experienced severe vibration during operation, and abnormal noise was heard from the crosshead assembly. Upon inspection, the crosshead pin (P/N: 11-3161-0413) was loose, and the crosshead pin cap (P/N: 11-3161-0416) was not properly secured.
Cause Analysis: The bolts (P/N: 11-3161-0421) securing the crosshead pin cap were loose due to long-term vibration, and the locking spring (P/N: 11-3161-0410) was damaged, failing to prevent the pin from loosening.
Solution: Tightened the bolts in a diagonal order (torque: 300 N·m) and replaced the damaged locking spring. Applied lock-fife (P/N: 11-3161-0425) to the bolts to prevent future loosening. After reassembly, the vibration and abnormal noise disappeared, and the crosshead pin remained secure during operation.
FAQ (Frequently Asked Questions)
| Question | Answer |
| Are the HHF-1300 Crosshead Assembly Parts compatible with the HHF-1600 mud pump? | Yes, all parts are marked with P/N (HHF-1300/1600), which means they are fully compatible with both Honghua HHF-1300 and HHF-1600 mud pumps. You can use these parts interchangeably without any modifications, which helps reduce inventory costs and simplify procurement. |
| What is the recommended lubricating oil for the crosshead assembly, and how often should it be replaced? | We recommend using ISO VG 46 or ISO VG 68 industrial lubricating oil, which is compatible with the crosshead bearing and sliding surfaces. Under normal operating conditions, the lubricating oil should be replaced every 600 working hours. If the oil becomes contaminated (with mud or debris) or degraded earlier, it should be replaced immediately to avoid component damage. |
| How can I confirm that the crosshead-slide clearance is within the optimal range? | The optimal crosshead-slide clearance is 0.05-0.10mm. You can use a feeler gauge to measure the clearance between the crosshead and upper/lower slides. If the clearance is too small (less than 0.05mm), add shims (P/N: 11-3161-0403-00 or 11-3161-0404) to increase it. If the clearance is too large (more than 0.10mm), replace the slides or adjust the shims to reduce it. Proper clearance ensures smooth motion and minimizes wear. |
Procurement Guide
The Honghua HHF-1300 Crosshead Assembly Parts are critical to the stable and efficient operation of the Honghua HHF-1300/1600 mud pump. We provide a complete set of high-quality replacement parts, covering all 29 components listed in the parts list—from core components like the crosshead and crosshead bearing to small parts like seals, shims, and fasteners. Our parts are manufactured in strict compliance with OEM specifications and API Standard 11E, with precise dimensional control, high wear resistance, and reliable performance, effectively solving the pain points of frequent part failure, unplanned downtime, and high maintenance costs.
