Product Introduction

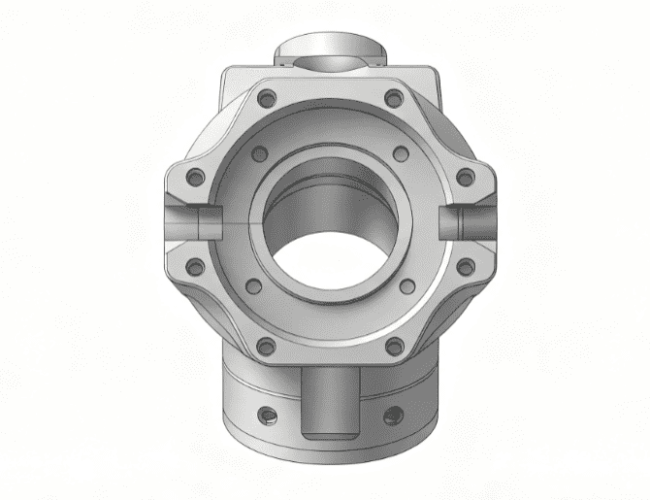

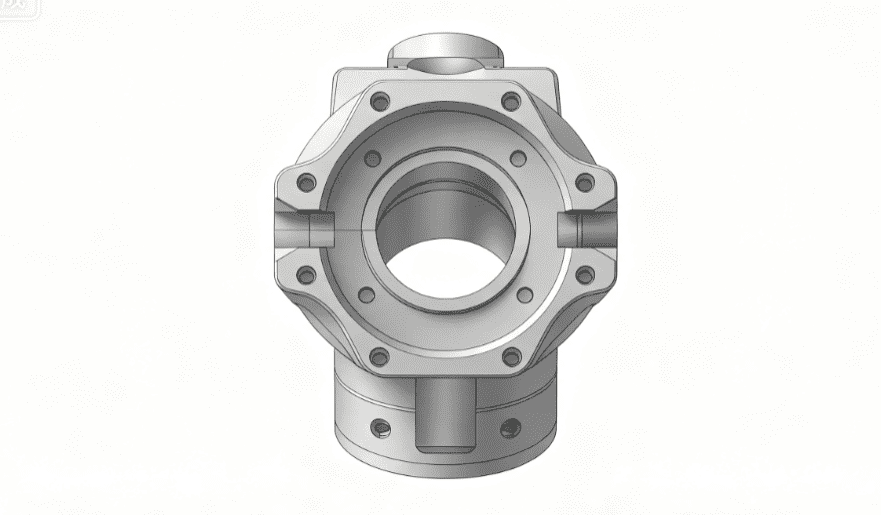

This full HHF-1600 fluid end parts collection covers all essential components of the pump’s fluid end system, including cylinder assemblies, bi-metal and ordinary liners (5″ to 7″), pistons, piston rods, valve assemblies, suction and discharge manifolds, suction dampeners, flanges, high-strength stud bolts, nuts, O-rings, seal rings, and sealants. Each part is precision-crafted to directly replace original factory components, eliminating compatibility issues and simplifying on-site installation, routine maintenance, and emergency repairs. Designed for preventive maintenance, full fluid end overhauls, and targeted component replacements, this kit provides a one-stop sourcing solution for durable, high-performance parts built to withstand the abrasive, high-pressure conditions of drilling mud transmission.
Functional Description
- High-Pressure Mud Transmission: Cylinder assemblies, liners, and pistons work together to draw in and discharge drilling mud at extreme pressures, ensuring consistent flow to the drilling bit for efficient well drilling.
- Leak-Proof Sealing: Custom O-rings (95*5.3G, 190*7.0G, 200*7.0G, 345*7.0G), seal rings, and sealants create tight, reliable seals at all connection points, preventing high-pressure mud leakage and internal fluid cross-contamination.
- Valve Control & Flow Regulation: Valve assemblies, valve springs, and valve guides ensure precise opening and closing of suction and discharge valves, maintaining smooth, consistent mud flow and preventing backflow.
- Pressure Stabilization: The suction damper absorbs pressure fluctuations in the suction line, reducing vibration and protecting the fluid end from hydraulic shock, while the suction and discharge manifolds distribute mud evenly throughout the system.
- Structural Stability: High-strength stud bolts, nuts, and clamping components secure the fluid end structure, resisting vibration-induced loosening and ensuring structural integrity under continuous high-load operation.
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and ensure stable operation of the HHF-1600 mud pump fluid end:
- Daily Inspection: Check for mud leaks around cylinders, valves, and manifolds; monitor pump pressure for fluctuations indicating seal wear or valve failure; inspect O-rings and seal rings for visible damage.
- Weekly Maintenance: Tighten stud bolts and nuts to OEM torque specifications; clean valve seats of debris; inspect liners for scoring or excessive wear; replace worn seal rings as needed.
- Monthly Service: Disassemble valve assemblies to inspect valve springs and steel balls; clean cylinder interiors; check piston seal rings for cracking or abrasion; apply fresh sealant to threaded connections.
- Quarterly Overhaul: Replace worn liners (bi-metal or ordinary) and pistons; inspect cylinder assemblies for corrosion or cracks; recalibrate valve operation; replace all worn O-rings and sealants.
- Storage Guidelines: Store metal components (cylinders, liners, bolts) in a dry, dust-proof area with anti-rust oil coating; store O-rings, seal rings, and sealants in a cool, dry environment away from UV light and high temperatures.
- We supply the following spare parts:
| HHF-1600 Fluid End | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3161-0501-00 | Cylinder assembly |
| 2 | 11-3161-0502 | Cylinder Cover, Threaded ring |
| 3 | 11-3161-0503 | Cylinder Cover, Threaded ring |
| 4 | 11-3161-0504-00 | Spacer assembly |
| 5 | 11-3161-0505-00 | Guide, valve lower |
| 6 | 11-3161-0506-00 | Plug, cylinder cover |
| 7 | 11-3161-0507 | Positioning panel |
| 8 | 11-3161-0508 | Seal ring, cylinder cover |
| 9 | 11-3161-0509 | Discharge manifold |
| 10 | 11-3161-0510 | Valve spring |
| 11 | B34521-095-530-69 | O ring, 95*5.3 G |
| 12 | 11-3161-0511-00 | Valve assembly |
| 13 | 11-3161-0512 | Seal ring, valve cover |
| 14 | 11-3161-0513 | Valve cover |
| 15 | 11-3161-0514 | Seal ring, liner |
| 16 | 11-3161-0515 | Liner wear ring |
| 17 | 11-3161-0516 | Liner retainer ring |
| 18 | 11-3161-0517-00 | Liner retainer screw |
| 19 | 11-3161-0518 | Piston rod |
| 20 | 11-3161-0519-00 | Spraying pipe assembly |
| 21 | B34521-200-700-69 | O ring, 200*7.0 G |
| 22 | 11-3161-0520 | Locking Ring, Liner Retainer screw |
| 11-3161-0521-21 | Bi-metal liner 5 | |
| 11-3161-0521-22 | Bi-metal liner 5 1/2 | |
| 11-3161-0521-23 | Bi-metal liner 6 | |
| 11-3161-0521-24 | Bi-metal liner 6 1/4 | |
| 11-3161-0521-25 | Bi-metal liner 6 1/2 | |
| 11-3161-0521-26 | Bi-metal liner 6 3/4 | |
| 23 | 11-3161-0521-11 | Ordinary liner 5 |
| 11-3161-0521-12 | Ordinary liner 5 1/2 | |
| 11-3161-0521-13 | Ordinary liner 6 | |
| 11-3161-0521-14 | Ordinary liner 6 1/4 | |
| 11-3161-0521-15 | Ordinary liner 6 1/2 | |
| 11-3161-0521-16 | Ordinary liner 6 3/4 | |
| 11-3161-0521-17 | Ordinary liner 7 | |
| 24 | 11-3161-0522-00 | Clamp assembly, piston rod |
| 25 | 11-3161-0523 | Splash Shield, liner |
| 26 | 11-3161-0524-00 | Piston |
| 27 | 11-3161-0542 | Bolt, 7/8-9UNC-2A*60 |
| 28 | 11-3161-0525-00 | Suction manifold |
| 29 | 11-3161-0526-00 | Shim |
| 30 | 11-3161-0527 | Guide, valve (upper) |
| 31 | 11-3161-0528 | Stud, 1 1/2-8UN-2A*265 |
| 32 | 11-3161-0501-06 | Nut, 1 1/2-8UN-2B (SPL) |
| 33 | 11-3161-0529 | Baffle |
| 34 | 11-3161-0530 | Bolt, 3/8-16UNC-2A*20 |
| 35 | 11-3161-0531 | Seal ring, piston |
| 36 | 11-3161-0532-00 | Nut, piston |
| 37 | B34521-190-700-69 | O ring, 190*7.0 G |
| 38 | 11-3161-0533-00 | Suction damper |
| 39 | B34521-345-700-69 | O ring, 345*7.0 G |
| 40 | 11-3161-0534 | Suction flange ( I ) |
| 41 | 11-3161-0535 | Suction flange (II) |
| 42 | 11-3161-0543 | Nut, 1 1/16-8UN-2B (SPL) |
| 43 | 11-3161-0544 | Bolt 1 1/16-8UN-2A*90 |
| 44 | 11-3161-0545 | Steel wire, Φ1.60 (L=1830) |
| 45 | 11-3161-0536 | Screw plug, NPT1 1/2 |
| 46 | 11-3161-0537 | Bolt, 1 1/2 |
| 47 | 11-3161-0546 | Sealant: |
| 48 | 11-3161-0538 | Plug, suction let, 12″ |
| 49 | 11-3161-0539 | Closure plate, discharge let, 5 1/8″ |
| 50 | 11-3161-0540 | Washer, 39 |
| 51 | 11-3161-0541-00 | Spring guide |
| R1 | 11-3161-0501-02 | Stud, 1-8UNC (14UNS) -2A*185 |
| R2 | 11-3161-0501-03 | Nut, 1-8UNC-2B (SPL) |
| R3 | 11-3161-0501-04 | Stud, 1 1/2-8UN (12UNF) -2A*170 |
| R4 | 11-3161-0501-06 | Nut, 1 1/2-8UN-2B (SPL) |
| R5 | 11-3161-0501-05 | Stud, 1 1/2-8UN (12UNF) -2A*120 |
| R6 | 11-3161-0501-07 | Stud, 1 1/4-8UN (12UNF) -2A*195 |
| R7 | 11-3161-0501-08 | Nut, 1 1/4-8UN-2B (SPL) |
Field Fault Repair Cases
Case 1: Cylinder Leakage & Pressure Loss
Fault Symptom: Sudden drop in mud pump discharge pressure, mud leakage around the cylinder assembly, and reduced pumping efficiency.
Root Cause: Worn cylinder seal rings and damaged O-rings (95*5.3G) causing high-pressure mud leakage between the cylinder and liner.
Repair Solution: Replace the worn seal rings and O-rings, clean the cylinder interior, and reinstall the liner with proper torque. Leakage was eliminated, and pump pressure returned to normal.
Case 2: Liner Wear & Piston Damage
Fault Symptom: Excessive mud bypass, increased pump noise, and visible wear on the piston seal ring, leading to reduced flow rate.
Root Cause: Abrasive mud particles caused excessive wear to the 6 1/2″ bi-metal liner and piston seal, breaking the pressure seal between the piston and liner.
Repair Solution: Replace the worn bi-metal liner and piston seal ring, inspect the piston rod for damage, and reinstall all components. Bypass leakage stopped, and pumping efficiency was fully restored.
Case 3: Valve Assembly Jamming
Fault Symptom: Inconsistent mud flow, pressure fluctuations, and abnormal valve noise, with the pump failing to maintain stable discharge pressure.
Root Cause: Mud debris clogged the valve assembly, causing the valve spring to stick and preventing proper valve opening and closing.
Repair Solution: Disassemble the valve assembly, clean debris from the valve seat and spring, replace worn valve components, and reinstall. The valve resumed normal operation, and pressure stability was restored.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these fluid end parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all fluid end components are engineered to OEM specifications for full cross-compatibility with Honghua HHF-1600 and HHF-1300 quintuple mud pumps, requiring no modifications for installation. |
| What sizes of liners are available in this parts kit? | The kit includes both bi-metal liners (5″ to 6 3/4″) and ordinary liners (5″ to 7″), covering all standard liner sizes for HHF-1600/1300 mud pumps to meet different drilling needs. |
| Can I purchase individual components (liners, valves, O-rings) instead of the full kit? | Absolutely, every fluid end component (liners, pistons, valves, O-rings, bolts, manifolds) is available for separate purchase with matching OEM part numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these Honghua HHF-1600 mud pump fluid end assembly parts ensures reliable high-pressure mud transmission, minimizes leakage and wear failures, protects the entire mud pump system, and drastically reduces unplanned downtime and long-term maintenance costs. Each component undergoes strict high-pressure testing, wear resistance testing, and fit verification to meet API 7K drilling standards, delivering OEM-equivalent performance and durability in the harshest drilling conditions.
