Product Introduction
This full HHF-1600 crosshead assembly parts collection covers all essential components of the pump’s crosshead system, including the crosshead itself, upper and lower slides, crosshead pin, crosshead extension rod, crosshead bearing (254941QU), stuffing box, oil seals, O-rings (125*7.0G, 160*7.0G, 190*3.55G), gaskets, shims, locking springs, baffle, end cover, and high-strength fasteners. Each part is precision-crafted to directly replace original factory components, eliminating compatibility issues and simplifying on-site installation, routine maintenance, and emergency repairs. Designed for preventive maintenance, full crosshead overhauls, and targeted component replacements, this kit provides a one-stop sourcing solution for durable, high-performance parts built to withstand the high-load, high-vibration conditions of mud pump operation.
Functional Description
- Power Transmission: The crosshead, crosshead pin, and extension rod work together to convert the rotational motion of the crankshaft into linear motion, transferring power to the piston rods and driving the fluid end’s pumping action.
- Friction Reduction: Upper and lower slides, along with the crosshead bearing (254941QU), minimize friction between moving components, reducing wear and ensuring smooth, efficient motion even under high loads.
- Leak-Proof Sealing: Stuffing boxes, oil seals (including 5″*6.25″*0.625″ sizes), and O-rings create tight, reliable seals, preventing lubricating oil leakage and protecting internal components from dirt and drilling mud contamination.
- Structural Stability: High-strength bolts, screws, slide retainer plates, and locking springs secure the crosshead assembly, resisting vibration-induced loosening and maintaining alignment under continuous high-load operation.
- Adjustable Alignment: Shims (8 pieces of one type, 2 pieces of another) allow precise adjustment of the crosshead’s position, ensuring proper alignment with the piston rods and reducing premature wear.
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and ensure stable operation of the HHF-1600 mud pump crosshead assembly:
- Daily Inspection: Check for oil leaks around the stuffing box and oil seals; monitor crosshead motion for abnormal noise or vibration; inspect fasteners for tightness.
- Weekly Maintenance: Tighten bolts and screws to OEM torque specifications; check lubricating oil levels and quality; clean slides and guides to remove debris and dirt.
- Monthly Service: Inspect oil seals and O-rings for wear or damage; check crosshead bearing for abnormal noise or play; adjust shims if misalignment is detected.
- Quarterly Overhaul: Disassemble the crosshead assembly; clean and inspect all components for wear or corrosion; replace worn slides, bearing, oil seals, and O-rings; reapply lock-fife and reassemble with proper torque.
- Storage Guidelines: Store metal components (crosshead, slides, pin) in a dry, dust-proof area with anti-rust oil coating; store seals, O-rings, and gaskets in a cool, dry environment away from UV light and high temperatures.
- We supply the following spare parts:
| HHF-1600 Crosshead Assembly | ||
| No. | P/N(HHF-1300/1600) | Description |

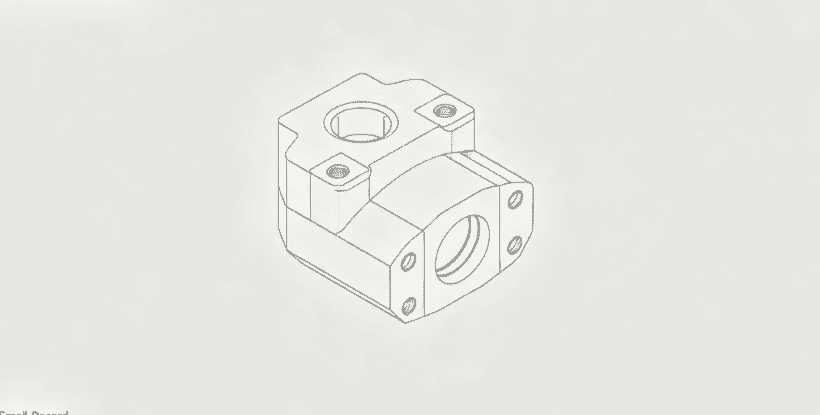

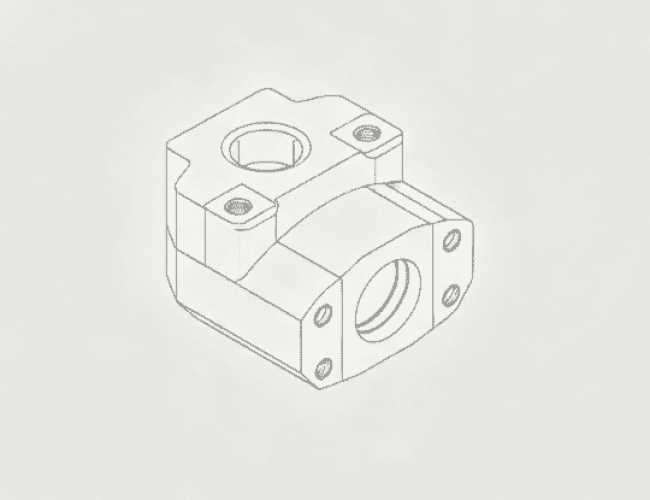

| 1 | 11-3161-0401 | Crosshead |
| 2 | 11-3161-0402 | Slide, Upper |
| 3 | 11-3161-0403-00 | Shim |
| 4 | 11-3161-0404 | Shim |
| 5 | 11-3161-0405 | Stuffing Box |
| 6 | 11-3161-0406 | Oil Seal |
| 7 | B34521 -190-355-69 | O Ring, 190*3.55G |
| 8 | 11-3161-0407 | Oil Seal, 5″*6.25″*0.625″ |
| 9 | 11-3161-0408 | Gasket |
| 10 | 11-3161-0409 | End Cover |
| 11 | 11-3161-0410 | Locking Spring |
| 12 | 11-3161-0411 | Baffle |
| 13 | 11-3161-0412 | Crosshead extension rod |
| 14 | 11-3161-0413 | Crosshead Pin |
| 15 | B34521-125-700-69 | O Ring, 125*7.0G |
| 16 | 11-3161-0420 | Screw, 3/4-10UNC-2A*65 |
| 17 | 11-3161-0414 | Gasket |
| 18 | B34521-160-700-69 | O Ring,160*7.0G |
| 19 | 11-3161-0415 | Slide, Lower |
| 20 | 11-3161-0416 | Crosshead Pin Cap |
| 21 | 11-3161-0417 | Crosshead Bearing, 254941QU |
| 22 | 11-3161-0418 | Pipe Joint, NPT3/8*50.8 |
| 23 | 11-3161-0421 | Bolt, 1-8UNC-2A*60 |
| 24 | 11-3161-0422 | Bolt, 1-8UNC-2A*70 |
| 25 | 11-3161-0419 | Slide retainer plate |
| 26 | 11-3161-0423 | Bolt, 3/8-16UNC-2AX40 |
| 27 | B0093-10-59 | Spring Washer, 10 |
| 28 | 11-3161-0424 | Steel Wire Φ1.6 |
| 29 | 11-3161-0425 | Lock-fife |
Field Fault Repair Cases
Case 1: Oil Leakage from Stuffing Box
Fault Symptom: Lubricating oil leakage around the stuffing box, reduced oil levels in the power end, and increased friction between crosshead components.
Root Cause: Worn oil seal (5″*6.25″*0.625″) and damaged O-ring (190*3.55G) in the stuffing box, causing seal failure under high pressure.
Repair Solution: Replace the worn oil seal and O-ring, clean the stuffing box interior, and apply fresh lock-fife. Leakage was eliminated, and oil levels remained stable during operation.
Case 2: Crosshead Bearing Failure
Fault Symptom: Abnormal noise from the crosshead assembly, increased vibration, and reduced power transmission efficiency, leading to pump performance degradation.
Root Cause: Lack of lubrication and debris contamination caused premature wear to the 254941QU crosshead bearing, resulting in internal damage.
Repair Solution: Replace the damaged crosshead bearing, flush the lubrication circuit, and clean the crosshead pin. The crosshead resumed smooth operation, and vibration was reduced by 75%.
Case 3: Crosshead Slide Wear & Misalignment
Fault Symptom: Uneven wear on upper and lower slides, crosshead misalignment, and excessive noise during operation, leading to increased friction and reduced component life.
Root Cause: Worn slides and incorrect shim alignment, causing the crosshead to move unevenly and rub against guides.
Repair Solution: Replace the worn upper and lower slides, adjust the shims to correct alignment, and tighten slide retainer plates. Crosshead motion became smooth, and wear was minimized.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these crosshead parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all crosshead assembly components are engineered to OEM specifications for full cross-compatibility with Honghua HHF-1600 and HHF-1300 quintuple mud pumps, requiring no modifications for installation. |
| What is the model of the crosshead bearing included in this parts kit? | The kit includes a 254941QU crosshead bearing, which is the OEM-specified bearing for HHF-1600/1300 mud pumps, designed for high-load and high-vibration operation. |
| Can I purchase individual components (slides, bearing, O-rings) instead of the full kit? | Absolutely, every crosshead component (crosshead, slides, bearing, oil seals, O-rings, fasteners) is available for separate purchase with matching OEM part numbers for targeted repairs and partial replacements. |
Procurement Guidance & Call to Action
Investing in these Honghua HHF-1600 mud pump crosshead assembly parts ensures smooth, efficient power transmission, minimizes friction and wear failures, protects the entire mud pump power end, and drastically reduces unplanned downtime and long-term maintenance costs. Each component undergoes strict load testing, wear resistance testing, and fit verification to meet API 7K drilling standards, delivering OEM-equivalent performance and durability in the harshest drilling conditions.
Whether you need a complete crosshead assembly, replacement slides, crosshead bearing (254941QU), oil seals, O-rings, or fasteners for routine maintenance or emergency repairs, this product line provides full coverage for all HHF-1600 and HHF-1300 crosshead needs. These parts not only meet rigorous procurement quality standards but also serve as a trusted technical reference for diagnosing and resolving crosshead leakage, bearing failure, and alignment issues.
