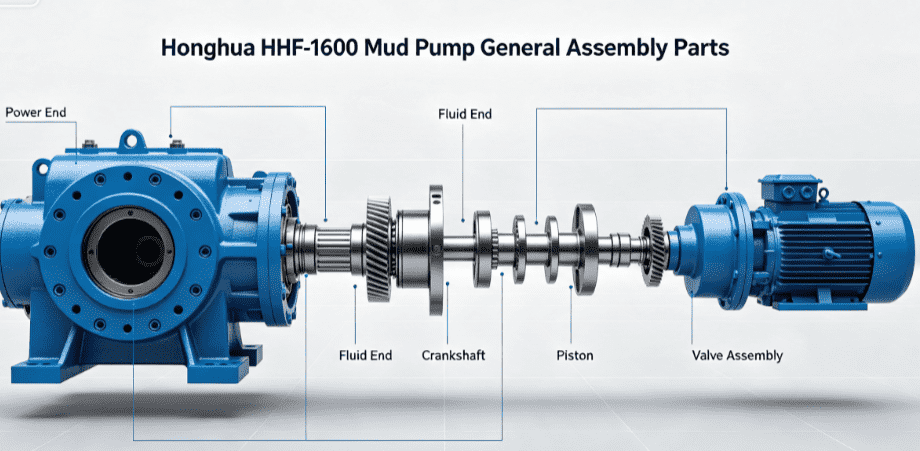

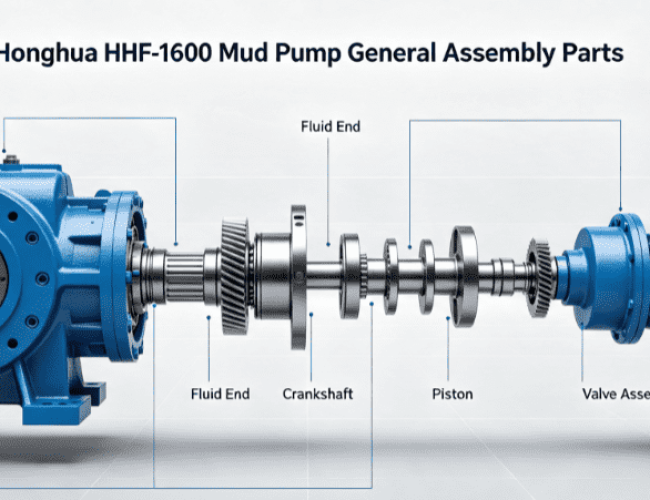

Product Introduction
This full HHF-1600 mud pump general assembly parts collection includes all essential components for the entire pump system, covering key assemblies and auxiliary parts: frame assembly (P/N 11-3161-0100), crankshaft assembly (P/N 11-3161-0200), pinion shaft assembly (P/N 11-3161-0300), crosshead assembly (P/N 11-3161-0400, 3 pieces), fluid end assembly (P/N 11-3161-0500), power end lubrication assembly (P/N 11-3161-0600), skid (P/N 11-3161-0700), liner spraying assembly (P/N 11-3161-0800), and a full range of auxiliary components—including inspection covers, breather caps, nameplates, oil level gauges, clean out covers, gaskets (including R44 gaskets), high-strength fasteners (1/2-13UNC, 5/8-11UNC, 1-8UNC), flat washers, spring washers, rivets, rubber seals, pressure gauges (0~60MPa/0~8700psi), elbow assemblies, pipe plugs, draining filter assemblies, flanges (5 1/8*35), surge damper KB-75, relief valve JA-3, and cover plate assemblies. Each part is precision-crafted to OEM specifications, ensuring perfect compatibility, seamless assembly, and direct replacement of worn or damaged components. Designed for full pump overhauls, preventive maintenance, and emergency repairs, this kit provides a one-stop sourcing solution for all HHF-1600 mud pump general assembly needs, eliminating the hassle of sourcing individual parts from multiple suppliers.
Functional Description
- Full Pump Structural Support: The frame assembly (P/N 11-3161-0100) and skid (P/N 11-3161-0700) provide a stable, rigid base for all pump components, supporting the weight of the power end, fluid end, and auxiliary systems while resisting vibration during operation.
- Power Transmission & Conversion: The crankshaft assembly (P/N 11-3161-0200), pinion shaft assembly (P/N 11-3161-0300), and crosshead assemblies (P/N 11-3161-0400) work together to convert rotational power into linear motion, driving the fluid end assembly (P/N 11-3161-0500) to circulate high-pressure drilling mud.
- Lubrication & Heat Dissipation: The power end lubrication assembly (P/N 11-3161-0600) and draining filter assembly (P/N 11-3161-2400) ensure continuous lubrication of moving components (crankshaft, pinion shaft, crosshead), reducing friction and heat buildup to prevent premature wear.
- Pressure Regulation & Protection: The pressure gauge (0~60MPa/0~8700psi), surge damper KB-75 (P/N 11-3161-2700), and relief valve JA-3 (P/N 11-3161-2800) monitor and regulate pump pressure, absorbing pressure surges and releasing excess pressure to protect the pump and downstream equipment from damage.
- Sealing & Contamination Prevention: Gaskets (including R44 gaskets), rubber seals, oil seals, and cover plates create tight, reliable seals throughout the pump, preventing lubricating oil and drilling mud leakage while keeping dirt, dust, and debris out of internal components.
- Maintenance & Accessibility: Inspection covers, clean out covers, and crosshead hole covers provide easy access to internal components for routine maintenance and repairs, while oil level gauges (P/N 11-3161-1700) allow quick checks of lubricant levels.
Applicable Operating Conditions
These HHF-1600 mud pump general assembly parts are engineered for reliable performance in extreme drilling scenarios, fully compatible with:
- Honghua HHF-1600 and HHF-1300 quintuple mud pumps used in onshore deep well, shale gas, horizontal well, and conventional oil/gas drilling operations.
- High-pressure mud circulation systems with operating pressures ranging from 0~60MPa (0~8700psi), matching the standard operating parameters of HHF-1600/1300 mud pumps.
- High-vibration rig environments with continuous pump operation, where structural stability and vibration resistance are critical.
- Ambient temperatures ranging from -35°C (-31°F) to 90°C (194°F), suitable for desert, tropical, and cold-region drilling sites.
- Abrasive water-based or oil-based drilling fluids, with the fluid end and auxiliary components designed to resist corrosion and wear.
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and ensure stable operation of the Honghua HHF-1600 mud pump using these general assembly parts:
- Daily Inspection: Check pressure gauge readings for stability (0~60MPa); inspect gaskets, seals, and connections for leakage; check oil level gauges to ensure proper lubricant levels; visually inspect frame and skid for damage or loose fasteners.
- Weekly Maintenance: Tighten all fasteners to OEM torque specifications (45~55 N·m for 1/2-13UNC, 120~140 N·m for 5/8-11UNC, 180~200 N·m for 1-8UNC); clean inspection covers and clean out covers; check the draining filter assembly for clogging.
- Monthly Service: Inspect the power end lubrication assembly and replace lubricating oil if contaminated; check surge damper KB-75 and relief valve JA-3 for proper function; replace worn gaskets and rubber seals; calibrate the pressure gauge.
- Quarterly Overhaul: Inspect core assemblies (crankshaft, pinion shaft, crosshead, fluid end) for wear or damage; clean and lubricate all moving components; replace worn auxiliary parts (oil level gauges, breather caps, gaskets); check frame and skid for structural integrity.
- Storage Guidelines: Store metal components (frame, crankshaft, pinion shaft) in a dry, dust-proof area with anti-rust oil coating; store gaskets, rubber seals, and auxiliary parts in a cool, dry environment away from UV light and high temperatures; keep fasteners organized to avoid loss or damage.
We supply the following spare parts:
| HHF-1600 General Assembly Drawing | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3161-0100 | Frame assembly |
| 2 | 11-3161-0200 | Crankshaft assembly |
| 3 | 11-3161-0300 | Pinion shaft assembly |
| 4 | 11-3161-0400 | Crosshead assembly |
| 5 | 11-3161-0500 | Fluid end assembly |
| 6 | 11-3161-0600 | Power end lubrication assembly |
| 7 | 11-3161-0700 | Skid |
| 8 | 11-3161-0800 | Liner spraying assembly |
| 9 | 11-3161-09 | Inspection cover |
| 10 | 11-3161-1000 | Breather cap |
| 11 | 11-3161-11 | Nameplate |
| 12 | 11-3161-1200 | Trolley |
| 13 | 11-3161-1300 | Crane frame |
| 14 | 11-3161-1400 | Cover plate |
| 15 | 11-3161-15 | Gasket |
| 16 | 11-3161-1501 | Bolt, 1/2-13UNC-2A*30 |
| 17 | 11-3161-16 | Plate |
| 18 | 11-3161-1700 | Oil level gauge |
| 19 | 11-3161-1800 | Clean out cover |
| 20 | 11-3161-19 | Gasket |
| 21 | 11-3161-1502 | Bolt, 1/2-13UNC-2A*35 |
| 22 | 11-3161-20 | Cover, crosshead hole |
| 23 | 11-3161-21 | Gasket |
| 24 | 11-3161-1503 | Bolt, 5/8-11UNC-2A*45 |
| 25 | B0848-14-32 | Flat washer 14 |
| 26 | B0827-003-10-73 | Rivet, 3*10 |
| 27 | 11-3161-1504 | Bolt, 1-8UNC-2A*90 |
| 28 | 11-3161-1505 | Nut, 1-8UNC-2B (SPL) |
| 29 | B0093-27-59 | Spring washer, 27 |
| 30 | B0848-16-32 | Flat washer 16 |
| 31 | 11-3161-1506 | Bolt, 5/8-11UNC-2A*60 |
| 32 | 11-3161-1507 | Nut , 5/8-11UNC-2B (SPL) |
| 33 | B0093-16-59 | Spring washer, 16 |
| 34 | 11-3161-1508 | Rubber, 40*10*5800 |
| 35 | 11-3161-1509 | Screw, 8 (0.164) -32UNC-2A*16 |
| 36 | 11-3161-1510 | Pressure gauge, 0~60MPa(0~8700psi) |
| 37 | 11-3161-2200 | Elbow assembly |
| 38 | 11-3161-1511 | Pipe plug, R1 1/2 |
| 39 | 11-3161-23 | Gasket, R44 |
| 40 | 11-3161-2400 | Draining filter assembly |
| 41 | 11-3161-25 | Flange 5 1/8*35 |
| 42 | 11-3161-2700 | Surge damper KB-75 |
| 43 | 11-3161-2800 | Relieve valve JA-3 |
| 44 | 11-3161-3000 | Cover plate assembly |
| 45 | 11-3161-31 | Shim |
Field Fault Repair Cases
Case 1: Overpressure & Relief Valve Malfunction
Fault Symptom: Pressure gauge reading exceeds 60MPa (8700psi), pump vibrates excessively, and the relief valve JA-3 (P/N 11-3161-2800) fails to release excess pressure, risking pump damage.
Root Cause: Mud debris clogged the relief valve JA-3, preventing it from activating at the preset pressure threshold, while the surge damper KB-75 was unable to absorb pressure surges effectively.
Repair Solution: Replace the relief valve JA-3 and surge damper KB-75, clean the pressure gauge, and flush the pressure system to remove debris. The pump pressure stabilized within the 0~60MPa range, and vibration was eliminated.
Case 2: Lubrication System Failure & Component Wear
Fault Symptom: Abnormal noise from the power end, increased friction between moving components, and premature wear on the crankshaft and crosshead assemblies.
Root Cause: The power end lubrication assembly (P/N 11-3161-0600) was clogged, and the draining filter assembly (P/N 11-3161-2400) failed to remove contaminants, leading to inadequate lubrication.
Repair Solution: Replace the power end lubrication assembly and draining filter assembly, flush the lubrication system, and refill with fresh ISO VG 460 gear oil. Component wear was minimized, and the power end resumed smooth operation.
Case 3: Frame Leakage & Gasket Failure
Fault Symptom: Lubricating oil leakage from the frame assembly (P/N 11-3161-0100) and crosshead hole covers, reduced oil levels, and increased friction in the power end.
Root Cause: Worn R44 gaskets (P/N 11-3161-23) and crosshead hole cover gaskets, causing seal failure under vibration and pressure.
Repair Solution: Replace all worn gaskets (including R44 gaskets), clean the mating surfaces, and tighten the cover bolts to OEM torque specs. Leakage was completely eliminated, and oil levels remained stable during continuous operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these general assembly parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all general assembly components are engineered to OEM specifications for full cross-compatibility with Honghua HHF-1600 and HHF-1300 quintuple mud pumps, requiring no modifications for installation. |
| What pressure range does the included pressure gauge support, and what is its accuracy? | The included pressure gauge (P/N 11-3161-1510) supports a range of 0~60MPa (0~8700psi) with an accuracy of ±1.5% full scale, meeting API 7K standards for drilling equipment. |
| Can I purchase individual assemblies (e.g., crankshaft, fluid end) or auxiliary parts instead of the full general assembly kit? | Absolutely, every component—including core assemblies (crankshaft, pinion shaft, crosshead, fluid end) and auxiliary parts (gaskets, fasteners, pressure gauge, relief valve)—is available for separate purchase with matching OEM part numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these Honghua HHF-1600 mud pump general assembly parts ensures seamless pump assembly, reliable operation, and minimal downtime—critical for maintaining drilling efficiency and reducing long-term maintenance costs. Each component undergoes strict quality testing, including pressure testing (up to 60MPa), wear resistance testing, and fit verification, to meet API 7K drilling standards and OEM specifications. This comprehensive kit eliminates the risk of mismatched components, simplifies procurement, and provides a trusted technical reference for troubleshooting and repairs—making it the ideal choice for oilfield maintenance and procurement teams.
