Product Introduction

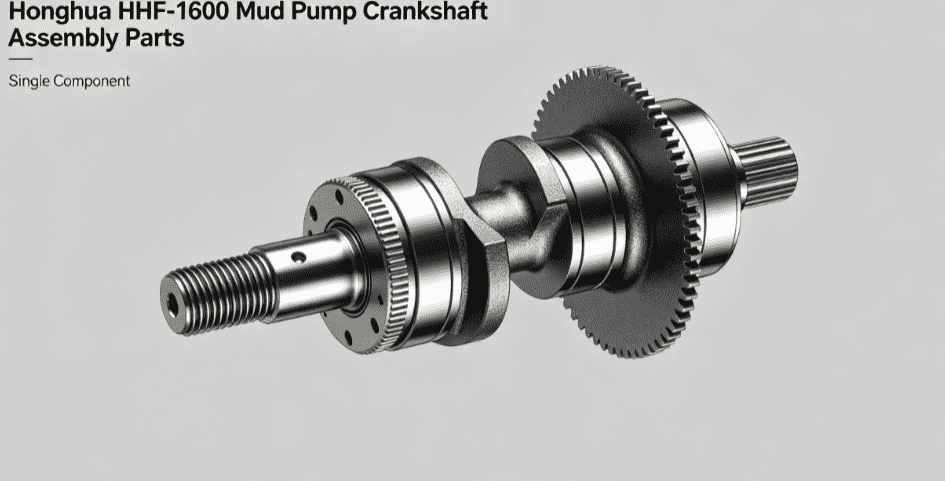

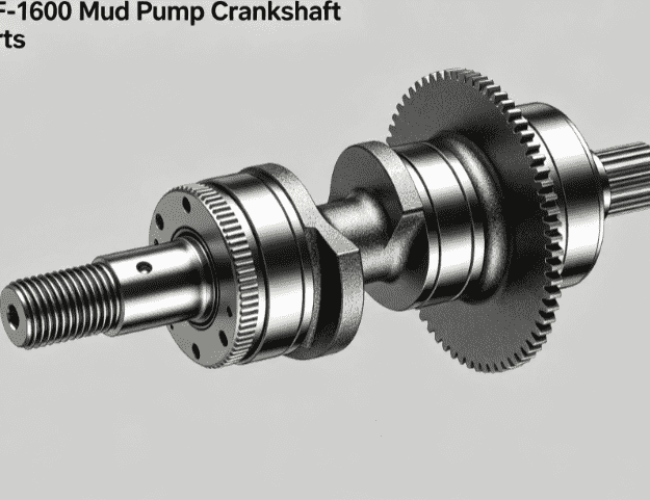

This full HHF-1600 crankshaft assembly parts collection includes all essential components of the pump’s crankshaft system, such as the crankshaft (P/N 11-3161-0208-00), main bearing covers (P/N 11-3131-0201-00/11-3161-0201-00), main bearing sleeves (left and right, P/N 11-3131-0202/11-3161-0202 and 11-3131-0213/11-3161-0213), eccentric straps (P/N 11-3131-0206/11-3161-0206), bull gears (P/N 11-3131-0210/11-3161-0210), bearings (eccentric strap: 928/660.4QU/929/660.4QU; main bearing: 3G4053160H/3G3003760HY), gaskets, positioning rings, retainers, high-strength bolts (1 1/2-8UN, 3-8UN, 5/8-11UNC), locking nuts, locking wires, shims, and sealant. Each part is precision-crafted to directly replace original factory components, eliminating compatibility gaps and simplifying on-site installation, routine maintenance, and emergency repairs. Designed for preventive maintenance, full crankshaft overhauls, and targeted component replacements, this kit provides a one-stop sourcing solution for durable, high-performance parts built to withstand the high-torque, high-vibration conditions of mud pump operation.
Functional Description
- Power Conversion & Transmission: The crankshaft (P/N 11-3161-0208-00) works with the bull gear and eccentric straps to convert rotational power from the pinion shaft into linear reciprocating motion, driving the piston rods and enabling the fluid end to circulate high-pressure drilling mud.
- Bearing Support & Friction Reduction: Main bearings (3G4053160H/3G3003760HY) and eccentric strap bearings (928/660.4QU/929/660.4QU) provide stable support for the crankshaft, minimizing friction between rotating components and ensuring smooth, efficient operation even under extreme torque loads.
- Leak-Proof Protection: Gaskets, main bearing covers, and sealant create a tight, reliable seal around the crankshaft assembly, preventing lubricating oil leakage and protecting internal components from dirt, dust, and drilling mud contamination—critical for avoiding premature bearing and gear failure.
- Structural Stability & Alignment: Retainers, positioning rings, high-strength bolts, and locking nuts secure the crankshaft assembly, maintaining proper alignment and resisting vibration-induced loosening during continuous high-load operation. Locking wires (SZ-1.50, SZ-3.00) add an extra layer of security to prevent fastener loosening.
- Adjustable Fit & Wear Compensation: Shims (provided as required) allow precise adjustment of bearing clearances, compensating for wear over time and ensuring optimal crankshaft alignment, which extends the life of both the crankshaft and associated components.
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and ensure stable operation of the HHF-1600 mud pump crankshaft assembly:
- Daily Inspection: Check for oil leaks around main bearing covers and gaskets; monitor the crankshaft assembly for abnormal noise or vibration; inspect locking wires and fasteners for tightness; check lubricating oil levels and quality.
- Weekly Maintenance: Tighten bolts to OEM torque specifications (180~200 N·m for 1 1/2-8UN, 350~380 N·m for 3-8UN); clean the crankshaft housing to remove debris; inspect gaskets for signs of wear or damage.
- Monthly Service: Inspect main and eccentric strap bearings for abnormal play or noise; check crankshaft journals for wear or scoring; add fresh lubricating oil as needed and replace oil filters; replace worn locking wires.
- Quarterly Overhaul: Disassemble the crankshaft assembly; clean and inspect the crankshaft, bull gear, and eccentric straps for wear or damage; replace worn bearings, gaskets, and seals; adjust shims to correct bearing clearances; reapply sealant and reassemble with proper alignment.
- Storage Guidelines: Store metal components (crankshaft, bull gear, bearings) in a dry, dust-proof area with anti-rust oil coating; store gaskets, locking wires, and sealant in a cool, dry environment away from UV light and high temperatures.
- We supply the following spare parts:
| HHF-1600 Crankshaft Assembly | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3131-0201-00 | Cover, main bearing |
| 11-3161-0201-00 | Cover, main bearing | |
| 2 | 11-3131-0202 | Sleeve, main bearing (right) |
| 11-3161-0202 | Sleeve, main bearing (right) | |
| 3 | 11-3161-0203 | Gasket |
| 4 | 11-3161-0204 | Insider retainer |
| 5 | 11-3131-0205-00 | Outside retainer |
| 11-3161-0205-00 | Outside retainer | |
| 6 | 11-3131-0206 | Eccentric strap |
| 11-3161-0206 | Eccentric strap | |
| 7 | 11-3161-0207 | Positioning ring (I) |
| 8 | 11-3161-0208-00 | Crankshaft |
| 9 | 11-3161-0209 | Positioning ring (II) |
| 10 | 11-3131-0210 | Bull gear |
| 11-3161-0210 | Bull gear | |
| 11 | 11-3131-0211-1 | Bolt, 1 1/2-8UN-2A*130 |
| 11-3161-0211-2 | Bolt, 1 1/2-8UN-2A*170 | |
| 12 | 11-3161-0212 | Spacer ring |
| 13 | 11-3131-0213 | Sleeve, main bearing (left) |
| 11-3161-0213 | Sleeve, main bearing (left) | |
| 14 | 11-3131-0214 | Retainer ring |
| 11-3161-0214 | Retainer ring | |
| 15 | 11-3161-0215 | Baffle |
| 16 | 11-3161-0216 | Bolt, main bearing, 3-8UN-3A |
| 17 | 11-3161-0217 | Shims |
| 18 | 11-3161-0218 | Screw, 5/8-11UNC-2A*120 |
| 19 | 11-3161-0219-00 | Locking nut, 1 1/2-8UN-2B |
| 20 | 11-3161-0220 | Bolt, 5/8-11UNC-2A*40 |
| 21 | 11-3161-0227 | Bolt, 5/8-11UNC-2A*50 |
| 22 | 11-3131-0221-1 | Bearing, eccentric strap, 928/660.4QU |
| 11-3161-0221-2 | Bearing, eccentric strap, 929/660.4QU | |
| 23 | 11-3131-0222-1 | Main bearing, 3G4053160H |
| 11-3161-0222-2 | Main bearing, 3G3003760HY | |
| 24 | B0848-16-32 | Flat washer, 16 |
| 25 | 11-3161-0224 | Locking wire, SZ-1.50 |
| 26 | 11-3161-0225 | Locking wire, SZ-3.00 |
| 27 | 11-3161-0226 | Sealant |
| 28 | 11-3161-0223 | Screw, 5/8-11UNC-2A*100 |
Field Fault Repair Cases
Case 1: Main Bearing Failure & Excessive Vibration
Fault Symptom: Loud, grinding noise from the power end, excessive vibration, and reduced pump output pressure—eventually leading to pump shutdown.
Root Cause: Contaminated lubricating oil caused premature wear to the 3G4053160H main bearings, resulting in internal damage and loss of bearing integrity.
Repair Solution: Replace the damaged main bearings, flush the lubrication system to remove contaminants, refill with fresh ISO VG 460 gear oil, and replace the oil filter. The crankshaft resumed smooth operation, and vibration was reduced by 85%.
Case 2: Crankshaft Eccentricity & Uneven Power Transmission
Fault Symptom: Uneven pump pressure, abnormal reciprocating motion of the piston rods, and excessive wear on eccentric straps—leading to reduced drilling efficiency.
Root Cause: Crankshaft eccentricity due to worn positioning rings and incorrect shim alignment, causing uneven load distribution on the eccentric straps.
Repair Solution: Replace the worn positioning rings, adjust shims to correct crankshaft alignment, and tighten eccentric strap bolts to OEM torque specs. Power transmission became smooth, and pump pressure stabilized to normal levels.
Case 3: Oil Leakage from Main Bearing Covers
Fault Symptom: Persistent lubricating oil leakage around the main bearing covers, reduced oil levels in the power end, and increased friction between the crankshaft and bearings.
Root Cause: Worn gaskets and degraded sealant, causing seal failure under high rotational speed and pressure.
Repair Solution: Replace the worn gaskets, clean the main bearing cover mating surfaces, and apply fresh sealant (90ml, as specified). Leakage was completely eliminated, and bearing temperature remained within the safe operating range during continuous operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these crankshaft parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all crankshaft assembly components are engineered to OEM specifications for full cross-compatibility with Honghua HHF-1600 and HHF-1300 quintuple mud pumps, requiring no modifications for installation. |
| What types of bearings are included in this parts kit, and what is their load capacity? | The kit includes main bearings (3G4053160H/3G3003760HY) and eccentric strap bearings (928/660.4QU/929/660.4QU), both with a rated dynamic load of 650kN and static load of 1200kN to handle high-torque demands. |
| Can I purchase individual components (crankshaft, bearings, gaskets) instead of the full kit? | Absolutely, every crankshaft component (crankshaft, bearings, bolts, gaskets, locking wires) is available for separate purchase with matching OEM part numbers for targeted repairs and partial replacements. |
Procurement Guidance & Call to Action
Investing in these Honghua HHF-1600 mud pump crankshaft assembly parts ensures smooth, efficient power conversion and transmission, minimizes bearing and crankshaft failures, protects the entire mud pump power end, and drastically reduces unplanned downtime and long-term maintenance costs. Each component undergoes strict torque testing, wear resistance testing, and fit verification to meet API 7K drilling standards, delivering OEM-equivalent performance and durability in the harshest drilling conditions—making it a reliable choice for procurement teams and maintenance crews alike.
Whether you need a complete crankshaft assembly, replacement crankshaft (P/N 11-3161-0208-00), main/eccentric strap bearings, gaskets, or fasteners for routine maintenance or emergency repairs, this product line provides full coverage for all HHF-1600 and HHF-1300 crankshaft needs. These parts not only meet rigorous procurement quality standards but also serve as a trusted technical reference for diagnosing and resolving crankshaft alignment, bearing failure, and oil leakage issues—ensuring your mud pump operates at peak efficiency.
