Product Introduction

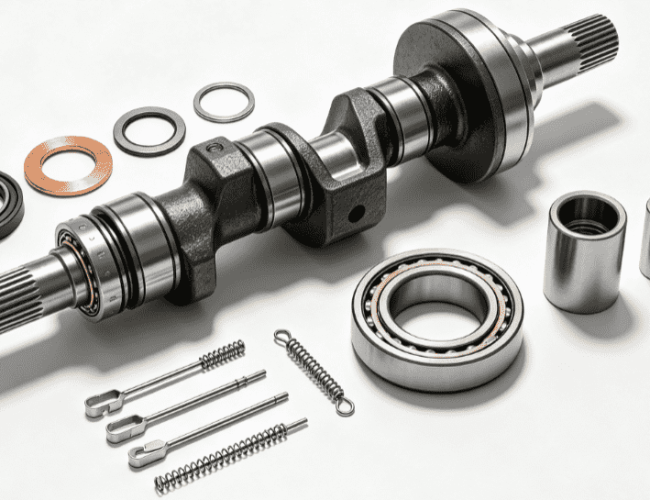

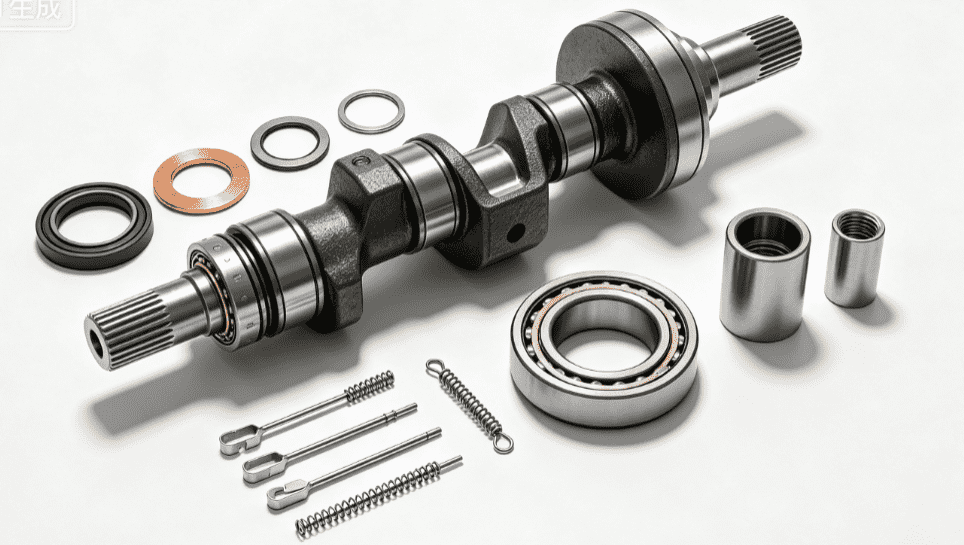

This full HHF-2400 crankshaft parts collection includes four core sub-assemblies: the main crankshaft assembly, connecting rod component, right-hand bull gear assembly, and left-hand bull gear assembly. Every component is forged from high-strength alloy steel, precision-machined, and heat-treated to directly replace original factory parts, eliminating compatibility issues and ensuring seamless integration with the HHF-2400 mud pump’s power end transmission system. Designed for major power end overhauls, scheduled preventive maintenance, and emergency transmission failure repairs, this kit provides a one-stop sourcing solution for durable, fatigue-resistant crankshaft components built for continuous heavy-duty drilling operation.
Functional Description
- Rotary-to-Reciprocating Motion Conversion: The forged crankshaft translates smooth rotary power from the bull gears into linear reciprocating motion for the connecting rods and pistons, enabling consistent mud pressurization and discharge.
- High-Torque Power Transmission: Left and right-hand bull gear assemblies mesh with pinion gears to transfer high-torque power from the drive motor to the crankshaft, maintaining efficient power delivery under full load.
- Stable Connecting Rod Operation: Connecting rod components link the crankshaft to crosshead assemblies, with precision bearing shells and copper sleeves reducing friction and ensuring smooth, aligned movement.
- Secure Component Locking: High-strength bolts, spiralock nuts, expansion sleeves, and circlips lock all rotating components in place, resisting vibration-induced loosening and preventing catastrophic disassembly.
- Leak-Proof Sealing & Support: Cylindrical roller bearings provide low-friction rotational support, while O-rings and precision washers seal lubrication passages to prevent oil leakage and contamination.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize crankshaft lifespan and prevent costly transmission failures:
- Daily Inspection: Monitor crankshaft and gear noise for abnormal meshing, check for oil leaks at bearing seals, and verify lubrication pressure is within the 0.2–1.6MPa range.
- Weekly Maintenance: Tighten all bolts and nuts to specified torque values, inspect circlips and washers for damage, and clean lubrication passages to ensure unobstructed oil flow.
- Monthly Service: Inspect bull gear teeth for pitting or wear, check bearing end play, and replace worn O-rings and sealing washers to prevent oil leakage.
- Quarterly Overhaul: Disassemble connecting rods to inspect bearing shells and copper sleeves, re-align bull gears, calibrate expansion sleeve tension, and torque all fasteners to OEM standards.
- Long-Term Storage: Coat crankshaft journals and gear teeth with anti-corrosive lubricant, seal all bearing openings, and store in a dry, dust-free environment to prevent rust and contamination.
We supply the following spare parts:
| Crankshaft assembly NB004.02.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Circlip for shaft | NB001.02.02 |
| 2 | Cylindrical roller bearing | NB001.02.09.00 |
| 3 | Right-hand bull gear assembly | NB001.02.01.00 |
| 4 | Clamp plate | NB001.02.06 |
| 5 | Bolt M10x40 | GB/T32 |
| 6 | Stainless steel wire Φ1.6×1000 | GB/T4240-1993 |
| 7 | Crankshaft | NB001.02.05 |
| 8 | Connecting rod component | NB004.02.01.00 |
| 9 | Bolt M20x40 | GB/T5782 |
| 10 | Hexagon socket set screw M12*25 | GB/T77 |
| 11 | Hexagon flange check nut Spiralock M12 | DTF6177.1 |
| 12 | Washer | NB001.02.08 |
| 13 | Rotary crossover sub | NB004.02.02 |
| 14 | Bolt M12x30 | GB/T5783 |
| 15 | O-ring 30×3.55 | GB/T3452.1 |
| 16 | Bolt M20x170 | GB/T5782 |
| 17 | Washer 20 | GB/T97 |
| 18 | Left-hand bull gear assembly | NB001.02.04.00 |
| 19 | Expansion sleeve Z5-215.9×281 | JB/T7934-1999 |
| 20 | Cylindrical roller bearing | NB001.02.10.00 |
| Connecting rod component NB004.02.01.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Connecting rod bolt | NB001.02.03.02 |
| 2 | Stainless steel wire ΦI.6 | GB/T4240-1993 |
| 3 | Positioning pin, connecting rod body | NB001.02.03.04 |
| 4 | Connecting rod body | NB001.02.03.05 |
| 5 | Socket cap screw M12x 60 | GB/T70.1 |
| 6 | Spring washer 12 | GB/T93 |
| 7 | Positioning screw, connecting rod copper sleeve | HBZ013.02.03.08 |
| 8 | Connecting rod copper sleeve | HBZ013.02.03.06 |
| 9 | Connecting rod bearing shell | NB004.02.01.01 |
| 10 | Positioning pin, connecting rod bearing shell | NB001.02.03.01 |
| Right-hand bull gear assembly NB001.02.01.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Right-hand bull gear | NB001.02.01.01 |
| 2 | Right hub | NB001.02.01.02 |
| 3 | Elastic cylindrical pin 20×55 | GB/T879.1-2000 |
| 4 | Bolt M30x100 | NB800G02.11A |
| 5 | Locking nut M30-6H | NB800G02.12.00 |
| Left-hand bull gear assembly NB001.02.04.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Left-hand bull gear | NB001.02.04.01 |
| 2 | Left hub | NB001.02.04.02 |
| 3 | Elastic cylindrical pin 20×55 | GB/T879.1-2000 |
| 4 | Bolt M30x100 | NB800G02.11A |
| 5 | Locking nut M30-6H | NB800G02.12.00 |
Field Fault Repair Cases
Case 1: Bull Gear Loosening & Meshing Failure
Fault Symptom: Loud grinding noise from the power end, erratic crankshaft rotation, and visible bull gear misalignment.
Root Cause: Worn expansion sleeve Z5-215.9×281 and loose M30 locking nuts, causing gear slippage and poor meshing.
Repair Solution: Replace the damaged expansion sleeve, re-torque all M30 bolts and locking nuts to OEM specifications, and re-align the bull gear assembly. Meshing noise was eliminated, and stable rotation was restored.
Case 2: Connecting Rod Bearing Wear & Overheating
Fault Symptom: Elevated power end temperatures, knocking noise from connecting rods, and reduced mud pump output efficiency.
Root Cause: Worn connecting rod bearing shell and insufficient lubrication, leading to metal-on-metal friction and overheating.
Repair Solution: Replace the worn bearing shell, flush the lubrication system, and adjust connecting rod alignment. Operating temperatures returned to normal, and knocking noise was resolved.
Case 3: Crankshaft Bearing Failure & Seizure
Fault Symptom: Complete crankshaft seizure, no rotational movement, and visible damage to cylindrical roller bearing races.
Root Cause: Contaminated lubricating oil and worn bearing rollers, causing catastrophic bearing failure and crankshaft lockup.
Repair Solution: Replace the damaged cylindrical roller bearing, flush the entire power end lubrication system, and install new sealing components. Crankshaft rotation was restored, and bearing performance returned to OEM standards.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these crankshaft assembly parts fully compatible with original Honghua HHF-2400 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and tolerance standards, ensuring direct fitment with HHF-2400 power end assemblies without modifications. |
| Do these parts include all bearings and fasteners for full crankshaft installation? | Absolutely, the kit includes all cylindrical roller bearings, bolts, nuts, washers, circlips, and expansion sleeves required for complete crankshaft assembly installation. |
| Can I purchase individual crankshaft or connecting rod components instead of the full kit? | Yes, every part (crankshaft, bull gears, connecting rods, bearings, fasteners, etc.) is available for separate purchase with matching drawing numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these Honghua HHF-2400 mud pump crankshaft assembly parts ensures reliable high-torque power transmission, minimizes costly unplanned downtime from crankshaft and gear failures, and reduces long-term power end maintenance expenditures. Each component undergoes strict forging, heat treatment, and dimensional testing to meet API 7K drilling standards, delivering consistent performance in the harshest high-load drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
