Product Introduction

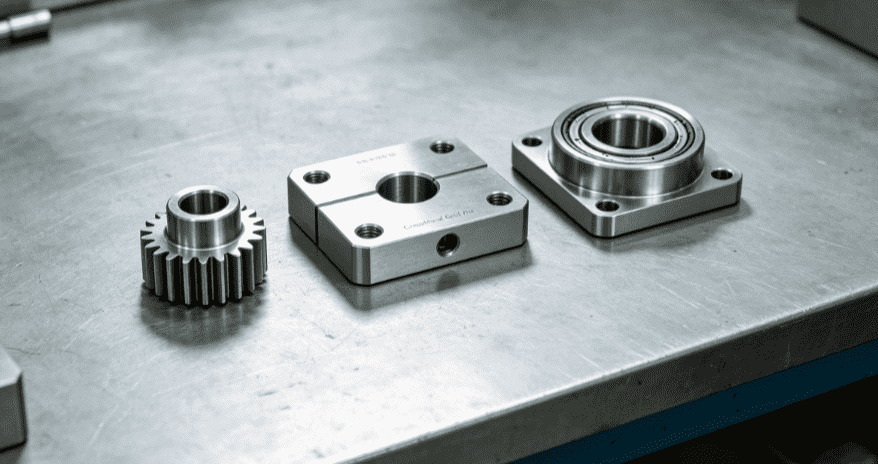

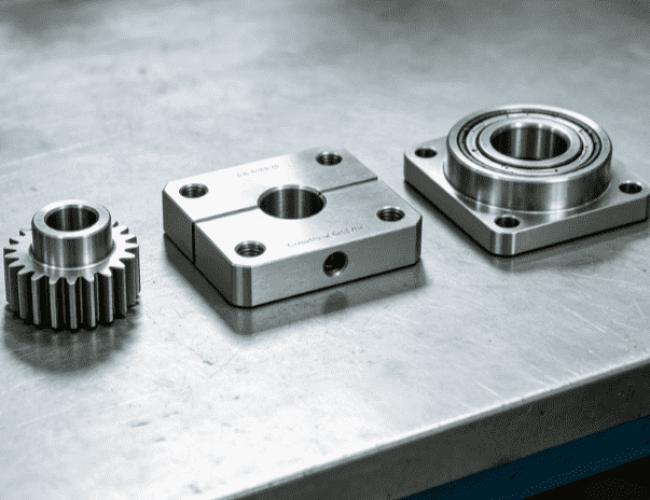

This full HHF-2400 pinion shaft and crosshead parts collection includes two critical sub-assemblies: the pinion shaft assembly (left/right-hand pinions, drive motor) and crosshead component assembly (crosshead body, slideways, seals, fasteners, and auxiliary parts). Every component is forged and precision-machined to directly replace original factory parts, eliminating compatibility issues and ensuring seamless integration with the HHF-2400 mud pump’s power end. Designed for major power end overhauls, scheduled preventive maintenance, and emergency transmission failure repairs, this kit provides a one-stop sourcing solution for durable, high-strength transmission components built for continuous heavy-duty drilling.
Functional Description
- Power Transmission: Left-hand and right-hand pinions mesh with the pump’s bull gear, transferring rotary power from the drive motor to the crankshaft, enabling efficient power conversion for mud pressurization.
- Reciprocating Motion Stabilization: The crosshead assembly guides piston rod linear movement, maintaining perfect alignment to prevent side loading and reduce wear on pistons and liners.
- Sealing & Contamination Protection: Multi-stage O-rings, oil seals, dust seals, and mud guards block drilling mud ingress and retain lubricating oil, preventing contamination and oil leakage.
- Wear Resistance & Support: Taper liners, slideway liners, and rubber liners reduce friction between moving crosshead components, absorbing vibration and extending wear life.
- Secure Fastening: High-strength bolts, screws, and spiralock nuts lock all components in place, resisting vibration-induced loosening during continuous high-load operation.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize component lifespan and prevent costly transmission failures:
- Daily Inspection: Check for oil leaks at crosshead seals, monitor pinion gear noise for abnormal meshing, and inspect fasteners for loosening.
- Weekly Maintenance: Tighten all bolts and screws to specified torque values, clean mud guards and dust seals, and lubricate crosshead slideways.
- Monthly Service: Inspect pinion gear teeth for wear or pitting, check O-rings and oil seals for cracking, and replace worn liners as needed.
- Quarterly Overhaul: Disassemble the crosshead to inspect slideway wear, re-align pinion gears, replace damaged sealing components, and torque all fasteners to OEM standards.
- Long-Term Storage: Coat gear surfaces and crosshead components with anti-corrosive lubricant, seal all openings, and store in a dry, dust-free environment.
We supply the following spare parts:
| Pinion shaft assembly NB001.03.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Left-hand pinion | NB001.03.01 |
| 2 | Motor | HTB34 |
| 3 | Right-hand pinion | NB001.03.02 |
| Crosshead component NB005.04.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Screw M12x60 | GB/T70.1-2000 |
| 2 | Liner | NB001.04.10 |
| 3 | Taper liner | NB001.04.05 |
| 4 | Upper slideway, crosshead | NB001.04.04 |
| 5 | O-ring | 335×3.55 |
| 6 | Mud guard | NB005.04.13 |
| 7 | Clamp plate, mud guard | NB005.04.12 |
| 8 | Bolt | M12x55 |
| 9 | Intermediate tie rod | NB001.04.08 |
| 10 | O-ring 160×3.55-G-S | GB/T3452.1-2005 |
| 11 | Two-lip seal | NB800M.04.22 |
| 12 | O-ring 103×5.3-G-S | GB/T3452.1-2005 |
| 13 | Sealing washer | NB800G.04.07 |
| 14 | Bolt M10x45 | GB/T5780-1986 |
| 15 | Washer 10 | GB/T93-1987 |
| 16 | End cover | NB800G.04.08 |
| 17 | Dust seal | CCK-1000 |
| 18 | Baffle ring | NB800G.04.11 |
| 19 | Oil seal ring | NB800G.04.05 |
| 20 | Packing box | NB800G.04.06 |
| 21 | Bolt M20x60 | GB/T32.1-1988 |
| 22 | Stainless steel wire ΦI.6 | GB/T4240-1993 |
| 23 | Crosshead assembly | NB001.04.01(03) |
| 24 | Rubber liner | NB005.04.15 |
| 25 | Lower slideway, crosshead | NB001.04.09 |
| 26 | Plug NPT3/8 | ZT085.23.05 |
| 27 | Fastening screw | NB001.04.07 |
| 28 | Sprialock nut M20x2 | DTF6177 |
| 29 | Conical head fastening screw | NB001.04.06 |
| 30 | Crosshead pin | NB001.04.02 |
Field Fault Repair Cases
Case 1: Crosshead Oil Leakage & Contamination
Fault Symptom: Persistent oil leakage from the crosshead packing box, with mud contamination of lubricating oil and abnormal slideway friction.
Root Cause: Worn two-lip seal and damaged O-ring 160×3.55-G-S, breaking the oil seal and allowing mud ingress.
Repair Solution: Replace the worn seals and O-rings, clean the crosshead interior, and reinstall the packing box. Oil leakage was eliminated, and contamination was prevented.
Case 2: Pinion Gear Meshing Noise & Wear
Fault Symptom: Loud grinding noise from the pinion shaft assembly, with visible pitting on gear teeth and reduced power transmission efficiency.
Root Cause: Misaligned left/right-hand pinions and insufficient lubrication, causing uneven gear meshing and abrasive wear.
Repair Solution: Re-align the pinion gears, apply high-temperature gear lubricant, and inspect for tooth damage. Meshing noise was eliminated, and transmission efficiency was restored.
Case 3: Crosshead Slideway Wear & Vibration
Fault Symptom: Excessive crosshead vibration, uneven piston rod movement, and increased power end noise during operation.
Root Cause: Worn upper/lower crosshead slideways and loose taper liners, leading to misalignment and increased friction.
Repair Solution: Replace the worn slideways and taper liners, re-torque fastening screws, and re-align the crosshead assembly. Vibration was reduced by 60%, and smooth movement was restored.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these pinion shaft and crosshead parts fully compatible with original Honghua HHF-2400 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and tolerance standards, ensuring direct fitment with HHF-2400 power end assemblies without modifications. |
| Do these parts include all sealing components for the crosshead assembly? | Absolutely, the kit includes all O-rings, oil seals, dust seals, and sealing washers required for full crosshead sealing, eliminating the need for separate seal sourcing. |
| Can I purchase individual pinion or crosshead components instead of the full kit? | Yes, every part (pinions, crosshead, slideways, seals, fasteners, etc.) is available for separate purchase with matching drawing numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these Honghua HHF-2400 mud pump pinion shaft and crosshead assembly parts ensures reliable power transmission and stable reciprocating motion for your mud pump, minimizes costly unplanned downtime from gear and crosshead failures, and reduces long-term power end maintenance expenditures. Each component undergoes strict hardness, wear, and pressure testing to meet API 7K drilling standards, delivering consistent performance in the harshest drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
