Product Introduction

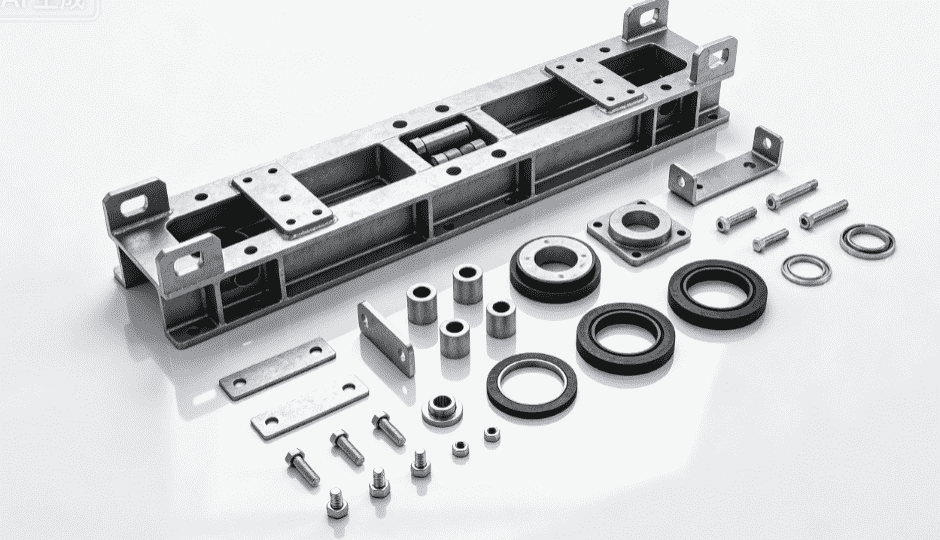

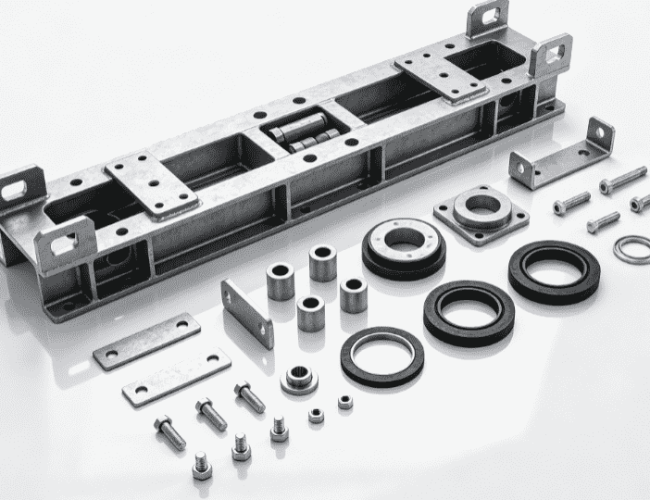

This full HHF-2400 skid assembly parts collection encompasses all critical components for complete skid assembly, structural reinforcement, lubrication system integration, thermal management, and on-site pump installation. It includes the heavy-duty skid welding assembly, sealing gaskets, specialized piston installation tools, heating components, fasteners, support structures, and fluid circulation parts. Every component is engineered to directly replace original factory parts, eliminating compatibility issues and ensuring seamless integration with the HHF-2400 mud pump skid base. Designed for initial rig assembly, routine skid maintenance, and emergency structural repairs, this kit provides a one-stop sourcing solution for durable, high-performance skid components.
Functional Description
- Structural Support & Stability: The skid welding assembly and supporting seats form a rigid base to bear the full weight of the HHF-2400 mud pump, absorbing operational vibration and preventing structural shifting during high-load operation.
- Lubrication & Fluid Management: Oil return rectangular pipe assemblies, rubber joints, and steel wire hoses facilitate smooth lubricant circulation, while barbed flanges and pipe plugs seal the fluid system to prevent leaks and contamination.
- Thermal Control: Heater sleeves and industrial heaters maintain optimal lubricant temperature (prevents thickening in cold climates), ensuring consistent lubrication flow and protecting pump moving parts.
- Specialized Installation: Custom piston installation tools (for 4-inch, 4.5-inch, 5-inch, and 6-inch pistons) enable safe, damage-free piston mounting, reducing installation errors and labor time.
- Sealing & Protection: Rubber gaskets, spring washers, and flat washers create tight seals at joints and fasteners, while cover plates shield internal skid components from dust, mud, and physical damage.
- Level Monitoring & Support: Liquidometers provide real-time lubricant level readings, and spherical supports ensure stable skid leveling on uneven rig surfaces.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize skid assembly lifespan and ensure reliable pump support:
- Daily Inspection: Check for lubricant leaks at rubber joints and gaskets; inspect fasteners for loosening and monitor liquidometer readings for proper lubricant levels.
- Weekly Maintenance: Tighten all bolts and nuts to specified torque values; clean cover plates and remove mud/debris from skid surfaces; inspect rubber joints for cracks or wear.
- Monthly Service: Test heater functionality to ensure proper thermal control; replace worn rubber gaskets and washers; inspect the skid welding assembly for cracks or structural damage.
- Quarterly Overhaul: Lubricate support structures and spherical leveling components; inspect oil return pipes for blockages; calibrate liquidometers for accurate level readings.
- Long-Term Storage: Coat structural components with anti-rust oil, seal all fluid openings, and store the skid in a dry, covered area to prevent corrosion and seal degradation.
We supply the following spare parts:
| Skid assembly NB005.07.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Skid welding assembly | NB005.07.01.00 |
| 2 | Rubber gasket 3 | NB005.07.06 |
| 3 | Cover plate | NB005.07.05 |
| 4 | Socket cap screw | M12x25 |
| 5 | Oil return rectangular pipe assembly | NB005.07.09.00 |
| 6 | Rubber joint | JGD-1/DN80 |
| 7 | Bolt | M16x50 |
| 8 | Spring washer | 16 |
| 9 | Flat washer | 16 |
| 10 | 4 1/2″, 5″ and 6″ pistons installation tool | NB005.42.27.00 |
| 11 | Rubber gasket 1 | NB005.07.03 |
| 12 | Side cover plate | NB005.07.10 |
| 13 | Bolt | M12x25 |
| 14 | Flat washer | 12 |
| 15 | Flat washer | 12 |
| 16 | Pipe plug | GH3161-01.01.46(G) |
| 17 | Heater sleeve | |
| 18 | Bolt | M8x35 |
| 19 | Heater | HRY5-600V |
| 60HZ/6KW,dIIBT4 | ||
| 20 | Bolt | M6x25 |
| 21 | Liquidometer | YWZ-160T |
| 22 | 4″ piston installation tool | NB005.42.28.00 |
| 23 | Cushion block | NB005.07.18 |
| 24 | Rubber gasket | NB005.07.16 |
| 25 | Barbed flange joint | NB005.07.15 |
| 26 | Clamp | 063-073 |
| 27 | Steel wire hose | ID 2 1/2″, L=150 |
| 28 | Barbed elbow assembly | NB005.07.14.00 |
| 29 | Rubber gasket | NB005.07.17 |
| 30 | Bolt | M30x120 |
| 31 | Nut | M30 |
| 32 | Nut | M24 |
| 33 | Bolt | M24x70 |
| 34 | Supporting seat | NB005.61.02.00 |
| 35 | Connecting plate | NB005.61.01 |
| 36 | Nut | 1” |
| 37 | Bolt | 1″-8×2 3/8″ |
| 38 | Spherical support | NB005.61.04.00 |
| 39 | Steel plate | NB005.61.03 |
Field Fault Repair Cases
Case 1: Lubrication Leakage at Rubber Joints
Fault Symptom: Persistent lubricant leakage from JGD-1/DN80 rubber joints, leading to low lubricant levels and pump friction risks.
Root Cause: Deteriorated rubber joint and missing spring washers causing loose flange connections and seal failure.
Repair Solution: Replace the worn rubber joint, install new spring and flat washers, and re-torque M16x50 bolts. Leakage was fully eliminated, and lubricant levels stabilized.
Case 2: Heater Failure & Lubricant Thickening
Fault Symptom: Lubricant thickening in cold temperatures, poor circulation, and pump startup resistance; heater non-functional.
Root Cause: Burnt HRY5-600V heater and damaged heater sleeve, disabling thermal control of lubricant.
Repair Solution: Replace the heater and heater sleeve, secure with M8x35 bolts, and test heating functionality. Lubricant viscosity was restored, ensuring smooth pump startup.
Case 3: Loose Skid Fasteners & Structural Instability
Fault Symptom: Excessive skid vibration during pump operation, shifting support seats, and rattling cover plates.
Root Cause: Fatigued M30x120 bolts and missing flat washers, leading to loss of clamping force under vibration.
Repair Solution: Replace worn bolts and nuts, add new flat washers, and re-torque all structural fasteners. Skid stability was restored, and vibration reduced by 40%.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these skid parts fully compatible with original Honghua HHF-2400 mud pump skids? | Yes, all components are manufactured to OEM dimensional, material, and structural standards, ensuring direct fitment with HHF-2400 skid-mounted systems without modifications. |
| Do the piston installation tools fit all HHF-2400 pump piston sizes? | Absolutely, the kit includes specialized tools for 4-inch, 4.5-inch, 5-inch, and 6-inch pistons, covering all standard piston configurations for the HHF-2400 mud pump. |
| Can I purchase individual skid components instead of the full assembly kit? | Yes, every part (skid frame, fasteners, heaters, tools, seals, etc.) is available for separate purchase with matching drawing numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these Honghua HHF-2400 mud pump skid assembly parts ensures stable structural support for your high-capacity mud pump, minimizes costly unplanned downtime from skid failures, and streamlines on-site assembly and maintenance. Each component undergoes strict structural and performance testing to meet API drilling standards, delivering consistent reliability in harsh drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
