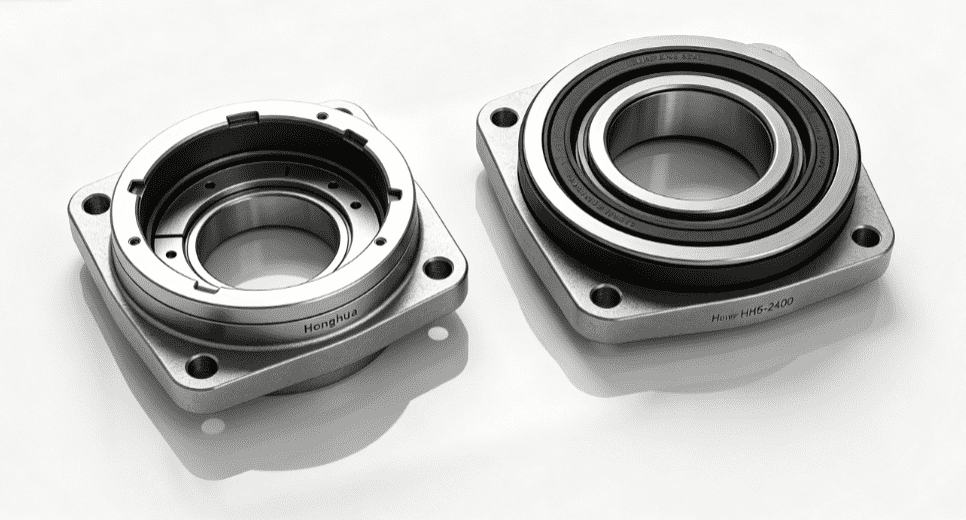

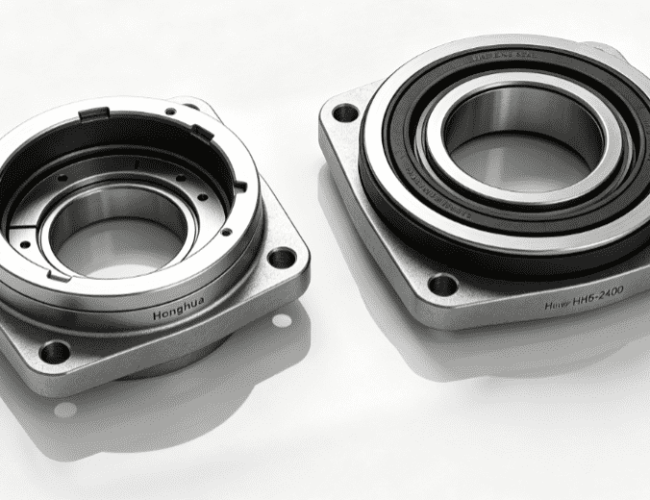

Product Introduction
This full HHF-2400 discharge assembly parts collection includes three key sub-assemblies: the discharge five-way block assembly, guard cover assembly, and guard seal assembly, featuring OEM-matched dimensions, high-strength alloy materials, and rigorous pressure-testing protocols. From the heavy-duty discharge five-way block, API 6A BX gasket rings, and shockproof pressure gauge to protective guard components and sealing parts, each item is engineered to directly replace original factory components, eliminating compatibility issues and ensuring seamless integration with the HHF-2400 mud pump’s fluid end discharge system. Designed for both scheduled preventive maintenance and emergency high-pressure failure repairs, this kit provides a one-stop sourcing solution for durable, high-performance discharge components.
Functional Description
- High-Pressure Fluid Routing: The discharge five-way block distributes pressurized drilling mud evenly, with welded unions and welding neck flanges creating secure, leak-proof connections to the mud pump and discharge pipeline.
- Pressure Monitoring & Safety: The shockproof pressure gauge (0-80MPa) and pressure gauge holder provide real-time pressure readings, enabling operators to detect pressure anomalies and prevent overpressure hazards.
- Fluid Filtration: The built-in filter screen removes abrasive debris from drilling mud, protecting downstream valves, pipelines, and wellbore equipment from wear and damage.
- Secure Sealing: API 6A BX series gasket rings deliver metal-to-metal high-pressure sealing, while oil seals and gaskets in the guard cover prevent lubricant leakage and mud contamination.
- Mechanical Protection: The guard cover and guard seal assemblies shield internal discharge components from impact, dust, and mud buildup, reducing wear and extending component lifespan.
- Stable Fastening: High-strength UN standard studs and nuts maintain consistent clamping force, resisting pressure pulsation and vibration-induced loosening during continuous operation.
Maintenance & Care Recommendations
Follow these industry-standard maintenance protocols to maximize discharge assembly lifespan and prevent costly high-pressure failures:
- Daily Inspection: Check for high-pressure fluid leaks at flange and gasket joints; monitor pressure gauge readings for stability and inspect the guard cover for damage.
- Weekly Maintenance: Tighten all studs and nuts to specified torque values; clean the filter screen to remove debris buildup and ensure unobstructed fluid flow.
- Monthly Service: Inspect BX gasket rings for deformation or wear; check oil seals and gaskets for cracks or hardening; verify pressure gauge accuracy with a calibration tool.
- Quarterly Overhaul: Disassemble the discharge five-way block to inspect for internal corrosion; replace worn sealing components and re-torque all fasteners; lubricate guard cover hinges and connection points.
- Long-Term Storage: Drain all drilling fluid from the discharge assembly, coat metal components with anti-corrosive lubricant, and seal all openings to block dust and moisture contamination.
We supply the following spare parts:
| Discharge five-way block assembly NB004.09.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Welded female union 2”-1502-H | HGHT04.07.01 |
| 2 | Welding neck flange 115 1/8×69 | NB004.09.05 |
| 3 | Gasket ring BX169 | ANSI/API Spec 6A-2010 |
| 4 | Filter screen | NB2200G.25.05.00 |
| 5 | Holder of pressure gauge | NB004.09.03 |
| 6 | Gasket ring BX152 | ANSI/API Spec 6A-2010 |
| 7 | Stud 3/4-12UN-2Ax120 | NB1600M.07.02H |
| 8 | Nut 3/4-12UN-2B | NB1600M.07.03H |
| 9 | Shockproof pressure gauge YK-150F; 0-80MPA | YK-150 |
| 10 | Blind flange | NB004.09.02 |
| 11 | Gasket ring BX155 | ANSI/API Spec 6A-2010 |
| 12 | Discharge five-way block | NB004.09.01 |
| 13 | Stud 11/8-8UN(12UNF)x115 | NB1600M.07.04H |
| 14 | Nut 1 1/8-8UN-2B (SPL) | NB800M.24.06A |
| 15 | Welding neck flange I | NB004.09.04 |
| Guard cover NB004.12.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Bolt M12x30 | GB/T5782 |
| 2 | Sight window | NB001.27.11 |
| 3 | Guard cover plate | NB004.12.02 |
| 4 | Guard cover frame | NB001.27.02 |
| 5 | Guard cover connecting plate | NB004.12.01 |
| 6 | Connecting plate 2 | NB004.12.08 |
| 7 | Bolt M12x35 | GB/T5783 |
| 8 | Washer | NB004.12.07 |
| 9 | Connecting plate 1 | NB004.12.04 |
| 10 | Gasket 1 | NB001.27.10 |
| 11 | Supporting plate | NB004.12.03 |
| 12 | Skeleton oil seal FB40x55x8 | GB/T13871 |
| 13 | Seal box | NB004.12.06 |
| 14 | Gland | NB004.12.05 |
| 15 | Guard seal | NB004.12.09.00 |
| 16 | Gasket 2 | NB001.27.13 |
| 17 | Clamp plate | NB001.27.12 |
| Guard seal NB004.12.09.00 | ||
| No. | Description | Drawing No. (code) |
| 1 | Connecting plate | NB004.12.09.03 |
| 2 | Water retaining plate | NB004.12.09.02 |
| 3 | Socket cap screw M8x20 | GB/T70.1 |
| 4 | Cover plate | NB001.27.02 |
| 5 | Side plate | NB004.12.01 |
| 6 | Bolt M12x20 | GB/T5783 |
| 7 | Clamp plate | HBZ013.27.15.03 |
| 8 | Gasket 1 | HBZ013.27.15.04 |
Field Fault Repair Cases
Case 1: High-Pressure Flange Leakage
Fault Symptom: Visible high-pressure mud leakage at the welding neck flange joint, accompanied by fluctuating discharge pressure.
Root Cause: Worn BX169 gasket ring and unevenly torqued studs leading to failed metal-to-metal sealing.
Repair Solution: Replace the damaged BX169 gasket ring, clean flange mating surfaces, and re-torque all studs to OEM specifications. Leakage was fully eliminated, and pressure stability was restored.
Case 2: Pressure Gauge Inaccuracy & Vibration Damage
Fault Symptom: Pressure gauge readings are erratic or unresponsive, with visible damage to the gauge housing from rig vibration.
Root Cause: Failed shockproof pressure gauge and loose pressure gauge holder failing to absorb vibration.
Repair Solution: Replace the YK-150F shockproof pressure gauge and secure the holder with new fasteners; calibrate the gauge before restarting operation. Accurate real-time pressure monitoring was restored.
Case 3: Guard Cover Seal Failure & Contamination
Fault Symptom: Mud and debris buildup inside the guard cover, with lubricant leakage from the seal box and accelerated wear on internal components.
Root Cause: Damaged skeleton oil seal and worn gasket 1, failing to block external contamination and retain lubricant.
Repair Solution: Replace the skeleton oil seal, gasket 1, and guard seal assembly; clean the guard cover interior and re-secure all connection plates. Contamination and leakage were stopped, extending internal component life.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these discharge assembly parts fully compatible with original Honghua HHF-2400 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and pressure-rated standards, ensuring direct fitment with HHF-2400 quintuple mud pumps without any modifications. |
| What is the service life of critical sealing components like BX gasket rings? | BX gasket rings are single-use high-pressure seals and should be replaced during every major overhaul (8-12 months); oil seals and guard gaskets last 12-18 months under normal operating conditions. |
| Can I purchase individual sub-assembly parts instead of the full discharge kit? | Absolutely, every component (five-way block, gaskets, pressure gauge, guard parts, fasteners, etc.) is available for separate purchase with matching drawing numbers for targeted repairs. |
Procurement Guidance
Investing in these Honghua HHF-2400 mud pump discharge assembly parts ensures reliable high-pressure fluid discharge, minimizes costly unplanned downtime, and reduces long-term mud pump maintenance expenditures. Each component undergoes strict pressure testing to meet API 6A and API 7K standards, delivering consistent performance in the harshest high-pressure drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
Whether you need a full discharge assembly rebuild kit, replacement API BX gaskets, a new shockproof pressure gauge, or guard cover components for emergency repairs, this product line provides complete coverage for all HHF-2400 discharge system maintenance needs. These parts not only meet rigorous procurement quality criteria but also act as a trusted technical reference for diagnosing and resolving discharge-related pressure and leakage failures.
