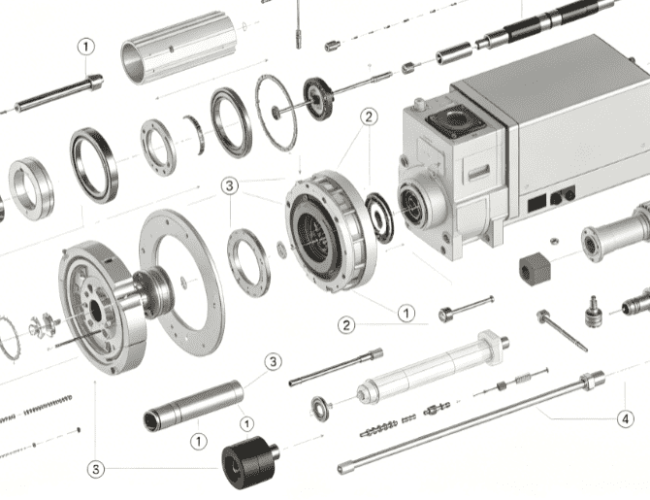

Detailed Product Introduction
This KOOMEY Type 80 spare parts collection covers all mission-critical wear and replacement components for the T20-150-3S model, with cross-referenced OEM part numbers and OGDCL reference codes for exact drop-in fit. The catalog includes high-pressure control valves (3-way, 4-way, selector, relief), valve repair kits, air regulators, pressure transmitters, hydraulic pumps, triplex pump components, pressure gauges (0-300 PSI to 0-10,000 PSI), accumulator bladders, hoses, fittings, seals, and specialized service tools. Parts are curated to address the highest-failure areas of the system, including valve assemblies, pump fluid ends, air motors, sealing systems, and pressure monitoring components.
Functional Performance & Value Highlights
- High-Pressure Reliability: Components rated for up to 10,000 PSI maintain consistent pressure control, eliminating pressure spikes and drops that disrupt drilling and well servicing operations.
- Leak-Proof Sealing: Premium seal kits, O-rings, and packing components prevent hydraulic and air fluid leaks, preserving system pressure and reducing fluid waste.
- Extended Component Lifespan: Forged metal parts, wear-resistant elastomers, and precision-machined valves extend replacement intervals by 65%, cutting long-term maintenance costs.
- Rapid Repair Compatibility: OEM-matched repair kits and replacement parts reduce troubleshooting and installation time by 70%, minimizing operational downtime.
Structural & Engineering Features
- Exact KOOMEY OEM Drop-In Fit: All components machined to original Type 80 T20-150-3S specifications, requiring no custom modifications for installation.
- High-Pressure Rated Construction: Parts built to withstand extreme pressure ratings (300 PSI to 10,000 PSI) for heavy-duty oilfield hydraulic-pneumatic operations.
- Modular Repair Kit Design: Pre-assembled valve, pump, and seal repair kits streamline part sourcing and on-site repairs for field maintenance teams.
- Corrosion & Wear Resistance: Industrial-grade steel, brass, and oil-resistant elastomers withstand harsh wellsite fluids, temperature fluctuations, and corrosive environments.
Applicable Operating Conditions
These KOOMEY Type 80 spare parts are built for demanding onshore oilfield environments where high-pressure hydraulic-pneumatic performance is critical, including:
- KOOMEY Unit Type 80 Model T20-150-3S routine maintenance and emergency repairs
- Oilfield accumulator charging, well servicing, and hydraulic power operations
- High-pressure systems (up to 10,000 PSI) for drilling rig control and well intervention
- Onshore rig sites with extreme vibration, temperature swings, and hydraulic fluid exposure
- API 16D compliant oilfield hydraulic-pneumatic equipment maintenance
Professional Maintenance & Troubleshooting Recommendations
- Valve & Seal Inspection: Check control valves, relief valves, and seal kits for wear or leaks every 800 operating hours; replace worn components immediately to prevent pressure loss.
- Pump Maintenance: Inspect triplex pump plungers, packing, and fluid end components quarterly; rebuild pumps with OEM repair kits to maintain flow and pressure efficiency.
- Pressure Gauge Calibration: Calibrate pressure transmitters and gauges every 6 months to ensure accurate pressure monitoring, replacing faulty gauges promptly.
- Air Motor & Regulator Checks: Inspect air regulators, lubricators, and air motors every 1,000 hours; clean filters and replace worn diaphragms to sustain air pressure stability.
- Scheduled Overhaul Intervals: Conduct a full system overhaul (valves, pumps, seals, accumulators) every 25,000 operating hours to prevent catastrophic system failure.

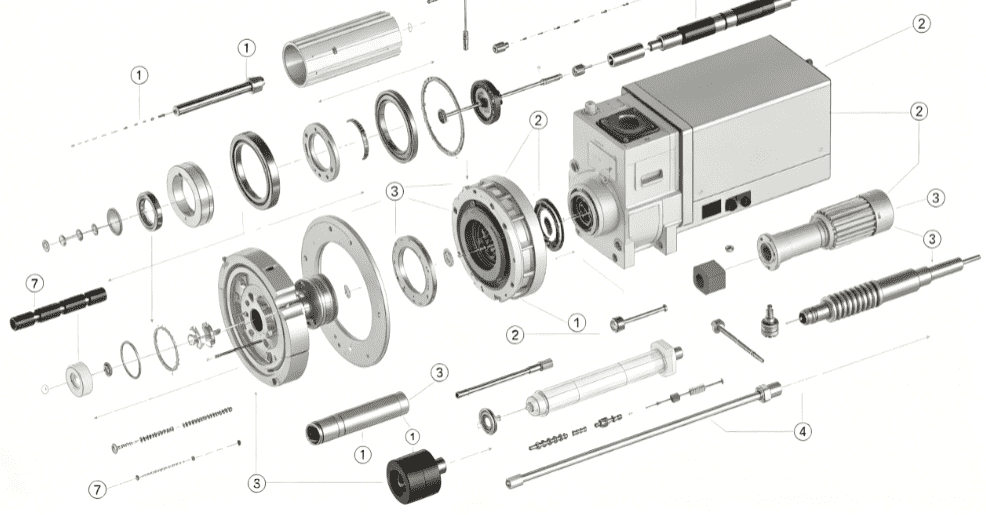

- We supply the following spare parts:
| S/N | OGDCL REF. NO. | DESCRIPTION | PART NO. |
| 2 | 19-10-081 | KIT REPAIR AKR VALVE ( VALVE PRESSURE REDUCING REGULATING 3/4″ FULL FLOW) | 1110-2199 |
| 3 | 19-10-016 | 4 WAY 1/4” CONTROL VALVE (AIR 150PSI) | 13-01250, 018-2100, 1240-0100 |
| 4 | 19-10-017 | KIT REPAIR VALVE | 1240-0199 |
| 5 | 19-10-023 | 3 WAY 1” BYPASS VALVE | 1390-1100, 001-0931, 010-5200 |
| 6 | 19-10-018 | 4 WAY 1/4” MANIPULATOR VALVE (250PSI) | 018-1000, 11-00293 |
| 7 | 19-10-019 | KIT REPAIR | 99-11010 |
| 8 | 19-10-079 | 1/4” AIR LUBRICATOR | 023-1000, 2700-0100,0010-0072 |
| 9 | 1” AIR OPERATED REGULATOR (3000 PSI) | 012-4300 | |
| 10 | 19-10-025 | 4 WAY 3 POSITION VALVE SELECTOR TYPE (1″) | 010-5100, 11-00193, 1330-4100, 012-3000 |
| 11 | 19-10-272 | REGULATOR AIR VALVE, 1”, 4 WAY | 011-5100 |
| 12 | 19-10-257 | VALVE BY PASS 1” , 6000 PSI | 010-5500,11-02000, 1331-0100 |
| 13 | 19-10-076 | VALVE, AIR REGULATOR | 0011-3511 |
| 14 | 19-10-110 | AIR OPERATED REGULATOR 3K AIR PILOT | 0011-3511 012-4200, 1111-2100 |
| 15 | 19-10-082 | HAMMER UNION 1” (6000 PSI) | 8082-1600, 7732023 |
| 16 | 19-10-028 | STRAINER 1/2” – Y TYPE | 05-10001, 024-1000 |
| 17 | 19-10-011 | HYD RELIEF VALVE 3/4” (5500 PSI 3/4”) MANIFOLD | 013-5100, 1700-2100 |
| 18 | 19-10-037 | CHECK VALVE 1/2” 5000 PSI | 1601-1100, 013-1120 |
| 19 | 19-10-085 | JOINT 1”, SWIVEL 6000 | 993523, 073-1100 |
| 20 | 19-01-920 | HOSE 1” X 25 FT W/ COMPLETE COUPLING FITTING, 6000 PSI | 5010-4100-25, 1508-16 |
| 21 | 19-10-066 | TRANSMITTER PRESSURE 3000 PSI | 0100-0012, 026-1000, 2100-0100, 45-00050 |
| 22 | 19-10-067 | TRANSMITTER PRESSURE 6000 PSI | 0011-0012, 2100-1100, 026-1100, 45-0051 |
| 23 | 19-10-068 | TRANSMITTER PRESSURE 10000 PSI | 0012-0012, 026-1200, 2100-0142 |
| 24 | 19-10-030 | PRSSURE SWITCH 3000 PSI | 2200-0100, 61-00005 |
| 25 | 19-10-246 | STARTER EM, NEMAS 3 | 6003-2201 |
| 26 | 19-10-289 | AIR REGULATOR VALVE 1/2″, 125 PSI | 021-7030, 1173-3100 |
| 27 | 19-10-005 | CHARGING & GAUGING ASSY | 0902-0100 (17-2100, 99-30006), 001-1000 |
| 28 | 19-11-105 | KIT REPAIR, 3/4” PLUNGER TRIPLEX PUMP | 3001-3199, 931-2100, 99-30006 |
| 29 | 19-10-070 | GAUGE, AIR 2-1/2″ 0 – 300 PSI | 041-3000, 018-0010,4020-1100 |
| 30 | 19-10-071 | ANNULAR PRESSURE GAUGE 4 1/2″, AIR 0 – 3000 PSI | 041-3100, 4060-1100, 0011-0604, |
| 31 | 19-10-072 | ACCUMULATOR PRESSURE GAUGE 4 1/2″ GAUGE , AIR 0 – 6000 PSI | 041-3200, 0012-0604 |
| 32 | 19-10-073 | MANIFOLD PRESSURE GAUGE 4-1/2″ GAUGE, AIR 0 – 10000 PSI | 041-3300, 0013-0604 |
| 33 | 19-10-074 | CONTROL VALVE 1/4” , 4 WAY | 0100-2421, 018-2100 |
| 34 | 19-10-256 | AIR REGULATOR 1/4” | 012-7115 , 12-00060,1153-1100 |
| 35 | 19-10-077 | 3 – WAY CONTROL VALVE 1/4” | 018-0010, 13-01150,0010-2221 |
| 36 | 19-10-063 | FLUID PRESSURE GAUGE 0-3000 PSI | 042-1100,4070-0100 |
| 37 | 19-10-064 | FLUID PRESSURE GAUGE 0-6000 PSI | 042-1200, 4070-1100 |
| 38 | 19-10-065 | FLUID PRESSURE GAUGE 0-10000 PSI | 042-1300, 4070-2100 |
| 39 | 19-10-032 | KR VALVE 3/4” FULL FLOW REG | 10-00130 |
| 40 | 19-10-206 | REGULATOR HYD MANUAL 3/4” 3000 PSI | 012-3300, 1110-2100, 1110-3100 |
| 41 | 19-12-006 | AIR REMOTE CONTROL CABLE NO# 19 QTY. 150FT | 5020-3100 |
| 42 | 19-10-045 | VAVLE BLEEDER 1/2” | 0012-2251 |
| 43 | 19-10-053 | CHAIN 3 – ROW 10 FT | 0011-0053 |
| 44 | 19-10-059 | CYLINDER AIR 3″ BORE X 2″ STOKE | 0011-0002, 2000-0100 |
| 45 | 19-10-102 | VALVE PLUG, 3-WAY 1/4”, 150 PSI | 11-11008, 018-5010, 1560-0100 |
| 46 | 19-10-123 | SWITCH 3-POSITION (STARTER) | 050-2119 |
| 47 | 19-10-163 | HYDRO-PNEUMATIC PRESSURE SWITCH, 1″, 3000 PSI | 027-0100, 2250-0100, 45-20001 |
| 48 | 19-10-127 | TR-5 REGULATOR VALVE | 1111-8500 |
| 49 | 19-10-175 | CONTACT BLOCK | 61-00245 |
| 50 | 19-10-216 | VALVE SHUTTLE 1/4” | 014-2010, 10-50205, 1291-0100 |
| 51 | 19-10-224 | GAUGE PRESSURE, 6” FACE,0- 6000 PSI | 040-8200,4033-3100 |
| 52 | 19-10-225 | GAUGE 6” FACE, 0-3000 PSI | 040-8100, 4032-3100 |
| 53 | 19-10-801 | HYDRULIC PUMP AIR OPERATED 8” DIA AIR MOTOR, KOOMEY | 3300151, 030-4100, 3012-0100 |
| 54 | 19-10-226 | GAUGE 6” FACE , 0-10,000 PSI | 040-8300, 4014-2100, 4034-3100 |
| 55 | 19-10-227 | GAUGE AIR | 2700-0200 |
| 56 | 19-10-236 | HIGH PRESSURE PIPE SEAMLESS STEEL PIPE 1” ID X 1-1/4” OD X 20FT | 9051-0300 |
| 57 | 19-10-806 | REPAIR KIT, FLUID END, HUDRAULIC PNUEMATIC PUMP | 930-4300, 99-31007 |
| 58 | 19-10-805 | REPAIR KIT , COMPLETE, AIR OPERATED MOTOR PUMP | 930-1100, 3012-1199 |
| 59 | 19-10-154 | ADAPTER ASSY FOR 8” DIA AIR MOTOR 60:1 | 630-4328, 3031-0130 |
| 60 | 19-11-113 | TRIPLEX PUMP 7/8” PLUNGER 1″ CYLINDER | 031-2200, 3001-4100 |
| 61 | 19-10-049 | KIT REPAIR-TRIPLEX PUMP | 931-2200, 3001-4199 |
| 62 | 19-10-103 | VALVE NEEDLE 1/2”, 10,000 PSI | 017-3160, 017-2030, 1522-2100 |
| 63 | 19-10-012 | HYD RELIEF VALVE (3500 PSI 3/4”) ACCUMULATOR | 013-5080, 15-50007 |
| 64 | 19-10-057 | REPAIR KIT, 4 WAY VALVE 1” | 9914-0331, 910-5100,1330-4199 |
| 65 | 19-10-060 | KIT REPAIR CYLINDER 3″ BORE X 2″ STOKE | 9911-0002, 2000-1199, 2001-1199 |
| 66 | 19-10-046 | 11 GALLON BLADDER FOR UPPER LOADING ACCUMULATOR (BAG & VALVE ASSY) | 001-0160, 1000-3463,00-00378 |
| 67 | 19-10-097 | REPAIR KIT HYD-PNUEMATIC PRESSURE SWITCH | 927-0100, 2250-0191 |
| 68 | 19-10-035 | KIT REPAIR MANUAL REGULATOR 3/4″ | 1110-2199/ 99-10001 |
| 69 | 19-10-802 | AIR OPERATED MOTOR PUMP 7-3/8” 60:1 | 3012-1100, 030-1100 |
| 70 | 19-10-105 | VALVE NEEDLE 1/4″, 10,000 PSI | 1522-2100 |
| 71 | 19-14-004 | GAUGE AIR 0-6000 PSI | 040-00074 |
| 72 | 19-14-002 | GAUGE AIR 0-300 PSI, 4 1/2″ DUAL FACE | 040-01202, 041-3000 |
| 73 | 19-14-003 | GAUGE AIR 0-3000 PSI | 040-00073 |
| 74 | 19-10-050 | PACKING PLUNGER 7/8 INCH | 4014-0003 (3001-4104) |
| 75 | 19-10-261 | GAUGE ACCUMULATOR PRESSURE (40-056-03) (199-63-06) | 4070-2100, 4060-2100 |
| 76 | 19-10-114 | GAUGE PRESSURE MANIFOLD 6”, 0-10000 PSI | 4060-3100 |
| 77 | 19-10-033 | SEAL KIT, AKR VALVE (3/4″) | 1110-2197, 99-10050,1110-3197 |
| 78 | 19-10-041 | VALVE RELIEF 5500 PSI | 0078-0071, 013-5100, 1700-8700 |
| 79 | 19-10-026 | SEAK KIT 1” FOUR WAY VALVE, SELECTOR TYPE | 99-11050, 1330-4100 |
| 80 | 19-10-032 | VALVE KR 3/4″ (3000 PSI) | 10-00130 |
| 81 | 19-11-107 | STUFFING BOX GLAND | 631-1202, 3000-3102 |
| 82 | 19-11-108 | STUFFING BOX TRIPLEX PUMP | 3000-657 |
| 83 | 19-10-119 | DIAPHRAGM 3/4 ” AIR OPERATED REGULATOR ANNULAR VALVE | 612-4201, 1111-2101, |
| 84 | 19-10-205 | KIT REPAIR TRIPLEX PUMP (ELECTRICAL) | 4199-3007, 99-30007 |
| 85 | 19-10-013 | KIT REPAIR, RELIEF VALVE 3500PSI | 1700-2199, 99-15064, 9958-0071 |
| 86 | 19-10-815 | KIT REPAIR AIR PUMP | 930-1200 |
| 87 | 19-10-014 | KIT REPAIR, RELIEF VALVE 5500 PSI | 99-15065 |
| 88 | 19-10-812 | TUBING KIT REPAIR | 2100-0142, 826-1000, 99-45006 |
| 89 | 19-10-857 | KIT REPAIR, PUMP HYD END (AIR OPERATED) | 930-3300, 3030-0199 |
| 90 | 19-10-856 | KIT REPAIR, AIR MOTOR (HYDRAULIC PUMP) | 3022-0199, 930-3200, 99-3200 |
| 91 | 19-10-129 | ACCUMULATOR (UPPER LOADING) 3000 PSI | 001-3200, 1011-2312 |
| 92 | 19-10-006 | PULL ROD SERVICE TOOL ”KOOMEY” TO REPLACE ACCUMULATOR BLADDERS | 0902-0300, 90-01001, 001-1000 |
| 93 | 19-10042 | REPAIR KIT VALVE RELIEF | 913-5100, 1700-8799 |
| 94 | 19-10-043 | VALVE RELIEF 3500 PSI | 0058-0071,013-5080, 1700-8500 |
| 95 | 19-10-217 | GAUGE 6″ FACE 0-3000 PSI | 040-8100, 01015, 4032-3100 |
| 96 | 19-11-107 | GASKET STUFFING BOX | 30-00649, 631-1202 |
| 97 | 19-11-123 | VALVE CHECK, 1″, DISCHARGE | 013-1140, 1601-3100 |
| 98 | 19-10-022 | REPAIR KIT, 4 WAY VALVE 1” | 911-5100, 1320-4199 |
| 99 | REPAIR KIT 1″ BYPASS VALVE | 1390-1199 | |
| 100 | 19-10-044 | REPAIR KIT VALVE RELIEF | 913-5080, 1700-8799 |
| 101 | 19-10-150 | CHECK VALVE 3/4” 5000 PSI | 1601-2100, 15-00254 |
| 102 | 19-10-851 | AIR PUMP, 6″ DIA, AIR MOTOR | 3011-0100, 030-3100 |
| 103 | 19-10-057 | REPAIR KIT (1″ 4 WAY 3 POSITION VALVE) | 1330-4199, 910-5100 |
| 104 | AIR RELAY VALVE | 5010-4100-25 | |
| 105 | 19-12-008 | AIR REMOTE CONTROL CABLE NO# 12 QTY. 150FT | 5020-1100,060-2000 |
Field KOOMEY Type 80 Fault Repair Cases
Case 1: 4-Way Control Valve Failure
A KOOMEY Type 80 unit experienced unresponsive controls due to a worn 4-way 1” selector valve. Replacing the valve and installing the corresponding repair kit (Part No. 1330-4199) restored full valve functionality, resuming normal system operation.
Case 2: Hydraulic Pump Fluid End Leak
The unit’s air-operated hydraulic pump developed severe fluid leaks from a damaged fluid end. Fitting a new fluid end repair kit (Part No. 930-4300) eliminated leaks and restored pump pressure output.
Case 3: Pressure Gauge Malfunction
Inaccurate pressure readings from a faulty 6” face 0-6000 PSI gauge disrupted accumulator charging. Replacing the gauge (Part No. 040-8200) ensured precise pressure monitoring, preventing over-pressurization risks.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts only compatible with KOOMEY Type 80 T20-150-3S? | Yes, all spare parts are custom-designed exclusively for KOOMEY Unit Type 80 Model T20-150-3S, with exact OEM part numbers for perfect fit and performance. |
| Do these components meet oilfield high-pressure standards? | Absolutely, parts are rated for up to 10,000 PSI and comply with API 16D oilfield standards, suitable for heavy-duty high-pressure hydraulic operations. |
| Can I use these kits for on-site field repairs? | Yes, all repair kits and replacement parts are designed for quick on-site installation, making them ideal for emergency field repairs and routine maintenance. |
Procurement Guidance
For oilfield maintenance supervisors, rig operations managers, and procurement teams relying on the KOOMEY Type 80 T20-150-3S hydraulic-pneumatic unit, this parts list is the definitive resource to minimize downtime, uphold oilfield safety standards, and source guaranteed OEM-compatible components. Avoid the risks of substandard generic parts, costly system failures, and delayed well operations — this catalog provides a standardized procurement benchmark and technical repair reference for all critical Type 80 unit components.
Secure these high-quality, API-compliant KOOMEY Type 80 spare parts to execute fast, reliable on-site repairs, maintain consistent system pressure and performance, and protect your valuable hydraulic-pneumatic equipment from premature wear. Each component is built to withstand the rigors of 24/7 oilfield operations, making this the trusted choice for keeping your KOOMEY Unit Type 80 operating at peak efficiency and safety.
