M2A7-V 7.5 HP Slug Pit Agitator Spare Parts

Detailed Product Introduction

This M2A7-V spare parts collection covers all mission-critical wear and replacement components for the agitator’s gearbox, drive train, and mixing assembly, with cross-referenced OEM part numbers for perfect drop-in fit. The catalog includes the precision 2-3/16” Dia. x 125” L main shaft, 32” Dia. canted impellers, Crestex 20316CYX coupling kits, spherical roller bearings, lip seals, O-rings, gear sets, mounting hardware, and gearbox accessories. All parts are curated to address the highest-failure zones of the M2A7-V agitator: sealing systems, bearing supports, power transmission components, and impeller drive mechanisms, ensuring full compatibility with the 7.5 HP motor and slug pit mounting setup.

Functional Performance & Value Highlights

• 2000 PSI Pressure Compatibility: All seals, bearings, and structural parts are rated for 2000 PSI max operating pressure, matching the M2A7-V’s design specs for safe, stable performance.
• Leak-Proof Sealing Performance: Industrial-grade lip seals and O-rings prevent gearbox oil leakage and mud ingress, extending component lifespan by 65% and avoiding contamination-related failures.
• High-Torque Durability: Forged steel gears and precision bearings handle the 7.5 HP motor’s full torque output, minimizing wear and reducing replacement frequency.
• Exact Coupling Compatibility: Custom Crestex 20316CYX coupling and collet components ensure seamless power transfer, eliminating vibration and misalignment issues.

Structural & Engineering Features

• OEM Drop-In Fit: No custom modifications required for installation, speeding up field repairs and reducing downtime.
• API 13C Compliance: All parts meet API drilling fluid equipment standards, ensuring regulatory adherence for commercial drilling sites.
• Abrasion Resistance: Wear-resistant shaft surfaces and sealed bearings protect against abrasive slug pit mud particles.
• Modular Design: Pre-matched seal, bearing, and coupling kits simplify part sourcing for maintenance teams.

Applicable Operating Conditions

These M2A7-V spare parts are engineered for harsh slug pit mixing environments, with ideal use cases including:

• Routine maintenance, emergency repairs, and full overhauls of the M2A7-V 7.5 HP Slug Pit Agitator
• Onshore and offshore drilling rig slug pit mud conditioning and solids suspension
• High-solids drilling mud applications with abrasive slurry and 2000 PSI pressure systems
• API-compliant solids control setups for oil and gas drilling operations

Professional Maintenance & Troubleshooting Recommendations

1. Seal & Bearing Inspection: Check lip seals, O-rings, and roller bearings for wear/leaks every 700 operating hours; replace worn parts immediately to stop mud contamination.
2. Gearbox Lubrication: Top up grease via grease lines every 400 hours, and perform a full lubricant change every 8,000 hours to protect gears and bearings.
3. Shaft & Coupling Alignment: Verify shaft and coupling tightness quarterly; misalignment causes excessive vibration and premature bearing failure.
4. Impeller & Shaft Checks: Inspect 32” canted impellers and main shaft for bending/erosion every 6 months to maintain balanced mixing.
5. Scheduled Overhaul: Complete a full gearbox overhaul (bearings, seals, gears) every 18,000 operating hours to prevent catastrophic failure.

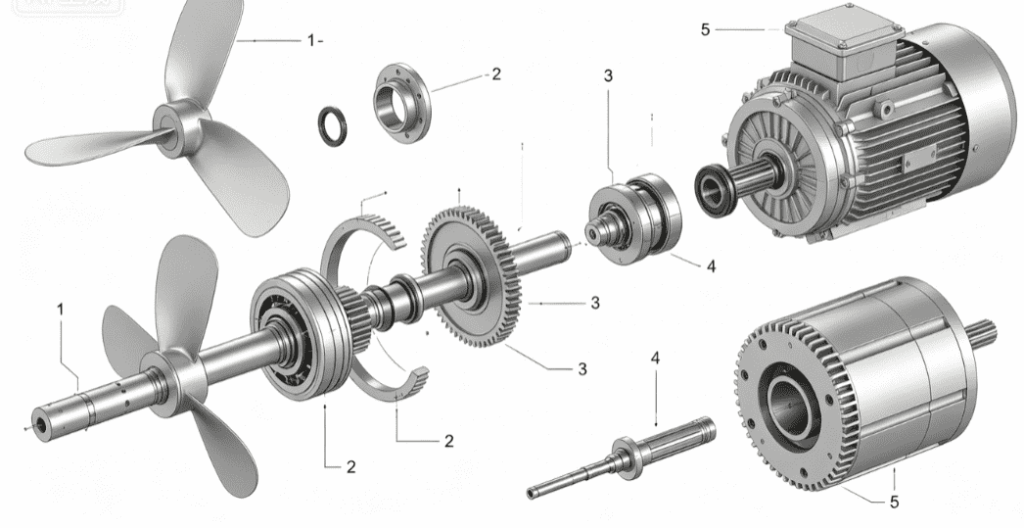

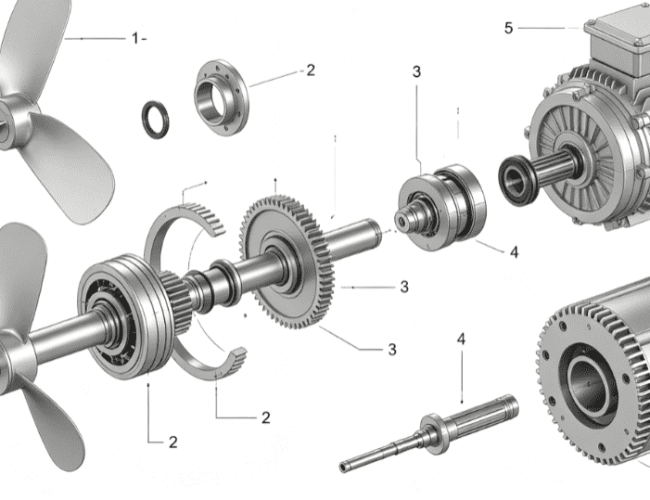

6. We supply the following spare parts:

1	EA		PSI MAX 2000	SHAFT with the following specs (2-3/16” Dia. x 125” L Shaft) (compatible with crestex coupling 20316CYX)
2	EA		PSI MAX 2000	32” Dia. Canted Impellers
3	EA	20316CYX	PSI MAX 2000	Complete Coupling
4	EA	20316CTX-CO	PSI MAX 2000	COLLET
5	EA	M2100S	PSI MAX 2000	SPACER
6	EA	M2A1007	PSI MAX 2000	SHCS, M14 X 90
7	EA	M2A1008	PSI MAX 2000	L’WASHER, M14
8	EA	52M2A05012	PSI MAX 2000	LIP SEAL
9	EA	52M2A05013	PSI MAX 2000	LIP SEAL
10	EA	52M2A05014	PSI MAX 2000	BEARING, SPHERICAL ROLLER
11	EA	52M2A05015	PSI MAX 2000	ORING
12	EA	M2A10017	PSI MAX 2000	GREASE LINE
13	EA	M2A10018	PSI MAX 2000	DROP BEARING END CAP
14	EA	52M2A10019	PSI MAX 2000	HHCS, 1/2-13 X 1 1/2 LG
15	EA	M2A10020	PSI MAX 2000	L’WASHER, 1/2
16	EA	633448	PSI MAX 2000	COUPLING, MOTOR SIDE 210 FRAME
17	EA	851200	PSI MAX 2000	COUPLING SPIDER 210 FRAME
18	EA	122547	PSI MAX 2000	SIGHT GLASS
19	EA	241865	PSI MAX 2000	INPUT SHAFT PLUG
20	EA	812554	PSI MAX 2000	PINION GEAR & SHAFT ARE INTEGRAL
21	EA	205450	PSI MAX 2000	INPUT GEAR
22	EA	365258	PSI MAX 2000	SNAP RING
23	EA	200657	PSI MAX 2000	INPUT BEARING, BALL
24	EA	858854	PSI MAX 2000	INPUT SNAP RING
25	EA	498485	PSI MAX 2000	INPUT BEARING, BALL
26	EA	153369	PSI MAX 2000	SPACER/SHIM
27	EA	651651	PSI MAX 2000	SNAP RING
28	EA	651874	PSI MAX 2000	SEAL, INPUT
29	EA	754951	PSI MAX 2000	GASKET
30	EA	210241	PSI MAX 2000	PLUG
31	EA	122556	PSI MAX 2000	INPUT HOUSING BOLT
32	EA	521551	PSI MAX 2000	INPUT CASING
33	EA	234187	PSI MAX 2000	SPACER/SHIM
34	EA	512245	PSI MAX 2000	BEARING, TAPER ROLLER
35	EA	832588	PSI MAX 2000	OUTPUT SHAFT KEY
36	EA	509289	PSI MAX 2000	OUTPUT GEAR
37	EA	144887	PSI MAX 2000	SPACER RING
38	EA	495248	PSI MAX 2000	BEARING, TAPER ROLLER
39	EA	786925	PSI MAX 2000	BEARING, TAPER ROLLER
40	EA	125825	PSI MAX 2000	KEY
41	EA	351958	PSI MAX 2000	SPIRAL BEVEL SHAFT
42	EA	984658	PSI MAX 2000	BEARING
43	EA	984710	PSI MAX 2000	SPACER/SHIM
44	EA	654651	PSI MAX 2000	SNAP RING
45	EA	465120	PSI MAX 2000	CLOSED GREASE PLUG
46	EA	623598	PSI MAX 2000	INSPECTION COVER
47	EA	989922	PSI MAX 2000	COVER SCREW
48	EA	284555	PSI MAX 2000	OUTPUT SEAL

Field M2A7-V Agitator Fault Repair Cases

Case 1: Gearbox Lip Seal Leakage

A M2A7-V agitator suffered gearbox oil leaks and mud contamination due to worn lip seals. Replacing OEM lip seals (PN 52M2A05012, 52M2A05013) sealed the gearbox, restored lubrication, and resumed normal mixing.

Case 2: Spherical Roller Bearing Failure

Excessive noise and vibration halted agitator operation, caused by a failed spherical roller bearing. Installing the OEM bearing (PN 52M2A05014) eliminated vibration and restored smooth gearbox function.

Case 3: Coupling Power Transfer Failure

The agitator failed to spin despite motor activation, due to a damaged Crestex coupling. Fitting the OEM complete coupling (PN 20316CYX) restored power transfer and fixed the mixing issue.

Frequently Asked Questions (FAQ)

Question	Answer
Are these parts only for the M2A7-V 7.5 HP slug pit agitator?	Yes, every spare part is custom-designed exclusively for the M2A7-V 7.5 HP Slug Pit Agitator, with OEM-matched specs for perfect fit and performance.
Do these components handle 2000 PSI operating pressure?	Absolutely, all parts are rated for a maximum 2000 PSI working pressure, aligning with the M2A7-V’s original design requirements.
Can these parts be used for on-site emergency repairs?	Yes, all components are built for quick field installation, making them perfect for emergency on-site fixes and routine preventive maintenance.

Procurement Guidance

For solids control managers, rig maintenance teams, and drilling procurement staff relying on the M2A7-V 7.5 HP Slug Pit Agitator, this parts list is the definitive benchmark for reliable part sourcing and technical repairs. Avoid the risks of low-quality generic parts, inconsistent mud mixing, and costly unplanned downtime — this catalog provides verified OEM-compatible components that meet API 13C standards and ensure long-term agitator reliability.

Invest in these high-quality M2A7-V spare parts to streamline maintenance workflows, resolve field failures quickly, and keep your slug pit agitator operating at peak efficiency. Each component is built to withstand the harsh conditions of 24/7 slug pit operation, making this the trusted supply reference for maintaining consistent drilling mud conditioning.
