Core Overview
This dedicated parts catalog is exclusively engineered for the LEWCO W2215 triplex mud pump, a high-performance reciprocating pump widely deployed in oil & gas drilling, horizontal directional drilling (HDD), and industrial slurry handling operations. Designed to meet the precise needs of drilling rig maintenance teams, field service technicians, procurement specialists, and pump overhaul contractors, these OEM-equivalent replacement parts solve critical pain points: unplanned downtime from worn components, inconsistent pump performance, premature bearing failure, fluid leakage, and compliance gaps in drilling operations.

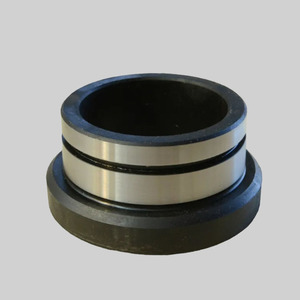

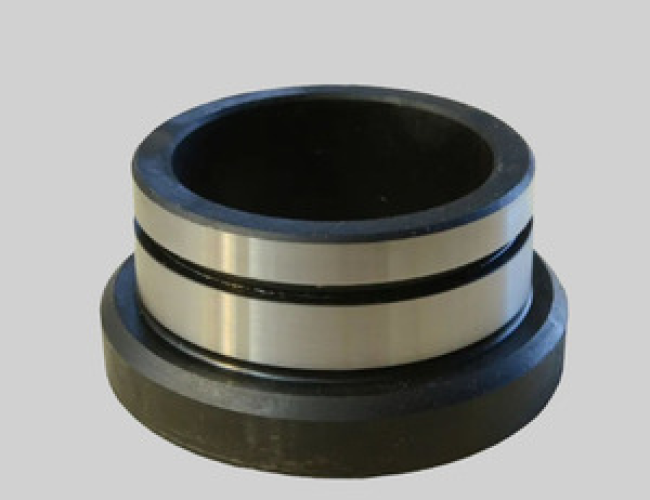

Product Introduction
Our comprehensive LEWCO W2215 mud pump parts lineup includes critical power end and fluid end components, engineered to withstand the extreme pressures, abrasive mud mixtures, and continuous duty cycles of modern drilling operations. Manufactured with premium alloy steel, heat-treated bearings, and high-tensile fasteners (Grade 8 UNC), these parts are built to outlast generic alternatives and maintain peak pump efficiency. Each part is rigorously inspected for dimensional accuracy, material hardness, and structural integrity, with key components tested to handle operating pressures up to 7,500 PSI — matching the W2215 pump’s maximum rated capacity.
Functional Specifications
- Power End Support: Eccentric bearings, main bearings, and pinion bearings reduce friction and stabilize crankshaft rotation, minimizing vibration and extending shaft lifespan; shim sets enable precise bearing preload adjustment for balanced power transmission.
- Structural Integrity: High-tensile Grade 8 hex bolts and 12-point cap screws (ranging from 5/8”-11 UNC to 1-1/2”-6 UNC) provide consistent clamping force, preventing joint separation under heavy hydraulic load and thermal expansion.
- Fluid End Sealing: Stuffing box seals, oil seals, and precision gaskets eliminate mud and oil leakage, protecting internal components from contamination and reducing lubricant loss.
- Motion Control: Crosshead assemblies, wrist pin bearings, and pony rod components ensure smooth linear motion transfer, reducing wear on piston rods and maintaining consistent mud flow rates.
- Lubrication System Support: Grease fittings and pressure relief valves maintain optimal lubrication pressure, preventing dry running and bearing burnout in harsh operating environments.
Structural Design Features
- Precision Machining: All bearing components and shaft spacers feature tight tolerance machining (±0.001 inches) for perfect OEM fitment, eliminating rework during installation.
- High-Strength Fasteners: Drilled-head bolts and lock nuts comply with ASTM A193 B7 and Grade 8 standards, offering tensile strength exceeding 150,000 PSI for heavy-duty fastening.
- Wear-Resistant Materials: Crosshead guides and wrist pin bearings use hardened alloy steel with a Rockwell hardness of HRC 58-62, resisting abrasion from drilling mud solids.
- Modular Shim Sets: Pre-sized shim kits for main and eccentric bearings simplify alignment adjustments, reducing overhaul time by up to 30% compared to custom-fabricated shims.
- Leak-Proof Sealing Design: Lip-style oil seals and molded gaskets create a positive barrier against fluid intrusion, with temperature resistance ranging from -40°F to 250°F for extreme drilling environments.
Applicable Operating Conditions
These LEWCO W2215 mud pump parts are engineered for heavy-duty drilling environments and perform reliably in the following scenarios:
- Onshore oil & gas exploration drilling rigs with continuous 12-24 hour duty cycles
- Horizontal directional drilling (HDD) projects for pipeline and utility installation
- Industrial slurry pumping and mining dewatering operations
- Offshore platform drilling modules with limited maintenance access
- High-solids drilling mud applications (up to 30% sand/sediment content)
- Temperature extremes: arctic cold (-20°F) and desert heat (120°F) operating conditions
Maintenance & Service Recommendations
To maximize component lifespan and prevent costly breakdowns, follow these field-proven maintenance guidelines for LEWCO W2215 mud pump parts:
- Bearing Inspection: Inspect main and eccentric bearings every 1,000 operating hours; replace bearings if radial clearance exceeds 0.005 inches or noise/vibration is detected. Lubricate with API-certified extreme-pressure (EP) gear oil every 500 hours.
- Fastener Torque Checks: Verify torque on all Grade 8 bolts and cap screws after the first 100 hours of operation, then every 500 hours; follow OEM torque specifications (1/2” to 2” bolt range) to avoid loosening from vibration.
- Seal & Gasket Replacement: Replace stuffing box seals and oil seals every 1,500 hours or immediately if leakage occurs; use only matched gasket sets to maintain flange alignment and pressure integrity.
- Crosshead & Wrist Pin Service: Inspect crosshead guides for wear every 800 hours; replace wrist pin bearings if lateral play exceeds 0.003 inches to prevent pony rod misalignment.
- Lubrication System Maintenance: Clean grease fittings and check pressure relief valves every 300 hours; replace clogged fittings to ensure consistent lubricant delivery to critical bearings.
We supply the following spare parts:
| Sr No | Part No | Description |
| 1 | B164202 | BEARING ECCENTRIC |
| 2 | EB119 | BEARING MAIN |
| 3 | B164206 | SHIM SET MAIN BEARING |
| 4 | A167244 | SHIM SET ECCENTRIC BEARING |
| 5 | EB402 | BOLT HX 5/8”-11 UNC 2-1/4” LG GR8 DRILLED HOLE |
| 6 | EB404 | BOLT HX 3/4”-10 UNC 2-1/4” LG GR8 DRILLED HOLE |
| 7 | EB406 | BOLT HX 1”-8 UNC 2-3/4” LG GR8 DRILLED HOLE |
| 8 | 400-9609 | BOLT HX 1-1/2”’-6 UNC 5 ” LG GR8 |
| 9 | 401-6021 | NUT LOCK NYL INS 1-1/2”-6 UNC GR8 |
| 10 | B164402 | BEARING WRIST PIN (CROSSHEAD) |
| 11 | EB120 | BEARING PINION |
| 12 | A164504 | SPACER PINION SHAFT |
| 13 | ES194 | SEAL-OIL |
| 14 | A164505 | GASKET PINION BEARING CARRIER |
| 15 | 002-1544 | WASHER LOCK SPRING 1” X 1.66” X 0.250” |
| 16 | 002-1668 | BOLT HX 1”-8 UNC X 3” LG GR8 |
| 17 | 413-8337 | BOLT 5/8”-11 UNC X 1-1/2” LG GR8 |
| 18 | EK103 | KEY PINION SHAFT 1-1/2” X2”’X 12” LG |
| 19 | 400-9523 | BOLT HX 3/4”-10 UNC X 1-1/2” LG GR8 |
| 20 | 002-1542 | WASHER 3/4” SPRING LOCK |
| 21 | D164401 | CROOSHEAD |
| 22 | D164408 | CROSSHEAD GUIDE |
| 23 | EW112 | WASHER 1” SPRING LOCK |
| 24 | EC194 | CSCR 12 PT 1” UNC 2.50GR8 |
| 25 | B164441 | SHIM SET WRIST PIN |
| 26 | A300212 | BOLT 1”-8 UNC X 2-1/2” LG GR8 DRILLED HEAD |
| 27 | A167243 | BOLT 7/8”-9 UNC X 2-1/2” LG GR8 DRILLED HEAD |
| 28 | C164434 | PONY ROD |
| 29 | 416-0813 | CSCR 12 PT 1” X 2-1/4” LG NC GR8 DRILLED HEAD |
| 30 | B164407 | BAFFLE DISC |
| 31 | C164412 | STUFFING BOX |
| 32 | A164415 | GASKET STUFFING BOX |
| 33 | 400-9524 | BOLT HX 3/4”-10 UNC X 1-3/4” LG GR8 |
| 34 | EW108 | WASHER 3/4” SPRING LOCK |
| 35 | ES211 | SEAL STUFFING BOX ,W-2200 |
| 36 | B164414 | RETAINER PONY ROD SEAL |
| 37 | 002-5762 | BOLT 5/8”-11 UNC X 1-1/2” LG GR8 |
| 38 | 002-1541 | WASHER 5/8” SPRING LOCK |
| 39 | 018-4186 | GRASE FITTING 1/8” NPT 45 DEG |
| 40 | EG131 | GREASE FITTING PRESS RELIEF |
| 41 | B164425 | GASKET DIAPHRAM PLATE |
| 42 | 003-1423 | 1-1/4” NPT PLUG |
Field Failure Repair Case Studies
Case 1: Premature Main Bearing Failure
A drilling rig experienced excessive crankshaft vibration and noise after 800 operating hours. Inspection revealed worn main bearings (EB119) with damaged roller surfaces due to insufficient lubrication. Replacing the EB119 main bearings and B164206 main bearing shim set, followed by proper preload adjustment, restored smooth operation and eliminated vibration. The pump resumed full duty without further issues for 2,000+ hours.
Case 2: Stuffing Box Leakage
A W2215 pump developed severe mud leakage around the pony rod, causing lubricant contamination and increased rod wear. Technicians replaced the ES211 stuffing box seal, A164415 gasket, and B164414 seal retainer. The new sealing assembly eliminated leakage, reduced pony rod friction, and cut maintenance checks from daily to weekly intervals.
Case 3: Loose High-Tensile Bolts
During a routine inspection, loose 1”-8 UNC hex bolts (EB406) were found on the pump’s power end housing, risking housing separation. Replacing the worn bolts and matching spring lock washers, then torquing to OEM specifications, prevented catastrophic failure. The upgraded fastener assembly maintained clamping force through 1,200 hours of heavy drilling.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts 100% compatible with OEM LEWCO W2215 pumps? | Yes, every part is machined to exact OEM dimensions, material specs, and API 7K standards, ensuring direct fitment with no modifications required for LEWCO W2215 triplex mud pumps. |
| What is the expected service life of critical bearing components? | With proper lubrication and maintenance, main bearings (EB119) and eccentric bearings (B164202) deliver 2,000–3,000 operating hours of service life, matching or exceeding OEM component longevity. |
| Can I purchase individual parts or only full sets? | We offer flexible ordering: individual components, bulk fastener packs, and complete overhaul kits are available to match your specific maintenance or repair needs. |
Procurement Guidance & Value Proposition
Invest in these high-quality LEWCO W2215 mud pump parts to safeguard your drilling operations against unplanned downtime, reduce long-term maintenance costs, and uphold strict industry performance standards. Each part is backed by rigorous quality control, ensuring you receive reliable components that align with OEM performance benchmarks. Whether you need emergency replacement parts for field repairs or bulk inventory for planned overhauls, our parts catalog provides clear, accurate specifications to streamline your procurement process and eliminate ordering errors.
