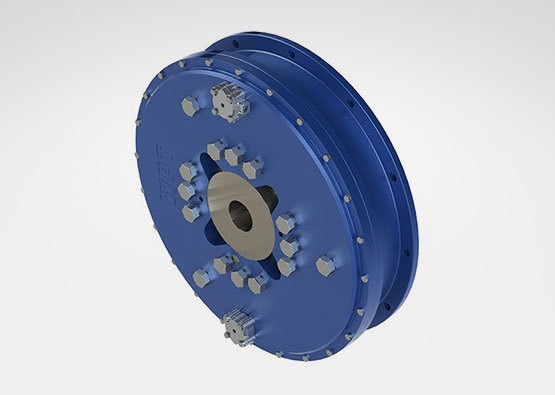

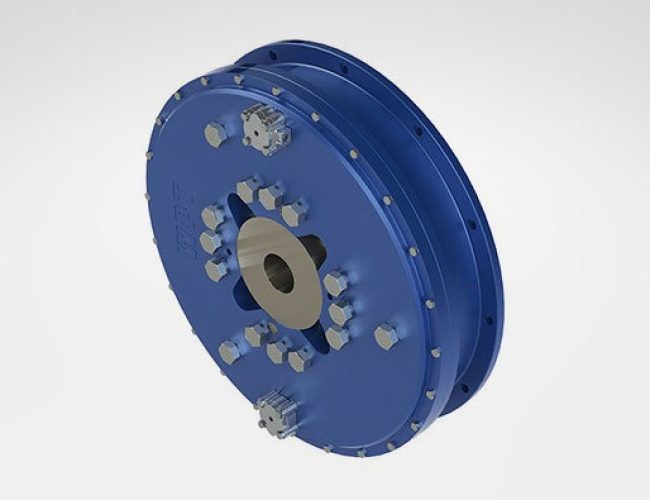

1. Product Overview
This comprehensive list of Power Grip PO air clutches covers a full range of models and variants, with diameters spanning 14”, 18”, 24”, 30”, 36”, and 42” and key part numbers including R14-PO-301 (314 PO CLUTCH W/ DR, KEVLAR), R36-PO-301 (336 POWER GRIP PO CLUTCH), R42-PO-301 (342 POWER GRIP PO CLUTCH), R18-PO-202 (218 PO CLUTCH, W/ DR, QRV, HD), and R30-PO-201 (230 POWER GRIP PO CLUTCH). Each clutch is precision-engineered to fit and optimize the performance of specific drilling equipment models, including exact OEM drilling rig components such as NOV drawworks (DW-14, DW-18, DW-24, DW-30, DW-36, DW-42), Cameron rotary drives (RD-14, RD-24), Baker Hughes mud pumps (MP-14, MP-24, MP-30), and Schlumberger top drive systems (TDS-8SA, TDS-11SA). These air-actuated, spring-released disc clutches are also compatible with industrial winches and rock crushers, but are specifically optimized for the high-torque, high-cycle, and harsh operating conditions of onshore and offshore drilling.
2. Key Product Features
2.1 API-Certified Torque Performance for Drilling Demands
Every clutch in the list is fully certified to API 7K torque and speed standards, with clear differentiation between 1-plate (100-series), 2-plate (200-series), and 3-plate (300-series) models to match varying load requirements. For example: the R14-PO-301 (314) 3-plate Kevlar model delivers 3,800 N·m (2,800 lb-ft) of torque at 130 psi, ideal for mid-size drawworks; the R30-PO-201 (230) Power Grip 2-plate model offers 5,200 N·m (3,800 lb-ft) for medium-heavy drawworks; the R42-PO-301 (342) 3-plate Power Grip model provides 8,800 N·m (6,500 lb-ft) for heavy-duty deepwater drawworks. All models feature a spring-released design that ensures positive disengagement even if air pressure drops—a critical safety feature for well control operations. The integral QRV reduces release time to less than 0.2 seconds, preventing gear clashing during rapid shifts, which is common in high-cycle drilling tasks.
2.2 Wear-Compensating Design for Low Maintenance
The signature large diaphragm design eliminates the need for manual adjustments as friction discs wear, maintaining consistent clamping force throughout the disc’s entire service life. Standard organic friction discs last up to 2,000 operating hours, while Kevlar-lined discs (like those in R14-PO-301) last up to 3,000 operating hours—30% longer than conventional friction materials. This wear-compensating feature also distributes pressure evenly across the friction surface, reducing hot spots and extending disc life, which cuts down on replacement frequency and maintenance costs. For high-temperature and high-shock applications, heavy-duty (HD) models like R18-PO-202 include reinforced diaphragms rated to 120°C, resistant to thermal fatigue and impact damage.
3. Structural Characteristics
The clutch’s modular design is focused on simplifying maintenance and reducing repair time—critical for minimizing NPT in drilling operations. Key structural features for serviceability include: split clamping rings that allow easy access to the diaphragm and pressure plates without removing the entire clutch from the shaft, cutting repair time by up to 50%; keyed drive hubs (DR models) that mate with standard SAE spline shafts for universal compatibility across OEM equipment; and cored backplates with large air-cooling passages to dissipate heat during high-cycle operations, preventing thermal overload and premature failure.
4. Applicable Working Conditions
All Power Grip PO air clutches are engineered and field-tested to perform reliably in the most demanding drilling environments, fully aligned with API 7K standards and the operational needs of compatible OEM equipment (NOV drawworks, Cameron rotary drives, etc.):
- Air Pressure Range: 80–130 psi (5.5–9.0 bar), with optimal engagement and torque output at 100–120 psi.
- Torque Ratings: 526 N·m (388 lb-ft) for 14” 1-plate models (R14-PO-100) up to 8,800 N·m (6,500 lb-ft) for 42” 3-plate Power Grip models (R42-PO-301).
- Maximum Operating Speeds: 2,450 RPM for 14” models, 2,000 RPM for 18” models, 1,500 RPM for 24” models, 900 RPM for 36” models, and 750 RPM for 42” models—matching the speed requirements of standard drilling equipment.
- Temperature Range: -40°C to 120°C, compatible with arctic onshore drilling (Alaska, Siberia), desert drilling (Middle East), and high-temperature geothermal drilling (Nevada, Iceland).
- Environmental Resistance: Corrosion-resistant coatings for offshore saltwater environments, dust-tight seals for onshore shale plays, and vibration resistance (15 g, 10–1000 Hz) to withstand the rigors of rotary drilling.
5. Maintenance and Care Recommendations
Routine inspection is critical to prevent unexpected clutch failure and ensure safe operation—follow these simple steps:
– Pre-Shift Check: Verify air pressure is within the 100–120 psi range, listen for air leaks at the QRV or air hoses, and test engagement/disengagement to ensure smooth, responsive operation. Abnormal noises (grinding, squealing) indicate worn friction discs or misalignment, which should be addressed immediately.
– Weekly Inspection: Remove the clutch cover and inspect friction discs for wear—replace if the disc thickness is less than 50% of the new thickness. Check the diaphragm for cracks, tears, or hardening (replace immediately if damaged). Clean the cooling passages with compressed air to remove dust, mud, or debris—blocked passages cause 60% of thermal clutch failures. Tighten all mounting bolts to API-recommended torque specifications (e.g., 220 N·m for M12 bolts on 18” models, 350 N·m for M16 bolts on 30” models).
We supply the following spare parts:
| R14-PO-100 114 PO CLUTCH, LESS DR, W/ QRV | R42-PO-301 342 POWER GRIP PO CLUTCH |
| R14-PO-200 PO214 CLUTCH, BB, QRV, LESS DR | R36-PO-301 336 POWER GRIP PO CLUTCH |
| R14-PO-201 PO214 CLUTCH, HD, QRV, BB, DR | R30-PO-200 230 PO CLUTCH |
| R14-PO-300 314 PO CLUTCH, BB, QRV, LESS D | R30-PO-201 230 POWER GRIP PO CLUTCH |
| R14-PO-301 314 PO CLUTCH W/ DR, KEVLAR | R30-PO-300 330 PO CLUTCH |
| R14-PO-302 314 PO CLUTCH, BB, QRV, W/ DR | R30-PO-301 330 PO CLUTCH |
| R18-PO-100 118 PO CLUTCH, LESS DR, W/ QRV | R24-PO-100 124 PO CLUTCH |
| R18-PO-200 218 PO CLUTCH, LESS DR, W/ QRV | R24-PO-101 124 PO CLUTCH |
| R18-PO-200 PO218 CLUTCH, FOR SALES X965 | R24-PO-200 224 PO CLUTCH |
| R18-PO-202 218 PO CLUTCH, W/ DR, QRV, HD | R24-PO-201 224 PO CLUTCH |
| R18-PO-204 218 PO CLUTCH, W/ DR & QRV | R24-PO-300 324 PO CLUTCH |
| R18-PO-300/304 318 PO CLUTCH | R24-PO-301 324 PO CLUTCH |
6. On-Site Fault Repair Cases (Power Grip PO Air Clutches)
Case 1: Slippage in 14” NOV DW-14 Drawworks (R14-PO-301 Kevlar Clutch)
Symptom: An onshore drilling rig in the Permian Basin experienced drawworks slippage during pipe hoisting, with torque output dropping by 30%. The R14-PO-301 clutch engaged but failed to hold the load, leading to delayed operations and increased NPT.
Inspection and Repair: The maintenance team removed the R14-PO-301 clutch and found the Kevlar friction discs were worn to 40% of their original thickness, caused by blocked cooling passages that led to excessive heat buildup. They cleaned the cooling passages with compressed air, replaced the friction discs with OEM Kevlar units, and tested the QRV—release time was 0.15 seconds, within the API-recommended range. After reinstallation, the clutch resumed full torque capacity (3,800 N·m), and no further slippage was reported over 3 months of continuous service.
Precaution: Clean cooling passages weekly, especially in dusty shale drilling environments, to prevent thermal overload and friction disc wear.
Case 2: Slow Disengagement in 18” Cameron RD-18 Rotary Drive (R18-PO-202 HD Clutch)
Symptom: An offshore drilling rig in the North Sea had a rotary drive clutch (R18-PO-202) that took 1.5 seconds to disengage, causing gear clashing and premature gear wear in the Cameron RD-18 rotary drive. This posed a safety risk and required frequent gear inspections.
Inspection and Repair: The team tested the QRV and found it was clogged with saltwater debris, which slowed air release. They replaced the QRV (integral to the R18-PO-202 clutch) and inspected the release springs—no fatigue was found. After replacement, disengagement time was restored to 0.18 seconds, and gear clashing stopped immediately. The team also installed an inline air filter to prevent future debris buildup.
Precaution: Install inline air filters and water separators for all offshore clutch installations to prevent saltwater debris from clogging the QRV and damaging internal components.
Case 3: No Engagement in 30” NOV DW-30 Drawworks (R30-PO-201 Power Grip Clutch)
Symptom: A deepwater drilling rig’s 30” drawworks (NOV DW-30) failed to engage, leaving the rig unable to hoist drill pipe. Air pressure to the R30-PO-201 Power Grip clutch was 120 psi (within the recommended range), but no clamping force was generated.
Inspection and Repair: The maintenance team removed the clutch cover and found a cracked diaphragm, caused by thermal fatigue from high-cycle hoisting operations. They replaced the diaphragm with an OEM Power Grip variant designed for the R30-PO-201, reassembled the clutch, and tested engagement—clamping force was restored to 5,200 N·m (3,800 lb-ft). The clutch resumed normal operation within 4 hours, minimizing NPT and ensuring the rig could continue drilling.
Precaution: Replace diaphragms every 4,000 operating hours (or earlier if cracks are detected) to prevent sudden clutch failure, especially in high-cycle deepwater operations.
7. Frequently Asked Questions (FAQ)
| Question | Answer |
| How do I choose between a 2-plate (200-series) and 3-plate (300-series) Power Grip PO clutch for my NOV drawworks? | The number of plates directly corresponds to torque capacity—choose based on your drawworks’ load requirements. 2-plate models (e.g., R30-PO-201, R18-PO-200) are ideal for mid-torque applications (3,000–5,000 N·m), perfect for NOV DW-18 and DW-30 drawworks. 3-plate models (e.g., R14-PO-301, R36-PO-301, R42-PO-301) deliver 50–100% more torque (5,000+ N·m) for heavy-load applications, such as NOV DW-36 and DW-42 drawworks used in deepwater drilling. Always check your drawworks’ OEM manual for the specified plate count—this list is cross-referenced with all major drilling OEMs to ensure exact compatibility. |
| Are Power Grip PO clutches compatible with non-OEM air systems, and what air line requirements do they have? | Yes—all Power Grip PO clutches work with any air system that delivers 80–130 psi of clean, dry air. Air line size depends on the clutch diameter: use 3/8” air lines for 14”–18” models (e.g., R14-PO-301, R18-PO-202) and 1/2” air lines for 24”–42” models (e.g., R30-PO-201, R42-PO-301) to ensure fast, reliable engagement and disengagement. To prevent QRV clogging and diaphragm damage, install a 5-micron inline air filter and water separator—this is a mandatory requirement for maintaining clutch performance and API compliance. |
| What is the service life of Power Grip PO clutch components, and how can I extend it? | Service life varies by component and application: organic friction discs last 2,000 operating hours, Kevlar friction discs (R14-PO-301) last 3,000 operating hours, diaphragms last 4,000 operating hours, and release springs last 6,000 operating hours. You can extend component life by 20–30% by: maintaining clean, dry air (using filters and separators); cleaning cooling passages weekly; replacing friction discs in complete sets; torquing mounting bolts to API specifications; and using the correct clutch variant for your application (e.g., HD models for high-shock environments, Kevlar models for abrasive conditions). |
8. Procurement Guide and Call to Action
This Power Grip PO air clutch list is the definitive resource for sourcing API 7K-certified, application-specific clutches for drilling drawworks, rotary drives, mud pumps, and top drive systems. With a complete range of diameters (14”–42”) and variants (LESS DR, BB, HD, Power Grip, Kevlar-lined), it eliminates the risk of incompatible parts, reduces unplanned downtime, and ensures compliance with critical drilling safety standards. Every clutch is precision-manufactured to OEM specifications, with traceable quality control and a certificate of conformity (COC) verifying API 7K compliance, torque ratings, and material specifications—delivering the reliability your drilling operation depends on. This list also serves as a technical reference for maintenance teams, with clear repair guidelines and fault-solving recommendations to address common clutch issues in the field.
