Product Introduction
This comprehensive SL 225 swivel spare parts kit includes direct-fit OEM replacement components for routine preventive maintenance, emergency breakdown repairs, and full swivel system overhauls. The collection covers upper/lower bushings, main bearings, packing assemblies, O-rings, grease fittings, specialized studs/nuts, oil seals, and wash pipes—all designed to eliminate compatibility issues and streamline on-rig installation. Unlike generic aftermarket parts, each component is manufactured to the exact design specifications of the SL 225 drilling swivel, ensuring reliable performance under high-pressure mud circulation and heavy drilling loads, while adhering to API 8C industry standards for drilling hoisting equipment.
Functional Specifications
- Sealing & Packing Components: High-density packing sets (104.05.30.08) and O-rings prevent high-pressure mud leakage; oil seals (07-1-67) lock lubrication inside the bearing cavity; gaskets create tight flange seals to block mud and debris intrusion.
- Bearing & Bushing Components: Main bearings (9019456, 32240, 2007140) support smooth swivel rotation and absorb axial/radial loads; upper/lower bushings reduce friction between moving parts and extend component lifespan.
- Fastening & Hardware Components: Precision studs, nuts, and spring washers (GB standard series) maintain tight assembly under constant drilling vibration; snap rings and retaining rings secure internal components in place.
- Lubrication & Auxiliary Components: Grease fittings enable timely lubrication of critical moving parts; oil gages monitor lubricant levels; wash pipes facilitate smooth mud circulation without blockages.
Structural Characteristics
All SL 225 swivel spare parts feature rugged, drilling-specific construction for maximum durability: sealing components use oil and mud-resistant NBR rubber to resist degradation; bearings use high-carbon chrome alloy steel for heavy-load capacity and anti-friction performance; bushings use wear-resistant cast iron for long-term stability; fasteners use high-tensile steel with anti-corrosion coating to withstand harsh drilling environments. Parts are designed for tool-friendly field installation, with precise dimensional matching to OEM specifications for hassle-free replacement during critical drilling operations.
Applicable Operating Conditions
These spare parts are engineered to perform reliably in demanding drilling environments, perfectly suited for:
- Full operation of SL 225 drilling swivel in onshore drilling and offshore workover rigs
- High-pressure mud circulation up to 35MPa and rotational speeds up to 300r/min
- Continuous heavy-load hoisting and rotary drilling operations
- Harsh environments with mud exposure, vibration, and temperature fluctuations (-20°F to 220°F)
- Compliance with API 8C and GB standard drilling equipment specifications
Maintenance & Servicing Recommendations
- Pre-Installation Verification: Cross-reference OEM part numbers against SL 225 swivel technical manuals to confirm exact fitment; inspect parts for defects and clean mating surfaces to remove mud, grease, and debris before assembly.
- Seal & Packing Replacement Schedule: Replace packing sets, O-rings, and oil seals every 1,500 drilling hours; inspect for cracks, hardening, or leakage monthly and replace immediately to prevent mud intrusion.
- Bearing & Bushing Care: Lubricate main bearings and bushings via grease fittings every 500 drilling hours; inspect bearings for noise or play every 1,000 hours and replace at the first sign of wear to avoid swivel failure.
- Fastener Inspection: Retorque studs, nuts, and bolts to OEM torque specifications after every major repair; replace worn spring washers and snap rings to maintain assembly tightness under vibration.
- Routine Checks: Monitor oil levels via oil gage weekly; inspect wash pipes for blockages and damage; clean grease fittings regularly to ensure unobstructed lubrication flow.
We supply the following spare parts:
| Item | Description | MFG Part # |
| S/P FOR SWIVEL SL 225 | ||
| 1 | UMBRELLA | 104.05.07 |
| 2 | GREASE FITTING | GB1152-89 (M10X1) |
| 3 | BUSHING UPPER | 104.05.08-1 |
| 4 | BUSHING LOWER | 104.06.15 |
| 5 | STUD | GB898-88 (M24X65) |
| 6 | NUT | GB6170-86 (M24) |
| 7 | GAGE, OIL | 104.05.20.00 |
| 8 | STUD | 104.06.19 (M30X70) |
| 9 | NUT | GB6170-86 (M30) |
| 10 | WASHER, SPRING | GB93-87 (30) |
| 11 | PIN, HAIL | 104.06.22 |
| 12 | SCREW | GB67-85 (M4X8) |
| 13 | SHIM | 104.06.02 |
| 14 | PLUG | 104.05.31 (4″) |
| 15 | GASKET | 104.06.04 |
| 16 | BOLT | GB32. 1-88 (M20X55) |
| 17 | GASKET | 104.06.05 |
| 18 | GASKET | 104.06.07 |
| 19 | BOLT | GB32. 1-88 (M16X30) |
| 20 | RETAINER, OIL SEAL | 104.06.17 |
| 21 | SCREW PLUG | 104.06.18 (G1″) |
| 22 | PLATE, STOP(OUTSIDE) | 104.06.21 |
| 23 | SCREW | F2-8-67 (M20X 1.5) |
| 24 | GASKET | 104.06.11 |
| 25 | PARKING, ASSEMBLY | 104.05.30.00 |
| 26 | POOSNG, PACKING GLALLI | 104.05.30.01-1 |
| 27 | SPACER, TOP PACKING | 104.05.30.02-1 |
| 28 | O-RING | 04-4-66 (165X8.6) |
| 29 | PACKING | 104.05.30.08 |
| 30 | O-RING | 04-4-66 (120X5.7) |
| 31 | WASH PIPE | 104.05.30.14 |
| 32 | SNAP RING | 104.05.30.04-1 |
| 33 | SPACER, LOWER | 104.05. 30. 10 |
| 34 | SPACER | 104.05.30.05-1 |
| 35 | SPACER, MIDDLE | 104.05.30. 11 |

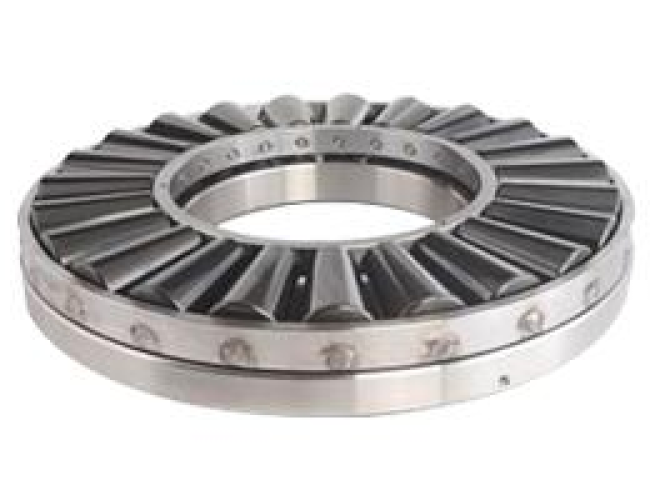

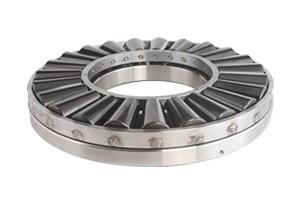

| 36 | MAIN BEARING | 9019456 |
| 37 | SCREW | GB75-66 (M10X12) |
| 38 | SCREW PLUG | 104. 05. 02 (2″) |
| 39 | NUT, HOSE UNION | 104.05.04-1 |
| 40 | O-RING | 84-4-66 (I20X5.7) |
| 41 | SLEEVE, HOSE UNION | 104.05.32 |
| 42 | SEAL, OIL | 07-1-67 (200X260X18) |
| 43 | SPACER | 104.06.16 |
| 44 | SNAP RING | 104.05.24 |
| 45 | BEARING | 2007140 |
| 46 | BEARING | 9019456H |
| 47 | WASHER, SPRING | GB93-87 (24) |
| 48 | BEARING | 32240 |
On-Rig Fault Repair Cases for SL 225 Swivel
Case 1: SL 225 Swivel Mud Leakage from Worn Packing
An SL 225 drilling swivel experienced severe high-pressure mud leakage at the packing assembly, caused by degraded packing sets (104.05.30.08) and worn O-rings. The leakage disrupted mud circulation and risked bearing damage. Replacing the packing set and O-rings eliminated leakage and restored proper sealing performance.
Case 2: Main Bearing Failure Causing Rotational Noise
The SL 225 swivel developed loud rotational noise and uneven rotation, traced to a worn main bearing (9019456) due to insufficient lubrication. The issue halted drilling operations and risked further swivel damage. Installing a new main bearing and performing full lubrication restored smooth, quiet swivel rotation.
Case 3: Loose Fasteners Causing Swivel Instability
During drilling operations, the SL 225 swivel showed excessive movement and instability, caused by loose studs (GB898-88 M24X65) and worn spring washers from constant vibration. Tightening fasteners and replacing worn washers restored swivel stability and prevented potential assembly failure.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with the SL 225 drilling swivel? | Yes, all spare parts are precision engineered for exclusive use with the SL 225 model drilling swivel, with exact OEM part number matching for guaranteed fitment. |
| What is the service life of the packing sets and O-rings? | Under normal drilling conditions, packing sets and O-rings last 1,500-2,000 drilling hours; replace immediately if leakage, cracking, or wear is detected. |
| Do these parts meet API drilling equipment standards? | Yes, all structural and sealing components comply with API 8C standards for drilling swivels, ensuring safe and reliable performance in rig operations. |
Procurement Guidance & Closing Statement
For drilling rig maintenance teams, procurement managers, and service technicians responsible for keeping SL 225 swivels operational in high-demand onshore and offshore drilling environments, this spare parts catalog provides a fully OEM-compliant, quality-assured sourcing solution for all critical components. Backed by strict industry manufacturing standards and exact OEM part number matching, these components eliminate compatibility risks, streamline on-rig repair workflows, and provide a clear technical benchmark to resolve swivel faults quickly and effectively. Whether stocking for routine preventive maintenance, emergency mud leakage or bearing repairs, or planned full swivel overhauls, these model-specific spare parts ensure adherence to API and global drilling safety standards, minimize costly unplanned rig downtime, and preserve the long-term service life of your SL 225 drilling swivel. Secure the precision bearings, seals, fasteners, and bushings your swivel needs to maintain reliable, efficient, and uninterrupted drilling operations.
