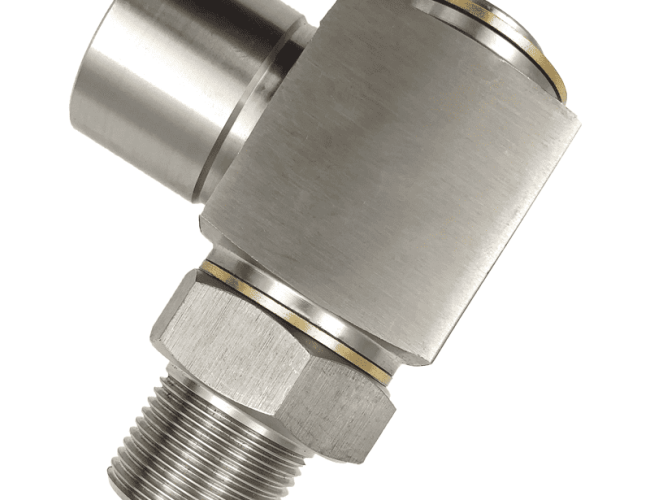

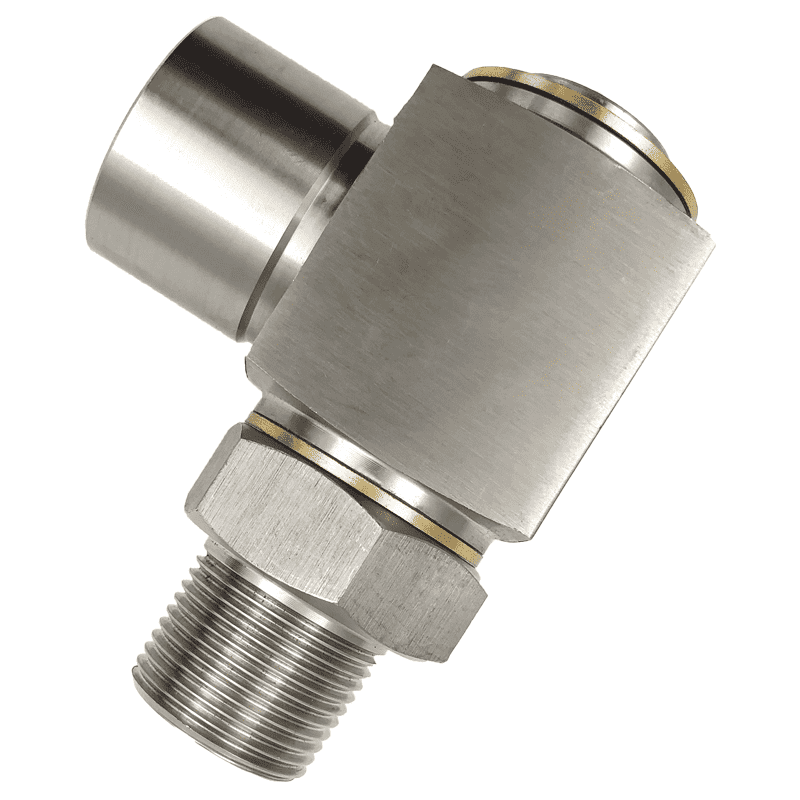

Product Introduction
This comprehensive TDS hydraulic spare parts kit includes direct-fit OEM replacement components for routine preventive maintenance, emergency hydraulic fault repairs, and full top drive hydraulic system overhauls. The collection covers lifting/variable/rotation friction plates, custom O-rings, shaft rings, buffer springs, solenoid valves, pilot valves, balance valves, check valves, and torque meter screens—all designed to eliminate compatibility issues and streamline on-rig hydraulic component replacement. Unlike generic aftermarket spares, each component is manufactured to the exact design specifications of TDS hydraulic systems, ensuring reliable performance under high-pressure drilling loads and adherence to global oilfield top drive safety standards.
Functional Specifications
- Friction & Mechanical Components: High-coefficient friction plates (245HX40, HX02, 292HX13 series) deliver consistent clamping force for TDS lifting and rotation; precision shaft rings (PJADEN series) lock rotating components in place; heavy-duty springs maintain uniform pressure and absorb hydraulic shock; custom O-rings (PJADAN series) create leak-proof hydraulic seals.
- Hydraulic Control Valves: Solenoid valves (PYK112 series) regulate hydraulic flow direction; pilot valves (PYK342 series) control low-pressure signal circuits; balance valves (PYK332 series) stabilize hydraulic pressure during lifting; check valves (PYK161/PYK221 series) prevent fluid backflow and system pressure loss.
- Monitoring Components: Torque meter screens provide real-time TDS torque feedback, enabling operators to monitor drilling loads and prevent over-torque damage to the top drive system.
Structural Characteristics
All TDS hydraulic spare parts feature rugged, drilling-specific construction for maximum durability: friction plates use sintered bronze alloy for high wear resistance and consistent friction coefficient; seals use oil-resistant NBR/FKM elastomers to prevent degradation in hydraulic fluid; springs use high-tensile chrome silicon steel to resist fatigue under cyclic loading; valves use precision-machined cast steel for tight flow control; external components use corrosion-resistant coatings to withstand harsh drilling environments. Parts are designed for tool-friendly field installation, with precise dimensional matching to OEM TDS hydraulic assemblies for hassle-free replacement during critical drilling operations.
Applicable Operating Conditions
These spare parts are engineered to perform reliably in demanding top drive hydraulic system environments, perfectly suited for:
- TDS hydraulic lifting, variable speed, and rotation module operation
- High-pressure hydraulic circuits (up to 350 bar working pressure)
- Continuous cyclic loading and heavy drilling vibration
- Onshore/offshore drilling rigs with hydraulic top drive systems
- Temperature extremes (-20°F to 250°F) and hydraulic fluid exposure
- Compliance with API 8C, ISO 13535, and ASME B93 drilling equipment standards
Maintenance & Servicing Recommendations
- Pre-Installation Verification: Cross-reference OEM part numbers against TDS hydraulic system technical manuals to confirm exact fitment; inspect parts for defects, warping, or seal damage; clean hydraulic passages and mating surfaces to remove debris and old seal residue before assembly.
- Friction Plate & Spring Care: Replace worn friction plates at the first sign of slipping or uneven wear; inspect springs for fatigue or deformation every 1,500 drilling hours and replace as needed to maintain consistent clamping force.
- Seal Replacement Schedule: Replace O-rings and shaft rings every 2,000 drilling hours; lubricate seals lightly with compatible hydraulic fluid during installation to prevent tearing; check for hydraulic leaks post-installation and retorque fasteners if needed.
- Hydraulic Valve Maintenance: Test solenoid and pilot valves for proper actuation quarterly; clean valve spools and filter screens to remove contaminants; calibrate balance/check valves to maintain target pressure settings.
- Monitoring System Checks: Inspect torque meter screens for display issues or calibration drift monthly; verify wiring connections for corrosion or damage; recalibrate torque readings after screen replacement to ensure accuracy.
TWe supply the following spare parts:
| SR NO | DESCRIPTION | UOM | MAKER REF |
| 1 | Lifting friction plate | EA | 245HX40-09-28 |
| 2 | Lifting friction plate | EA | 245HX40-09-29 |
| 3 | Lifting O-RING 1 | EA | PJADAN-CA |
| 4 | Lifting O-RING 2 | EA | PJADAN-D |
| 5 | Lifting O-RING 3 | EA | PJADAN-AA |
| 6 | Lifting shaft ring | EA | PJADEN-Q |
| 7 | Lifting shaft ring | EA | PJADEN-C |
| 8 | Lifting Spring | EA | 292HX37-18 |
| 9 | Lifting friction plate | EA | HX02-1-31-03A |
| 10 | Lifting friction plate | EA | HX02-1-31-02A |
| 11 | Lifting O-RING 1 | EA | PJADAN-FA |
| 12 | Lifting O-RING 2 | EA | PJADAN-JA |
| 13 | Lifting O-RING 3 | EA | PJADAN-AA |
| 14 | Lifting shaft ring | EA | PJADEN-L |
| 15 | Lifting shaft ring | EA | PJADEN-B |
| 16 | Lifting spring | EA | 292HX29-14 |
| 17 | Variable friction plate | EA | 245HX40-09-28 |
| 18 | Variable friction plate | EA | 245HX40-09-29 |
| 19 | Variable O-RING 1 | EA | PJADAN-CA |
| 20 | Variable O-RING 2 | EA | PJADAN-D |
| 21 | Variable O-RING 3 | EA | PJADAN-AA |
| 22 | Variable shaft ring 1 | EA | PJADEN-Q |
| 23 | Variable shaft ring 2 | EA | PJADEN-C |
| 24 | Variable spring | EA | 292HX30-18 |
| 25 | Rotation friction plate | EA | 292HX13-18 |
| 26 | Rotation friction plate | EA | 292HX13-17 |
| 27 | Rotation O-RING 1 | EA | PJADAM-G3452.1OA |
| 28 | Rotation O-RING 2 | EA | PJADAM-G3452.1PA |
| 29 | Rotation shaft ring | EA | PJADEN-I |
| 30 | Rotation Butterfly spring | EA | 242HX0-03-13A |
| 31 | Solenoid valve | EA | PYK112-25 |
| 32 | Solenoid valve | EA | PYK112-26 |
| 33 | Pilot valve | EA | PYK342-R301 |
| 34 | Pilot valve | EA | PYK342-L302 |
| 35 | Balance valve | EA | PYK332-390Z |
| 36 | Check valve | EA | PYK161-301 |
| 37 | Check valve | EA | PYK221-1 |
| 38 | Torque meter sreen | EA | PJD-LJY02 |
On-Rig TDS Hydraulic Fault Repair Cases
Case 1: TDS Lifting Mechanism Slippage
A top drive system experienced unsafe lifting slippage during pipe hoisting, caused by worn lifting friction plates (245HX40-09-28) and fatigued lifting springs. The slippage disrupted drilling operations and posed rig safety risks. Replacing the friction plates and springs restored full clamping force and stable lifting performance.
Case 2: TDS Hydraulic Fluid Leakage
The TDS hydraulic system developed significant fluid leaks at the rotation module, traced to degraded O-rings (PJADAN-G3452 series) and damaged shaft rings. The leaks reduced hydraulic pressure and risked system failure. Installing new OEM seals and shaft rings eliminated leakage and restored normal hydraulic pressure.
Case 3: TDS Hydraulic Control Valve Failure
The top drive rotation function failed to activate due to a faulty solenoid valve (PYK112-25) that disrupted hydraulic flow to the rotation module. The issue halted pipe rotation and delayed drilling. Replacing the defective solenoid valve restored proper hydraulic control and full rotation functionality.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these hydraulic parts compatible with all TDS top drive models? | These parts are designed for standard hydraulic TDS units with matching OEM part numbers; verify the 245HX/PYK/PJAD series part numbers against your TDS technical specs for exact fitment. |
| What is the service life of TDS hydraulic friction plates and seals? | Under normal drilling conditions, friction plates last 2,500-3,000 hours, and hydraulic seals last 2,000 hours; replace immediately if slipping, wear, or leakage occurs. |
| Do these hydraulic valves meet API drilling equipment standards? | Yes, all hydraulic control valves and structural components comply with API 8C standards for top drive systems, ensuring safe and reliable performance in drilling operations. |
Procurement Guidance & Closing Statement
For drilling rig maintenance teams, procurement managers, and hydraulic service technicians responsible for keeping TDS top drive hydraulic systems operational in high-demand oilfield environments, this spare parts catalog provides a fully OEM-compliant, quality-assured sourcing solution for all critical lifting, rotation, and control components. Backed by strict industry manufacturing standards and exact OEM part number matching, these components eliminate compatibility risks, streamline on-rig hydraulic repair workflows, and provide a clear technical benchmark to resolve TDS hydraulic faults quickly and effectively. Whether stocking for routine preventive maintenance, emergency slippage/leak repairs, or planned full hydraulic system overhauls, these model-specific spare parts ensure adherence to API and global drilling safety standards, minimize costly unplanned rig downtime, and preserve the long-term service life of your TDS hydraulic system. Secure the precision friction plates, seals, valves, and springs your top drive needs to maintain reliable, efficient, and uninterrupted drilling operations.
