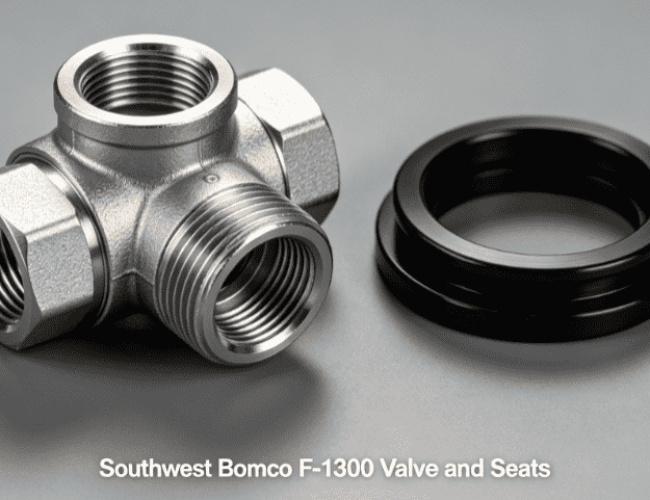

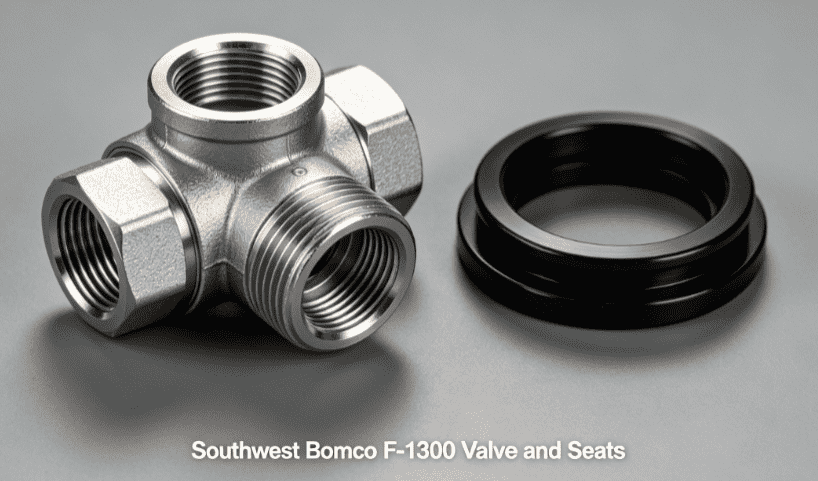

Product Introduction
Our Southwest Bomco F-1300 valve and seat assemblies are high-performance replacement parts designed for heavy-duty mud pump operation, offering multiple configurations to suit diverse drilling conditions: full-open roughneck valves, high-temperature variants, 3-web/4-web double-angle valves, and replaceable urethane insert options. Each assembly is paired with precision-machined seats, high-tensile springs, and dedicated puller heads (split jaw, 3 J hook, 4 J hook styles) for quick, safe servicing. Crafted from heat-treated alloy steel, wear-resistant castings, and heat-stabilized elastomers, these components withstand extreme abrasion, high-temperature drilling fluids, and cyclic 5000 PSI pressure loading, making them the gold-standard replacement for F-1300/F-1600 mud pumps.
Functional Specifications
- High-Pressure Sealing Performance: Maintains consistent 5000 PSI operating pressure with zero fluid backflow, eliminating pressure drops that disrupt drilling circulation and wellbore stability.
- Versatile Design Compatibility: Offers full-open, 3-web, 4-web, and high-temperature valve configurations to match standard, abrasive, and extreme-heat drilling scenarios.
- Quick-Servicing Design: Compatible with dedicated puller heads (SWTM4250, SWTM40-SN, SWTM3-7T) to reduce valve/seat removal and installation time by up to 40% compared to generic tools.
- Wear & Heat Resistance: High-temperature variants withstand operating temps up to 350°F, while abrasion-resistant surfaces reduce seat and valve face wear by 30% in high-solid mud conditions.
- Replaceable Component Flexibility: Select models feature replaceable urethane inserts, allowing partial repairs instead of full valve replacement to cut maintenance costs.
Structural Characteristics
These F-1300 valve and seat assemblies feature a heavy-duty, field-proven structural design optimized for reciprocating mud pump operation: precision-lapped sealing faces for leak-free closure, reinforced web constructions (3-web/4-web) to resist cracking under pressure loading, heat-treated spring steel for consistent valve return force, and dedicated puller head interfaces to prevent component damage during servicing. The modular design allows individual replacement of valves, seats, or springs, reducing material waste and repair downtime.
Applicable Operating Conditions
These components are built to perform reliably in the harshest drilling environments: onshore oil/gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations, acidic drilling fluids, continuous 5000 PSI pressure cycling, high-vibration rig conditions, and prolonged exposure to sand and formation debris, making them suitable for remote land rigs and marine drilling installations alike.
Maintenance & Servicing Recommendations
To maximize component lifespan and prevent catastrophic failures, follow these industry-approved maintenance protocols: inspect valve faces, seat surfaces, and spring tension every 450 operating hours for wear, pitting, or fatigue; replace valve springs every 900 hours to maintain proper closure pressure; use only compatible puller heads to avoid damaging sealing surfaces during removal; clean and lubricate valve guides before installation to ensure smooth operation; and select high-temperature valve variants for operations involving heated drilling fluids to prevent heat-induced degradation. Always torque valve cover fasteners to API 7K specifications to maintain consistent sealing pressure.
- We supply the following spare parts:
| TYPE | VALVE | INSERT | SPRING | STAINLESSSPRING | SEAT | PULLER HEAD | PULLER HEAD STYLE |
| SOUTHWEST (Full Open) | 777-8B | N/A | 941 | N/A | 877-7 | SWTM4250 | SPLIT JAW |
| FULL OPEN-ROUGHNECK (Cast N Place Insert Valve) | SWND-7V2 | N/A | SW5710-115L | N/A | SWND-7S1 | SWTM40-SNSWND-7PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (High Temp) | SWND-7V2HC | N/A | SW5710-115L | N/A | SWND-7S1 | SWTM40-SNSWND-7PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert) | SWND-7V1 | SWND-7I | SW5710-115L | N/A | SWND-7S1 | SWTM40-SNSWND-7PH | SPLIT JAW PANCAKE |
| 3 WEB DOUBLE ANGLE O-RING | SWR0500110 | SWR0514275 | SWR0513989 | SWR0514785 | SWR0509309 | SWTM3-7T | 3 J HOOK |
| 3 WEB (High Temp) | SWR0520502 | SWR0520501 | SWR0513989 | SWR0514785 | SWR0509309 | SWTM3-7T | |
| 3 WEB STANDARD PLATE | SWR0505062 | SWR05 04893 | SWR0513988 | SWR0514202 | SWR0509309 | SWTM3-7T | |
| 4 WEB | SWU5C-EEF | SWUDD-7B | SW5710-112 | N/A | SW7DD-B1 | SWTM4-7 | 4 J HOOK |
| 4 WEB (High Temp) | SWU5C-EEFHT | SWUDD-7BHT | SW5710-112 | N/A | SW7DD-B1 | SWTM4-7 |
Field Failure Repair Case Studies
Case 1: Valve Spring Fatigue Causing Pressure Backflow
A land drilling rig operating an F-1300 pump experienced severe mud backflow and a 2000 PSI pressure drop during a shale drilling project. Inspection revealed fatigued standard springs that lost tension, preventing full valve closure. Replacing the worn springs with SW5710-115L high-tensile springs and resurfacing the seats restored full pressure retention, getting the rig back online in 2 hours.
Case 2: High-Temperature Fluid Damaging Standard Valves
An offshore well servicing crew faced repeated valve failures on an F-1600 pump due to high-temperature drilling mud. Standard valves suffered heat warping, leading to leaky seals. Upgrading to SWND-7V2HC high-temperature roughneck valves eliminated heat damage, extending valve service life by over 1200 operating hours.
Case 3: Seized Valve & Seat Causing Rig Downtime
A remote drilling rig encountered a seized valve and seat assembly on an F-1300 pump, with standard tools unable to remove the stuck components. Using the SWTM40-SN split jaw puller head safely extracted the damaged assembly without scratching the pump housing. Installing a new 3-web double-angle valve and seat assembly restored full pump functionality quickly.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these valves and seats compatible with both F-1300 and F-1600 Bomco mud pumps? | Yes, all valve and seat components listed are fully interchangeable with Southwest Bomco F-1300 and F-1600 7”×12” 5000 PSI mud pumps, matching OEM fit and performance specs exactly. |
| What puller head styles are compatible with these F-1300 valve assemblies? | Compatible puller heads include split jaw (SWTM4250, SWTM40-SN), 3 J hook (SWTM3-7T), and 4 J hook (SWTM4-7) styles, each designed for specific valve types to simplify servicing. |
| When should I choose high-temperature valves for my F-1300 pump? | High-temperature valve variants (SWND-7V2HC, SWU5C-EEFHT) are recommended for drilling operations with fluid temperatures exceeding 250°F, preventing heat warping and seal failure. |
Conclusion & Procurement Guidance
This Southwest Bomco F-1300 valve and seat catalog is your definitive, API 7K-compliant resource for all procurement and technical repair needs for 5000 PSI mud pumps. It eliminates the risk of ordering incompatible parts, provides clear configuration guidance for diverse drilling conditions, and delivers proven solutions to reduce downtime, lower maintenance costs, and maintain consistent drilling performance. Whether you need to replace worn valves, damaged seats, fatigued springs, or invest in dedicated puller tools, this guide provides exact part numbers, design specifications, and application details to make informed purchasing decisions. Investing in these precision-engineered, long-lasting components ensures your F-1300/F-1600 mud pump operates at peak efficiency, minimizes costly rig delays, and withstands the harshest drilling conditions. Reach out to secure these critical replacement parts and keep your operations running smoothly with reliable, field-proven components tailored to your exact pump configuration.
