Product Introduction

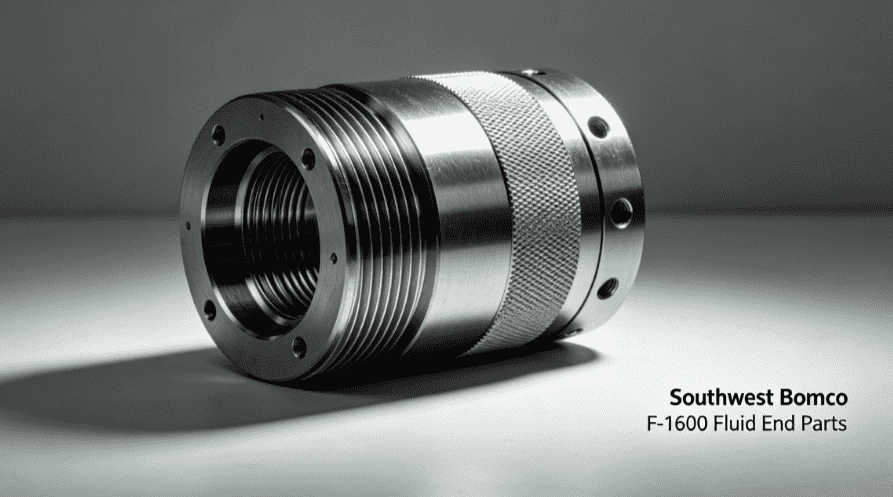

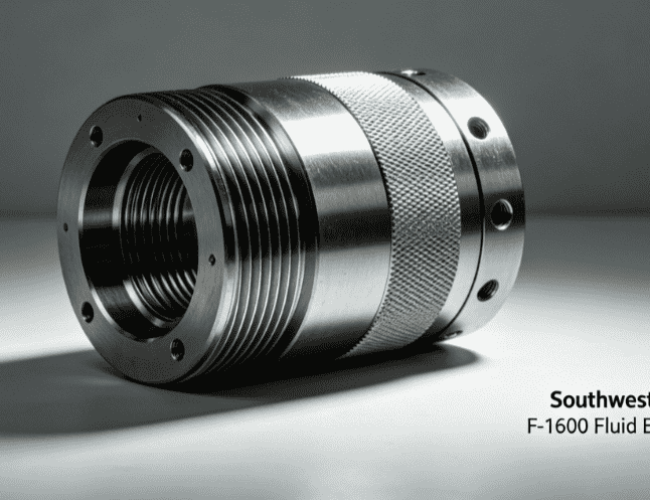

- Our Southwest Bomco F-1600 fluid end replacement parts are premium, high-pressure components built for extreme 7500 PSI drilling environments, covering every critical element of the fluid end system: liners, seals, pistons, piston rods, valve components, manifolds, fasteners, and specialty service tools. Crafted from heat-treated alloy steel, wear-resistant GrayLOY/Zirconia composites, and chemical-stabilized nitrile/urethane elastomers, all parts meet strict API 7K standre with zero fluid bypass or external leakage, eliminating pressure drops that disrupt drilling circulation and wellbore stability.
Abrasion & Fatigue ards for high-pressure mud pump equipment. The full fluid end assembly (8404-25A) integrates all core components for seamless overhaul, with optional urethane seal variants available for abrasive drilling conditions, ensuring uncompromising performance and durability for the 7 1/2”×12” F-1600 pump.
Functional Specifications
- 7500 PSI High-Pressure Sealing: Engineered to sustain consistent 7500 PSI operating pressuResistance: Pressure-bearing components resist scoring, cracking, and fatigue from high-solid drilling mud and cyclic pressure loading, reducing replacement frequency by up to 30%.
- Modular Compatibility: All parts are designed for direct interchangeability with OEM hardware, supporting partial repairs or full fluid end overhauls without custom machining.
- Dual Material Seal Options: Nitrile and urethane seal variants adapt to standard and high-abrasion drilling fluids, extending seal lifespan in harsh field conditions.
- Heavy-Duty Fastening System: Grade 8 high-tensile bolts and heavy hex nuts maintain secure assembly under extreme vibration and pressure loading.
Structural Characteristics
The F-1600 fluid end parts feature a heavy-duty, pressure-optimized structural design: thick-walled alloy manifold components, micron-smooth liner surfaces, precision-lapped sealing interfaces, reinforced wear plates, and modular rod clamp assemblies with integrated water jackets for heat dissipation. The standardized fastener sizing and pre-configured assembly components streamline installation, while dowel pins and lock washers ensure precise alignment and prevent loosening during continuous operation.
Applicable Operating Conditions
These components are engineered to perform reliably in the most demanding high-pressure drilling scenarios: onshore deep-well oil/gas exploration, offshore platform drilling, directional high-pressure drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations, acidic drilling fluids, continuous 7500 PSI pressure cycling, high-vibration rig conditions, and prolonged exposure to sand and formation debris, making them suitable for remote land rigs, offshore vessels, and heavy-duty commercial drilling installations.
Maintenance & Servicing Recommendations
To maximize component lifespan and prevent catastrophic 7500 PSI failures, follow these industry-approved maintenance protocols: inspect liner seals, piston seals, and valve components every 350 operating hours for wear, scoring, or damage; replace nitrile/urethane seals every 750 hours or immediately if pressure leakage is detected; re-torque all Grade 8 fasteners to API-specified torque values every 500 hours to prevent loosening; flush water jacket manifolds and hoses quarterly to prevent clogging and overheating; inspect valve guides and inserts for wear every 600 hours; and use the designated hydraulic seat puller (SWTM1700) and liner retainer puller (6490-25P) to avoid component damage during servicing.
- We supply the following spare parts:
| FLUID END TYPE | MODEL OF PUMP | SIZE OF PUMP | |||||||||||
| SOUTHWEST 7500 P.S丄 | BOMCO F-1600 | 7 1/2，，X 12” | |||||||||||
| ITEMNO. | PART NO. | DESCRIPTION | |||||||||||
| 8404-25A | FLUID END ASSEMBLY: (CONSISTS OF ITEMS: 3,4，17，18，19,20,21，22,23,24,25,26,27,28,29,30,31，34,35,36,38,39,41，42) | ||||||||||||
| 1 | 1376YXX | LINER REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR TYPE (G); (Y); AND FOR BORE SIZE (XX) | |||||||||||
| 2 | 2930-XX | LINER SEAL (ALSO AVAILABLE IN URETHANE PART# 2930-XXU) | |||||||||||
| 3 | 8490-28 | LINER WEARPLATE (WITH 568-443 O-RING)WHEN USING P-QUIP LRS，USE 8490-34 WEARPLATE —- SEE PRODUCT BULLETIN SW-PB-103 REV. C | |||||||||||
| 4 | 2988 | WEARPLATE AND MODULE SEAL (also available in urethane part# 2988U) | |||||||||||
| 5 | XX-BYY | PISTON REFER TO GUIDE FOR ORDERING CHART ON PG. 6 FOR SIZE (XX) AND FOR TYPE (YY) | |||||||||||
| 6 | 568-225 | PISTON SEAL | |||||||||||
| 7 | 6278-25 | PISTON ROD (WITH ELASTIC STOP NUT)(FOR 2-PIECE STUDDED PISTON ROD ASSEMBLY PART NO. 6284-25A) | |||||||||||
| 8 | API-4ESN | PISTON ROD NUT | |||||||||||
| 9 | 1290-2 | PISTON ROD CONNECTING STUD | |||||||||||
| 10 | 6284-1 | SUB ROD | |||||||||||
| 11 | 6274CWY | ROD CLAMP (WITH WATER JACKET) | |||||||||||
| 11A | 1200H30 | HOSE (1/2，，X 30” WITH 1/2” MALE X 3/8” MALE CONNECTIONS) | |||||||||||
| 11B | 1286CWYFP | ROD CLAMP WATER SPRAY MANIFOLD WITH PIPE | |||||||||||
| 11C | 4020-29 | BOLT (7/8-9 GRADE 8 BOLT WITH LOCK NUT AND WASHER) | |||||||||||
| 12 | 1200G74 | PONY ROD | |||||||||||
| 13 | SEE PAGE | VALVE | |||||||||||
| 14 | SEE PAGE | VALVE INSERT | |||||||||||
| 15 | SEE PAGE | VALVE SPRING | |||||||||||
| 16 | SEE PAGE | VALVE SEAT | |||||||||||
| SWTM1700 | HYDRAULIC SEAT PULLER KIT COMPLETE (refer to tools section in catalog) | ||||||||||||
| 17 | 4488-25 | VALVE COVER FLANGE | |||||||||||
| 18 | 4588-25 | SCREW GLAND | |||||||||||
| 19 | 4690-25A | PLUG (COMPLETE WITH VALVE GUIDE; BUSHING; AND SCREWS) INCLUDES ITEMS 20, 21，22, &23 | |||||||||||
| 20 | P115 | HP VALVE COVER PLUG NITRILE SEAL (also available in urethane part # P115U) | |||||||||||
| 21 | 4788-25R | VALVE GUIDE (complete with bushing #47001) | |||||||||||
| 22 | 4700I | VALVE GUIDE INSERT (also available in urethane part # 4700IU) | |||||||||||
| 23 | 4018-18 | VALVE GUIDE SCREW | |||||||||||
| 24 | 4015-2 | VALVE COVER STUD (WITH SW PART# HHN1250-7 1 1/4″-7 HEAVY HEX NUT) | |||||||||||
| FLUID END TYPE | MODEL OF PUMP | ||||||||||||
| SOUTHWEST 7500 P.S丄 | BOMCO F-1600 | ||||||||||||
se Studies
Case 1: Liner Seal Leakage Causing 7500 PSI Pressure Loss
A deep-well drilling rig operating an F-1600 7 1/2”×12” pump experienced a 2000 PSI pressure drop and external mud leakage during a high-pressure drilling run. Inspection revealed degraded nitrile liner seals (2930-XX) worn by abrasive mud. Upgrading to urethane liner seals (2930-XXU) and replacing worn liner wear plates restored full 7500 PSI pressure retention, resuming operations in 2.5 hours.
Case 2: Loose Power End Studs Causing Vibration Damage
An offshore drilling crew reported excessive vibration and premature piston rod wear on an F-1600 pump. The root cause was under-torqued power end studs (4017-33) that loosened under high-pressure cycling. Re-torquing the studs to API specifications and replacing damaged rod clamps (6274CWY) eliminated vibration, extending piston rod service life by over 1200 operating hours.
Case 3: Valve Guide Wear Causing Flow Disruption
A remote drilling rig faced inconsistent mud flow and pressure fluctuations on a 7500 PSI F-1600 pump, traced to worn valve guide inserts (4700I) and loose guide screws. Replacing the worn inserts with urethane variants (4700IU) and tightening valve guide screws restored steady fluid displacement, bringing the pump back to full operational capacity.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these parts compatible only with the 7 1/2”×12” Bomco F-1600 7500 PSI pump? | Yes, all components are precision designed exclusively for the Southwest Bomco F-1600 7 1/2”×12” 7500 PSI mud pump, matching OEM fit, form, and pressure-rated specifications exactly. |
| What is the benefit of urethane seal variants for these fluid end parts? | Urethane seals offer superior abrasion resistance compared to standard nitrile seals, making them ideal for high-solid, harsh drilling mud conditions and extending seal service life significantly. |
| Do these parts include the full fluid end assembly and required hardware? | Yes, the 8404-25A fluid end assembly includes all core components, and the list covers all required fasteners, seals, and hardware; specialty puller tools are also listed for safe servicing. |
Conclusion & Procurement Guidance
This Southwest Bomco F-1600 fluid end parts list is your definitive, API 7K-compliant resource for all 7500 PSI pump procurement and technical repair needs. It eliminates the risk of ordering ill-fitting, under-rated parts, provides clear part number and quantity guidance for seamless ordering, and establishes a reliable technical standard for troubleshooting and maintaining your 7 1/2”×12” F-1600 mud pump. Whether you need to replace worn seals, damaged liners, valve components, fasteners, or invest in specialty service tools, this guide provides all critical details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, pressure-rated components ensures your F-1600 fluid end operates at peak 7500 PSI efficiency, minimizes costly rig downtime, and withstands the harshest high-pressure drilling conditions long-term. Reach out to secure these critical replacement parts and keep your heavy-duty drilling operations running smoothly with reliable, field-proven components tailored to your exact pump configuration.
