Product Introduction

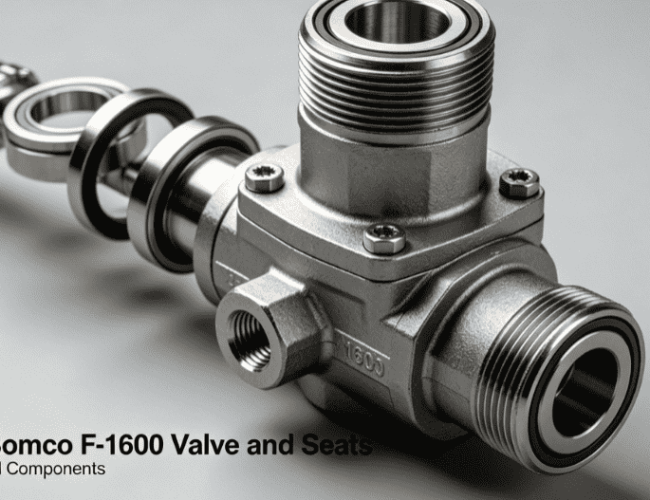

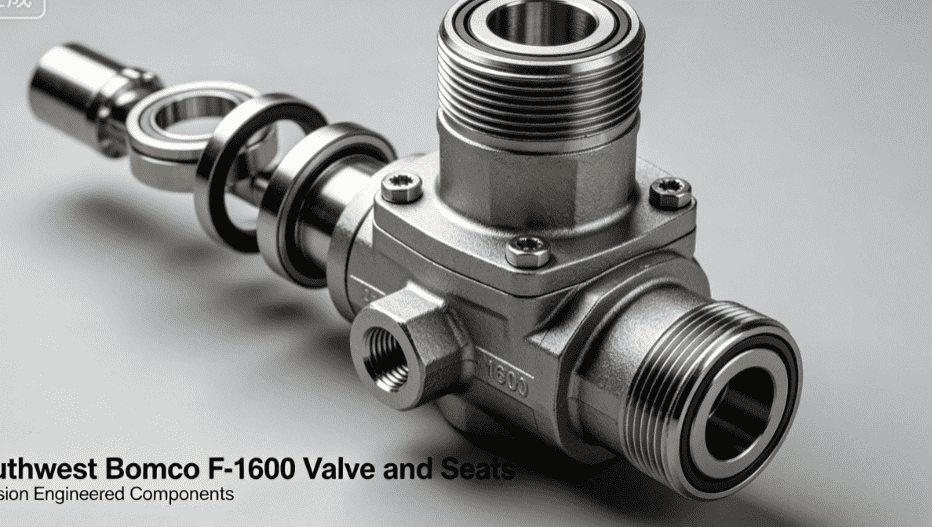

Our Southwest Bomco F-1600 valve and seat assemblies are premium replacement components built for harsh drilling environments, offering multiple specialized configurations to suit diverse operating conditions: full-open standard valves, full-open roughneck valves (standard, high-temperature, and replaceable urethane insert models), 3-web double-angle O-ring valves, and 4-web heavy-duty valves. Each assembly is paired with precision-lapped seats, high-tensile springs, and model-specific puller heads (split jaw, 3 J hook, 4 J hook styles) for safe, efficient servicing. Crafted from heat-treated alloy steel, abrasion-resistant castings, and heat-stabilized elastomers, these components withstand extreme mud abrasion, high-temperature fluids, and continuous 5000 PSI pressure cycling, making them the top choice for maintaining F-1600 mud pump performance.
Functional Specifications
- High-Pressure Sealing Performance: Maintains stable 5000 PSI operating pressure with zero fluid backflow, eliminating pressure drops that compromise drilling circulation and wellbore stability.
- Versatile Configuration Options: Offers standard, high-temperature, and replaceable insert valve designs to adapt to abrasive mud, high-heat fluids, and general drilling applications.
- Efficient Servicing Compatibility: Matches dedicated puller heads to reduce valve and seat removal/installation time by up to 40% compared to generic tools, minimizing rig downtime.
- Abrasion & Heat Resistance: High-temperature variants handle operating temperatures up to 350°F, while precision-lapped seat faces reduce wear by 25% in high-solid mud environments.
- Modular Repair Flexibility: Select valve models feature replaceable urethane inserts, allowing partial component replacement instead of full assembly swaps to lower maintenance expenses.
Structural Characteristics
These F-1600 valve and seat assemblies feature a heavy-duty, field-optimized structural design built for reciprocating pump operation: micron-smooth lapped sealing faces for leak-free closure, reinforced 3-web/4-web frames to resist cracking under pressure loading, heat-treated spring steel for consistent valve return tension, and precision-machined puller interfaces to prevent component damage during servicing. The modular construction allows independent replacement of valves, seats, springs, or inserts, reducing material waste and speeding up repair turnaround.
Applicable Operating Conditions
These components are engineered to perform reliably in the most demanding drilling scenarios: onshore oil and gas exploration, offshore platform well servicing, directional drilling, geothermal drilling, and high-solid abrasive mud circulation operations. They tolerate extreme temperature fluctuations, acidic drilling fluids, continuous 5000 PSI pressure cycling, high-vibration rig conditions, and prolonged exposure to sand and formation debris, making them suitable for remote land rigs, offshore vessels, and commercial drilling installations alike.
Maintenance & Servicing Recommendations
To maximize component lifespan and prevent catastrophic failures, follow these industry-approved maintenance protocols: inspect valve sealing faces, seat surfaces, and spring tension every 400 operating hours for pitting, wear, or fatigue; replace valve springs every 800 hours to maintain proper closure pressure and prevent backflow; use only model-specific puller heads to avoid scratching or damaging sealing surfaces during removal; clean and lubricate valve guides prior to installation to ensure smooth reciprocation; and select high-temperature valve assemblies for operations with heated drilling fluids to prevent heat-induced degradation. Always torque valve cover fasteners to API 7K specified torque values to maintain consistent sealing pressure.
- We supply the following spare parts:
| TYPE | VALVE | INSERT | SPRING | STAINLESS SPRING | SEAT | PULLER HEAD | STYLE |
| SOUTHWEST (Full Open) | 773-1B | N/A | SW5710-110L | N/A | 873-1 | SWTM3750 | SPLIT JAW |
| FULL OPEN-ROUGHNECK (Cast N Place Insert) | SWND-6V2 | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXNSWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (High Temp) | SWND-6V2HC | N/A | SW5710-115 | N/A | SWND-6S4 | SWTM27SXNSWND-6PH | SPLIT JAW PANCAKE |
| FULL OPEN-ROUGHNECK (w/Replaceable Urethane Insert) | SWND-6V1 | SWND-6I | SW5710-115 | N/A | SWND-6S4 | SWTM27SXNSWND-6PH | SPLIT JAW PANCAKE |
| 3 WEB DOUBLE ANGLE O-RING | SWR0500119 | SWR0515845 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D | |
| 3 WEB (High Temp) | SWR0520586 | SWR0520585 | SWR0513744 | SWR0514790 | SWR0512436 | SWTM3-7D | 3 J HOOK |
| 3 WEB STANDARD PLATE | SWR0505038 | SWR0504890 | SWR0515575 | SWR0514790 | SWR0512436 | SWTM3-7D | |
| 4 WEB | SWU5B-EH | SWUDD-6AB | SW5710-115 | N/A | SW6ADD-B4 | SWTM4-6 | 4 J HOOK |
| 4 WEB (High Temp) | SWU5B-EHHT | SWUDD-6ABHT | SW5710-115 | N/A | SW6ADD-B4 | SWTM4-6 |
Field Failure Repair Case Studies
Case 1: Spring Fatigue Causing Pressure Backflow
A land drilling rig running an F-1600 pump experienced a 1800 PSI pressure drop and severe mud backflow during a shale drilling project. Inspection revealed fatigued SW5710-110L springs that lost tensile strength, preventing full valve closure. Replacing the worn springs with new high-tensile SW5710-115 springs and resurfacing the seat faces restored full 5000 PSI pressure retention, putting the rig back online in 2 hours.
Case 2: High-Temperature Fluid Damaging Standard Valves
An offshore well servicing crew faced repeated valve seal failures on an F-1600 pump due to high-temperature drilling mud. Standard valves suffered heat warping, leading to persistent leakage. Upgrading to SWND-6V2HC high-temperature roughneck valves eliminated heat-related damage, extending valve service life by over 1100 operating hours.
Case 3: Seized Valve & Seat Assembly Delaying Operations
A remote drilling rig encountered a completely seized valve and seat on an F-1600 pump, with standard tools unable to extract the stuck assembly. Using the SWTM27SXN split jaw pancake puller head safely removed the damaged components without damaging the pump housing. Installing a new 3-web double-angle valve and seat assembly quickly restored full pump functionality.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these valves and seats compatible only with the Bomco F-1600 mud pump? | Yes, these components are precision designed exclusively for the Southwest Bomco F-1600 5000 PSI mud pump, matching OEM fit, form, and performance specifications perfectly. |
| What puller head styles work with these F-1600 valve assemblies? | Compatible puller heads include SWTM3750 (split jaw), SWTM27SXN (split jaw pancake), SWTM3-7D (3 J hook), and SWTM4-6 (4 J hook), each engineered for specific valve types for safe servicing. |
| When should I choose the replaceable urethane insert valve for my F-1600 pump? | The SWND-6V1 valve with replaceable SWND-6I urethane insert is ideal for high-abrasion drilling conditions, as it allows quick insert replacement instead of full valve swaps, reducing repair costs and downtime. |
Conclusion & Procurement Guidance
This Southwest Bomco F-1600 valve and seat catalog serves as your definitive, API 7K-compliant resource for all procurement and technical repair needs for 5000 PSI mud pumps. It eliminates the risk of ordering ill-fitting, low-quality parts, provides clear configuration guidance for every drilling condition, and establishes a reliable standard for maintenance and troubleshooting. Whether you need to replace worn valves, damaged seats, fatigued springs, or invest in dedicated puller tools, this guide provides exact part numbers, material specifications, and application details to make informed, cost-effective purchasing decisions. Choosing these precision-engineered, field-proven components ensures your F-1600 mud pump operates at peak efficiency, minimizes costly rig downtime, and withstands the harshest drilling environments long-term. Reach out to secure these critical replacement parts and maintain uninterrupted, high-performance drilling operations.
