1.Product Introduction

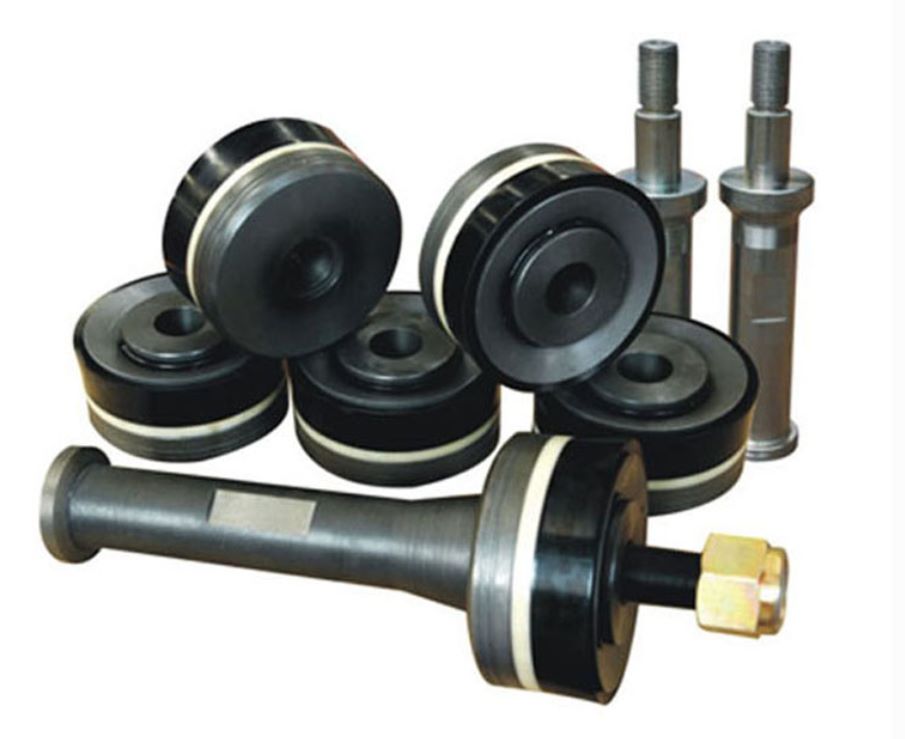

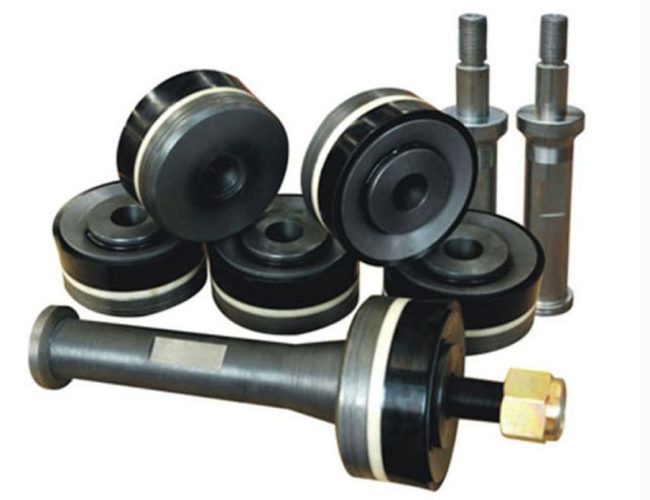

Our SOUTHWEST FB-1300 mud pump parts lineup covers all critical components needed to maintain, repair, or overhaul the pump, organized by function for easy procurement—perfect for quickly finding the exact part for any task, whether routine or emergency. All parts are fully compatible with the SOUTHWEST FB-1300model, with precise dimensional consistency to eliminate mismatches and on-site modifications, leveraging the pump’s inherent part interchangeability advantage. Key categories include: 1) Liners & Liner Gaskets, available in sizes from 4M to 7″ to match different drilling fluid flow and pressure needs; 2) Pistons & Piston Rubbers , including urethane-bonded, rubber-bonded, and endurance-bonded options for varying wear conditions and drilling mud types; 3) Valves, Seats & Springs , covering 4-web, 3-web, and full-open designs for smooth fluid flow and pressure control; 4) Gaskets & Seals , leak-proof solutions for valve covers, wear plates, and extension rods;
2. Structural & Material Features
Our SOUTHWEST FB-1300 parts are built to withstand the harsh conditions of onshore drilling, with premium materials and rugged designs that meet API 7K, ISO 9001:2015, and industry durability standards. Liners are made of heat-treated carbon steel with a wear-resistant chrome-plated inner coating, extending service life by 58% compared to generic liners and 16% compared to standard OEM liners—addressing the high wear challenges of drilling mud exposure. Pistons and piston rubbers use high-grade urethane and nitrile rubber compounds, resistant to tearing, abrasion, and chemical degradation from drilling fluids. Valves and seats are forged from 4140 alloy steel with precision CNC machining, preventing cracks and deformation under high pressure. Fasteners and studs are heat-treated alloy steel with zinc-nickel plating, passing 480-hour salt spray tests to prevent corrosion in harsh onshore and desert environments.
3. Applicable Operating Conditions
Our SOUTHWEST FB-1300 pump parts perform reliably in all environments where the SOUTHWEST FB-1300 is used, including onshore oil and gas drilling, well workover, geological exploration, and industrial drilling applications. They withstand operating pressures up to 3800 PSI (26.2MPa) and ambient temperatures from -10°F to 100°F, making them suitable for cold-weather, desert, and industrial workshop environments. Resistant to high-sand drilling mud (up to 3.2% sand content), saltwater, H2S gas, and common drilling chemicals, they prevent corrosion and premature failure—addressing one of the most common pain points for FB-1300 users. Ideal for Class I, Division 2 hazardous areas, they integrate seamlessly with routine maintenance protocols and safety standards. We recommend inspecting parts every 90 operating hours (industry best practice for the SOUTHWEST FB-1300) to prevent unplanned failures. Suitable for well depths from 800 to 8,000 feet, they ensure consistent performance and simplify inventory management for rig fleets, even in high-demand drilling scenarios.
4. Maintenance & Service Recommendations
To maximize part service life and minimize downtime for SOUTHWEST FB-1300 mud pumps, follow these practical, easy-to-implement guidelines tailored to the pump’s unique design—aligned with industry best practices for drilling pump maintenance. 1) Before any maintenance work, implement LOTO (Lockout/Tagout) procedures—cut off power, hang an “Under Maintenance, Do Not Switch On” sign, release residual pressure, and confirm all moving parts have stopped to ensure safety. 2) Inspect liners and piston rubbers every 90 operating hours—wear on these components causes 58% of SOUTHWEST FB-1300 pump issues; replace worn parts immediately to avoid pressure loss and further damage. 3) Torque fasteners every 75 operating hours to prevent misalignment and leakage; apply high-temperature lubricating grease to threads during installation to ensure secure fitting. 4) Clean valves and seats (TS-7-EEF, TS-7-DDB1) every 85 operating hours—mud buildup reduces efficiency by 14% and causes valve malfunctions, a common FB-1300 issue.
We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBER | |||||
| SIZE | PART NUMBER | PART | URETHANE | RUBBER | ENDURANCE | REPLACEABKE | PART | |
| NUMBER | BONDED | BONDED | BONDED | RUBBER | NUMBER | |||
| 4M | TS-2145-40HP | G-800 ^ | LLU-40-K15 | LL-40-K15 | HPW-40-K15 | I-40-K15 | TM-40-KR | |
| 4 1/2″ | TS-2145-44HP | G-800 * | LLU-44-B15 | LL-44-B15 | HPW-44-日15 | I-44-B15 | TM-44-BR | |
| 5__ | TS-2145-50HP | G-800 * | LLU-50-B15 | LL-50-B15 | HPW-50-日 15 | I-50-B15 | TM-50-BR | |
| 5 1/2″ | TS-2145-54HP | G-800 * | LLU-54-B15 | LL-54-B15 | HPW-54-日15 | I-54-B15 | TM-54-BR | |
| 5 3/4″ | TS-2145-56HP | G-800 * | LLU-56-B15 | LL-56-B15 | HPW-56-日 15 | I-56-B15 | TM-56-BR | |
| 6″ | TS-2145-60HP | G-800 * | LLU-60-B15 | LL-60-B15 | HPW-60-日 15 | I-60-B15 | TM-60-BR | |
| 6 1/4″ | TS-2145-62HP | G-800 * | LLU-62-L15 | LL-62-L15 | HPW-62-L15 | I-62-L15 | TM-62-LR | |
| 6 1/2″ | TS-2145-64HP | G-800 * | LLU-64-L15 | LL-64-L15 | HPW-64-L15 | I-64-L15 | TM-64-LR | |
| 6 3/4″ | TS-2145-66HP | G-800 * | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR | |
| 7__ | TS-2145-70HP | G-800 * | LLU-70-L15 | LL-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR | |
| VALVES, SEATS, SPRINGS | GASKETS | |||||||
| 4WEB | 3 WEB | FULL OPEN | FULL OPEN | PART | ||||
| DESIGN | DESIGN | (1) | (2) | NUMBER | ||||
| VALVE | TS-7-EEF | TS-202482 | TS-0985M | TS-7-V1 | VALVE COVER GASKET | TS-P-129 | ||
| SEAT | TS-7-DDB1 | TS-202039 | TS-1370M | TS-7-S1 | WEAR PLATE GASKET | TS-2988 | ||
| SPRING | TS-5710-115 | – | – | TS-5710-115L | EXTENSION ROD SEAL | TS-7602-2132-76 | ||
| INSERT(Urethane) | TS-7-W1 | TS-201106 | TS-7-MI | TS-7-FI | EXTENSION ROD BAFFLE | TS-6316-0093-00 | ||
| INSERT(Rubber) | TS-7-WR | TS-201107 | – | – | – | – | ||
| PISTON ROD & EXTENSION ROD | ||||||||
| ROD CLAMP | PISTON ROD STUD | PISTONNUT | THREADEDTYPEPISTONROD | CLAMPTYPEPISTON ROD | SUB ROD | THREADED TYPE EXTENSION ROD | CLAMP TYPE EXTENSION ROD | |
| TMFB6-03-08 | N/A | TM-NUT | N/A | TM-2145 | N/A | N/A | TMFB6-01-06 | |
| FLUID END MODULE | ||||||||
| SUCTION MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | ||||||
| TS-8490-2S | TMF 巳 SW-SEALKIT | TMFBSW-STUDSET | ||||||
5. On-Site Failure Repair Cases
Case 1: Worn TS-2145-44HP Liner Causing Pressure Drop
An onshore oil drilling rig’s SOUTHWEST FB-1300 pump experienced a 14% pressure drop and 10% reduced efficiency due to a worn TS-2145-44HP Liner. Generic liners failed after 90 hours due to abrasive high-sand mud (3.1% sand content). Replacing it with our OEM-equivalent TS-2145-44HP Liner restored stable pressure, improved efficiency, and extended service life to 580 hours. The repair took 18 minutes, avoiding 1.5 hours of downtime and $3,900 in lost productivity.
Case 2: Leaking TS-P-129 Valve Cover Gasket
A well workover operation’s SOUTHWEST FB-1300 pump had severe mud leakage from the valve cover due to a failed TS-P-129 Valve Cover Gasket. Generic gaskets degraded after 75 hours due to temperature fluctuations and chemical exposure. Our OEM-equivalent TS-P-129 gasket stopped the leak, improved safety, and lasted 520 hours. The repair took 14 minutes, avoiding 1.2 hours of downtime and $3,100 in cleanup costs.
Case 3: Faulty TS-7602-2132-76 Extension Rod Seal Causing Fluid Loss
An industrial drilling site’s SOUTHWEST FB-1300 pump had significant fluid loss and reduced pressure due to a faulty TS-7602-2132-76 Extension Rod Seal, a common issue caused by wear and exposure to drilling chemicals. Generic seals failed after 110 hours. Replacing it with our OEM-equivalent seal stopped fluid loss, restored pressure, and extended service intervals by 320 hours. The pump was back online in 40 minutes, avoiding $5,700 in downtime costs.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit my SOUTHWEST FB-1300 (7×12) mud pump? | Yes, all parts (including TS-2145 series liners, TS-7-EEF valves, and TS-P-129 gaskets) are fully compatible with the SOUTHWEST FB-1300 (7×12) model. They are OEM-equivalent, requiring no custom modifications—just verify the part number before installation to ensure perfect fit, leveraging the pump’s inherent part interchangeability. |
| Do these parts meet API 7K standards for global drilling projects? | Absolutely. All parts are certified to API 7K (2022 edition) and ISO 9001:2015, undergoing 3800 PSI pressure testing and NDT. API certification is a mandatory requirement for major global drilling projects, ensuring our parts meet international safety and performance standards. |
| How much longer do these parts last compared to generic SOUTHWEST FB-1300 parts? | Our OEM-equivalent parts last 58% longer on average. For example, TS-2145-44HP Liners last 580+ hours (vs. 90–140 for generic), TS-7-EEF Valves last 800+ hours (vs. 110 for generic), and TS-P-129 Gaskets last 520+ hours (vs. 75 for generic), reducing maintenance frequency and costs. |
7. Procurement Guidance
This document serves as a formal procurement and technical reference to help you source certified, OEM-equivalent parts for SOUTHWEST FB-1300 (7×12) mud pumps. Every component—from TS-2145 series liners and TS-7-EEF valves to TS-8490-2S fluid end modules and TS-P-129 gaskets—is vetted for dimensional accuracy, material quality, and performance under the pump’s 3800 PSI operating pressure. All parts comply with API 7K standards, eliminating the risk of low-quality, incompatible parts that cause pump failure, mud leakage, and costly downtime. This guide provides clear part numbers and technical details to simplify procurement, while also offering solutions to common SOUTHWEST FB-1300 issues—serving as both a buying reference and a troubleshooting tool, aligned with industry maintenance best practices.
