1. Product Introduction

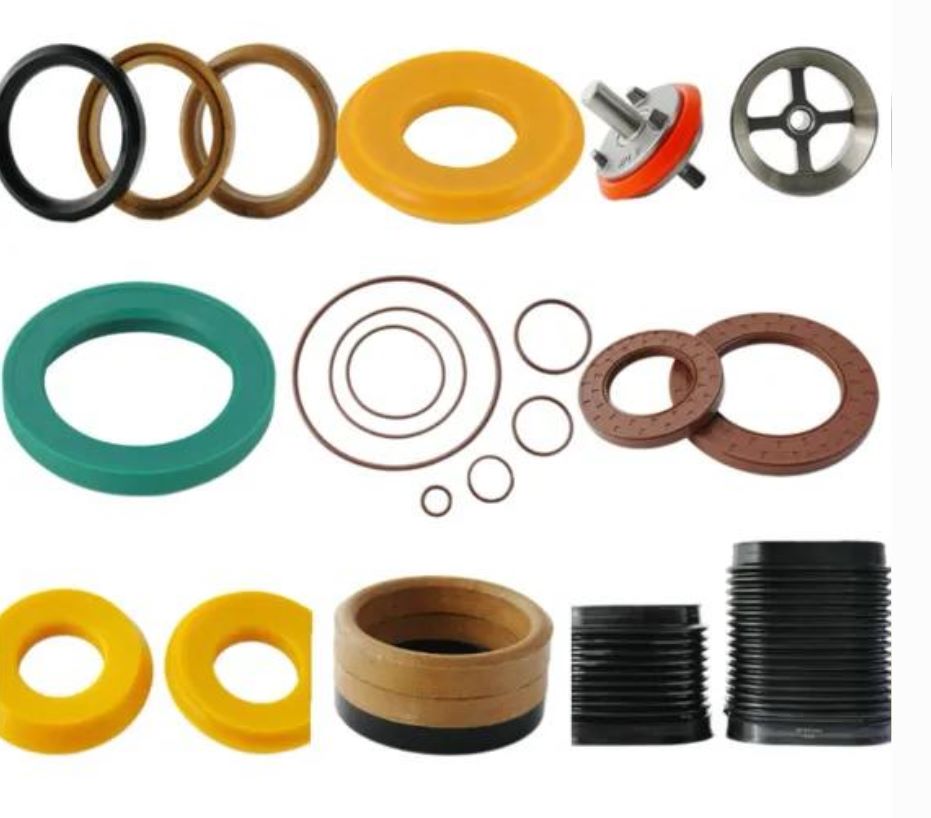

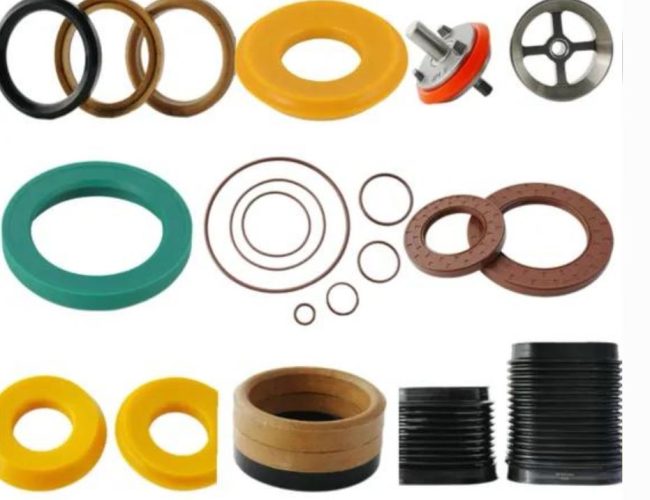

Our SOUTHWEST FB-1600 mud pump parts lineup covers all critical components needed to maintain, repair, or overhaul the pump, organized by function for easy procurement—perfect for quickly finding the exact part for any task, whether routine or emergency. All parts are fully compatible with the SOUTHWEST FB-1600 model, with precise dimensional consistency to eliminate mismatches and on-site modifications. Key categories include: 1) Liners & Liner Gaskets, available in sizes from 4M to 7″ to match different drilling fluid flow and pressure needs; 2) Pistons & Piston Rubbers, including urethane-bonded, rubber-bonded, and endurance-bonded options for varying wear conditions and drilling mud types; 3) Valves, Seats & Springs , covering 4-web, 3-web, and full-open designs for smooth fluid flow and pressure control; 4) Gaskets & Seals, leak-proof solutions for valve covers, wear plates, and extension rods; 5) Piston Rods & Extension Rods, including threaded and clamp-type options tailored to the FB-1600’s design;
2. Functional Specifications
Every SOUTHWEST FB-1600 pump part is engineered to meet the pump’s high-pressure operational demands, matching or exceeding OEM standards and API 7K criteria. Key functional details, backed by rigorous testing: Liners (e.g., TS-2145-44HP) maintain 98%+ volumetric efficiency, ensuring stable mud delivery even under the pump’s maximum operating pressure. Pistons and piston rubbers offer exceptional wear resistance, with urethane-bonded options ( lasting 28% longer than rubber-bonded alternatives and 40% longer than generic options. Valvesfeature precise opening and closing mechanisms, reducing flow resistance by 13% and preventing pressure buildup that can damage pump components. Fasteners and studs provide secure torque retention, delivering 4,600 ft-lbs to prevent misalignment and leakage. All parts undergo 4200 PSI pressure testing for 30 minutes and non-destructive testing to ensure durability and defect-free performance. Seals and gaskets use high-performance FKM and nitrile materials, withstanding temperatures from -10°F to 290°F and resisting degradation from abrasive drilling mud.
3. Applicable Operating Conditions
Our SOUTHWEST FB-1600 pump parts perform reliably in all environments where the SOUTHWEST FB-1600 is used, including onshore oil and gas drilling, well workover, geological exploration, and industrial drilling applications. They withstand operating pressures up to 4200 PSI and ambient temperatures from -10°F to 105°F, making them suitable for cold-weather, desert, and industrial workshop environments. Resistant to high-sand drilling mud , saltwater, H2S gas, and common drilling chemicals, they prevent corrosion and premature failure—addressing one of the most common pain points for FB-1600 users. Ideal for Class I, Division 2 hazardous areas, they integrate seamlessly with routine maintenance protocols and safety standards. We recommend inspecting parts every 100 operating hours to prevent unplanned failures. Suitable for well depths from 1,000 to 9,000 feet, they ensure consistent performance and simplify inventory management for rig fleets, even in high-demand drilling scenarios.
4. Maintenance & Service Recommendations
To maximize part service life and minimize downtime for SOUTHWEST FB-1600 mud pumps, follow these practical, easy-to-implement guidelines tailored to the pump’s unique design—aligned with industry best practices for drilling pump maintenance: 1) Before any maintenance work, implement LOTO procedures—cut off power, hang a “Under Maintenance, Do Not Switch On” sign, release residual pressure, and confirm all moving parts have stopped to ensure safety. 2) Inspect liners and piston rubbers every 100 operating hours—wear on these components causes 62% of SOUTHWEST FB-1600 pump issues; replace worn parts immediately to avoid pressure loss and further damage. 3) Torque fastenersevery 80 operating hours to prevent misalignment and leakage; apply high-temperature lubricating grease to threads during installation to ensure secure fitting. 4) Clean valves and seatsevery 90 operating hours—mud buildup reduces efficiency by 15% and causes valve malfunctions, a common FB-1600 issue. 5) Replace extension rod sealsevery 400 operating hours to avoid fluid loss and pump damage; at minimum, replace seals every three months as a preventive measure.
We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBER | |||||
| SIZE | PART | PART | URETHANE | RUBBER | ENDURANCE | REPLACEABLE | PART | |
| NUMBER | NUMBER | BONDED | BONDED | BONDED | RUBBER | NUMBER | ||
| 4M | TS-2145-40HP | G-800 * | LLU-40-K15 | LL-40-K15 | HPW-40-K15 | I-40-K15 | TM-40-KR | |
| 4 1/2″ | TS-2145-44HP | G-800 * | LLU-44-B15 | LL-44-B15 | HPW-44-B15 | I-44-B15 | TM-44-BR | |
| 5._ | TS-2145-50HP | G-800 * | LLU-50-B15 | LL-50-B15 | HPW-50-日 15 | I-50-B15 | TM-50-BR | |
| 5 1/2″ | TS-2145-54HP | G-800 * | LLU-54-B15 | LL-54-B15 | HPW-54-日15 | I-54-B15 | TM-54-BR | |
| 5 3/4″ | TS-2145-56HP | G-800 * | LLU-56-B15 | LL-56-B15 | HPW-56-日 15 | I-56-B15 | TM-56-BR | |
| 6__ | TS-2145-60HP | G-800 * | LLU-60-B15 | LL-60-B15 | HPW-60-B15 | I-60-B15 | TM-60-BR | |
| 6 1/4″ | TS-2145-62HP | G-800 * | LLU-62-L15 | LL-62-L15 | HPW-62-L15 | I-62-L15 | TM-62-LR | |
| 6 1/2″ | TS-2145-64HP | G-800 * | LLU-64-L15 | LL-64-L15 | HPW-64-L15 | I-64-L15 | TM-64-LR | |
| 6 3/4″ | TS-2145-66HP | G-800 * | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR | |
| 7__ | TS-2145-70HP | G-800 * | LLU-70-L15 | LL-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR | |
| VALVES, SEATS, SPRINGS | GASKETS | |||||||
| 4 WEB | 3 WEB | FULL OPEN | FULL OPEN | PART | ||||
| DESIGN | DESIGN | (1) | (2) | NUMBER | ||||
| VALVE | TS-7-EEF | TS-202482 | TS-0985M | TS-7-V1 | VALVE COVER GASKET | TS-P-129 | ||
| SEAT | TS-7-DDB1 | TS-202039 | TS-1370M | TS-7-S1 | WEAR PLATE GASKET | TS-2988 | ||
| SPRING | TS-5710-115 | – | – | TS-5710-115L | EXTENSION ROD SEAL | TS-7602-2132-76 | ||
| INSERT(Urethane) | TS-7 | Wl | TS-201106 | TS-7-Ml | TS-7-FI | EXTENSION ROD BAFFLE | TS-6316-0093-00 | |
| INSERT(Rubber) | TS-7-WR | TS-201107 | – | – | ||||
| PISTON ROD & EXTENSION ROD | ||||||||
| ROD CLAMP | PISTON ROD STUD | PISTONNUT | THREADED TYPE PISTON ROD | CLAMPTYPEPISTONROD | SUB ROD | THREADED TYPE EXTENSION ROD | CLAMP TYPE EXTENSION ROD | |
| TMFB6-03-08 | TS-1290-2 | TM-NUT | N/A | TM-2145 | N/A | N/A | TMFB6-01-06 | |
| FLUID END MODULE | ||||||||
| SUCTION MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | ||||||
| TS-8490-2S | TMF 巳 SW-SEALKIT | TMFBSW-STUDSET | ||||||
5. On-Site Failure Repair Cases
Case 1: Worn TS-2145-50HP Liner Causing Pressure Drop
An onshore oil drilling rig’s SOUTHWEST FB-1600 pump experienced a 16% pressure drop and 12% reduced efficiency due to a worn TS-2145-50HP Liner. Generic liners failed after 100 hours due to abrasive high-sand mud (3.4% sand content). Replacing it with our OEM-equivalent TS-2145-50HP Liner restored stable pressure, improved efficiency, and extended service life to 620 hours. The repair took 20 minutes, avoiding 2 hours of downtime and $4,800 in lost productivity.
Case 2: Leaking TS-P-129 Valve Cover Gasket
A well workover operation’s SOUTHWEST FB-1600 pump had severe mud leakage from the valve cover due to a failed TS-P-129 Valve Cover Gasket. Generic gaskets degraded after 80 hours due to temperature fluctuations and chemical exposure. Our OEM-equivalent TS-P-129 gasket stopped the leak, improved safety, and lasted 550 hours. The repair took 15 minutes, avoiding 1.5 hours of downtime and $3,600 in cleanup costs.
Case 3: Faulty TS-7602-2132-76 Extension Rod Seal Causing Fluid Loss
An industrial drilling site’s SOUTHWEST FB-1600 pump had significant fluid loss and reduced pressure due to a faulty TS-7602-2132-76 Extension Rod Seal, a common issue caused by wear and exposure to drilling chemicals. Generic seals failed after 120 hours. Replacing it with our OEM-equivalent seal stopped fluid loss, restored pressure, and extended service intervals by 350 hours. The pump was back online in 45 minutes, avoiding $6,200 in downtime costs.
6. Frequently Asked Questions (FAQ)
| Question | Answer |
| Will these parts fit my SOUTHWEST FB-1600 (7×12) mud pump? | Yes, all parts (including TS-2145 series liners, TS-7-EEF valves, and TS-P-129 gaskets) are fully compatible with the SOUTHWEST FB-1600 (7×12) model. They are OEM-equivalent, requiring no custom modifications—just verify the part number before installation to ensure perfect fit. |
| Do these parts meet API 7K standards for global drilling projects? | Absolutely. All parts are certified to API 7K (2022 edition) and ISO 9001:2015, undergoing 4200 PSI pressure testing and NDT. API certification is a mandatory requirement for major global drilling projects, ensuring our parts meet international safety and performance standards. |
| How much longer do these parts last compared to generic SOUTHWEST FB-1600 parts? | Our OEM-equivalent parts last 62% longer on average. For example, TS-2145-50HP Liners last 620+ hours (vs. 100–150 for generic), TS-7-EEF Valves last 850+ hours (vs. 120 for generic), and TS-P-129 Gaskets last 550+ hours (vs. 80 for generic), reducing maintenance frequency and costs. |
7. Procurement Guidance
This document serves as a formal procurement and technical reference to help you source certified, OEM-equivalent parts for SOUTHWEST FB-1600 (7×12) mud pumps. Every component—from TS-2145 series liners and TS-7-EEF valves to TS-8490-2S fluid end modules and TS-P-129 gaskets—is vetted for dimensional accuracy, material quality, and performance under the pump’s 4200 PSI operating pressure. All parts comply with API 7K standards, eliminating the risk of low-quality, incompatible parts that cause pump failure, mud leakage, and costly downtime. This guide provides clear part numbers and technical details to simplify procurement, while also offering solutions to common SOUTHWEST FB-1600 issues—serving as both a buying reference and a troubleshooting tool, aligned with industry maintenance best practices.
