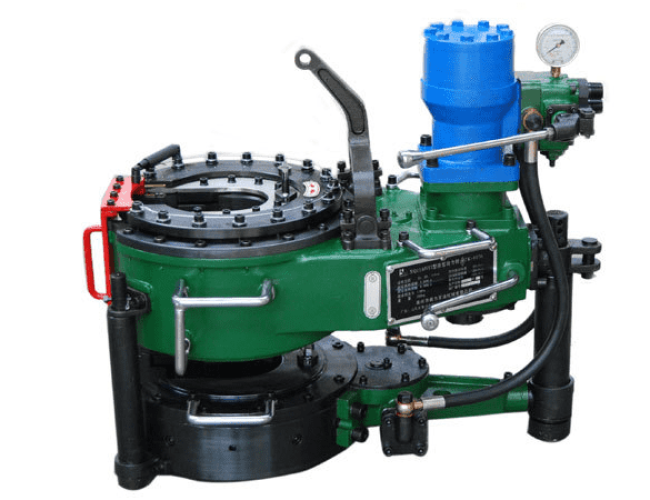

Teda XQ114-6B Power Tong Replacement Parts

Product Introduction

Our Teda XQ114-6B power tong parts cover all critical wear and functional subsystems, including jaw assemblies, friction plates, roller components, fasteners, springs, O-rings, and structural brackets. Manufactured to meet API Spec 7K (drilling and well-servicing equipment standards) and ISO 9001 quality benchmarks, each component undergoes rigorous load testing (up to 120 tons of clamping force) and wear validation to match the durability of original Teda parts. This collection serves as a complete sourcing solution for routine preventive maintenance, emergency field repairs, and full power tong overhauls, with cross-compatibility for supporting Teda models (XQ140/12YA, XQ29/2.6) used alongside the XQ114-6B.

Functional Highlights

• Secure Pipe Clamping: Heavy-duty jaw brackets, jaw plate frames, and stopper pins deliver consistent clamping force to prevent pipe slippage during make-up and break-out, protecting drill pipe threads from damage.
• Reliable Torque Transmission: High-friction discs and braking springs maintain stable torque output, enabling precise pipe connection torque control within ±2% of target ratings for industry-compliant connections.
• Smooth Roller Operation: Precision-centralizing rollers and roller shafts reduce friction during pipe movement, minimizing wear on tong components and speeding up pipe handling cycles.
• Leak-Proof Sealing: Custom-sized O-rings and retaining rings block hydraulic fluid leakage and debris ingress, preserving internal lubrication and preventing premature part failure.
• Secure Structural Fastening: Grade 8.8 high-strength hex screws, bolts, and locking nuts maintain assembly integrity under extreme vibration and heavy load cycling.

Structural Design Features

• Direct OEM Fitment: All parts correspond to original Teda part numbers (e.g., Z6-42, Z6-64, 12AZ-series) for drop-in installation, reducing repair labor time by up to 60% compared to generic alternatives.
• High-Strength Material Construction: Friction discs use wear-resistant composite materials; rollers and shafts use hardened alloy steel (HRC 55-58); fasteners meet ISO 898-1 property class 8.8 standards for tensile strength.
• Modular Service Design: Components are engineered for quick field replacement, allowing technicians to swap worn parts without full power tong disassembly.
• Wear-Resistant Surfaces: Critical contact surfaces (jaw brackets, rollers) feature heat-treated finishes to resist abrasion from drill pipe and drilling mud contamination.

Applicable Operating Conditions

These Teda XQ114-6B power tong parts are validated for harsh drilling and well-servicing conditions, performing reliably in:

• Onshore drilling rigs (desert, arctic, and temperate climates)
• Offshore workover rigs and platform pipe handling operations
• High-cycle pipe make-up/break-out for drill pipe, casing, and tubing
• Environments with heavy drilling mud, dust, and moisture exposure
• Temperature ranges from -40°F to 185°F (-40°C to 85°C)

Maintenance & Service Recommendations

Maximize the lifespan of Teda XQ114-6B power tong parts and avoid costly field failures with these industry-proven guidelines:

• Preventive Inspection Schedule: Inspect friction plates, rollers, and jaw brackets every 500 pipe handling cycles; check fastener torque and seal integrity every 1,000 cycles to catch early wear.
• Lubrication Protocols: Apply high-temperature extreme-pressure (EP) grease to roller shafts and centralizing rollers every 200 cycles to reduce friction and prevent corrosion.
• Torque Compliance: Retighten all hex screws and bolts to OEM torque specifications (M8: 22-25 Nm; M10: 45-50 Nm) monthly to avoid loose components.
• Wear Replacement Triggers: Replace friction discs when thickness drops below 70% of original specs; swap rollers and shafts at the first sign of uneven wear or binding.
• Storage Guidelines: Store spare parts in a dry, dust-free container to protect O-rings, friction discs, and fasteners from contamination before installation.

We supply the following spare parts:

Item	Descripcion	Numero de Parte	Modelo	Marca	Medida
2	HANGER ROD	Z6-42	XQ114/6B	TEDA	UNID
3	TAIL CONNECTOR	Z6-64	XQ114/6B	TEDA	UNID
4	HEXAGON SOCKET HEAD SCREW M8 X 20	12AZ-25	XQ140/12YA	TEDA	UNID
5	SLOTTED COUNTERSUNK SCREW M5 X 6	12AZ-56	XQ140/12YA	TEDA	UNID
6	RESET KNOB AXLE	12AZ-70	XQ140/12YA	TEDA	UNID
7	HEXAGON SOCKET HEAD SCREW M10 X 25	12AZ-90	XQ140/12YA	TEDA	UNID
8	SLOTTED COUNTERSUNK SCREW M6 X 15	12AZ-272	XQ140/12YA	TEDA	UNID
9	PIN ALEX	12AZ-118	XQ140/12YA	TEDA	UNID
10	HEXAGON SOCKET HEAD SCREW M10 X 45	12AZ-105	XQ140/12YA	TEDA	UNID
11	OPEN GEAR COVER	12AZ-103	XQ140/12YA	TEDA	UNID
12	STOPPER PIN	12AZ-101	XQ140/12YA	TEDA	UNID
13	RETAINING RING B18	2.6.Z-8	XQ29/2.6	TEDA	UNID
14	HEXAGON SOCKET HEAD SCREW M5 × 16-8.8	2.6.Z-9	XQ29/2.6	TEDA	UNID
15	OPEN GEAR COVER	2.6.Z.1-12	XQ29/2.6	TEDA	UNID
16	OPEN GEAR COVER	2.6.Z.1-12	XQ29/2.6	TEDA	UNID
17	JAW BRACKET	2.6.Z.1-1	XQ29/2.6	TEDA	UNID
18	O-RING 36 × 3.5	2.6.Z-111	XQ29/2.6	TEDA	UNID
19	FRICTION DISC	12AZ-54	XQ140-12YA	TEDA	UNID
20	SLOTTED COUNTERSUNK SCREW M5 X 10	12AZ-55	XQ140-12YA	TEDA	UNID
21	HEXAGON HEAD BOLT M10 X 45	12AZ-66	XQ140-YA	TEDA	UNID
22	BRAKING SPRING	12AZ-32	XQ140-12YA	TEDA	UNID
23	LOCKING NUT	12AZ-67	XQ140-12YA	TEDA	UNID
24	SPRING	12AZ-68	XQ140-12YA	TEDA	UNID
25	STEEL BALL S5	12AZ-69	XQ140-12YA	TEDA	UNID
26	CENTRALIZING ROLLER AXLE	12AZ-63	XQ140-12YA	TEDA	UNID
27	CENTRALIZING ROLLER	12AZ-61	XQ140-12YA	TEDA	UNID
28	ROLLER	12AZ-119	XQ140-12YA	TEDA	UNID
29	COTTER PIN 3 X 20	12AZ-121	XQ140-12YA	TEDA	UNID
30	JAW PLATE FRAME	12AZ-104	XQ140/12YA	TEDA	UNID
32	FRICTION DISC	2.6.Z-51	XQ29/2.6	TEDA	UNID
33	SUPPORT PLATE	2.6.Z-5	XQ29/2.6	TEDA	UNID
34	HEXAGON SOCKET HEAD SCREW M10 × 40	2.6.Z-61	XQ29/2.6	TEDA	UNID
35	CROSS RECESSED COUNTERSUNK HEAD SCREW M5 × 8	2.6.Z-52	XQ29/2.6	TEDA	UNID
36	RESET KNOB	2.6.Z-56	XQ29/2.6	TEDA	UNID
37	CROSS RECESSED COUNTERSUNK HEAD SCREW M5 × 10	2.6.Z-6	XQ29/2.6	TEDA	UNID
38	CENTRALIZING ROLL AXLE	2.6.Z-7	XQ29/2.6	TEDA	UNID
39	CENTRALIZING ROLL	2.6.Z-4	XQ29/2.6	TEDA	UNID
40	HEXAGON SOCKET CAP SCREWS M8 × 16-8.8	2.6.Z.1-9	XQ29/2.6	TEDA	UNID
41	RETAINING PIN	2.6.Z.1-15	XQ29/2.6	TEDA	UNID
42	TAIL CONNECTOR (1)	2.6.Z.128	XQ29/2.6	TEDA	UNID
43	OPEN GEAR COVER	Z6-70	XQ114-6B	TEDA	UNID
44	JAW SET BRACKET	Z6-71	XQ114-6B	TEDA	UNID
45	STOP PIN	Z6-69	XQ114-6B	TEDA	UNID
46	HEXAGON SOCKET HEAD CAP SCREW M8 X 35	Z6-68	XQ114-6B	TEDA	UNID
47	FRICTION PLATE	Z6-46	XQ114-6B	TEDA	UNID
48	HEXAGON SOCKET HEAD CAP SCREW M10 × 25-8.8	Z6-66	XQ114-6B	TEDA	UNID
49	BELOW SUPPORT PLATE	Z6-6	XQ114-6B	TEDA	UNID
50	CROSS RECESSED COUNTERSUNK FLAT HEAD SCREW M5 × 10-4.8	Z6-21	XQ114-6B	TEDA	UNID
51	ROLLER SHAFT	Z6-7	XQ114-6B	TEDA	UNID
52	ROLLER	Z6-5	XQ114-6B	TEDA	UNID
53	FASTENING SCREW SHAFT END RING B18	Z6-9	XQ114/6B	TEDA	UNID
54	HEXAGON SOCKET HEAD CAP SCREW M 5 X 16-8.8	Z6-8	XQ114-6B	TEDA	UNID
55	FRICTION PLATE	Z6-46	XQ114-6B	TEDA	UNID
56	CROSS RECESSED COUNTERSUNK FLAT HEAD SCREW M5 × 8-4.8	Z6-45	XQ114/6B	TEDA	UNID
57	STEEL WIRE 2 × 700	Z6-144	XQ114-6B	TEDA	UNID
58	HEXAGON HEAD PERFORATED SLENDER ROD BOLTS M10 × 40-8.8	Z6-54	XQ114-6B	TEDA	UNID
59	BRAKING SPRING	Z6-28	XQ114-6B	TEDA	UNID
60	SLOTTED CHEESE HEAD SCREW M5 X 20-5.8	Z6-53	XQ114-6B	TEDA	UNID
61	SPRING	Z6-52	XQ114/6B	TEDA	UNID
62	STEEL BALL F 5	Z6-117	XQ114/6B	TEDA	UNID
63	POSITIONING SEAT	Z6-128	XQ114-6B	TEDA	UNID
64	RESET PIN SHAFT	Z6-51	XQ114-6B	TEDA	UNID
65	O-RING 36 × 3.5	3C1-113	XQ114/6B	TEDA	UNID

Field Failure Repair Cases (Real-World XQ114-6B Scenarios)

Case 1: Friction Plate Wear Causing Pipe Slippage

Issue: A Teda XQ114-6B power tong failed to hold drill pipe during break-out, causing dangerous slippage and delayed operations. Root cause was worn Z6-46 friction plates with reduced friction coefficient. Fix: Replacement of Z6-46 friction plates and torque calibration of the tong’s braking system. Outcome: Clamping force restored to full rating, pipe slippage eliminated, and normal handling cycles resumed immediately.

Case 2: Roller Shaft Breakage & Binding

Issue: The power tong’s pipe feeding mechanism jammed due to a broken Z6-7 roller shaft, halting pipe handling. Inspection revealed fatigue failure from heavy load cycling. Fix: Replacement of Z6-7 roller shafts and Z6-5 rollers, with realignment of the centralizing assembly. Outcome: Smooth pipe movement restored, no further binding reported in 1,200+ handling cycles.

Case 3: Loose Fasteners Causing Component Misalignment

Issue: Jaw bracket misalignment occurred due to loose Z6-68 hex socket head cap screws, leading to uneven pipe clamping. Fix: Replacement of worn fasteners and full torqueing of all structural screws per OEM specs. Outcome: Jaw alignment corrected, clamping consistency improved, and fastener loosening prevented long-term.

Frequently Asked Questions (FAQ)

Question	Answer
Are these parts fully compatible with the Teda XQ114-6B power tong only?	Yes, every part is designed and tested specifically for the Teda XQ114-6B model, with matching OEM part numbers and dimensions. Select components also work with supporting Teda models XQ140/12YA and XQ29/2.6.
How do I identify the correct replacement part for my XQ114-6B tong?	Cross-reference your original Teda part number (e.g., Z6-series, 12AZ-series) or component description (hanger rod, friction plate) with our catalog listings for exact matches and easy ordering.
Do these parts meet industry safety and quality standards?	Absolutely. All mechanical parts comply with API Spec 7K for drilling equipment, fasteners meet ISO 898-1 grade 8.8 standards, and every part passes strict wear and load testing for field reliability.

Procurement Guidance & Call to Action

For drilling and well-servicing teams prioritizing Teda XQ114-6B power tong uptime, pipe handling safety, and cost efficiency, these OEM-grade replacement parts are the definitive sourcing solution. Avoid the risks of generic aftermarket parts—including premature wear, fitment errors, and safety compliance gaps—and secure high-quality, field-proven spares tailored to your power tong model.

Whether you’re stocking inventory for routine maintenance, building emergency repair kits, or resolving urgent field failures, our parts provide a reliable, technically compliant supply option. Each component is designed to streamline repairs, reduce labor costs, and keep your pipe handling operations on schedule. Reach out to secure the exact Teda XQ114-6B power tong parts you need, with full technical support to ensure proper part selection and seamless field deployment.
