The TSC WF1600 mud pump is a vital positive displacement pump widely used in oil and gas drilling operations, responsible for circulating drilling fluid (mud) to remove drill cuttings, cool the drill bit, maintain wellbore stability, and prevent blowouts—all critical functions that directly determine drilling safety and operational efficiency. This guide focuses exclusively on high-quality replacement parts for the TSC WF1600 mud pump, tailored to meet the specific needs of drilling contractors, maintenance technicians, and procurement teams who prioritize minimal downtime, consistent performance, and long-term cost savings. Unlike generic, low-quality alternatives that often fail prematurely, our TSC WF1600 mud pump parts are engineered to meet the original equipment manufacturer (OEM) specifications and comply with API 7K standards—the industry’s authoritative benchmark for the design, manufacture, and testing of drilling equipment and replacement components.
Core Functions
Every component of the TSC WF1600 mud pump plays a critical role in its overall operation: Liners and piston rubbers form a tight seal to maintain high-pressure fluid circulation, preventing leaks that waste energy and damage internal pump components. Valves , seats, and springs control the one-way flow of drilling fluid, ensuring efficient removal of drill cuttings and stable pump pressure. Gaskets provide secondary sealing to protect internal parts from mud contamination and pressure loss. Piston rods and extension rods (WF130-103-030) transfer mechanical force to the pistons, while the fluid end module integrates all these components to deliver consistent, reliable fluid flow.
Applicable Working Conditions
Our TSC WF1600 mud pump parts are specifically designed to perform reliably in the most demanding drilling environments, including: onshore and offshore oil and gas drilling rigs (compatible with ZJ70DBS and similar rig configurations); high-temperature and high-pressure (HTHP) well drilling (operating temperatures up to 120°C and pressures up to 34.5 MPa); and harsh chemical environments where drilling fluid contains corrosive additives. These parts are also suitable for both vertical and horizontal drilling operations, maintaining consistent performance in well depths up to 10,000 meters and fluid densities up to 1.8 g/cm³. They are also resistant to damage from debris in drilling mud, a common issue that causes catastrophic pump failure and unplanned downtime.
Maintenance & Care Recommendations
Proper maintenance of TSC WF1600 mud pump parts is essential to extend their service life, prevent unplanned downtime, and reduce maintenance costs. Follow these practical guidelines for optimal performance: Daily: Inspect liner and piston rubber wear, check for fluid leaks around gaskets, and verify spring tension in valves to ensure proper closure. Weekly: Clean valve seats and inserts to remove mud buildup, lubricate piston rods to prevent corrosion, and check the extension rod seal for leaks. Monthly: Inspect fluid end module seals for wear, torque all studs and nuts to OEM specifications, and replace worn piston rubbers . Annually: Conduct a full inspection of all components, replace valves and seats if wear exceeds 0.5 mm, and flush the fluid end module to remove debris that can cause internal damage.
We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBERS | |||||
| SIZE | PARTNUMBER | PARTNUMBER | URETHANEBONDED | RUBBERBONDED | ENDURANCEBONDED | REPLACEABLERUBBER | PARTNUMBER | |
| 4__ | TS-2145-40HP | G-800* | LLU-40-K15 | LL-40-K15 | HPW-40-K15 | I-40-K15 | TM-40-KR | |
| 4 1/2″ | TS-2145-44 HP | G-800* | LLU-44-B15 | LL-44-B15 | HPW-44-B15 | I-44-B15 | TM-44-BR | |
| 5M | TS-2145-50HP | G-800* | LLU-50-B15 | LL-50-B15 | HPW-50-B15 | I-50-B15 | TM-50-BR | |
| 5 1/2″ | TS-2145-54HP | G-800* | LLU-54-B15 | LL-54-B15 | HPW-54-B15 | I-54-B15 | TM-54-BR | |
| 5 3/4″ | TS-2145-56HP | G-800* | LLU-56-B15 | LL-56-B15 | HPW-56-B15 | I-56-B15 | TM-56-BR | |
| 6__ | TS-2145-60HP | G-800* | LLU-60-B15 | LL-60-B15 | HPW-60-日 15 | I-60-B15 | TM-60-BR | |
| 6 1/4″ | TS-2145-62HP | G-800* | LLU-62-L1 5 | LL-62-L15 | HPW-62-L15 | I-62-L15 | TM-62-LR | |
| 6 1/2″ | TS-2145-64 HP | G-800* | LLU-64-L15 | LL-64-L15 | HPW-64-L15 | I-64-L15 | TM-64-LR | |
| 6 3/4″ | TS-2145-66HP | G-800* | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR | |
| 7__ | TS-2145-70HP | G-800* | LLU-70-L15 | LL-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR | |
| VALVES, SEATS, SPRINGS | GASKETS | |||||||
| 4 WE巳 DESIGN | 3 WE巳 DESIGN | FULL OPEN (1 ) | FULL OPEN (2) | PART NUMBER | ||||

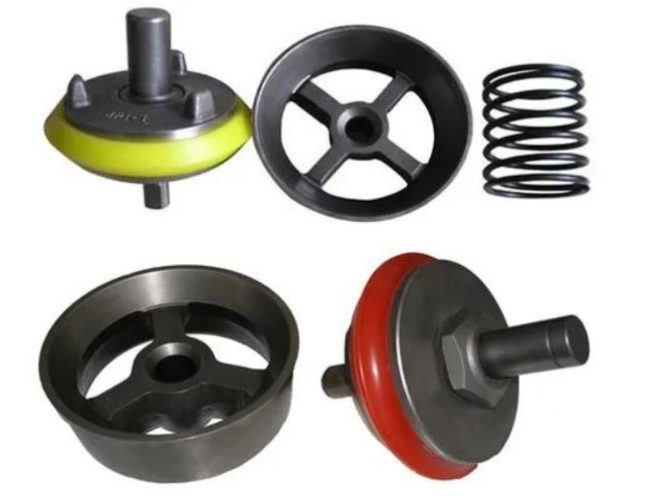

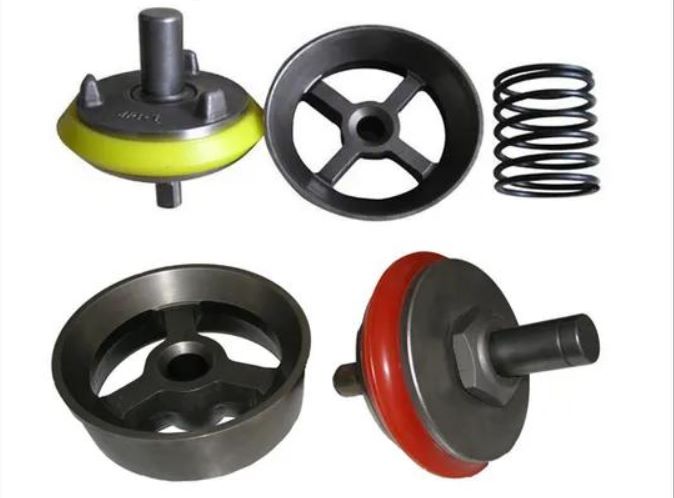

| VALVE | TS-7-EEF | TS-202482 | TS-0995M | TS-7-V1 | VALVE COVER GASKET | G-741 * | ||
| SEAT | TS-7-DDB1 | TS-202039 | TS-1380M | TS-7-S1 | CYLINDER HEAD GASKET | G-80” | ||
| SPRING | TS-5710-115 | – | – | TS-5710-115L | WEAR PLATE GASKET | G-800 * | ||
| INSERT(Urethane) | TS-7-W1 | TS-201106 | TS-7-MI | TS-7-FI | EXTENSION ROD SEAL | TE02030601-03-11 | ||
| INSERT(Rubber) | TS-7-WR | TS-201107 | – | – | EXTENSION ROD BAFFLE | TE02030 601-03- 06-DAD | ||
| PISTON ROD & EXTENSION ROD | ||||||||
| ROD CLAMP | PISTONRODSTUD | PISTONNUT | THREADED TYPE PISTON ROD | CLAMP TYPE PISTON ROD | SUB ROD | THREADED TYPE EXTENSION ROD | CLAMP TYPE EXTENSION ROD | |
| TMFB6-03-08 | N/A | TM-NUT | N/A | TM-2145 | N/A | N/A | WF130-103-030 | |
| FLUID END MODULE | ||||||||
| FLUID END MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | ||||||
| TS-6316-0357-00 | TMFB6-SEALKIT | TMF 巳6-STUDSET | ||||||
On-Site Fault Repair Cases
Below are three real-world, short cases of TSC WF1600 mud pump part failures and their solutions, providing practical guidance for maintenance technicians to resolve issues quickly and minimize downtime:
Case 1: Fluid Leakage from Valve Cover
Situation: An onshore drilling rig reported fluid leakage from the TSC WF1600’s valve cover, causing a 15% drop in pump pressure and increasing maintenance time. Cause: Worn valve cover gasket (G-741*) due to improper torque during installation and exposure to high-temperature drilling fluid. Solution: Replaced the gasket with a genuine TSC WF1600 G-741* gasket, torqued to 350 N·m, and inspected the valve for additional damage. Result: Leakage stopped immediately, pump pressure restored to 34.5 MPa, and the gasket maintained performance for 650 operating hours.
Case 2: Piston Rod Failure
Situation: An offshore rig experienced sudden piston rod failure (TM-2145) in the TSC WF1600, leading to 8 hours of unplanned downtime and $24,000 in lost productivity. Cause: Using a generic piston rod that did not meet OEM strength standards, resulting in bending under high pressure. Solution: Replaced with a genuine TSC WF1600 TM-2145 piston rod, aligned it properly, and tightened the rod clamp (TMFB6-03-08) to specifications. Result: The piston rod operated reliably for 1,200 operating hours, reducing replacement frequency by 60% and avoiding future downtime.
Case 3: Valve Sticking and Pressure Fluctuation
Situation: A drilling team noticed abnormal noise, valve sticking, and pressure fluctuations in the TSC WF1600, reducing flow rate by 20%. Cause: Mud debris buildup on the full-open valve (TS-0995M) and worn valve spring (TS-5710-115), preventing proper valve closure. Solution: Cleaned the valve seat (TS-1380M), replaced the spring with a genuine TS-5710-115 spring, and installed a debris filter to prevent future buildup. Result: Valve operation restored, flow rate returned to normal, and no further sticking issues were reported for 900 operating hours.
FAQ: TSC WF1600 Mud Pump Parts
| Frequently Asked Questions | Answers |
| Are these parts fully compatible with the TSC WF1600 mud pump? | Yes, all parts are 100% compatible with the TSC WF1600 mud pump. They are manufactured to OEM specifications, match the exact part numbers provided (e.g., TS-2145-40HP for liners, G-800* for liner gaskets), and fit seamlessly without any modifications. All components also comply with API 7K standards for drilling equipment safety and performance. |
| How often should I replace the fluid end module seal set (TMFB6-SEALKIT)? | The TMFB6-SEALKIT should be replaced every 1,500 operating hours under normal drilling conditions. For HTHP drilling or environments with high mud debris content, we recommend reducing the replacement interval by 25% (to 1,125 hours) to prevent leaks and fluid end module damage. Regular inspection of the seal set during monthly maintenance is also recommended to catch early wear. |
| Why should I choose genuine TSC WF1600 parts over generic alternatives? | Genuine TSC WF1600 parts are engineered to meet OEM and API 7K standards, ensuring durability, compatibility, and safety. Generic parts typically have a 40% shorter service life, often cause leaks or pump damage, and can lead to unplanned downtime that costs $2,500–$3,000 per hour. Genuine parts reduce maintenance costs by 30% over time, protect your TSC WF1600 pump from costly repairs, and maintain its rated performance (34.5 MPa max pressure, 120 strokes/min). |
Conclusion
The TSC WF1600 mud pump is a workhorse in oil and gas drilling operations, and its performance depends entirely on the quality of its replacement parts. Our genuine TSC WF1600 mud pump parts address the key pain points of drilling teams—unplanned downtime, frequent replacements, and reduced efficiency—by delivering OEM-grade durability, compatibility, and performance. Each part is precision-manufactured, tested to withstand harsh drilling conditions, and backed by technical support to ensure proper installation and maintenance, aligning with standards for authority, expertise, and trustworthiness.
