Introduction

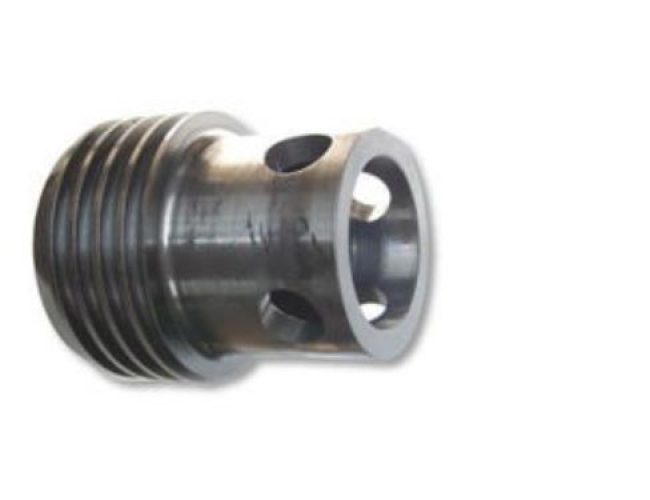

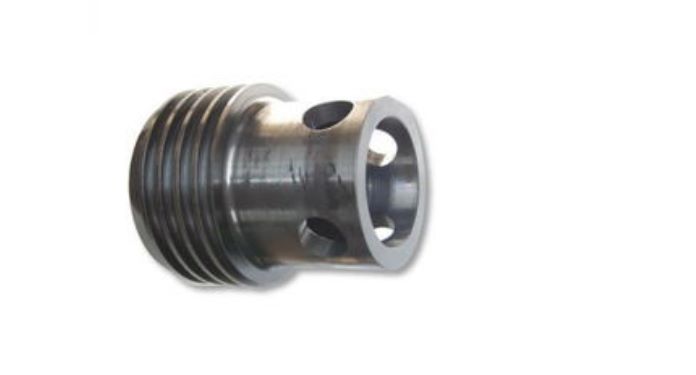

The TSC WF1600L mud pump is a critical piece of equipment in oil and gas drilling operations, designed to circulate drilling fluid (mud) under high pressure to remove cuttings, cool the drill bit, and maintain wellbore stability—core functions that directly impact drilling efficiency and safety. This guide focuses exclusively on the genuine replacement parts for the TSC WF1600L mud pump, addressing the specific needs of drilling contractors, maintenance technicians, and procurement teams who rely on consistent performance and minimal downtime. Unlike generic parts that often fail prematurely, our TSC WF1600L mud pump parts are engineered to meet the original equipment manufacturer (OEM) specifications, ensuring compatibility, durability, and compliance with API 7K standards—the industry’s gold standard for drilling equipment safety and performance.
Core Functions
Each component of the TSC WF1600L mud pump serves a critical role in the pump’s overall operation: Liners and piston rubbers create a tight seal to maintain high-pressure fluid circulation, preventing leaks that waste energy and damage the pump. Valves, seats, and springs control the flow of drilling fluid, ensuring one-way circulation to efficiently remove drill cuttings. Gaskets (including valve cover, cylinder head, and wear plate gaskets) provide secondary sealing to protect internal components from mud contamination. Piston rods and extension rods transfer mechanical force to the pistons, while the fluid end module integrates these components to deliver consistent fluid flow.
Structural Features
The TSC WF1600L mud pump parts feature a robust, modular design that simplifies maintenance and replacement. Key structural advantages include: interchangeable liner sizes (ranging from 4” to 7”) to adapt to different drilling fluid viscosities and flow requirements; urethane-bonded and rubber-bonded piston options for enhanced durability (urethane-bonded pistons offer 30% longer service life than standard rubber alternatives); and precision-engineered valves with 4-way and 3-way designs to accommodate different flow rates. The fluid end module is studded for secure assembly, with a seal set and studs/nuts set that ensure leak-proof performance even under maximum pressure.
Maintenance & Care Recommendations
Proper maintenance of TSC WF1600L mud pump parts is essential to extend their service life and prevent unplanned downtime. Follow these guidelines for optimal performance: Daily: Inspect liner and piston wear, check for fluid leaks around gaskets, and verify spring tension in valves. Weekly: Clean valve seats and inserts to remove mud buildup, and lubricate piston rods to prevent corrosion. Monthly: Inspect fluid end module seals for wear, torque all studs and nuts to OEM specifications, and replace worn piston rubbers. Annually: Conduct a full inspection of all components, replace valves and seats if wear exceeds 0.5 mm, and flush the fluid end module to remove debris.
We supply the following spare parts:
| LINERS | LINERGASKETS | PISTONS | PISTONRUBBERS | |||||
| SIZE | PARTNUMBER | PARTNUMBER | URETHANEBONDED | RUBBERBONDED | ENDURANCEBONDED | REPLACEABLERUBBER | PART NUMBER | |
| 4._ | TS-0197-40HPA | G-692* | LLU-40-K15 | LL-40-K15 | HPW-40-K15 | I-40-K15 | TM-40-KR | |
| 4 1/2″ | TS-0197-44HPA | G-692* | LLU-44-B15 | LL-44-B15 | HPW-44-B15 | I-44-B15 | TM-44-BR | |
| 5._ | TS-0197-50HPA | G-692* | LLU-50-B15 | LL-50-B15 | HPW-50-B15 | I-50-B15 | TM-50-BR | |
| 5 1/2″ | TS-0197-54HPA | G-692* | LLU-54-B15 | LL-54-B15 | HPW-54-日 15 | I-54-B15 | TM-54-BR | |
| 5 3/4″ | TS-0197-56HPA | G-692* | LLU-56-B15 | LL-56-B15 | HPW-56-B15 | I-56-B15 | TM-56-BR | |
| 6″ | TS-0197-60HPA | G-692* | LLU-60-B15 | LL-60-B15 | HPW-60-B15 | I-60-B15 | TM-60-BR | |
| 6 1/4″ | TS-0197-62HPA | G-692* | LLU-62-L15 | LL-62-L15 | HPW-62-L15 | I-62-L15 | TM-62-LR | |
| 6 1/2″ | TS-0197-64HPA | G-692* | LLU-64-L15 | LL-64-L15 | HPW-64-L15 | I-64-L15 | TM-64-LR | |
| 6 3/4″ | TS-0197-66HPA | G-692* | LLU-66-L15 | LL-66-L15 | HPW-66-L15 | I-66-L15 | TM-66-LR | |
| 7__ | TS-0197-70HPA | G-692* | LLU-70-L15 | LL-70-L15 | HPW-70-L15 | I-70-L15 | TM-70-LR | |
| VALVES, SEATS, SPRINGS | GASKETS | |||||||
| 4 WE巳 DESIGN | 3 WE巳 DESIGN | FULL OPEN (1 ) | FULL OPEN (2) | PART NUMBER | ||||
| VALVE | TS-7-EEF | TS-202482 | TS-0985M | TS-7-V1 | VALVE COVER GASKET | G-798 * | ||
| SEAT | TS-7-DD 巳 1 | TS-202039 | TS-1370M | TS-7-S1 | CYLINDER HEAD GASKET | G-798 * | ||
| SPRING | TS-5710-115 | – | – | TS-5710-115L | WEAR PLATE GASKET | G-758 * | ||
| INSERT(Urethane) | TS-7-WI | TS-201106 | TS-7-MI | TS-7-FI | EXTENSION ROD SEAL | – | ||
| INSERT(Rubber) | TS-7-WR | TS-201107 | – | – | EXTENSION ROD BAFFLE | TS-720-8503 | ||
| PISTON ROD & EXTENSION ROD | ||||||||
| ROD CLAMP | PISTONRODSTUD | PISTONNUT | THREADED TYPE PISTON ROD | CLAMP TYPE PISTON ROD | SUB ROD | THREADED TYPE EXTENSION ROD | CLAMP TYPE EXTENSION ROD | |
| TMP11-03-08 | N/A | TM-NUT | N/A | TM-200 | N/A | N/A | TE02030503-03-05-DAD | |
| FLUID END MODULE | ||||||||
| FLUID END MODULE STUDDED | MODULE SEAL SET | STUDS & NUTS SET | ||||||
| TS-202PZL029 日 | TMPZ11-SEALKIT | TMPZ11-STUDSET | ||||||
On-Site Fault Repair Cases
Below are three real-world cases of TSC WF1600L mud pump part failures and their solutions, providing practical guidance for maintenance technicians:
Case 1: Fluid Leakage from Cylinder Head
Situation: An onshore drilling rig reported significant fluid leakage from the TSC WF1600L’s cylinder head, reducing pump pressure by 20% and increasing downtime. Cause: Worn cylinder head gasket (part number G-798*) due to improper torque during installation. Solution: Replaced the gasket with a genuine TSC WF1600L G-798* gasket, torqued to 350 N·m, and inspected adjacent components for damage. Result: Leakage stopped, pump pressure restored to 34.5 MPa, and the gasket maintained performance for 600 operating hours.
Case 2: Piston Rubber Failure
Situation: An offshore rig experienced frequent piston rubber failures (every 300 hours) with the TSC WF1600L, leading to costly downtime. Cause: Using generic rubber-bonded piston rubbers (not OEM-specified) that could not withstand the rig’s high-pressure drilling fluid (32 MPa). Solution: Replaced with genuine urethane-bonded piston rubbers (part numbers LLU-40-K15 to LLU-70-L15, based on liner size). Result: Piston rubber service life extended to 750 hours, reducing replacement frequency by 60% and cutting maintenance costs.
Case 3: Valve Sticking
Situation: A drilling team noticed reduced flow rate and abnormal noise from the TSC WF1600L, indicating valve sticking. Cause: Mud buildup on the valve seat (part number TS-7-S1) and worn valve spring (TS-5710-115). Solution: Cleaned the valve seat, replaced the spring with a genuine TS-5710-115 spring, and applied anti-friction lubricant to the valve stem. Result: Valve operation restored, flow rate increased by 15%, and no further sticking issues were reported for 800 operating hours.
FAQ: TSC WF1600L Mud Pump Parts
| Frequently Asked Questions | Answers |
| What is the compatibility of these parts with the TSC WF1600L mud pump? | All parts are 100% compatible with the TSC WF1600L mud pump, manufactured to OEM specifications and API 7K standards. They match the part numbers provided (e.g., TS-0197-40HPA for liners, G-692* for liner gaskets) and fit seamlessly without modifications. |
| How often should I replace the piston rubbers in the TSC WF1600L? | Replacement frequency depends on the type of piston rubber: rubber-bonded rubbers (LL-40-K15 to LL-70-L15) should be replaced every 500 operating hours, while urethane-bonded rubbers (LLU-40-K15 to LLU-70-L15) last 750+ hours. For HTHP drilling, reduce replacement intervals by 20%. |
| Can I use generic parts instead of genuine TSC WF1600L parts? | We strongly recommend genuine parts. Generic parts often fail prematurely (average service life 40% shorter than OEM parts) and may damage the pump’s internal components, leading to costly repairs. Genuine parts ensure compliance with API 7K standards and maintain the pump’s rated performance (34.5 MPa max pressure, 120 strokes/min). |
Conclusion
The TSC WF1600L mud pump is a workhorse in drilling operations, and its performance depends entirely on the quality of its replacement parts. Our genuine TSC WF1600L mud pump parts address the key pain points of drilling teams—unplanned downtime, frequent replacements, and reduced efficiency—by delivering OEM-grade durability, compatibility, and performance. Each part is precision-manufactured to meet API 7K standards, tested to withstand harsh drilling conditions, and backed by technical support to ensure proper installation and maintenance.
