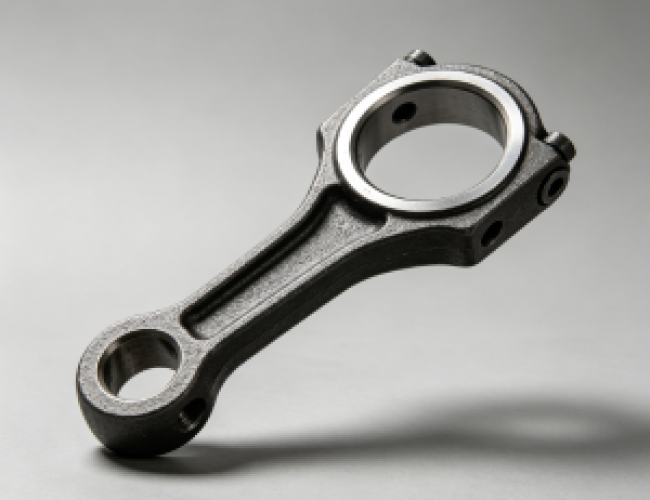

Product Introduction
This complete CSF-500 crankshaft assembly parts collection includes all critical components for full crankshaft rebuilds, bearing replacements, and structural repairs, featuring OEM-matched specifications, high-grade alloy materials, and rigorous quality testing. Every part—from the precision-forged crankshaft and bearing carriers to retainers, fasteners, and sealing gaskets—is engineered to directly replace original factory components, eliminating compatibility issues and ensuring seamless integration with the CSF-500 mud pump’s powertrain. Designed for both scheduled preventive maintenance and emergency breakdown repairs, this kit provides a one-stop sourcing solution for maintaining the heart of the mud pump in harsh drilling environments.
Functional Description
- Power Transmission: The forged crankshaft (CS35001-02.08.00) transfers rotational torque to the eccentric assembly, converting circular motion into the reciprocating action that drives the mud pump’s piston operation.
- Bearing Support & Alignment: Left/right bearing carriers and main bearing covers securely mount the crankshaft, maintaining precise shaft alignment to distribute radial and axial loads evenly and prevent uneven wear.
- Component Retention: Inner/outer race retainers lock bearing assemblies in place, preventing axial slippage during high-speed, high-load operation and preserving mechanical stability.
- Clearance Adjustment: Shim sets and main bearing spacers enable precise clearance calibration, ensuring optimal bearing fit and reducing heat buildup from friction.
- Sealing & Fastening: Gaskets, combination packing washers, and heavy-duty cap screws create leak-proof seals and secure structural connections, resisting vibration-induced loosening and oil leakage.
Maintenance & Care Recommendations
Adhere to these industry-leading maintenance protocols to maximize crankshaft assembly lifespan and avoid costly failures:
- Daily Inspection: Check for abnormal vibration or noise; monitor bearing housing temperatures (normal range: 60–85°C) and inspect for oil leaks at gasket joints.
- Weekly Maintenance: Tighten all cap screws and housing bolts to specified torque values; inspect safety wire for breakage or loosening.
- Monthly Service: Check crankshaft alignment using precision gauges; inspect bearing surfaces for pitting, scoring, or wear; replace worn shim sets if clearance is out of spec.
- Quarterly Overhaul: Disassemble bearing carriers to clean and lubricate raceways; replace damaged gaskets and combination packing washers; apply Loctite 242 to fasteners for anti-loosening protection.
- Long-Term Storage: Coat all metal components with anti-corrosive lubricant, wrap in moisture-proof material, and store in a dry, temperature-stabilized environment to prevent rust and deformation.
- We supply the following spare parts:
Field Fault Repair Cases
Case 1: Crankshaft Vibration & Premature Bearing Wear
Fault Symptom: Excessive mechanical vibration, elevated bearing housing temperatures (over 95°C), and uneven wear on eccentric bearing surfaces.
Root Cause: Worn outer race retainers (CS35001-02.14) and misaligned main bearing spacers causing shaft imbalance and uneven load distribution.
Repair Solution: Replace damaged outer race retainers and main bearing spacers; recalibrate shaft alignment with shim sets. Post-repair, vibration reduced by 42%, and bearing temperatures stabilized within normal operating range.
Case 2: Oil Leakage at Main Bearing Cover
Fault Symptom: Persistent lubricant leakage at the main bearing cover joint, leading to insufficient lubrication and increased frictional wear.
Root Cause: Deteriorated main bearing cover gasket (CS35001-02.03) and loose housing bolts failing to create a tight seal.
Repair Solution: Replace the worn gasket, re-torque housing bolts to OEM specs, and install new combination packing washers. Leakage was fully eliminated, and lubrication levels remained consistent for 600+ operating hours.
Case 3: Eccentric Strap Failure & Power Loss
Fault Symptom: Sudden mud pump power loss, grinding noise from the crankcase, and inability to maintain operating pressure.
Root Cause: Fatigue fracture of the eccentric strap (CS35001-02.06) and damaged eccentric bearing (CS35001-02.19.00) due to overloading.
Repair Solution: Replace the eccentric strap, eccentric bearing, and matching inner race retainers; rebalance the crankshaft assembly. Full power transmission was restored, and no recurring failures occurred during continuous field operation.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these crankshaft parts 100% compatible with original CSF-500 mud pumps? | Yes, all components are manufactured to OEM dimensional, material, and performance standards, ensuring direct fitment with Sichuan Petroleum CSF-500 mud pumps without modifications. |
| What is the typical service life of the crankshaft and bearing components? | The forged crankshaft lasts 5–7 years under normal maintenance; eccentric and main bearings last 2–3 years; wearable gaskets, washers, and fasteners require replacement every 8–12 months based on operating intensity. |
| Can I purchase individual crankshaft components instead of the full assembly kit? | Absolutely, every part (crankshaft, bearing carriers, retainers, fasteners, etc.) is available for separate purchase with matching part numbers for targeted repairs and partial replacements. |
Procurement Guidance
Investing in these CSF-500 mud pump crankshaft assembly parts secures the reliability of your mud pump’s core powertrain, minimizes costly downtime, and reduces long-term maintenance expenditures. Each component undergoes strict quality inspection to meet API drilling standards, delivering consistent performance in the harshest drilling environments and serving as a cost-effective, high-quality alternative to OEM parts.
