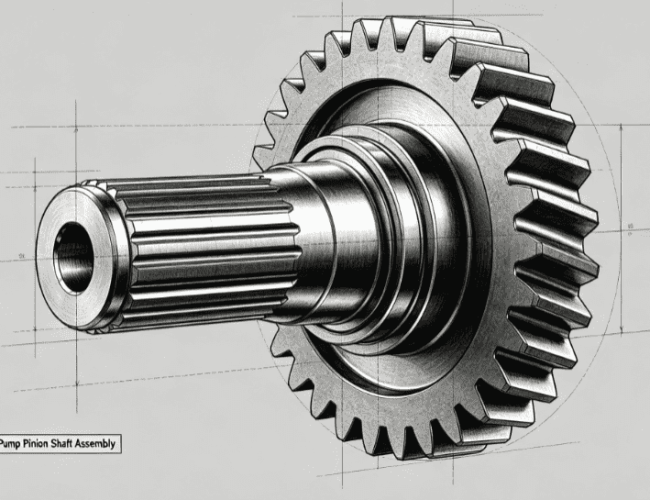

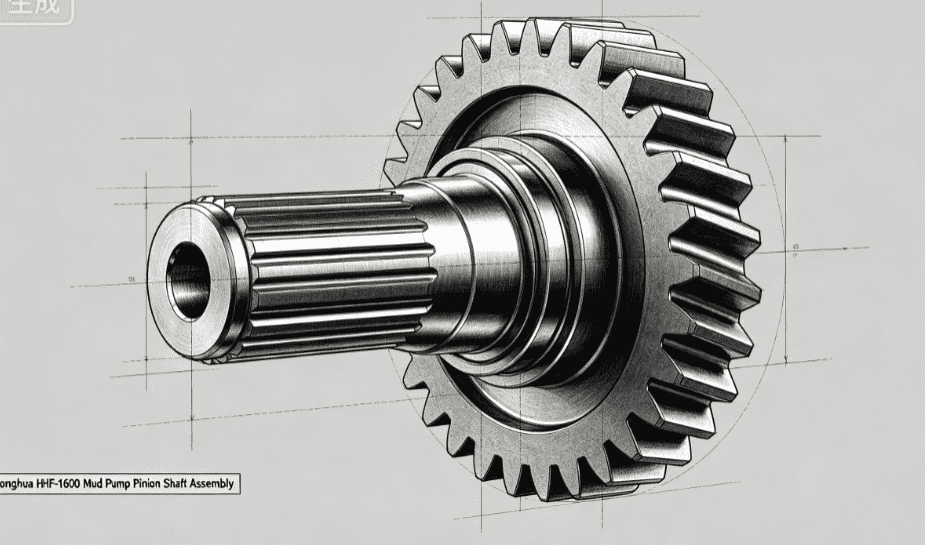

Product Introduction
This full HHF-1600 pinion shaft assembly parts collection includes all essential components of the pump’s pinion shaft system, such as the pinion shaft (available in P/N 11-3131-0302/11-3161-0302), key (2″*2″*241.3), seal sleeves, end covers, gaskets (end cover, bearing housing, oil trough), bearing housings, retainer rings, oil troughs, high-strength bolts, spring washers (sizes 14, 16, 22), oil seals (9.125″*10.375″*0.625″), bearings (4G32844H), and a flange. Each part is precision-crafted to directly replace original factory components, eliminating compatibility gaps and simplifying on-site installation, routine maintenance, and emergency repairs. Designed for preventive maintenance, full pinion shaft overhauls, and targeted component replacements, this kit provides a one-stop sourcing solution for durable, high-performance parts built to withstand the high-torque, high-vibration conditions of mud pump operation.
Functional Description
- Power Transmission: The pinion shaft works with the pump’s gear system to transfer rotational power from the drive unit to the crankshaft, converting this power into the linear motion needed to operate the fluid end and circulate drilling mud.
- Bearing Support & Friction Reduction: The 4G32844H bearings provide stable support for the pinion shaft, minimizing friction between rotating components and ensuring smooth, efficient operation even under high torque loads.
- Leak-Proof Protection: Oil seals (9.125″*10.375″*0.625″), seal sleeves, and gaskets create a tight, reliable seal around the pinion shaft and bearing housings, preventing lubricating oil leakage and protecting internal components from dirt, dust, and drilling mud contamination.
- Structural Stability & Alignment: Bearing housings, end covers, retainer rings, and high-strength bolts (1/2-13UNC, 7/8-9UNC, 5/8-11UNC) secure the pinion shaft assembly, maintaining proper alignment and resisting vibration-induced loosening during continuous operation.
- Lubrication Management: Oil troughs collect and distribute lubricating oil to the bearings and pinion shaft, ensuring consistent lubrication to reduce wear and extend component life.
Maintenance & Care Recommendations
Follow these industry-standard protocols to maximize component lifespan and ensure stable operation of the HHF-1600 mud pump pinion shaft assembly:
- Daily Inspection: Check for oil leaks around end covers, bearing housings, and oil seals; monitor the pinion shaft assembly for abnormal noise or vibration; inspect fasteners and spring washers for tightness.
- Weekly Maintenance: Tighten bolts to OEM torque specifications (45~55 N·m for 1/2-13UNC, 120~140 N·m for 7/8-9UNC); check lubricating oil levels and quality; clean oil troughs to remove debris and sediment.
- Monthly Service: Inspect oil seals and gaskets for wear or damage; check 4G32844H bearings for abnormal play or noise; add fresh lubricating oil as needed and replace oil filters.
- Quarterly Overhaul: Disassemble the pinion shaft assembly; clean and inspect the pinion shaft for gear wear or damage; replace worn bearings, oil seals, and gaskets; reapply anti-seize compound to bolts and reassemble with proper alignment.
- Storage Guidelines: Store metal components (pinion shaft, bearing housings, flange) in a dry, dust-proof area with anti-rust oil coating; store seals, gaskets, and spring washers in a cool, dry environment away from UV light and high temperatures.
- We supply the following spare parts:
| HHF-1600 Pinion Shaft Assembly | ||
| No. | P/N(HHF-1300/1600) | Description |
| 1 | 11-3161-0301 | Key, 2″*2″*241.3 |
| 2 | 11-3131-0302/11-3161-0302 | Pinion Shaft |
| 3 | 11-3161-0303 | Sleeve, Seal |
| 4 | 11-3161-0304 | End Cover |
| 5 | 11-3161-0305 | Gasket, End cover |
| 6 | 11-3161-0306 | Gasket, Bearing housing |
| 7 | 11-3161-0307 | Bearing Housing |
| 8 | 11-3161-0308 | Retainer Ring |
| 9 | 11-3161-0309 | Gasket, Oil trough |
| 10 | 11-3161-0310-00 | Oil trough |
| 11 | 11-3161-0314 | Bolt, 1/2-13UNC-2A*35 |
| 12 | 11-3161-0315 | Bolt, 7/8-9 UNC-2A*52 |
| 13 | 11-3161-0311 | Oil Seal, 9.125″*10.375″*0.625″ |
| 14 | 11-3161-0312 | Bearing, 4G32844H |
| 15 | B0093-22-59 | Spring Washer, 22 |
| 16 | B0093-14-59 | Spring Washer, 14 |
| 17 | 11-3161-0313 | Flange |
| 18 | 11-3161-0316 | Bolt, 5/8-11UNC-2A*50 |
| 19 | B0093-16-59 | Spring Washer, 16 |
Field Fault Repair Cases
Case 1: Oil Leakage from Bearing Housings
Fault Symptom: Lubricating oil leakage around the bearing housings, reduced oil levels in the power end, and increased friction between the pinion shaft and bearings.
Root Cause: Worn oil seals (9.125″*10.375″*0.625″) and damaged bearing housing gaskets, causing seal failure under high rotational speed and pressure.
Repair Solution: Replace the worn oil seals and gaskets, clean the bearing housing interior, and apply fresh lubricating oil. Leakage was completely eliminated, and bearing temperature dropped by 15°C during operation.
Case 2: Bearing Failure & Abnormal Vibration
Fault Symptom: Loud abnormal noise from the pinion shaft assembly, excessive vibration, and reduced power transmission efficiency, leading to pump performance degradation.
Root Cause: Contaminated lubricating oil caused premature wear to the 4G32844H bearings, resulting in internal damage and loss of bearing integrity.
Repair Solution: Replace the damaged bearings, flush the lubrication system to remove contaminants, and refill with fresh ISO VG 460 gear oil. The pinion shaft resumed smooth operation, and vibration was reduced by 80%.
Case 3: Pinion Shaft Gear Wear & Power Loss
Fault Symptom: Reduced pump output pressure, gear slipping noise from the power end, and uneven rotational motion of the pinion shaft.
Root Cause: Abrasive debris in the lubrication system caused excessive wear to the pinion shaft gear teeth, reducing power transmission efficiency.
Repair Solution: Replace the worn pinion shaft (P/N 11-3131-0302/11-3161-0302), clean the gear meshing area, and replace the oil filter. Power transmission was fully restored, and pump pressure returned to normal levels.
Frequently Asked Questions (FAQ)
| Question | Answer |
| Are these pinion shaft parts compatible with both HHF-1600 and HHF-1300 mud pumps? | Yes, all pinion shaft assembly components are engineered to OEM specifications for full cross-compatibility with Honghua HHF-1600 and HHF-1300 quintuple mud pumps, requiring no modifications for installation. |
| What is the model of the bearing included in this parts kit, and what is its load capacity? | The kit includes 4G32844H bearings, which have a rated dynamic load of 520kN and static load of 980kN, designed to withstand the high-torque demands of HHF-1600/1300 mud pumps. |
| Can I purchase individual components (pinion shaft, bearings, oil seals) instead of the full kit? | Absolutely, every pinion shaft component (pinion shaft, bearings, oil seals, gaskets, bolts) is available for separate purchase with matching OEM part numbers for targeted repairs and partial replacements. |
Procurement Guidance & Call to Action
Investing in these Honghua HHF-1600 mud pump pinion shaft assembly parts ensures smooth, efficient power transmission, minimizes gear and bearing failures, protects the entire mud pump power end, and drastically reduces unplanned downtime and long-term maintenance costs. Each component undergoes strict torque testing, wear resistance testing, and fit verification to meet API 7K drilling standards, delivering OEM-equivalent performance and durability in the harshest drilling conditions.
Whether you need a complete pinion shaft assembly, replacement pinion shaft (P/N 11-3131-0302/11-3161-0302), 4G32844H bearings, oil seals, or fasteners for routine maintenance or emergency repairs, this product line provides full coverage for all HHF-1600 and HHF-1300 pinion shaft needs. These parts not only meet rigorous procurement quality standards but also serve as a trusted technical reference for diagnosing and resolving pinion shaft leakage, bearing failure, and gear wear issues.
